Era Egress BS8621 Nightlatch 40mm - 1530

£51.59

(£42.99 ex VAT)

sku: ERA1530
  • Conforms to BS 8621 standards for high security and emergency egress requirements
  • Internal keyless lever ensures rapid exit without a key in the event of a fire
  • Automatic deadlocking mechanism prevents the bolt from being retracted by shimming
  • Integral cylinder pull provides enhanced protection against drilling and external tampering
  • Suitable for residential timber doors in multi-occupancy buildings or flats
  • Versatile design for both new installations and high-security replacements

Era Egress BS8621 Range of mortice locks which can be keyed alike together

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Secured By Design Icon
star Recommended
9/10 Security Rating
tick Key Profile: 6 Pin

The ERA Egress BS8621 Nightlatch is a high-security rim lock specifically designed to balance robust property protection with essential life safety. Compliant with BS 8621, this mechanism is engineered for timber doors where fire safety regulations or building codes require a keyless means of escape from the inside.

Functionally, the lock features an automatic deadlocking system. This ensures that once the door is closed, the bolt is securely locked and cannot be retracted using shimming or 'credit card' techniques. For additional physical security, the unit incorporates an integral cylinder pull which offers significant resistance against drilling and external manipulation attempts.

Typically used on residential front doors, particularly within flats or apartments, this nightlatch serves as both a primary locking point and an emergency exit solution. It is suitable for new door preparations or as an upgrade to existing standard rim locks to bring a property up to British Standard security levels. Please note that while these units can be keyed alike for convenience, such modifications may void the official BS 8621 certification.

  • Internal keyless lever for rapid emergency egress
  • Automatic deadlocking to prevent external manipulation
  • Integral cylinder pull for drill resistance
  • Designed for timber door applications

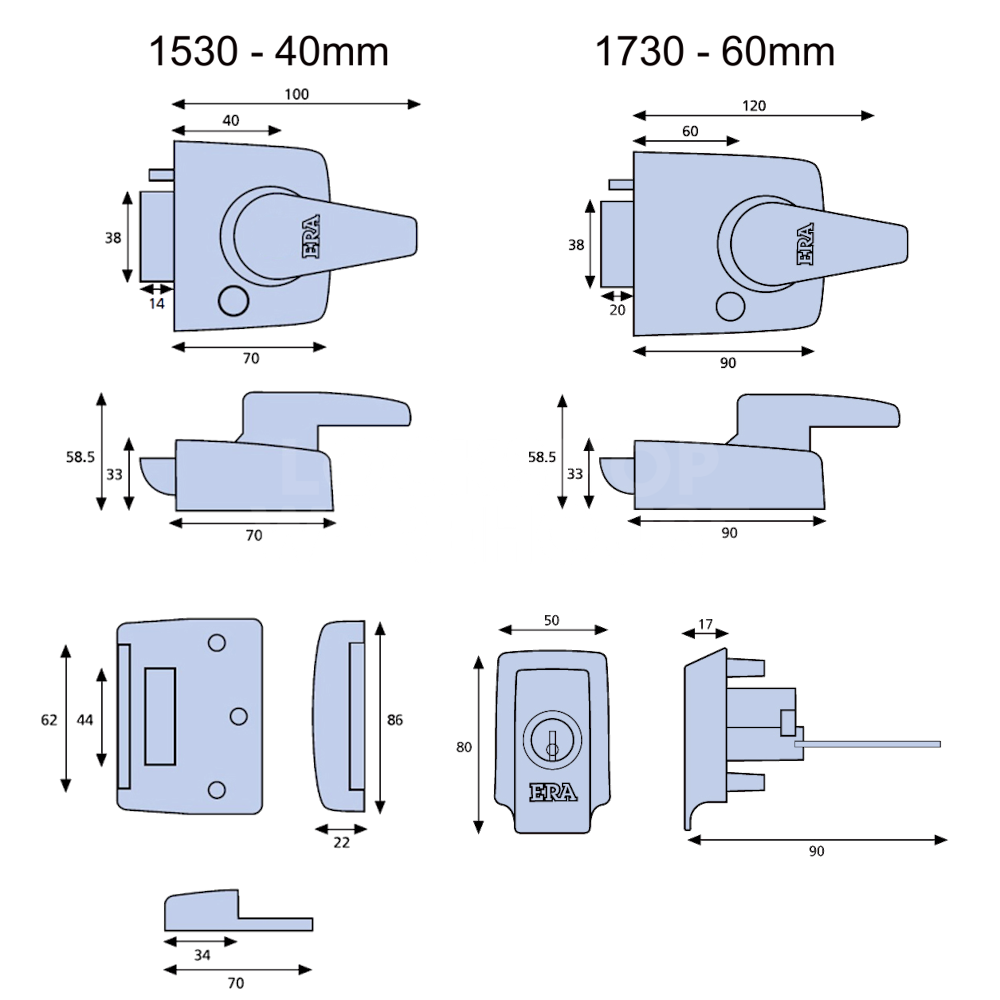

Dimensions Image: Era Egress BS8621 Nightlatch 40mm - 1530
Part Size (mm)
Backset 40
Bolt Length 20

Brand

SKU

ERA1530

Box Contents

3 keys

fixing screws

nightlatch

Key Profile

Key Profile: 6 Pin

FAQs

No unfortunately not, the BS3621 nightlatches can not be reversed. The only way to do this is to install a standard nightlatch from our outward opening nightlatch section and then also install a BS3621 deadlock. This deadlock will give you the insurance rating required.

You need to make sure the lock you fit is NON deadlocking. This means that you can not lock people into the property. There are a few nightlatches designed for these doors. The best is the Yale PBS3 or PBS4 or a more standard model would be the Yale 88 or 84.

The best locks for these would be the a rollerbolt style lock with a masterkeyed cylinder. I would not recommend installing a standard Nightlatch on these doors as the tenants can lock themselves out if they close the door behind them. We can supply these locks for you on a masterkey if you require or keyed differ if you would prefer.

The backset on these locks is the distance from the edge of the door to the center of the Rim Cylinder. This is the large 32mm hole drilled through the door. There are 2 main sizes of these, 60mm or 40mm. Easiest way to find out what you have is to measure from outside of the door from the edge to the center of the keyhole. If you have a solid door you should use the 60mm backset locks, if you have a glass panelled door then you may need to use the 40mm backset. If your current lock is 50mm backset you will need to see our Union locks as only Union made a 50mm backset lock in the past.

There are different levels of security you can have with all locks. The standard locks (i.e. Yale 77, Yale 88) , then the mid level locks which can be key deadlocked from outside ( Yale 89, Union nightlatches). The double locking versions are only suitable for homes with other means of exit as you can lock people inside the house if not careful.

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

The Era Egress BS8621 Nightlatch features an internal keyless lever. This design ensures that anyone inside the property can exit rapidly without needing a key, making it ideal for fire safety and meeting BS 8621:2007 standards for emergency escape in residential properties.

Once the door is closed, the automatic deadlocking mechanism engages. This prevents the bolt from being retracted using 'credit card' or shimming techniques, providing robust protection against common methods of forced entry.

Yes, we can provide these locks keyed alike. However, it is important to note that once the cylinders are modified for this service, the lock will no longer carry the official BS 8621 rating as the adjustment occurs outside of the original factory-controlled environment.

The Era Egress Nightlatch features a versatile design specifically engineered to replace most existing timber front door rim locks. This makes it an ideal choice for upgrading your home security to British Standard levels without extensive door modifications.

Related Products

skip to Extra Key for Supplied ERA 1830 and 1930 Nightlatches

Extra Key for Supplied ERA 1830 and 1930 Nightlatches

£3.60

(£3.00 ex VAT)

sku: ERA-EXK2
  • Specifically designed for compatibility with ERA 1830 and 1930 series nightlatches
  • Precision-cut profile ensures smooth operation within the cylinder mechanism
  • Provides a direct replacement or additional spare key for existing lock sets
  • Manufactured for durability to withstand frequent daily use
  • Suitable for residential applications requiring multiple user access
  • Compatible with standard rim cylinders provided with these specific models
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

This replacement key is specifically engineered for use with the ERA 1830 and 1930 nightlatch series. It functions as a precision-manufactured component designed to operate the standard rim cylinders typically supplied with these front door security locks.

Typical applications include providing additional access for new residents, housekeepers, or as a precautionary spare in case of loss. Because these keys are manufactured to the original brand specifications, they ensure seamless compatibility and prevent the mechanical wear often associated with generic duplicates.

  • Designed for use with ERA traditional nightlatch cylinders
  • Ideal for both new installations requiring extra keys and maintenance of existing locks
  • Ensures reliable engagement with the internal pin tumblers for consistent security performance

Brand

SKU

ERA-EXK2

Box Contents

1 key

skip to ERA Egress Euro Deadlock - BS8621

ERA Egress Euro Deadlock - BS8621

£59.99

(£49.99 ex VAT)

sku: ERA233

High security mortice deadlock with keyless egress for easy exit in emergencies. Supplied complete with 6 pin Euro Cylinder and thumbturn on the inside of the door.


Features
Conforms to the BS 8621:2007 (BS 3621:2007 for escape locks). Meets the demands of insurance companies and the Police
Supplied with Euro Cylinder with thumbturn on the inside of the door. Enables easy exit in emergencies.
20mm bolt throw for additional strength and security
Designed with hardened steel plates to resist drilling and four hardened steel rollers in the deadbolt to resist hacksawing
Bolt through heavy duty security roses protect the cylinder

Case Size

Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

star Recommended
heavy-duty Heavy Duty
9/10 Security Rating
tick British Standard - BS8621
tick Key Profile: Standard

ERA Egress Details

The British Standard (BS) Euro Cylinder Keyless Egress Deadbolt Mortice Door Lock is a BS accredited sashlock in a classic design. This lock conforms to British Standard 8621:2007 which mirrors the BS 3621:2007 but for 'escape locks' and meets the tough criteria/requirements laid down by insurance companies and the police. Locks meeting these requirements are classified as providing keyless egress at all times. This applies where there is a requirement for an easy action method of opening an external door from the inside with no need for keys or similar devices for unlocking. Especially relevant for entrance doors in multi-residential and other buildings. A keyless lever on the inside of the door ensures it is possible to make an emergency escape in an event of fire. The BS Keyless Egress Lock is supplied complete with a 6 pin Euro Cylinder, resistant against picking or drill attacks, with thumbturn on the inside of the door providing the keyless egress for emergencies. Bolt through heavy duty security roses protect the cylinder. High security and strength are delivered by a 20mm bolt throw in every lock. Designed with hardened steel plates to resist drilling and four hardened steel rollers in the deadbolt to resist hacksawing. Available in 64mm (2 ½") and 76mm (3") in brass effect, satin and a range of chrome effect finishes.

Dimensions Image: ERA Egress Euro Deadlock - BS8621
Part Min (mm) Max (mm)
Backset 44 57
Bolt Length 23 -
Case Width 67 79
Case Height 89 -
Forend Width 26 -
Forend Length 134 -
Strike Plate Width 30 -
Strike Plate Length 180 -
Dimensions Image: ERA Egress Euro Deadlock - BS8621

Brand

SKU

ERA233

Box Contents

3 keys

strike plate

fixing screws

mortice lock

cylinder screw

security escutcheons

euro cylinder

Certifications

tick British Standard - BS8621

Key Profile

Key Profile: Standard
