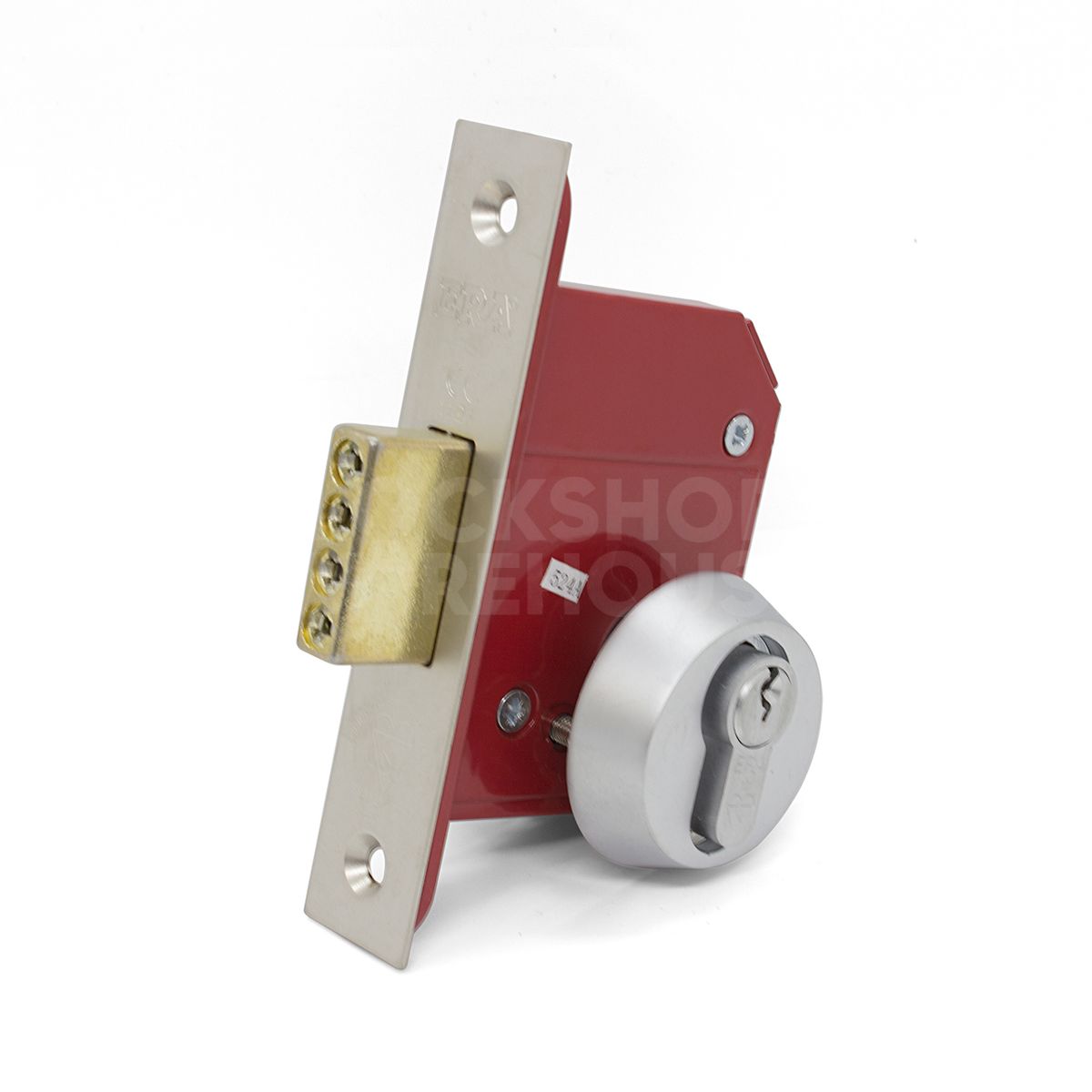

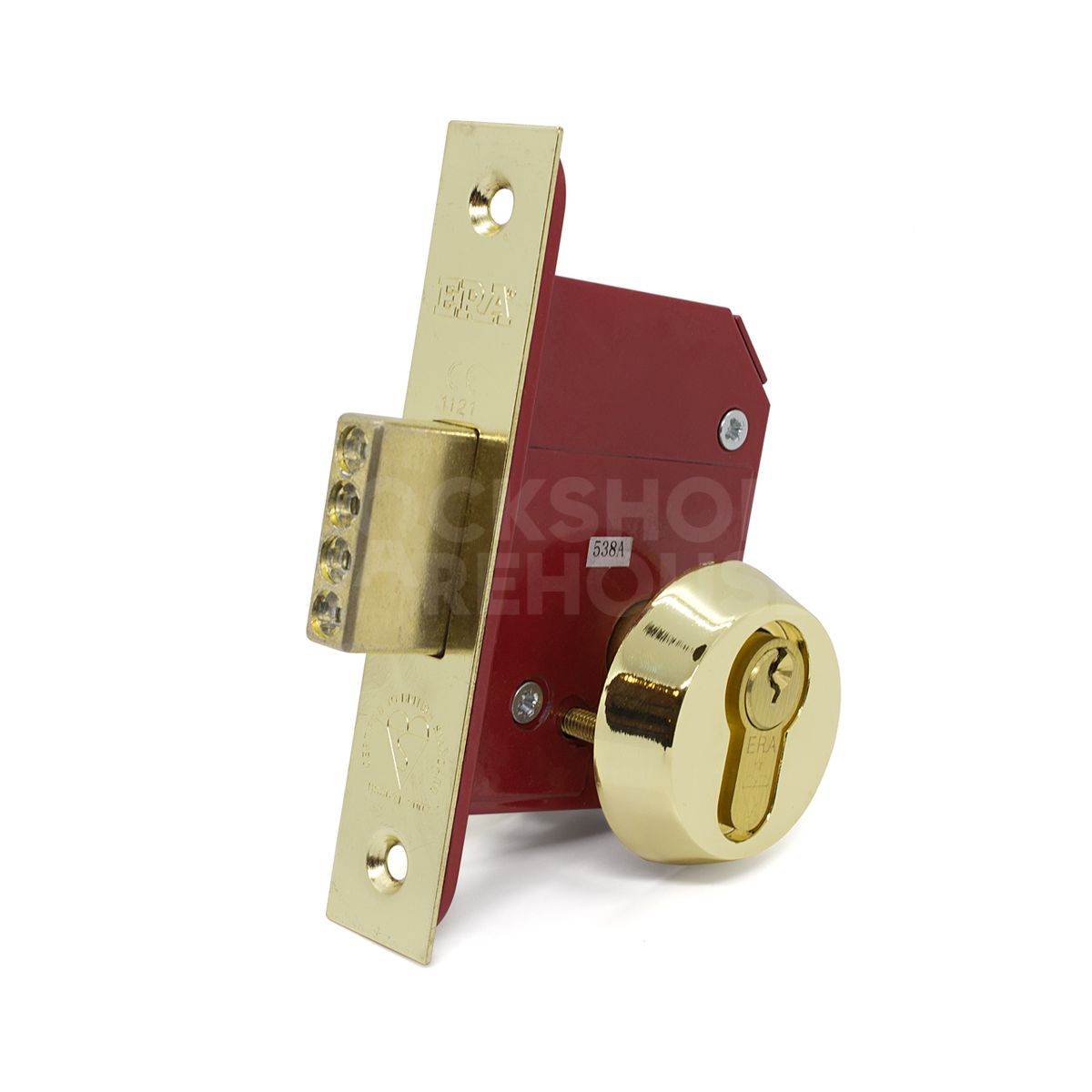

ERA Egress Euro Deadlock - BS8621

£59.99

(£49.99 ex VAT)

sku: ERA233

High security mortice deadlock with keyless egress for easy exit in emergencies. Supplied complete with 6 pin Euro Cylinder and thumbturn on the inside of the door.


Features
Conforms to the BS 8621:2007 (BS 3621:2007 for escape locks). Meets the demands of insurance companies and the Police
Supplied with Euro Cylinder with thumbturn on the inside of the door. Enables easy exit in emergencies.
20mm bolt throw for additional strength and security
Designed with hardened steel plates to resist drilling and four hardened steel rollers in the deadbolt to resist hacksawing
Bolt through heavy duty security roses protect the cylinder

Era Egress BS8621 Range of mortice locks which can be keyed alike together

Case Size

Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Recommended
Heavy Duty
9/10 Security Rating
tick British Standard - BS8621
tick Key Profile: Standard

ERA Egress Details

The British Standard (BS) Euro Cylinder Keyless Egress Deadbolt Mortice Door Lock is a BS accredited sashlock in a classic design. This lock conforms to British Standard 8621:2007 which mirrors the BS 3621:2007 but for 'escape locks' and meets the tough criteria/requirements laid down by insurance companies and the police. Locks meeting these requirements are classified as providing keyless egress at all times. This applies where there is a requirement for an easy action method of opening an external door from the inside with no need for keys or similar devices for unlocking. Especially relevant for entrance doors in multi-residential and other buildings. A keyless lever on the inside of the door ensures it is possible to make an emergency escape in an event of fire. The BS Keyless Egress Lock is supplied complete with a 6 pin Euro Cylinder, resistant against picking or drill attacks, with thumbturn on the inside of the door providing the keyless egress for emergencies. Bolt through heavy duty security roses protect the cylinder. High security and strength are delivered by a 20mm bolt throw in every lock. Designed with hardened steel plates to resist drilling and four hardened steel rollers in the deadbolt to resist hacksawing. Available in 64mm (2 ½") and 76mm (3") in brass effect, satin and a range of chrome effect finishes.

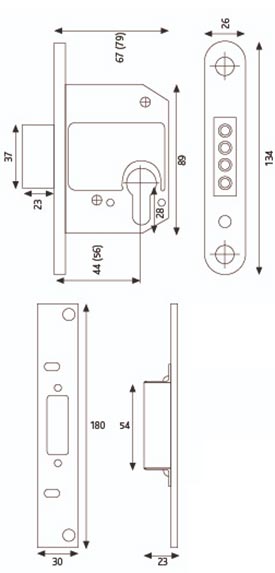

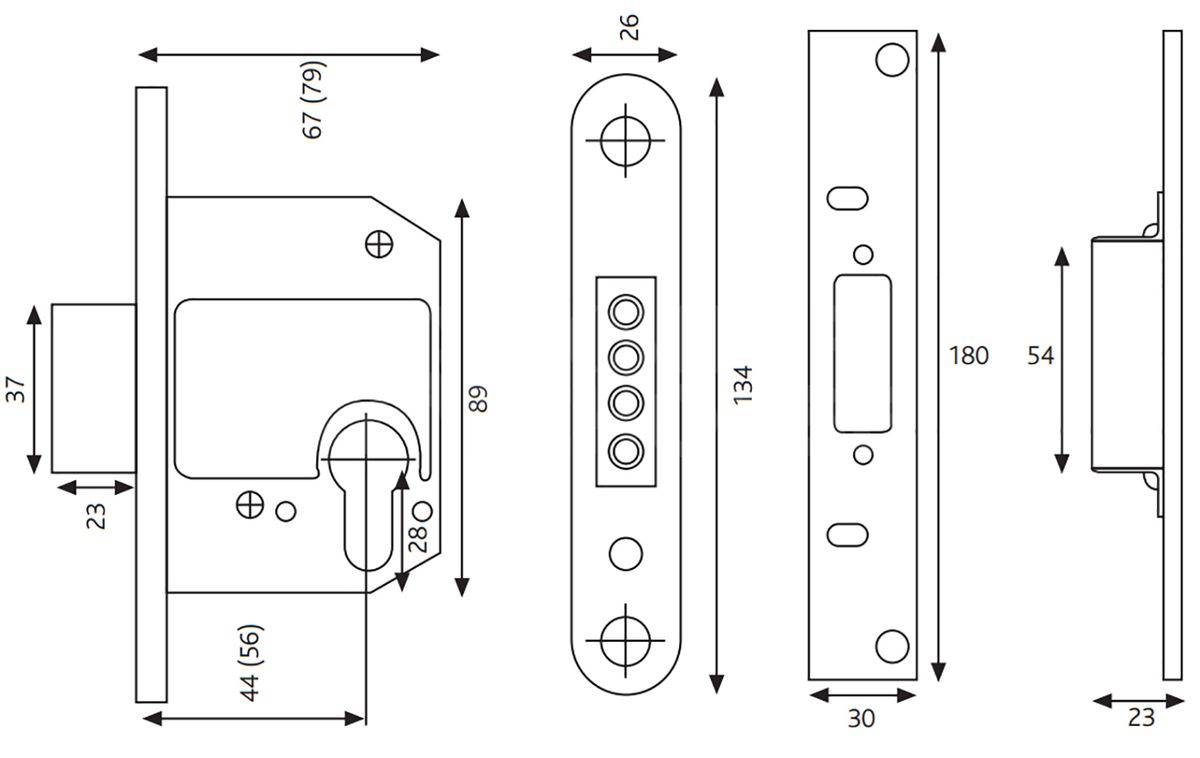

Dimensions Image: ERA Egress Euro Deadlock - BS8621
Part Min (mm) Max (mm)
Backset 44 57
Bolt Length 23 -
Case Width 67 79
Case Height 89 -
Forend Width 26 -
Forend Length 134 -
Strike Plate Width 30 -
Strike Plate Length 180 -
Dimensions Image: ERA Egress Euro Deadlock - BS8621

Brand

SKU

ERA233

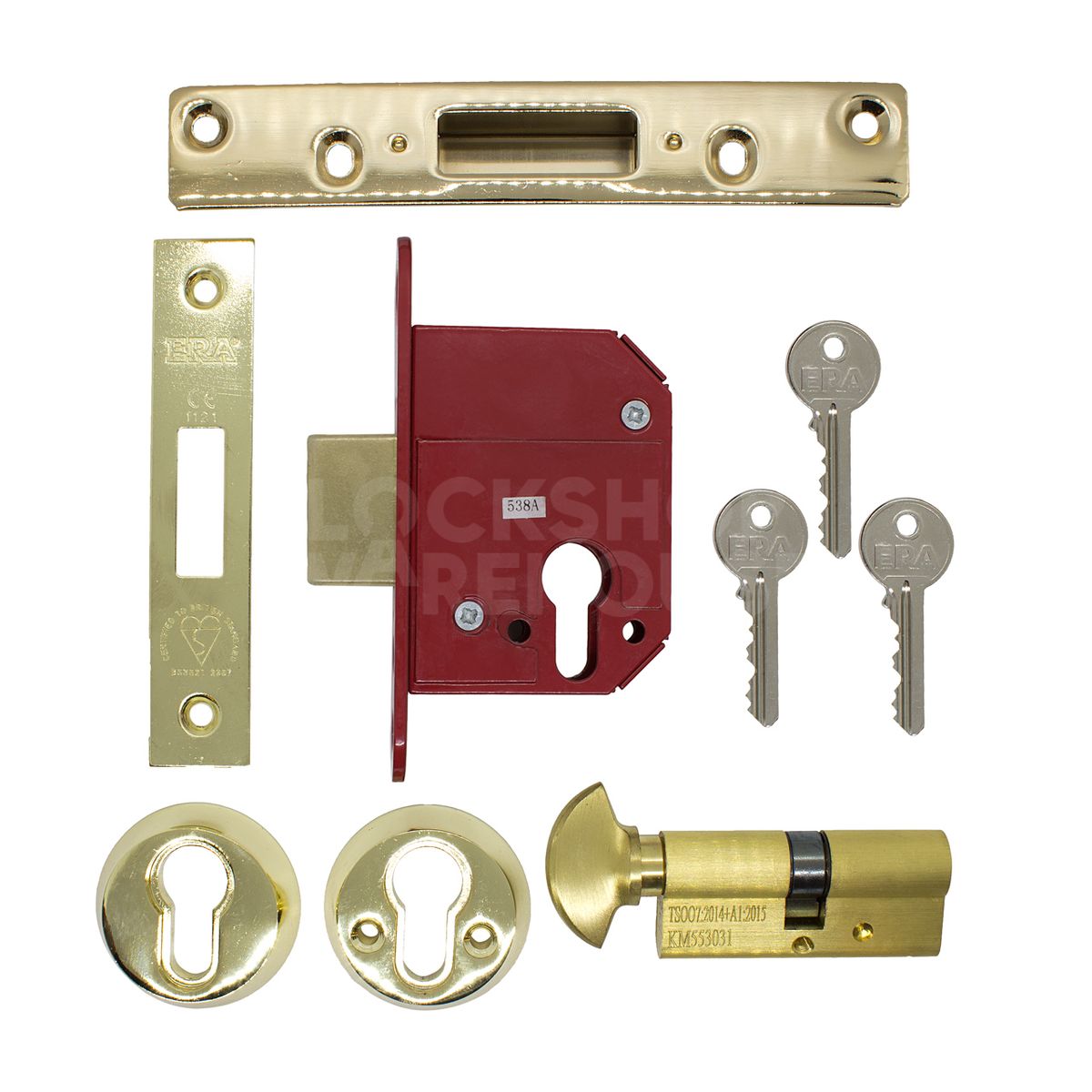

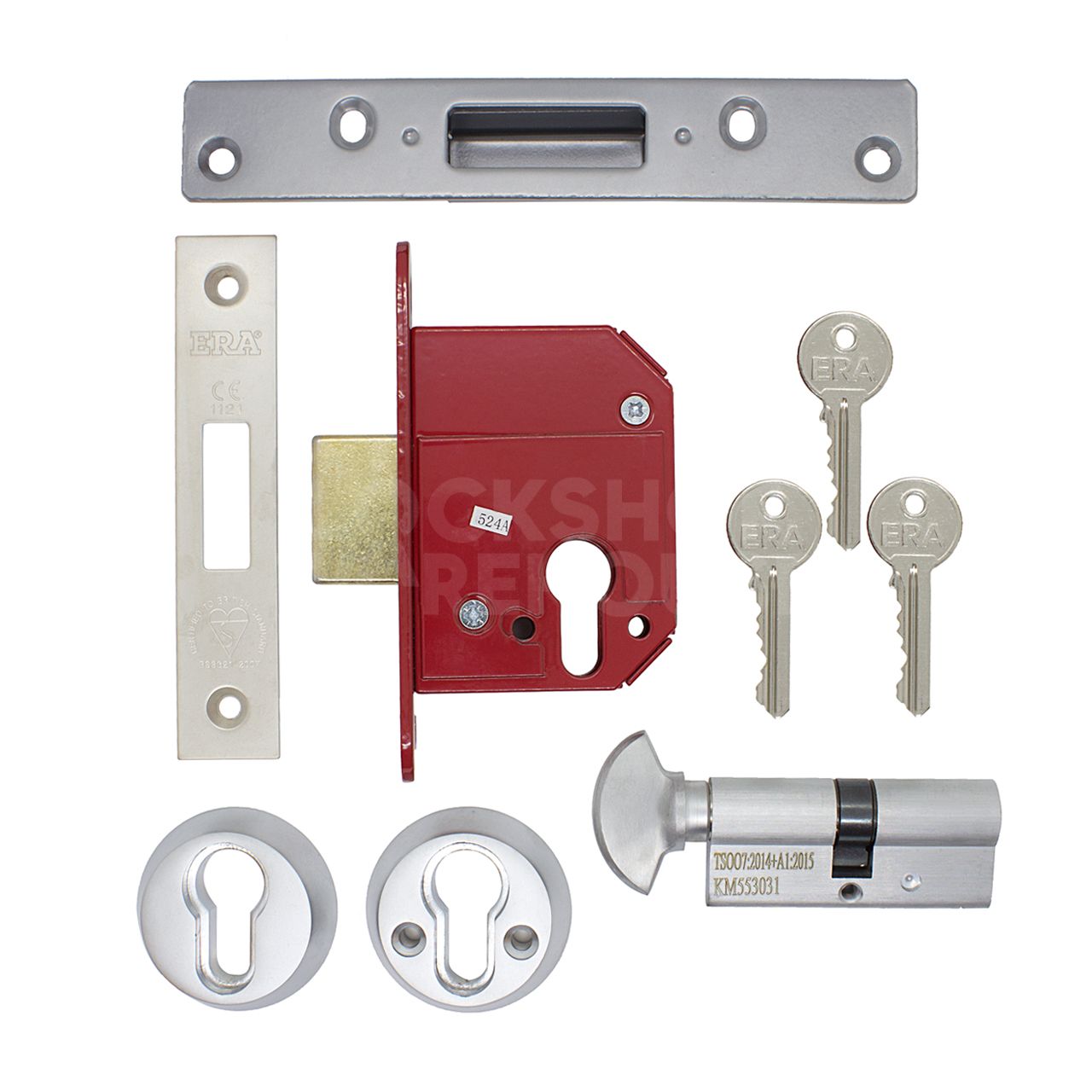

Box Contents

3 keys

strike plate

fixing screws

mortice lock

cylinder screw

security escutcheons

euro cylinder

Certifications

tick British Standard - BS8621

Key Profile

Key Profile: Standard

FAQs

All the extra keys for the locks are cut to the specific locks that have been ordered.

There are 2 different sizes of lock cases as each lock will give you a different backset. This is the distance from the edge of the lock to the keyhole / spindle for handles. The bigger locks are better for solid wooden doors as they move the keyhole away from the door stop further. If you have a large door stop and fit a 64mm lock case you can find that you hit your knuckles on the door stop when you turn the key. Alternatively the 64mm lock case is better when you have a glass panelled door as you may not have enough wood on the stile to fit the 76mm lock into before you hit and therefore smash the glass. This is very important to check when installing locks to doors with glass in.

No, if the door is a communal entrance/ exit you MUST have a turn on the inside, so a 5 lever key on the inside is not suitable.

There are specific locks we sell called Egress locks that meet both the Insurance and Fire regulations so these are suitable for communal entrance doors.

To meet the fire regulations you need to be able to exit a communal door without the use of a key. If you are using the lock on your personal front door then they are fine but if others use the door you need to look into getting a turn knob internally so you can exit without the use of a key.

With outward opening doors you can not get a BS3621 outward opening nightlatch (see our section for all the options we have available) but if you install a standard security nightlatch you can also fit a BS3621 deadlock to the door which will give you the insurance rated lock required. As the deadlocks are not handed you can use them on any type of wooden door.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes you can, we would need a key back as we dont hold any records of your keys but this is possible. Please get in touch first so we can confirm everything is ok to do and then you can post your key back to us (taped to a piece of card...essential!!)

Yes, this is possible but it is important to make sure you select the same brand and model. The internals and the keys need to match so we can key the locks alike.

We do try to list the products together in our series tab on the product page which should show the suitable products that can be keyed alike together.

If in doubt please ask us and we will let you know.

A rebate set is only required on double rebated doors. If you only have a single door then you will receive all the parts you require with the lock. If you need a rebate set you will need to check the size of your rebate. The most common is 13mm but on older doors they can be 19mm or 25mm.

With the 5 lever locks they are designed to be high security so there are thousands of different keys so the keys do not come with numbers on. Therefore we can not cut additional keys for these locks without a key to copy from. If you post it back to us we can do it for you (please contact us first before you send it) or alternatively nearly all the keys we sell are available from local locksmiths in your area. They maybe more expensive so we would recommend buying the extra keys at the time of purchase so we can cut and try them before we ship the order.

Deadlocks are suitable for either hand and inward and outward opening doors. The locks have keyholes either side and can be used on the left or right hand side of the door.
