skip to Kaba 1031 (1000-3) Mechanical Digital Combination Lock with Passage Set Mode

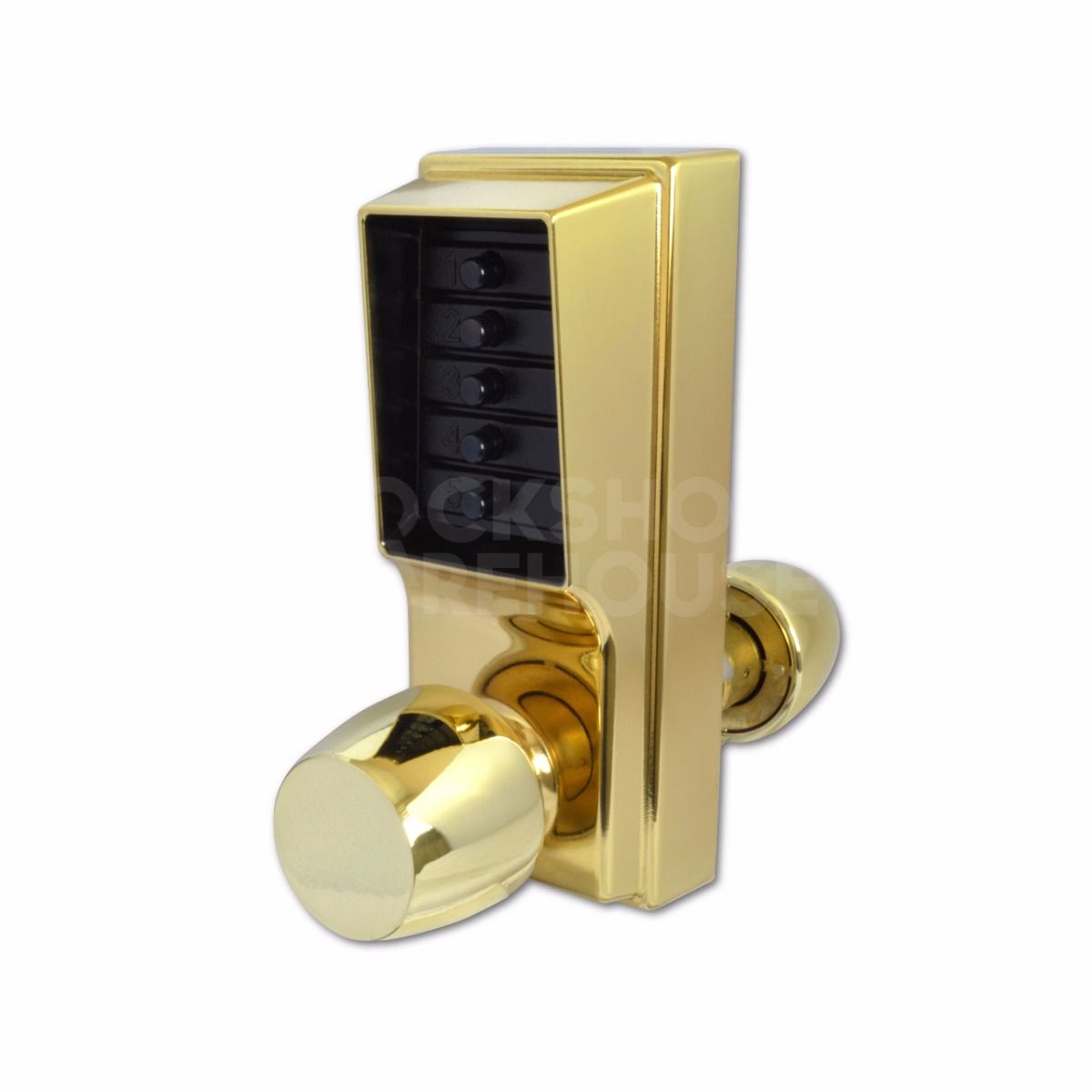

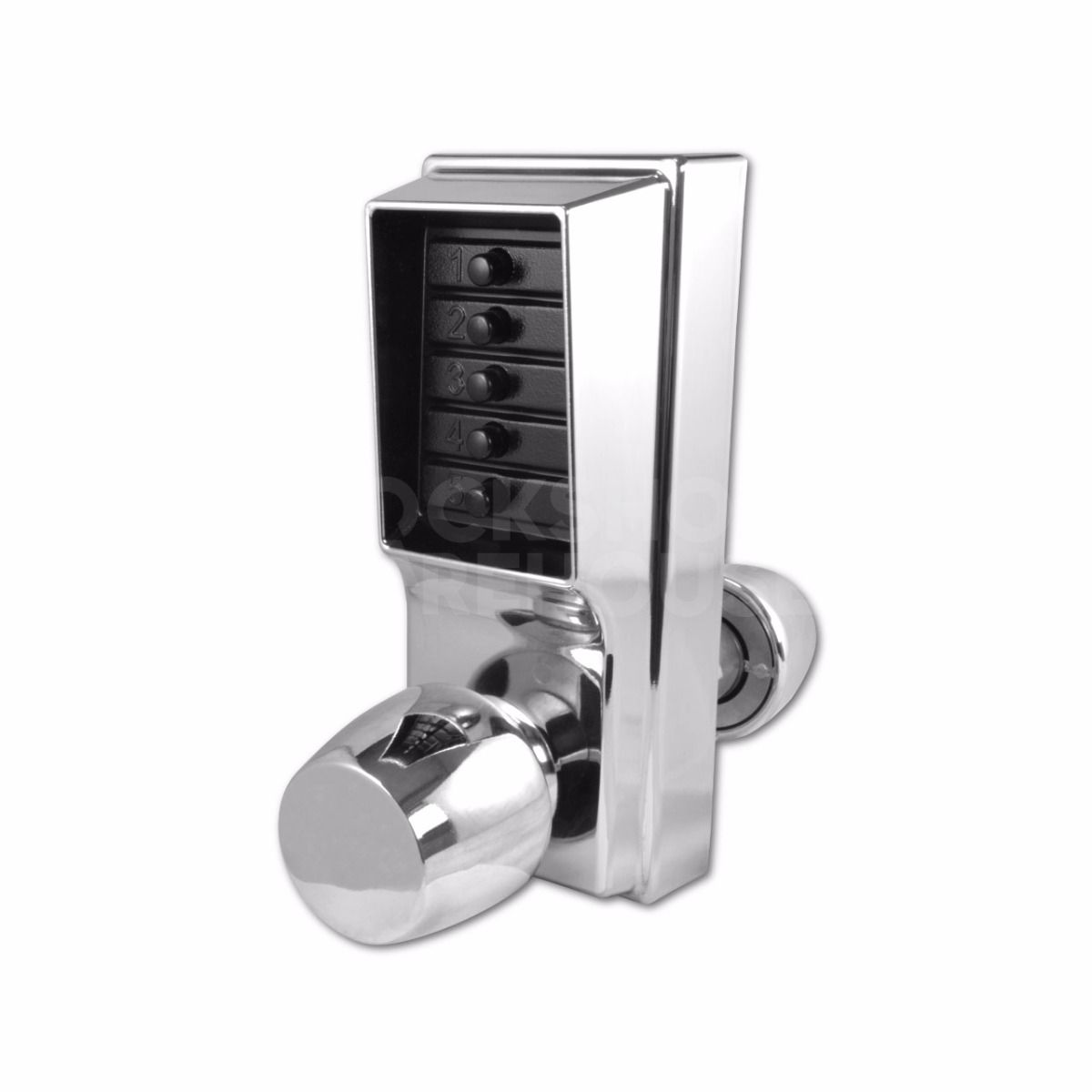

Kaba 1031 (1000-3) Mechanical Digital Combination Lock with Passage Set Mode

£504.00

(£420.00 ex VAT)

sku: K1031
  • Mechanical operation providing over 1,000 unique code combinations
  • Integrated passage set mode allows for periods of unrestricted access
  • Heavy-duty 16mm mortice deadlatch for enhanced security
  • Protective clutch mechanism prevents damage from forced entry attempts
  • Fast code changes can be completed while the unit remains fitted to the door
  • Non-handed design with reversible latch for universal installation
  • Suitable for doors with a thickness between 35mm and 57mm

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
heavy-duty Heavy Duty
9/10 Security Rating
3 Year Guarantee

The Kaba 1031 (1000-3) is a high-specification mechanical digital lock from the Dormakaba 1000 Series. It provides a robust, keyless security solution for areas requiring controlled access without the need for electronic wiring or batteries. This model is equipped with a heavy-duty 16mm mortice deadlatch, making it ideal for high-traffic environments where physical security is a priority.

Operation is simple and reliable: entry is granted via a push-button sequence, while the internal knob provides free exit at all times. A key feature of this variant is the passage set mode, which can be engaged via a key or thumbturn to allow free entry during business hours or periods of high activity.

Typically used in commercial, healthcare, and educational facilities, the 1031 is suitable for both new installations and as a replacement for existing digital locks. The unit features a non-handed design and a reversible latch to ensure compatibility with various door configurations. For added durability, it includes a protective clutch mechanism that safeguards the internal components if the outside knob is turned with force without the correct code being entered.

  • Single-code entry with sequences ranging from 1 to 5 digits
  • Compatible with rebated doors
  • Authorised personnel can change codes quickly on-site
  • Mechanical retraction of the latch upon correct code entry

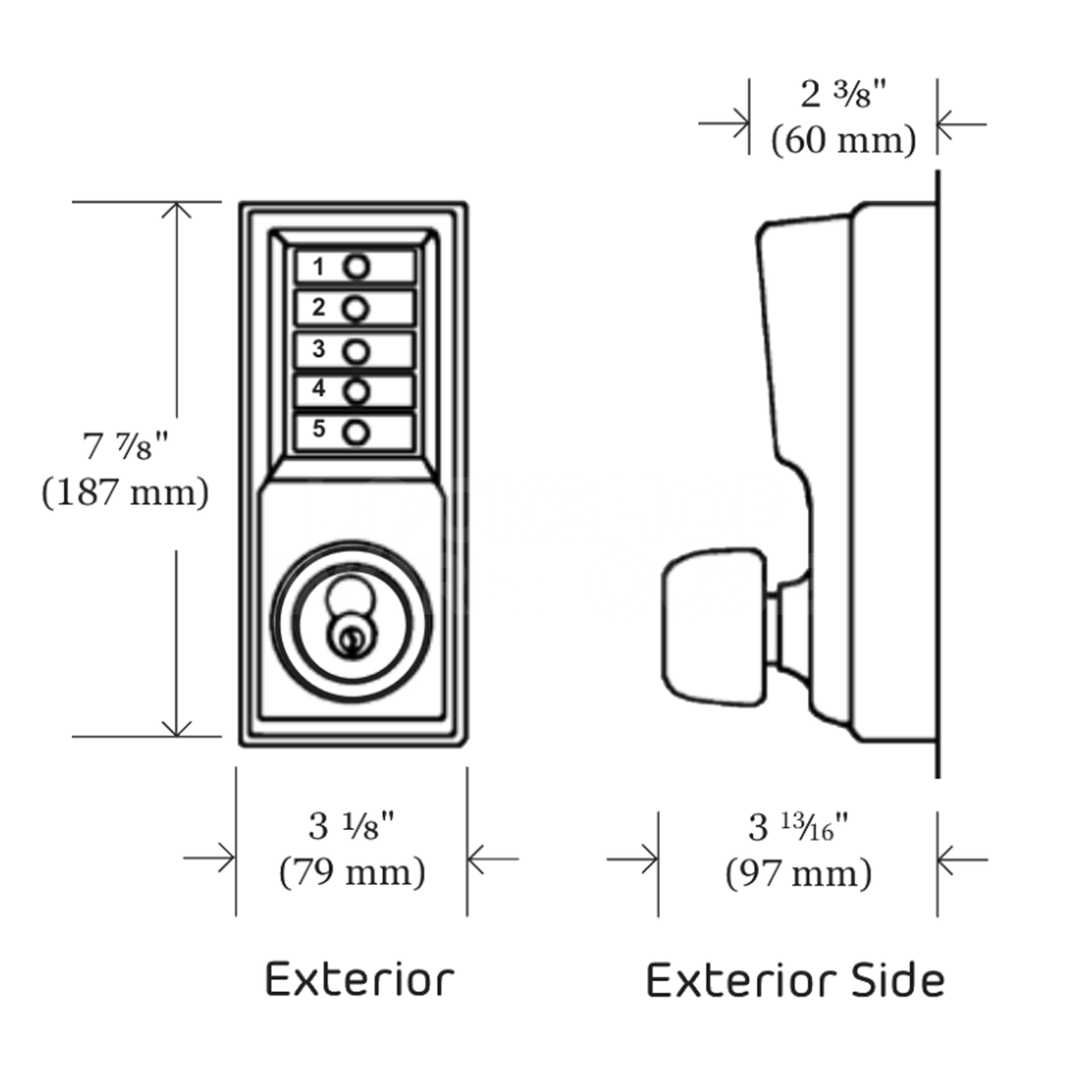

Dimensions Image: Kaba 1031 (1000-3) Mechanical Digital Combination Lock with Passage Set Mode
Part Size (mm)
width 79
Backset 70

Brand

SKU

K1031

Box Contents

codelock

Back Plate

Fixing Kit

instructions

FAQs

The Passage Set mode allows you to toggle the lock to a 'free access' state using a key or thumbturn. This is particularly useful for commercial environments where you may want the door to remain unlocked for staff or customers during certain periods of the day.

Changing the combination is quick and easy. Authorized personnel can update the code in seconds without having to remove the lock from the door, ensuring your security can be updated whenever necessary.

No, the Kaba 1031 is a completely mechanical digital lock. It functions entirely through physical internal mechanisms, meaning there are no batteries to replace and no wiring required for installation, providing reliable access even during power outages.

This lock is designed for versatility. It fits doors between 35mm and 57mm thick and is non-handed with a reversible latch, making it suitable for both left-hand and right-hand opening doors. It is also suitable for rebated doors.
