skip to Keylex 700 Mechanical Digital Codelock

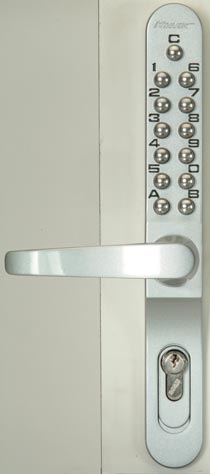

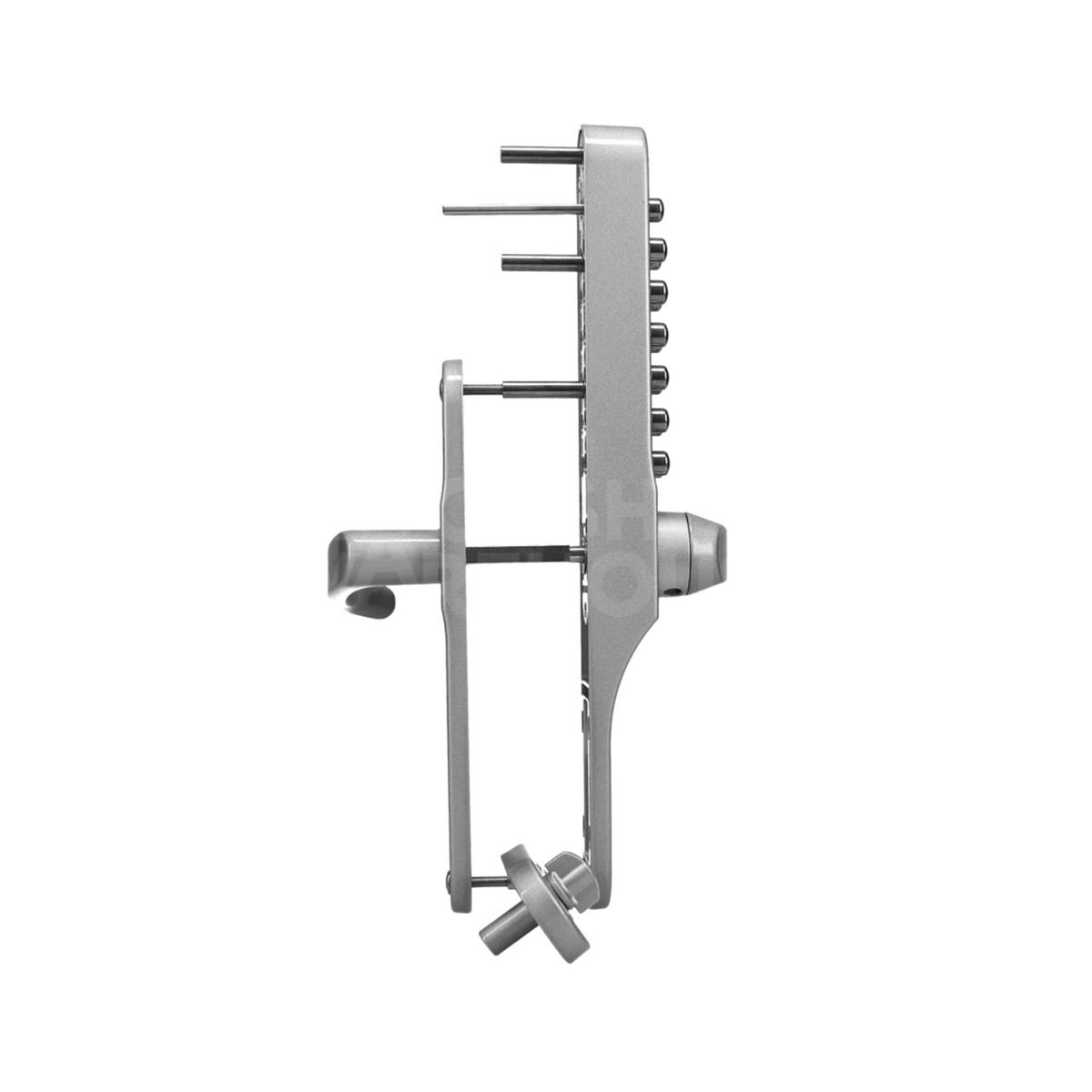

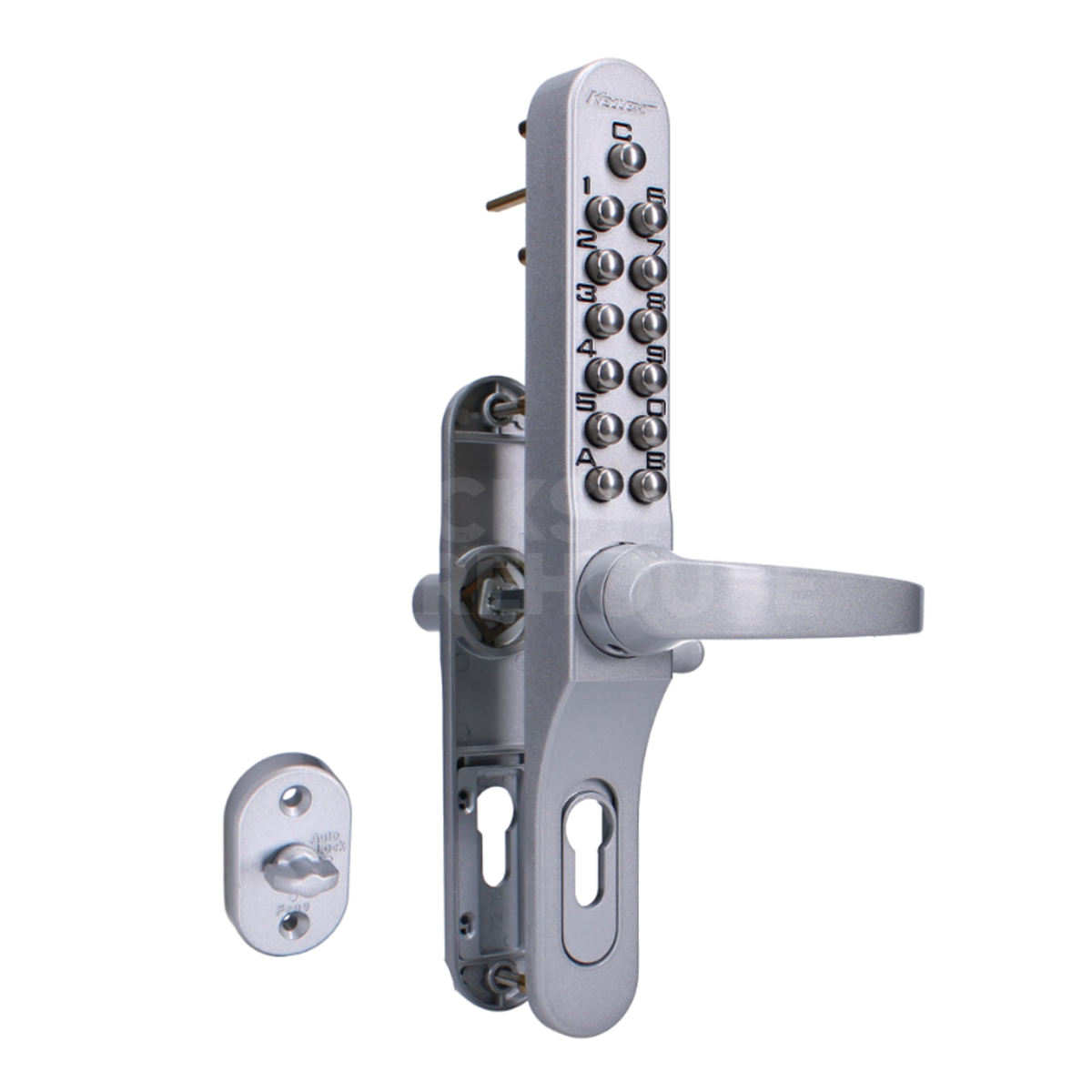

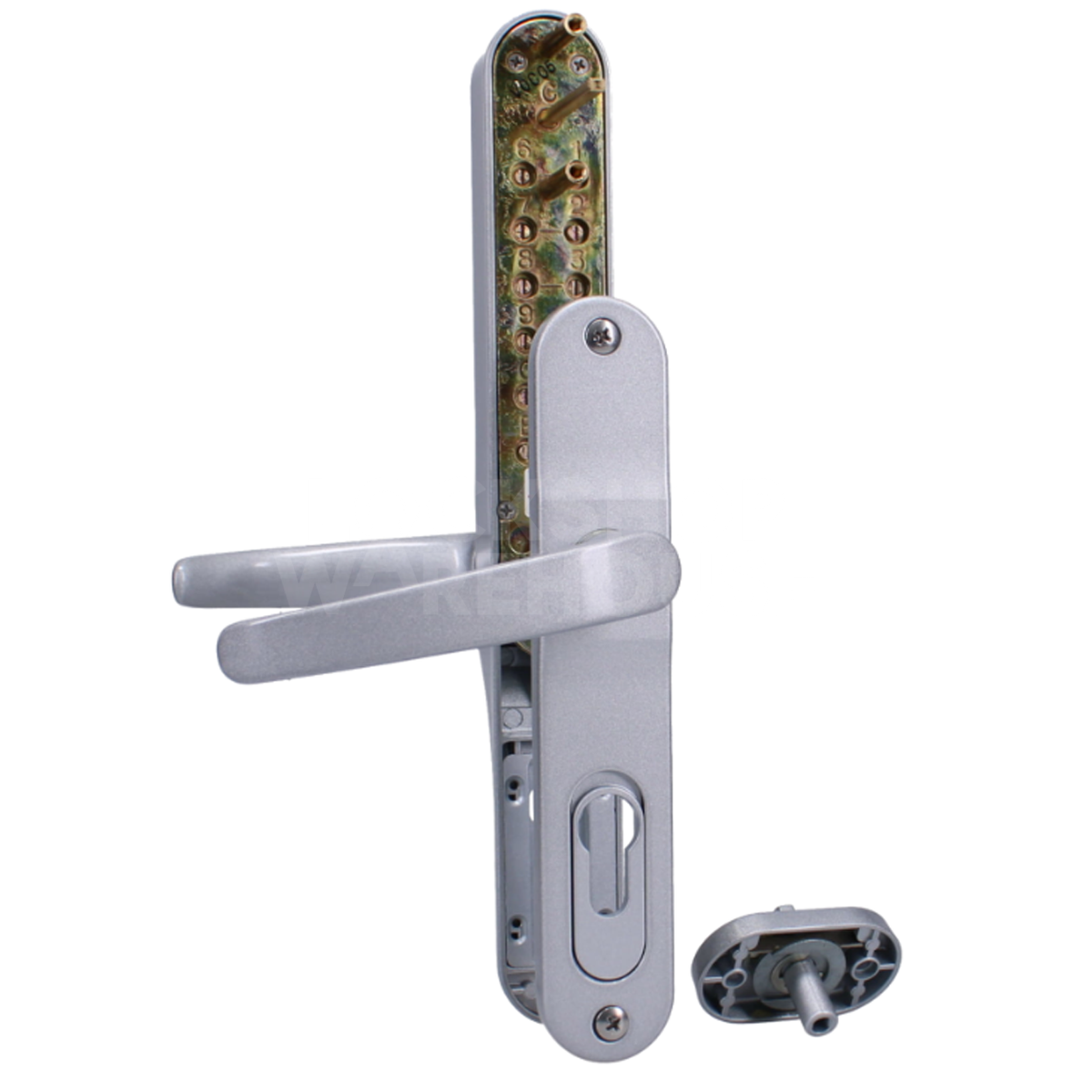

Keylex 700 Mechanical Digital Codelock

£396.00

(£330.00 ex VAT)

sku: KL700
  • High-security mechanical digital lock suitable for internal and external doors
  • Integrated passage function for unrestricted access when required
  • Lever handle operation with free exit from the inside at all times
  • Slim profile design suitable for narrow stile doors and restricted frames
  • Weather-resistant construction ensures durability in outdoor environments
  • Key override facility compatible with standard Euro profile cylinders
  • Reversible design allows for installation on both left and right-handed doors
Document Icon product info

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

weatherproof Weather Resistant
star Recommended
heavy-duty Heavy Duty
7/10 Security Rating
2 Year Guarantee
british-standard British Standard - EN 1634-1
fire Fire Rated: FD30

The Keylex 700 is a standard duty mechanical digital codelock designed for high-security access control on both internal and external doors. Operating without the need for batteries or electrical wiring, this mechanical system provides a reliable security solution for a wide range of applications. It features a slim body design, making it particularly suitable for installation on narrow stile doors where mounting space is limited.

This lock functions as a passage set, meaning it allows for a free-entry mode when secure access is not required, alongside its standard coded entry. The internal lever provides an immediate escape function, ensuring safe exit from the building at all times without needing to enter a code. The external side requires a correct code sequence to operate the lever and gain entry, with over 1,000 combinations available.

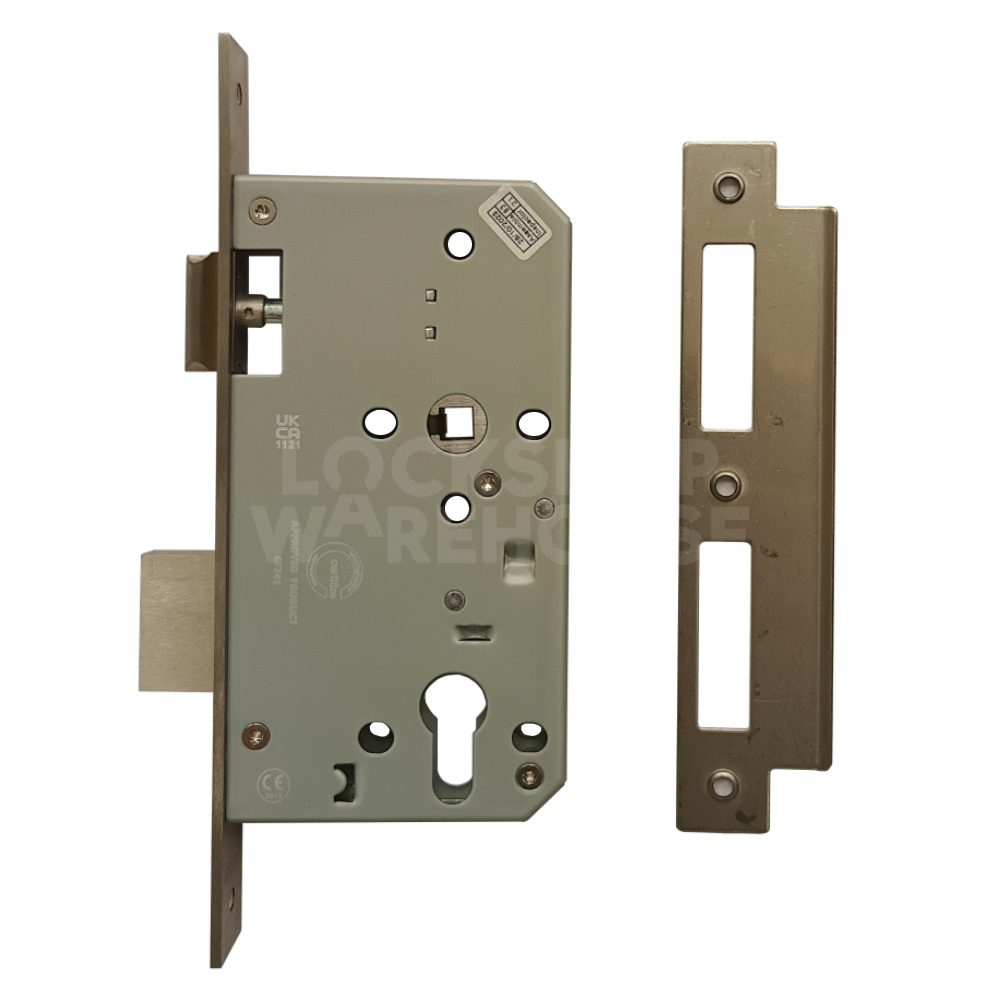

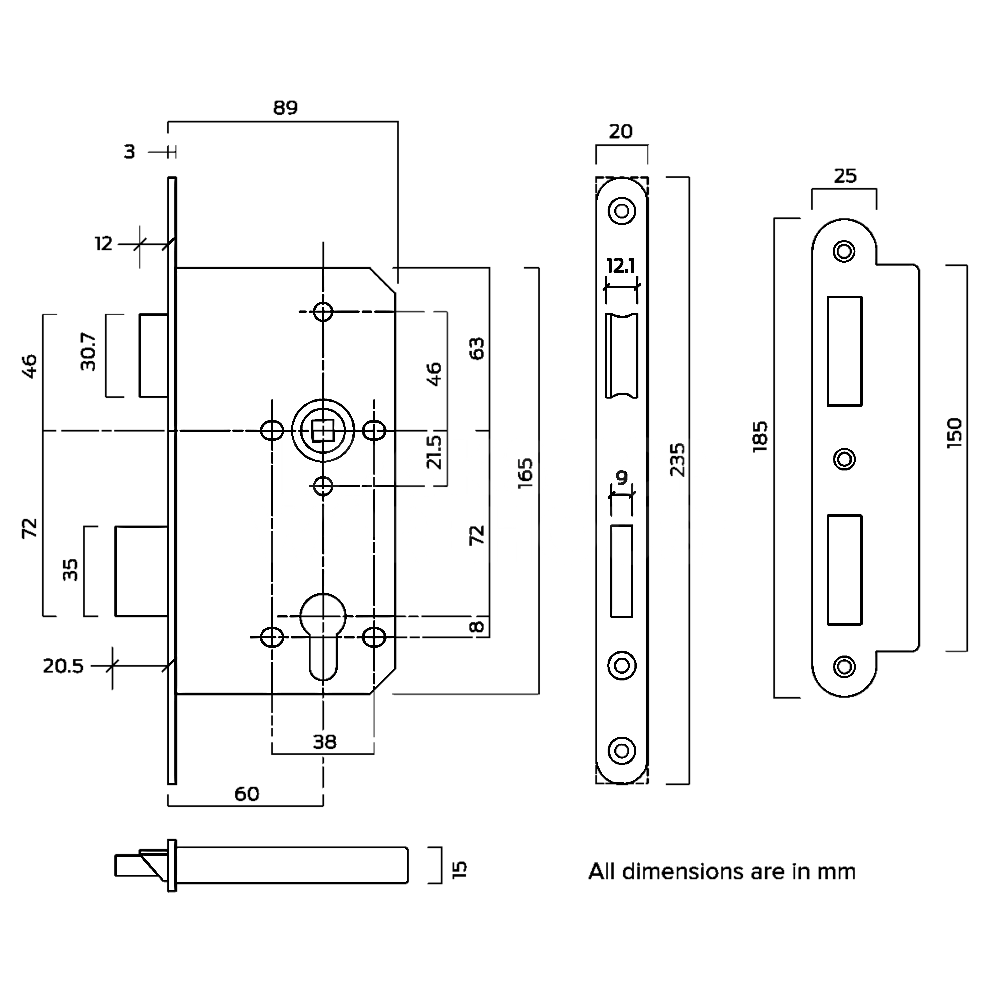

Typical applications include commercial offices, storage units, and perimeter gates. The unit is weather-resistant and features a reversible handing design, allowing it to be fitted to any door regardless of opening direction. While the lock set provides the digital interface and lever furniture, it is designed to work with a separate lock case or latch, and includes an aperture for a Euro profile cylinder to provide key override capability for emergency access or management.

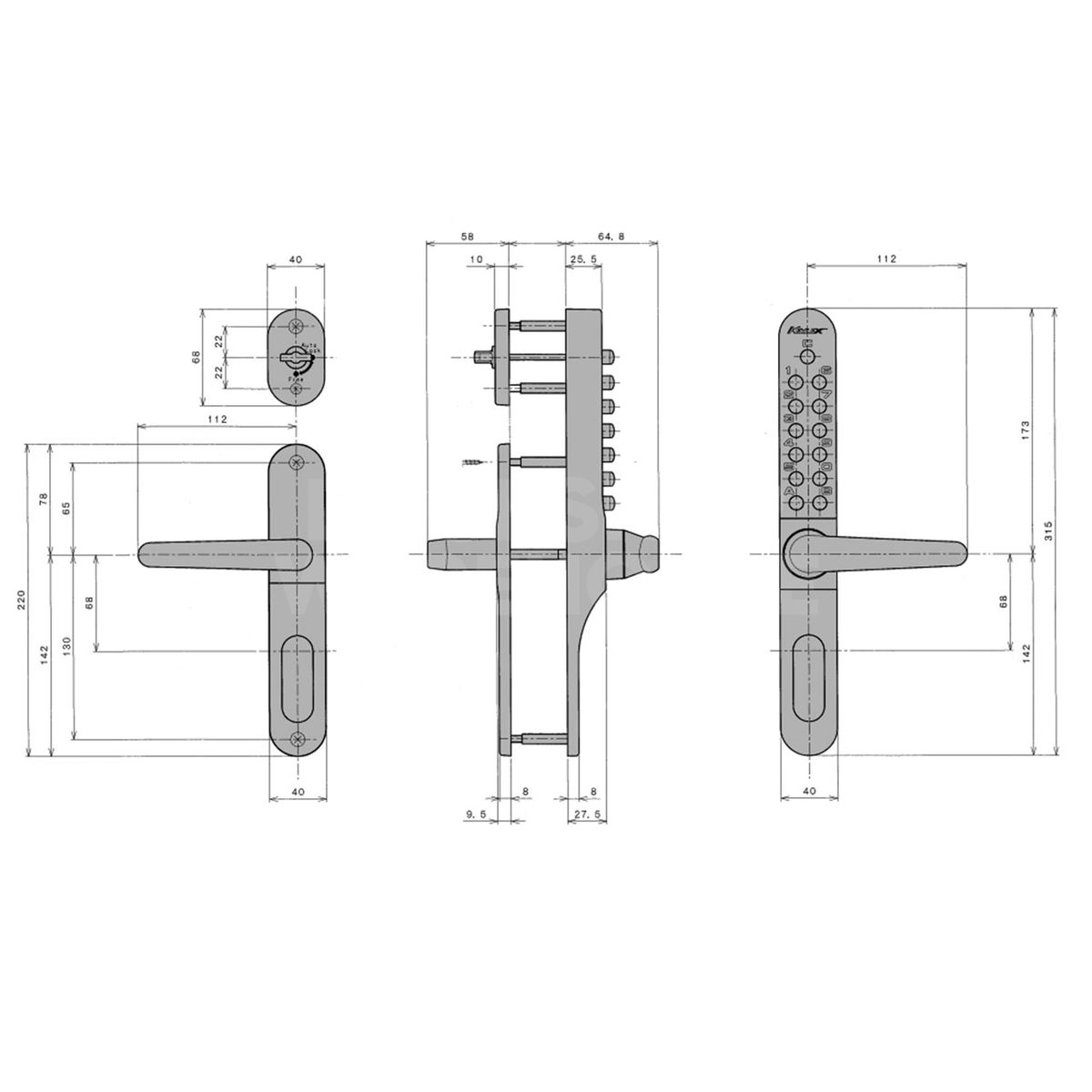

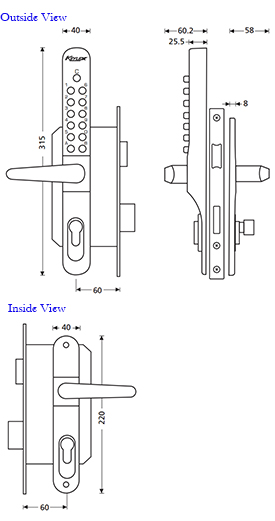

Dimensions Image: Keylex 700 Mechanical Digital Codelock
Part Size (mm)
Body Width 40
Body Height 315

Brand

SKU

KL700

Box Contents

Thumbturn

Back Plate

handles

instructions

codelock

Fixing Kit

Certifications

british-standard British Standard - EN 1634-1

Fire Rating

Fire Rated: FD30

FAQs

The Keylex 700 is a fully mechanical digital lock. It functions without batteries or any electrical wiring, ensuring reliable operation for both internal and external doors without the need for power maintenance.

Yes, this lock includes a passage set feature. This allows you to set the door to remain unlocked when free entry is required, eliminating the need to enter a code for every entry.

Yes, the Keylex 700 is weather resistant and designed for high-security applications on both internal and external door installations. Its durable construction is built to withstand outdoor environments.

This lock is designed to fit doors with a thickness between 30mm and 50mm. It features reversible handing to suit both left and right-hand opening doors. Please note that a latch is not supplied with this unit and must be sourced separately.
