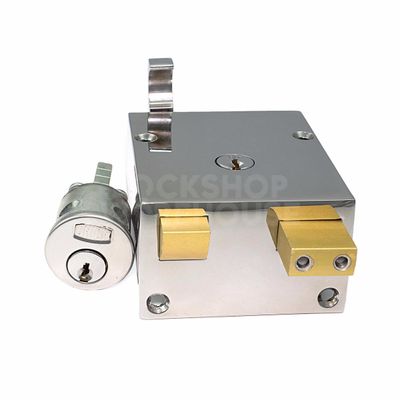

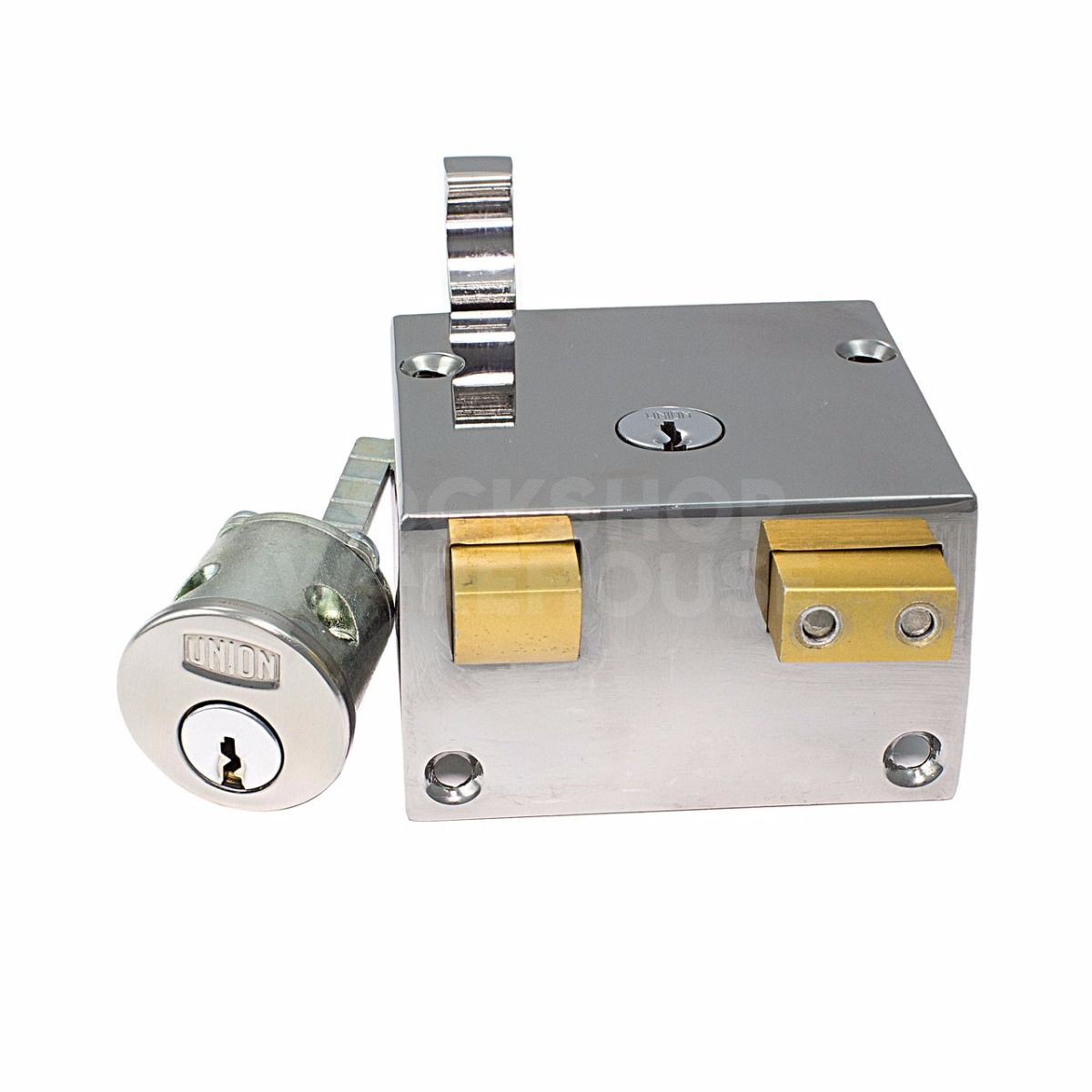

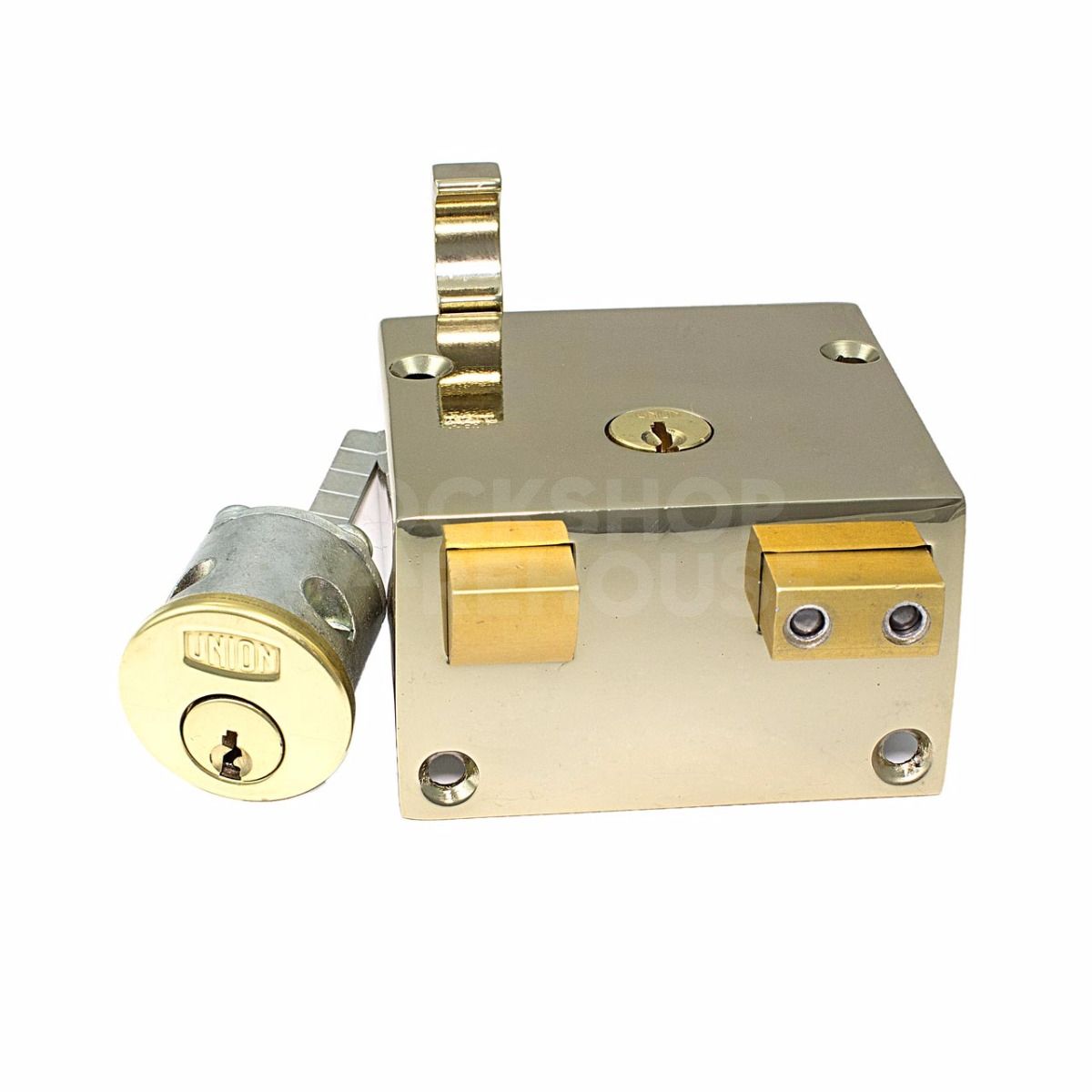

Union 1334 Cylinder Drawback Lock (50mm Backset)

£127.19

(£105.99 ex VAT)

sku: UN-1334
  • Dual-function rim lock featuring a standard latchbolt and a secondary deadbolt
  • Latchbolt can be retracted by the internal pull handle or external key
  • Double-throw deadbolt provides enhanced physical security against forced entry
  • Deadbolt is operated by key from both the internal and external sides
  • Ideal for use on glass-panelled doors to prevent unauthorised access via the internal handle
  • Integrated hold-back feature allows the latch to be secured in the open position
  • Compatible with timber doors ranging from 35mm to 60mm in thickness
  • Supplied with a 5-pin rim cylinder and three keys as standard
Document Icon product info Document Icon product info
Union 1332 Cylinder Drawback Lock (60mm Backset) £ 127.19
Union 1334 Cylinder Drawback Lock (50mm Backset) £ 127.19

Cylinder and Case Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The Union 1334 is a surface-mounted rim drawback lock designed to provide high-level security for timber doors. It integrates the functionality of a standard night latch with a heavy-duty deadbolt, making it a robust choice for residential and commercial applications. The primary latchbolt provides convenient access via the internal pull handle or an external key, while the deadbolt offers secondary protection.

Double Security Mechanism: The deadbolt is engaged by two full turns of the key from either side. This key-to-lock and key-to-unlock feature is particularly important for doors with glass panels, as it ensures the door cannot be opened from the inside by breaking the glass and reaching for a thumbturn or handle.

Functional Versatility: The lock includes a snib or hold-back function. By turning the handle anti-clockwise while the latch is withdrawn, the bolt is held inside the lock case, allowing for unrestricted passage when security is not required. This makes the unit suitable for high-traffic environments or periods when the door needs to remain unlocked.

Application and Compatibility: This unit is suitable for both new installations and as a replacement for existing rim locks. It is designed to accommodate door thicknesses between 35mm and 60mm and is supplied with a standard 5-pin cylinder mechanism to ensure reliable operation and durability.

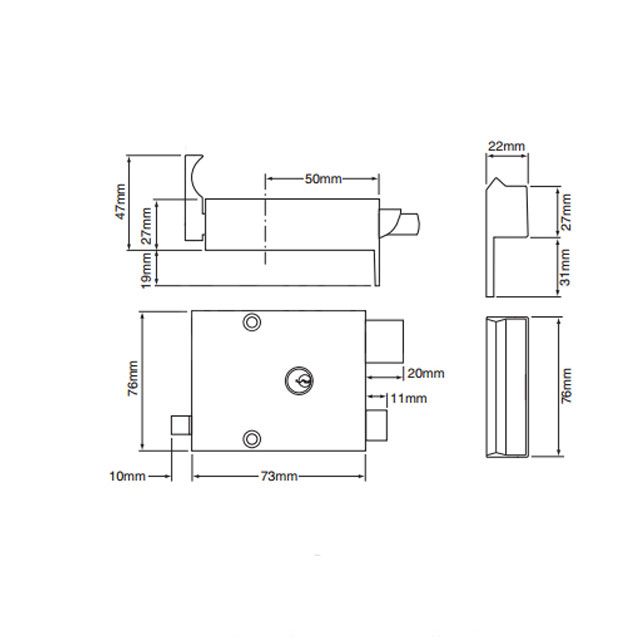

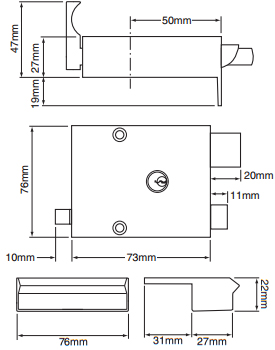

Dimensions Image: Union 1334 Cylinder Drawback Lock (50mm Backset)
Dimensions Image: Union 1334 Cylinder Drawback Lock (50mm Backset)

Brand

SKU

UN-1334

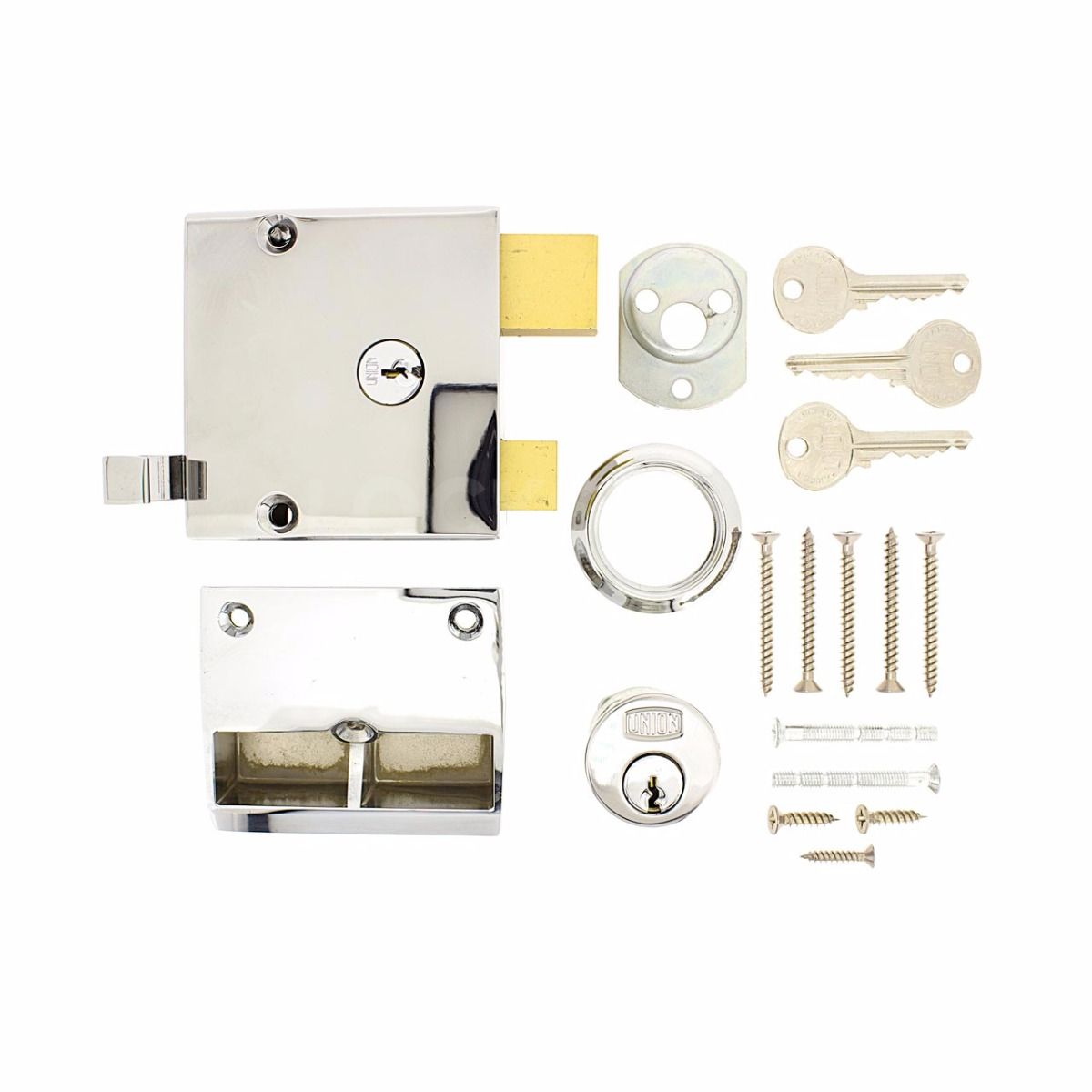

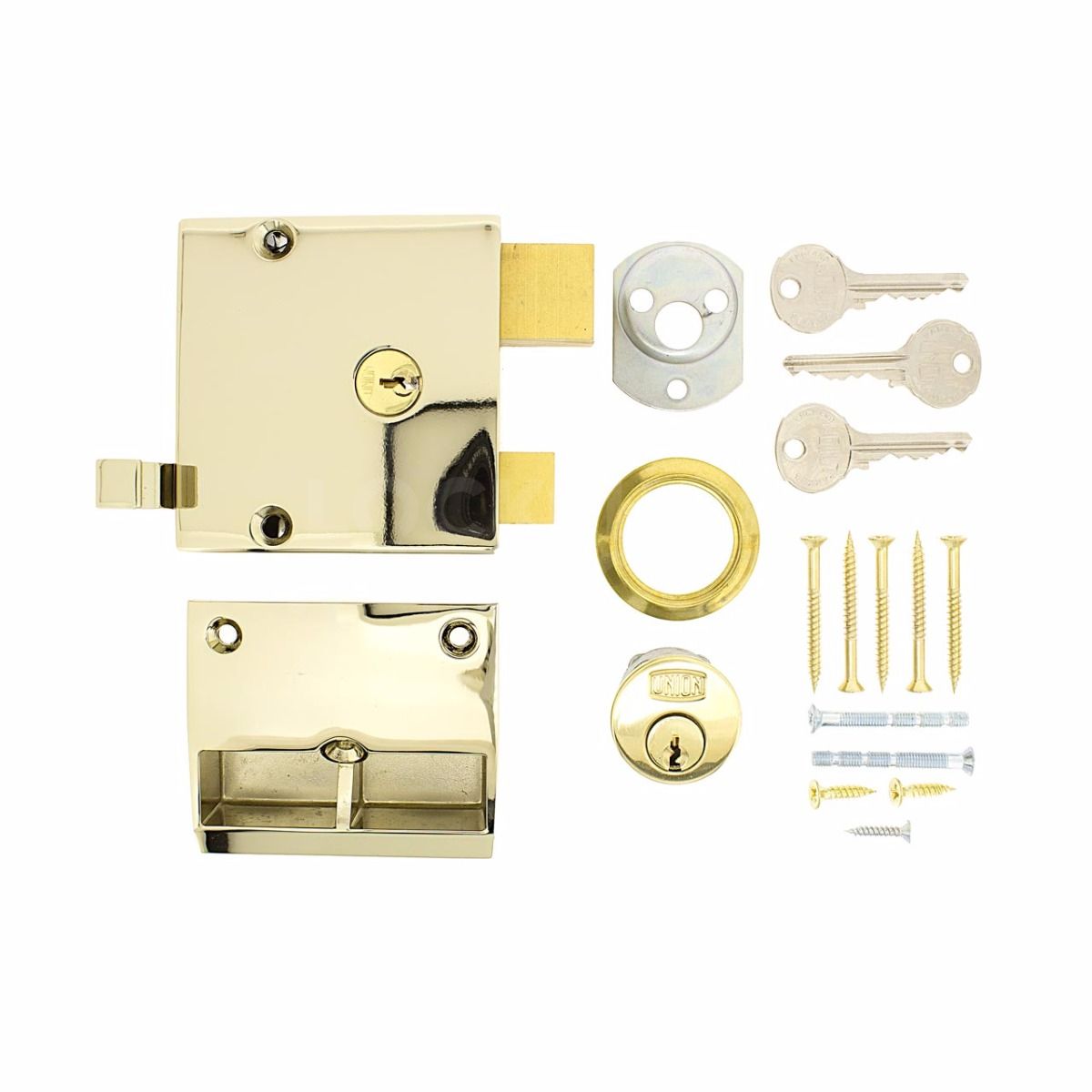

Box Contents

2 keys

strike plate

fixing screws

instructions

key escutcheons

cylinder screw

rim cylinder

nightlatch

FAQs

No unfortunately not, the BS3621 nightlatches can not be reversed. The only way to do this is to install a standard nightlatch from our outward opening nightlatch section and then also install a BS3621 deadlock. This deadlock will give you the insurance rating required.

You need to make sure the lock you fit is NON deadlocking. This means that you can not lock people into the property. There are a few nightlatches designed for these doors. The best is the Yale PBS3 or PBS4 or a more standard model would be the Yale 88 or 84.

The best locks for these would be the a rollerbolt style lock with a masterkeyed cylinder. I would not recommend installing a standard Nightlatch on these doors as the tenants can lock themselves out if they close the door behind them. We can supply these locks for you on a masterkey if you require or keyed differ if you would prefer.

The backset on these locks is the distance from the edge of the door to the center of the Rim Cylinder. This is the large 32mm hole drilled through the door. There are 2 main sizes of these, 60mm or 40mm. Easiest way to find out what you have is to measure from outside of the door from the edge to the center of the keyhole. If you have a solid door you should use the 60mm backset locks, if you have a glass panelled door then you may need to use the 40mm backset. If your current lock is 50mm backset you will need to see our Union locks as only Union made a 50mm backset lock in the past.

There are different levels of security you can have with all locks. The standard locks (i.e. Yale 77, Yale 88) , then the mid level locks which can be key deadlocked from outside ( Yale 89, Union nightlatches). The double locking versions are only suitable for homes with other means of exit as you can lock people inside the house if not careful.

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

The deadbolt is locked or unlocked by key from either the inside or outside. A single full turn of the key clockwise operates the first throw, and a second full turn double throws the bolt for enhanced security.

Yes, the Union 1334 is particularly suitable for glass panel doors. Its double-throw deadbolt mechanism provides the additional security often required for these door types.

Yes, the latchbolt features a hold-back function. You can hold the latchbolt back by turning the internal handle anti-clockwise while the bolt is withdrawn.

This lock is designed to fit doors with a thickness between 35mm and 60mm. It features a 5-pin cylinder mechanism and is supplied with three keys as standard.
