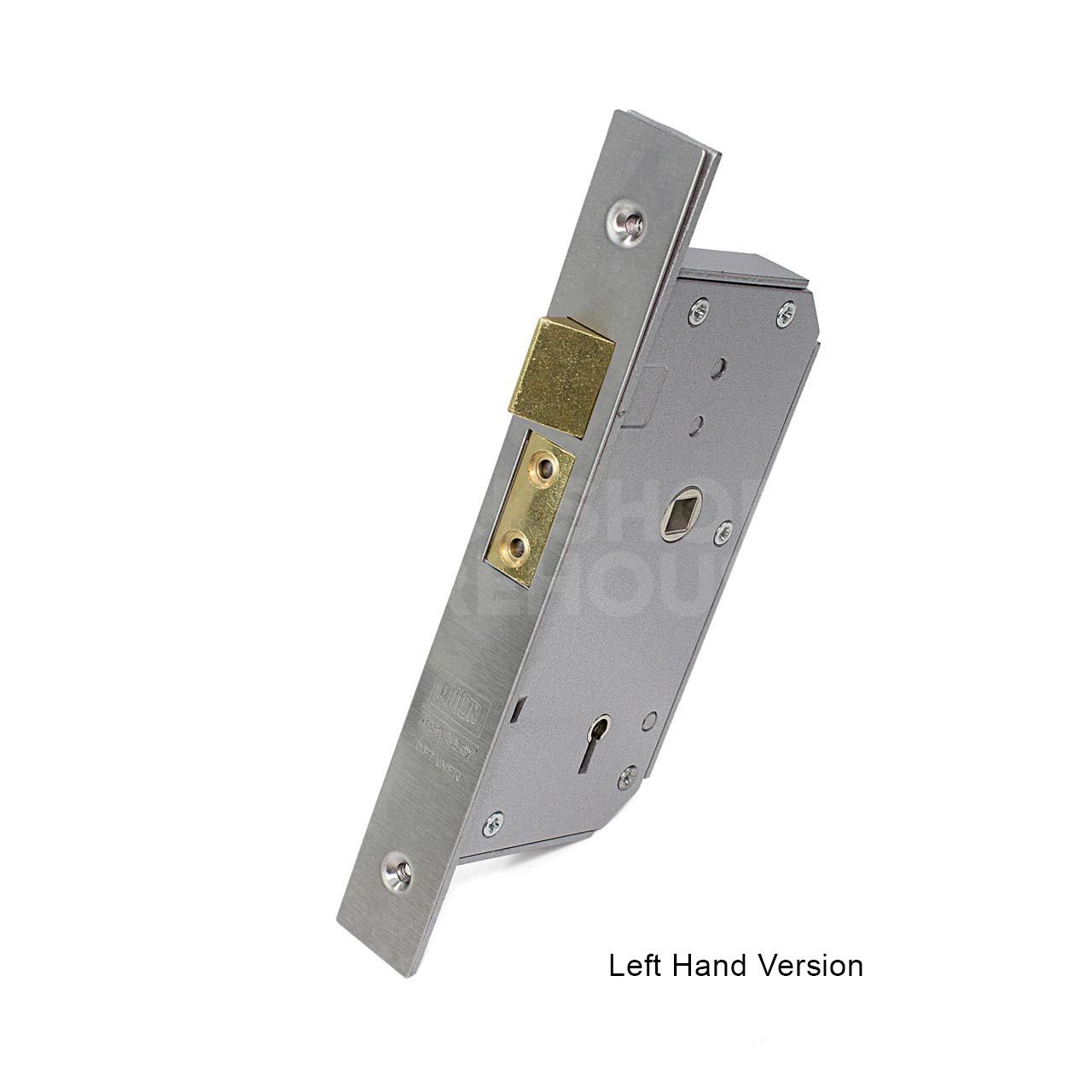

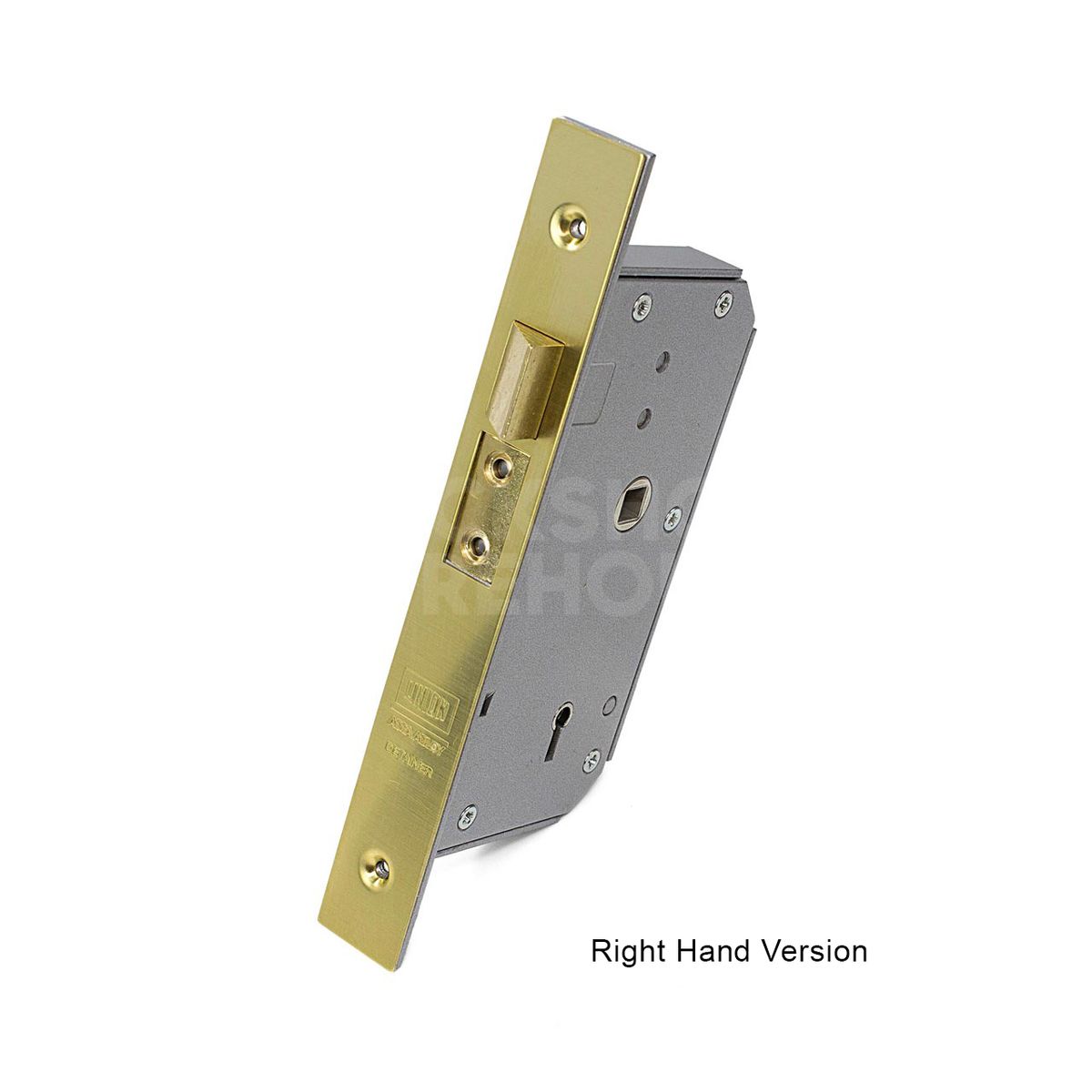

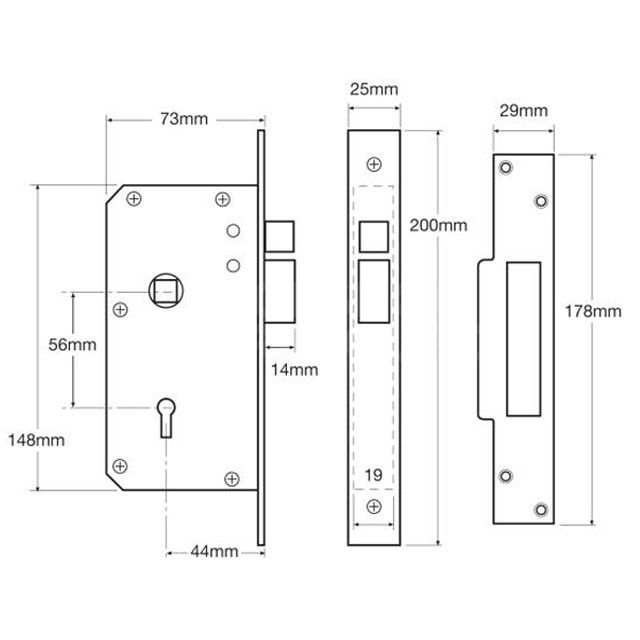

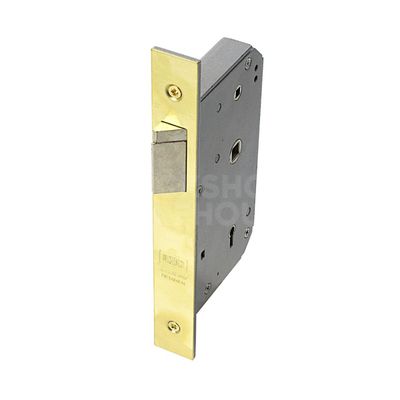

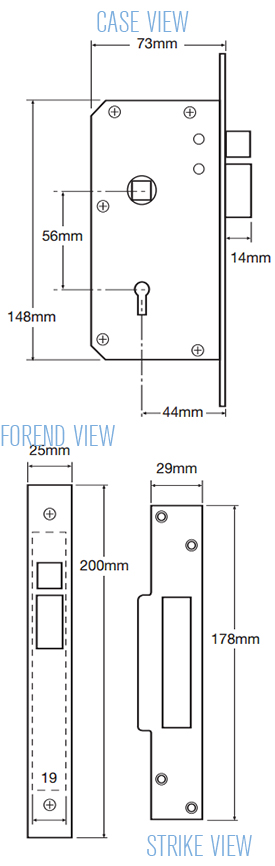

This Union sashlock has a longer case height to fit larger pre-existing holes. It is a 5 lever detainer lock which adds to the security and durability of the design. Available with a choice of finishes and a huge number of key variations provide extra peace of mind. Although this lock is reversible on site we offer a choice of handling (right or left) so you can have it adjusted prior to delivery for ease of installation. Mechanism : 5 Detainer Case Size: 73mm Case Finish: Silver Forend Finish: Polished Brass or Satin Chrome Keys Supplied: 2 Differs: 25,000 Handing: Reversible (image shows Left hand)
Union C Series Range of Non BS3621 mortice locks which can be keyed alike together.
Handing
Finish
Key Configuration
Shipping From:

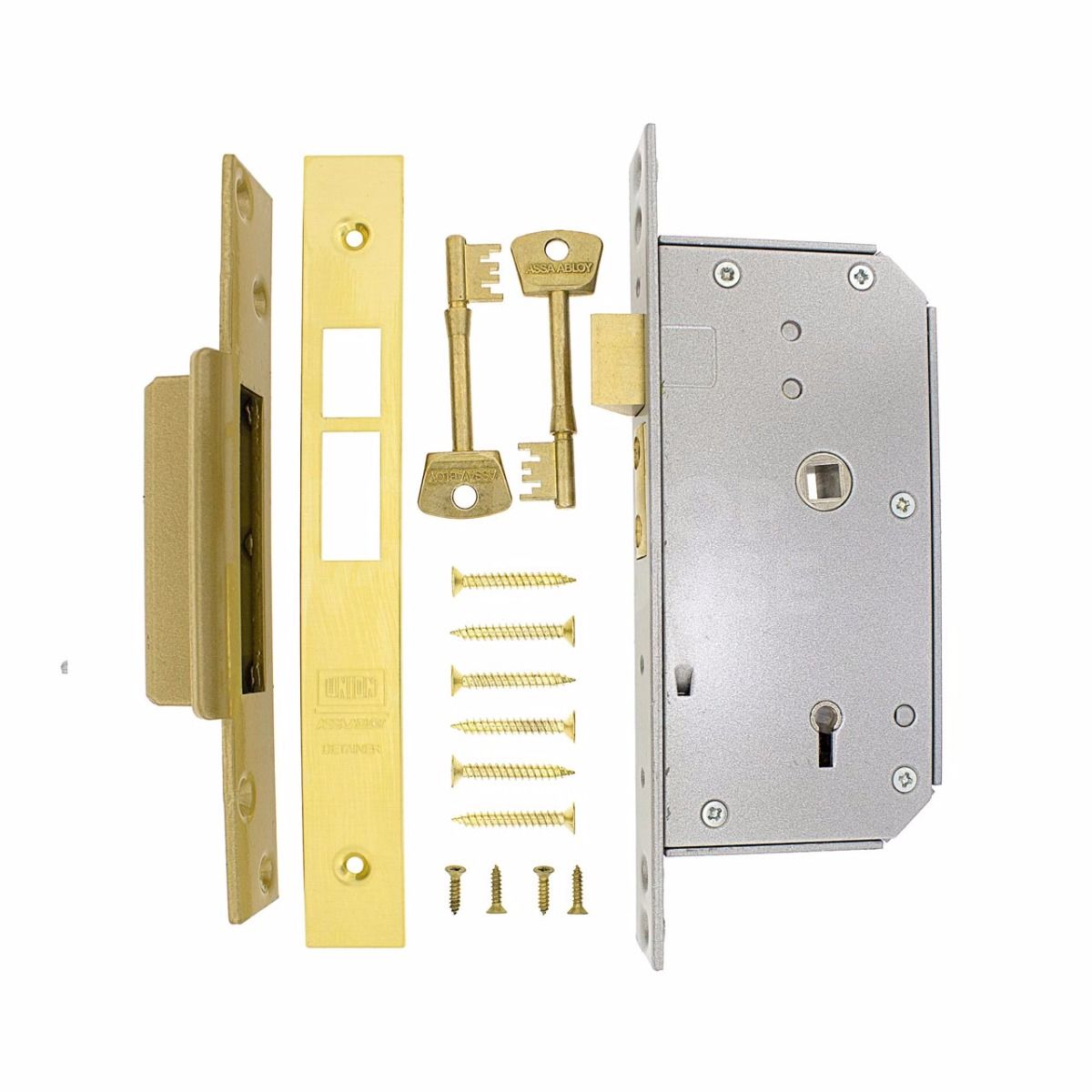

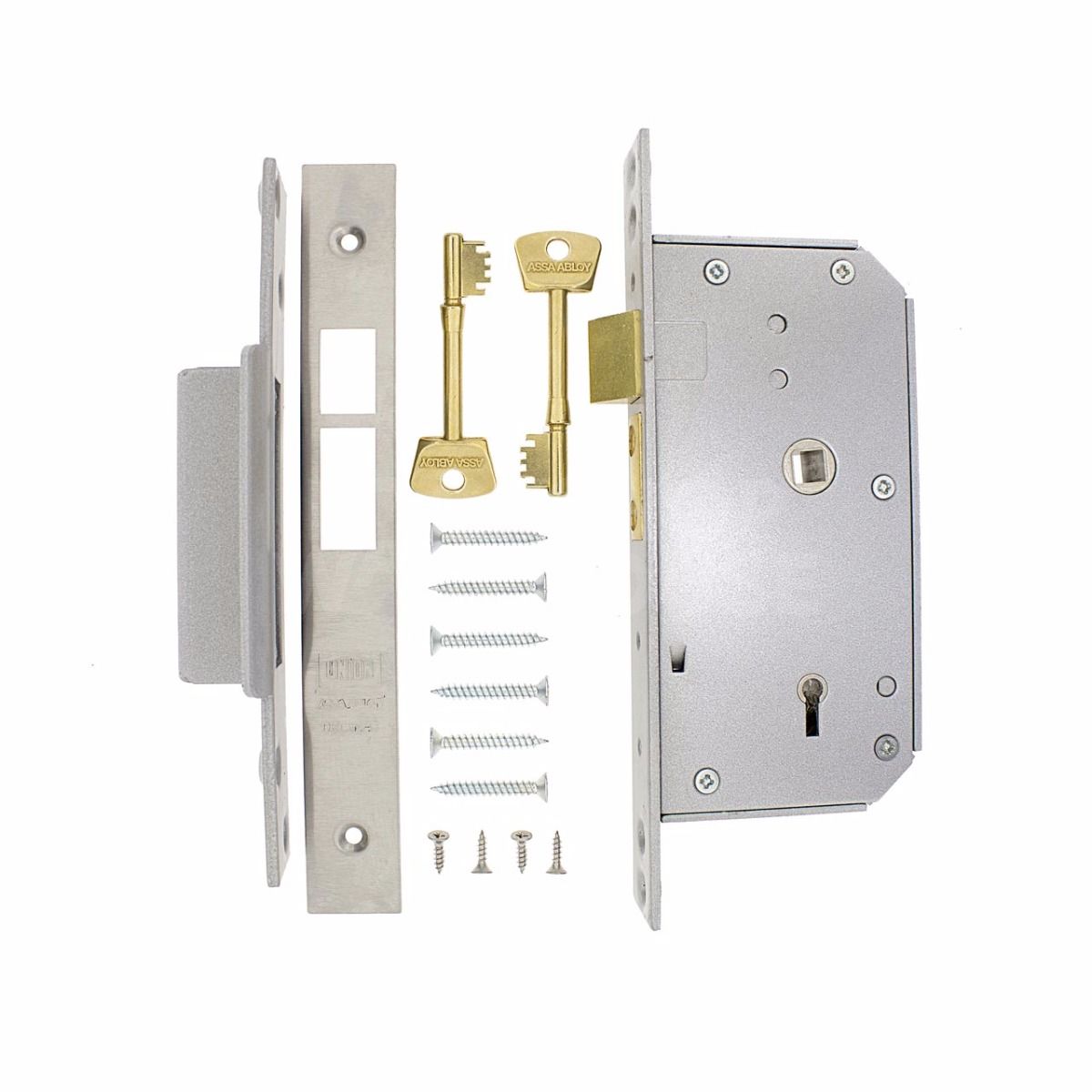

3K70
2 keys
strike plate
fixing screws
instructions
mortice lock
All the extra keys for the locks are cut to the specific locks that have been ordered.
There are 2 different sizes of lock cases as each lock will give you a different backset. This is the distance from the edge of the lock to the keyhole / spindle for handles. The bigger locks are better for solid wooden doors as they move the keyhole away from the door stop further. If you have a large door stop and fit a 64mm lock case you can find that you hit your knuckles on the door stop when you turn the key. Alternatively the 64mm lock case is better when you have a glass panelled door as you may not have enough wood on the stile to fit the 76mm lock into before you hit and therefore smash the glass. This is very important to check when installing locks to doors with glass in.
No, if the door is a communal entrance/ exit you MUST have a turn on the inside, so a 5 lever key on the inside is not suitable.
There are specific locks we sell called Egress locks that meet both the Insurance and Fire regulations so these are suitable for communal entrance doors.
To meet the fire regulations you need to be able to exit a communal door without the use of a key. If you are using the lock on your personal front door then they are fine but if others use the door you need to look into getting a turn knob internally so you can exit without the use of a key.
With outward opening doors you can not get a BS3621 outward opening nightlatch (see our section for all the options we have available) but if you install a standard security nightlatch you can also fit a BS3621 deadlock to the door which will give you the insurance rated lock required. As the deadlocks are not handed you can use them on any type of wooden door.
With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.
Yes you can, we would need a key back as we dont hold any records of your keys but this is possible. Please get in touch first so we can confirm everything is ok to do and then you can post your key back to us (taped to a piece of card...essential!!)
Yes, this is possible but it is important to make sure you select the same brand and model. The internals and the keys need to match so we can key the locks alike.
We do try to list the products together in our series tab on the product page which should show the suitable products that can be keyed alike together.
If in doubt please ask us and we will let you know.
A rebate set is only required on double rebated doors. If you only have a single door then you will receive all the parts you require with the lock. If you need a rebate set you will need to check the size of your rebate. The most common is 13mm but on older doors they can be 19mm or 25mm.
With the 5 lever locks they are designed to be high security so there are thousands of different keys so the keys do not come with numbers on. Therefore we can not cut additional keys for these locks without a key to copy from. If you post it back to us we can do it for you (please contact us first before you send it) or alternatively nearly all the keys we sell are available from local locksmiths in your area. They maybe more expensive so we would recommend buying the extra keys at the time of purchase so we can cut and try them before we ship the order.
Sashlocks are typically suitable for both left- and right-handed doors, as well as inward- and outward-opening applications. They are designed to be reversible on site, making installation flexible and straightforward.
Depending on the brand and model, latch reversal can be done in one of two ways:
Pull and twist the latch bolt to the desired position
Remove a retaining screw on the back of the lock case, rotate the latch, then refit the screw
This allows for easy adjustment during installation without the need for specialized tools.
Most of the mortice sashlocks are reversible so you dont have to specify a hand but if you want to state the hand you need we offer a free of charge service to reverse the latches for you to make your lives easier.
Added to Cart
Please Note: Once ordered this product will be placed on back order and shipped after:
£4.80
(£4.00 ex VAT)

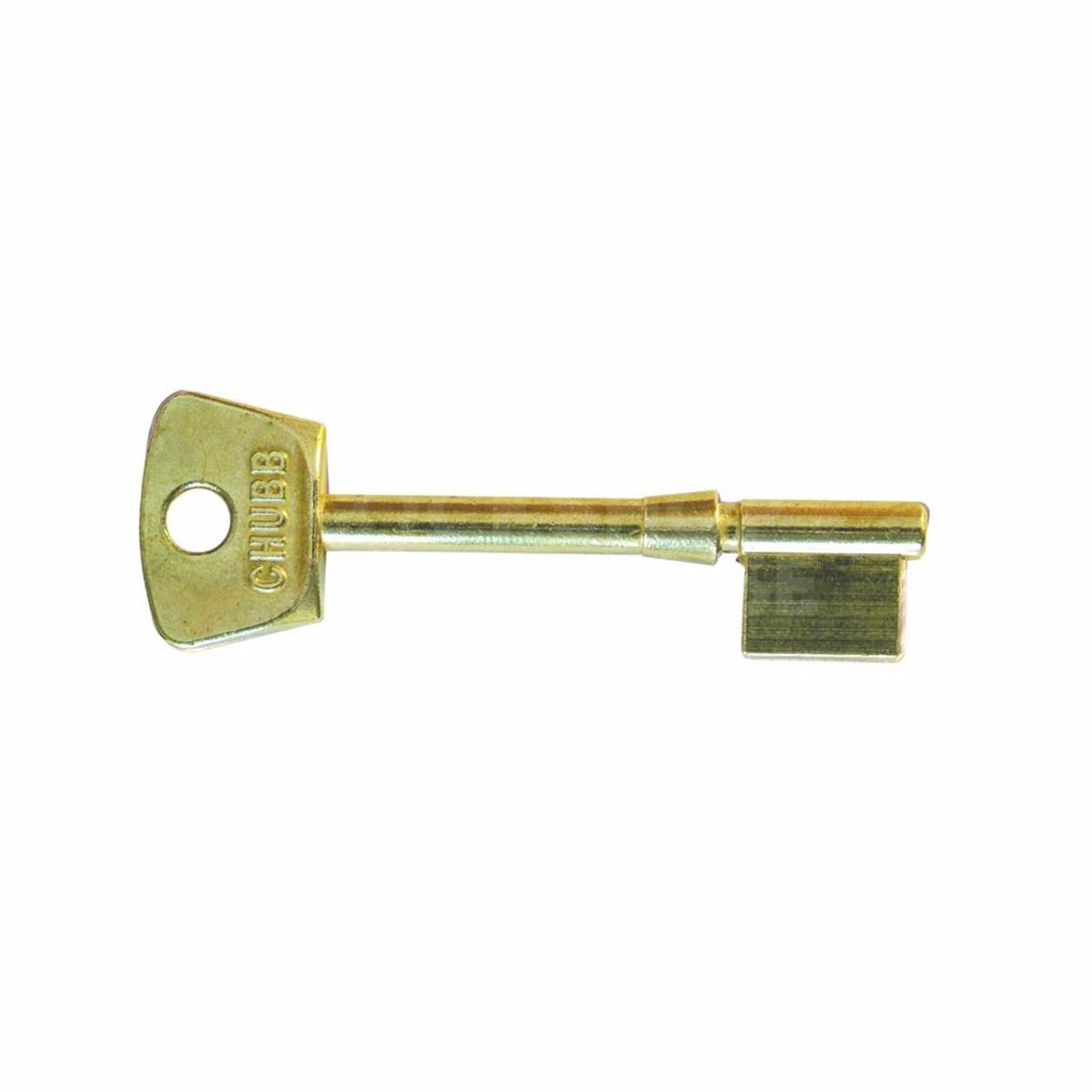

Designed to operate the Union 5 lever locks which are built upon the original Chubb 110 style.
All our extra keys are cut keys to the specific lock you have purchased. We do not supply the uncut blanks unless requested
£54.00
(£45.00 ex VAT)

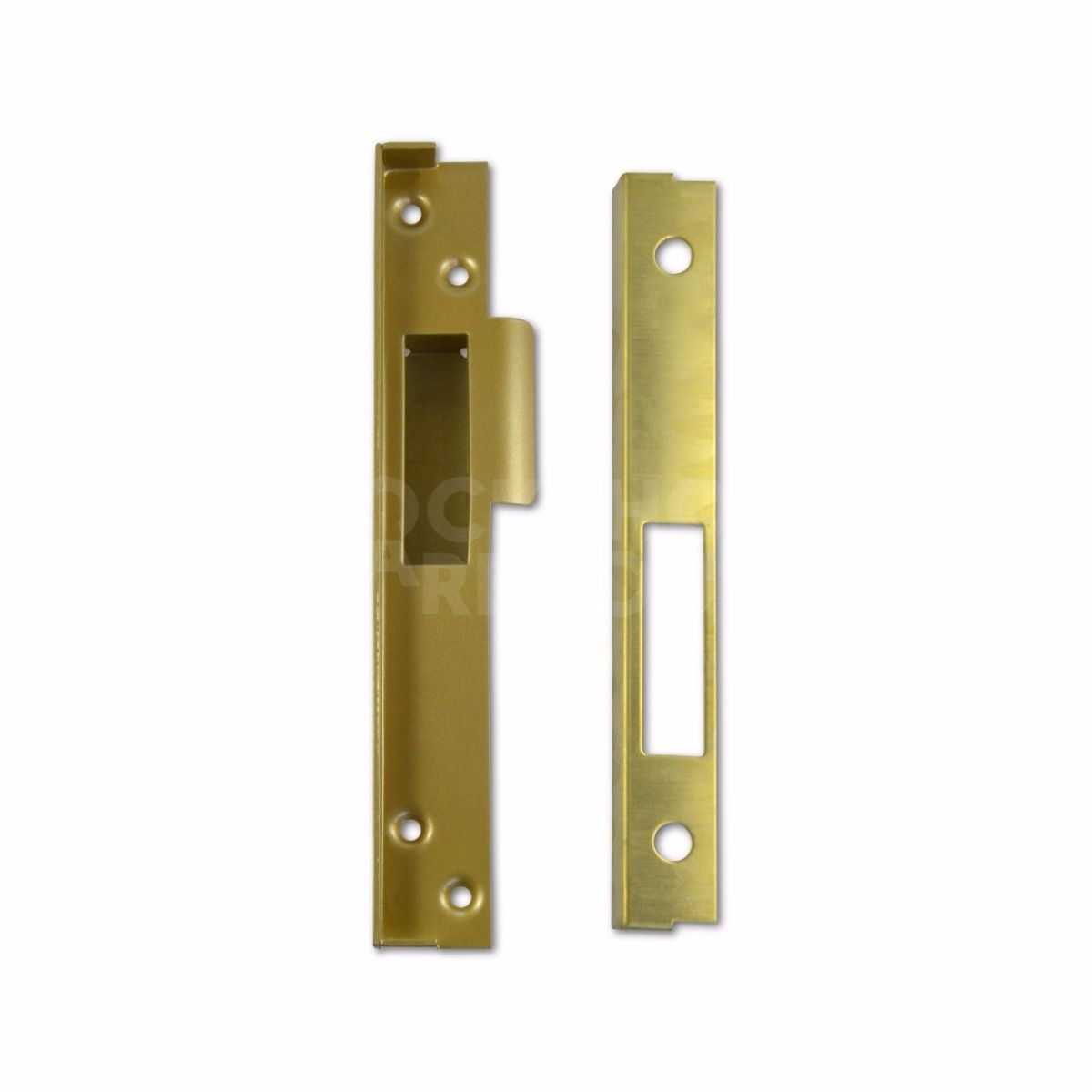

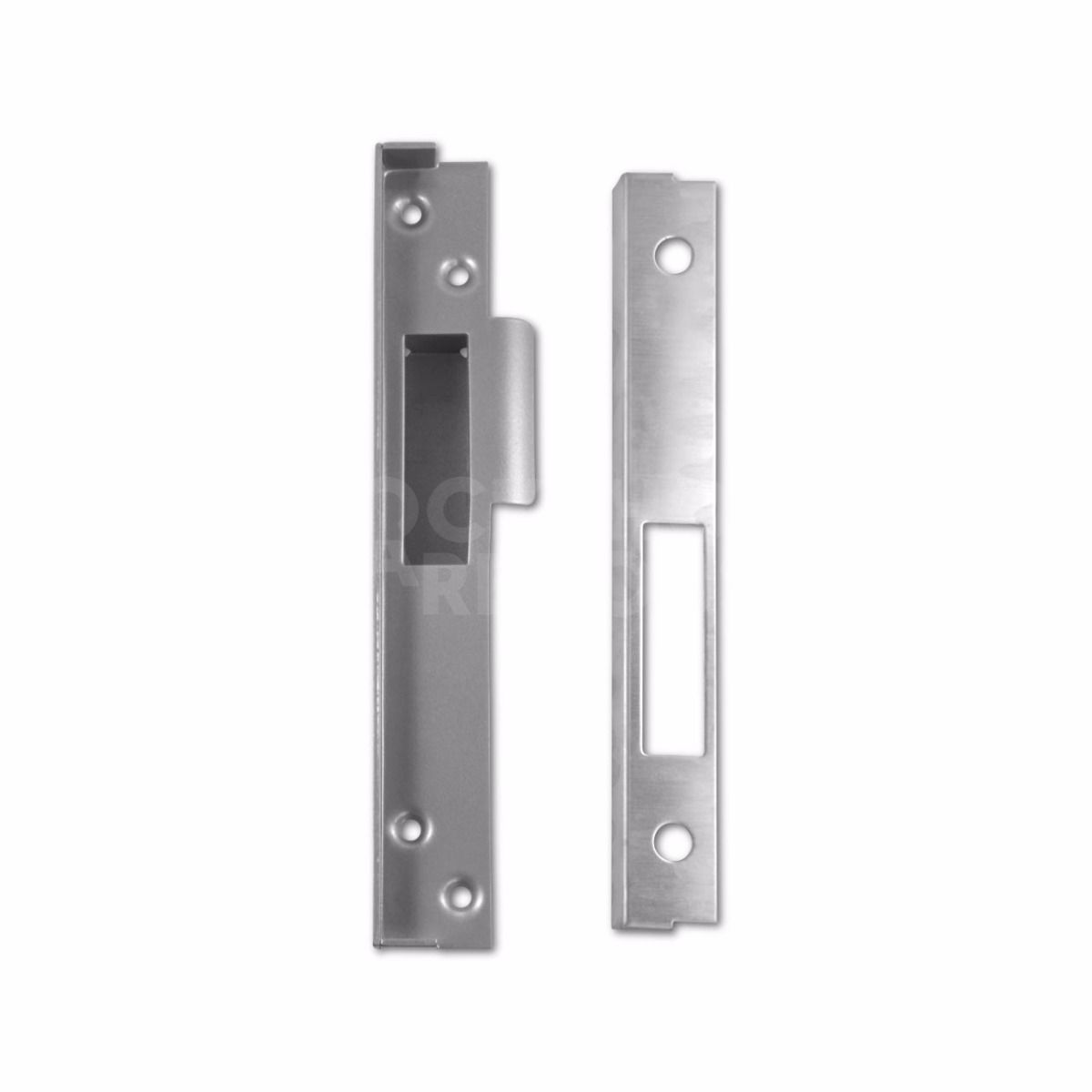

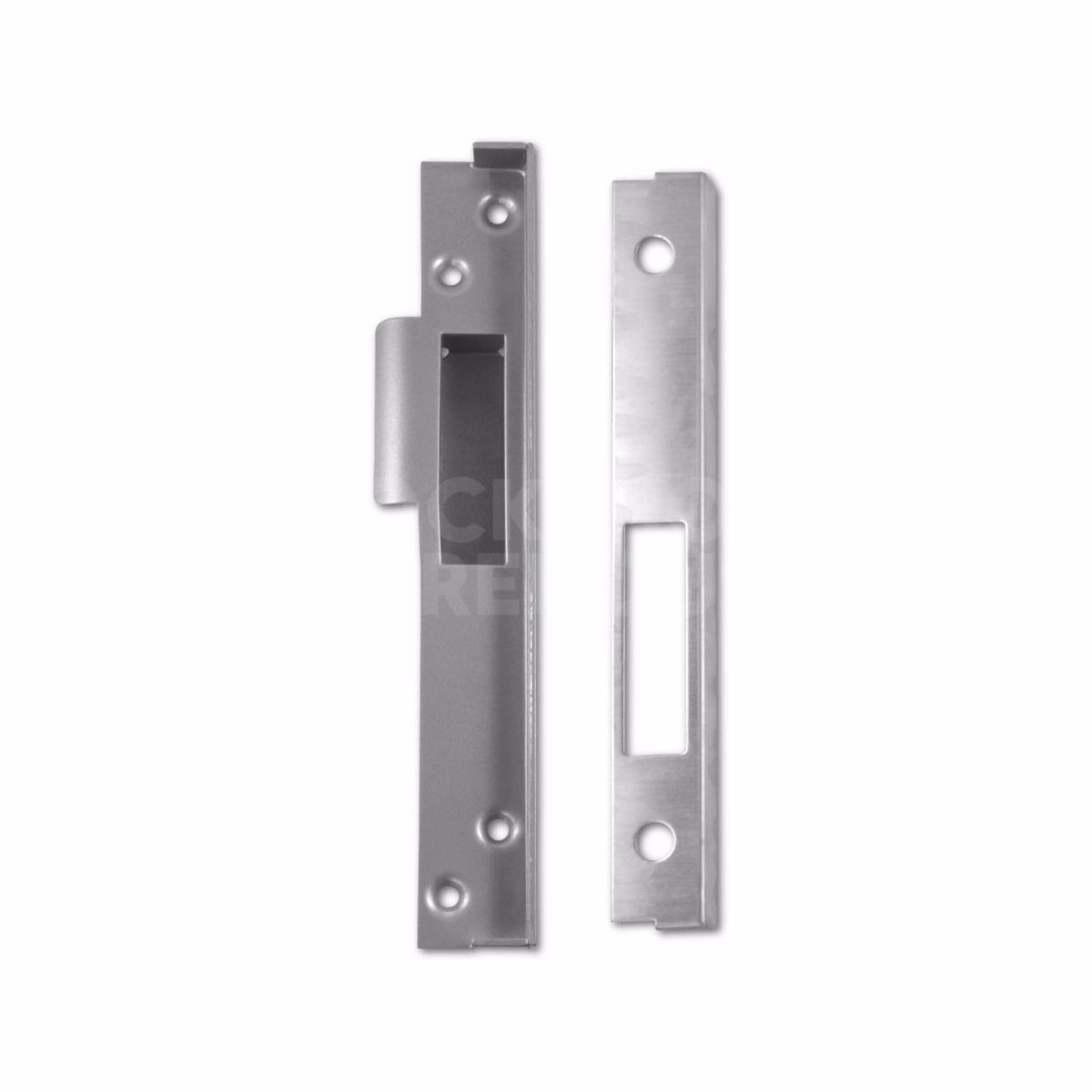

A 13mm rebate available with a choice of hand, please confirm this prior to ordering as they are not reversible.
Rebate sets are only needed for double rebated doors, these are not the plates you require if you have a single door these are included with every mortice lock.
Rebate3K70
£11.99
(£9.99 ex VAT)
This Mortice Drill Bit Kit will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door
MortTool
1 x Black and Decker 18mm Flat wood bit (for main mortice hole)
1 x Black and Decker 10mm Flat wood bit (for Key Holes)
2 x Black and Decker 2.5mm drill (for pilot holes)
£17.99
(£14.99 ex VAT)
This Chisel set will contain 1 of each of the sizes you will need to fit a mortice lock to a wooden door Kit includes: 1 x Faithful 19mm Chisel 1 x Faithful 25mm Chisel The Faithfull bevel edged chisel range are quality tools for professional work as well as DIY users. The blue PVC handles on these chisels are impact resistant and designed for use with a mallet, or an occasional hammer blow. Each blade is manufactured from drop-forged chrome vanadium steel and is hardened and tempered to exacting standards, ensuring that the cutting edge remains sharper for longer. The bevelled edges make these chisels ideal for fine work and for cutting into tight corners. All the chisels in this range are supplied with blade guards.
MortChis
19mm Chisel
25mm Chisel
Blade Guards
£16.79
(£13.99 ex VAT)
This is a very basic set of Chisel made by Blue Spot. They are a very cheap entry level chisel but a good buy if you have not got a set. BlueSpot Tools 4 Piece Wood Chisel Set with precision ground blades. The chisels are made from hardened steel for extra strength and have grooved plastic handles for grip. Set Contains: 1 x 6mm BlueSpot Chisel 1 x 12mm BlueSpot Chisel 1 x 19mm BlueSpot Chisel 1 x 25mm BlueSpot Chisel
BLChisSet
1 x 6mm Chisel
1 x 12mm Chisel
1 x 19mm Chisel
1 x 25mm Chisel
