skip to Union 3R35 Deadlocking Latch

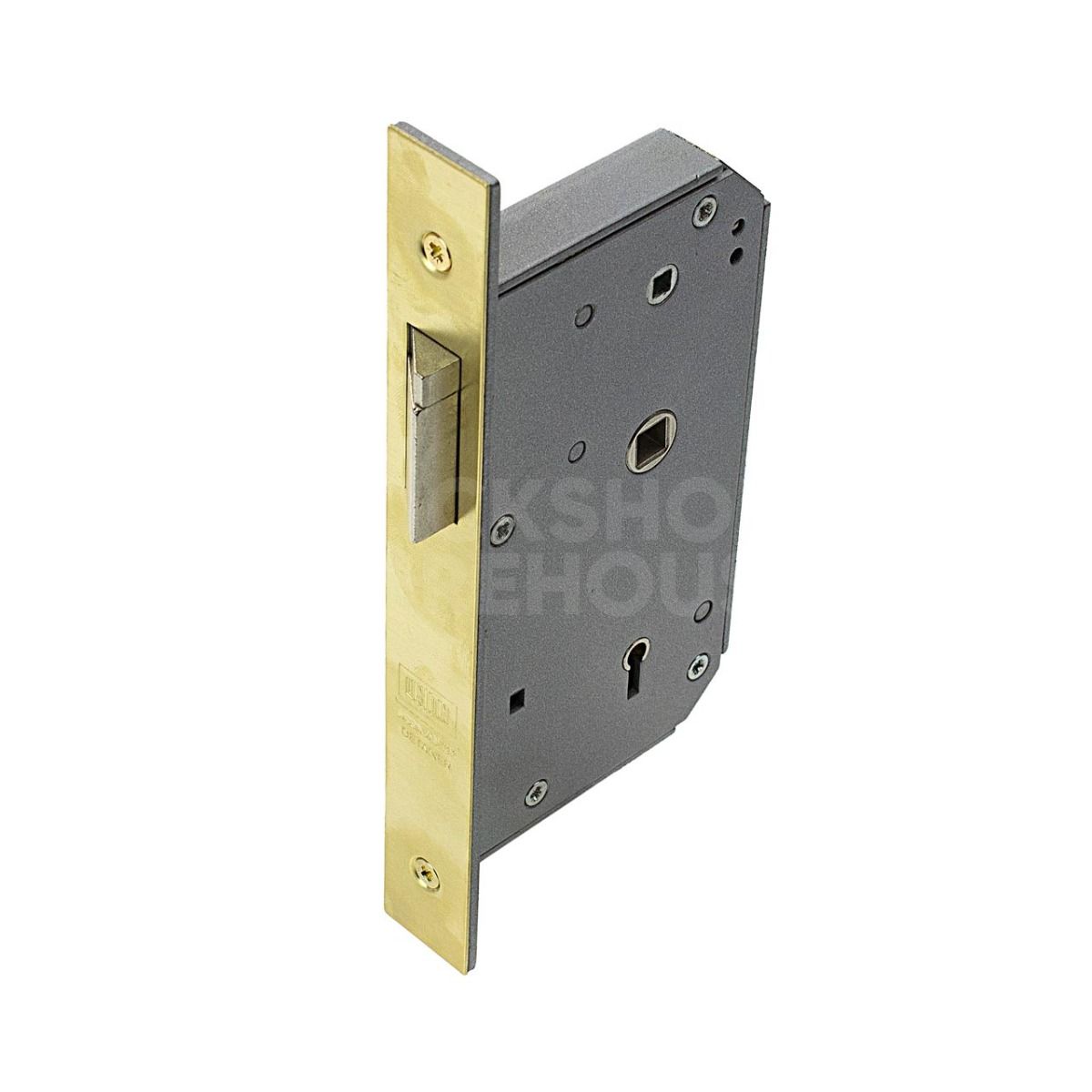

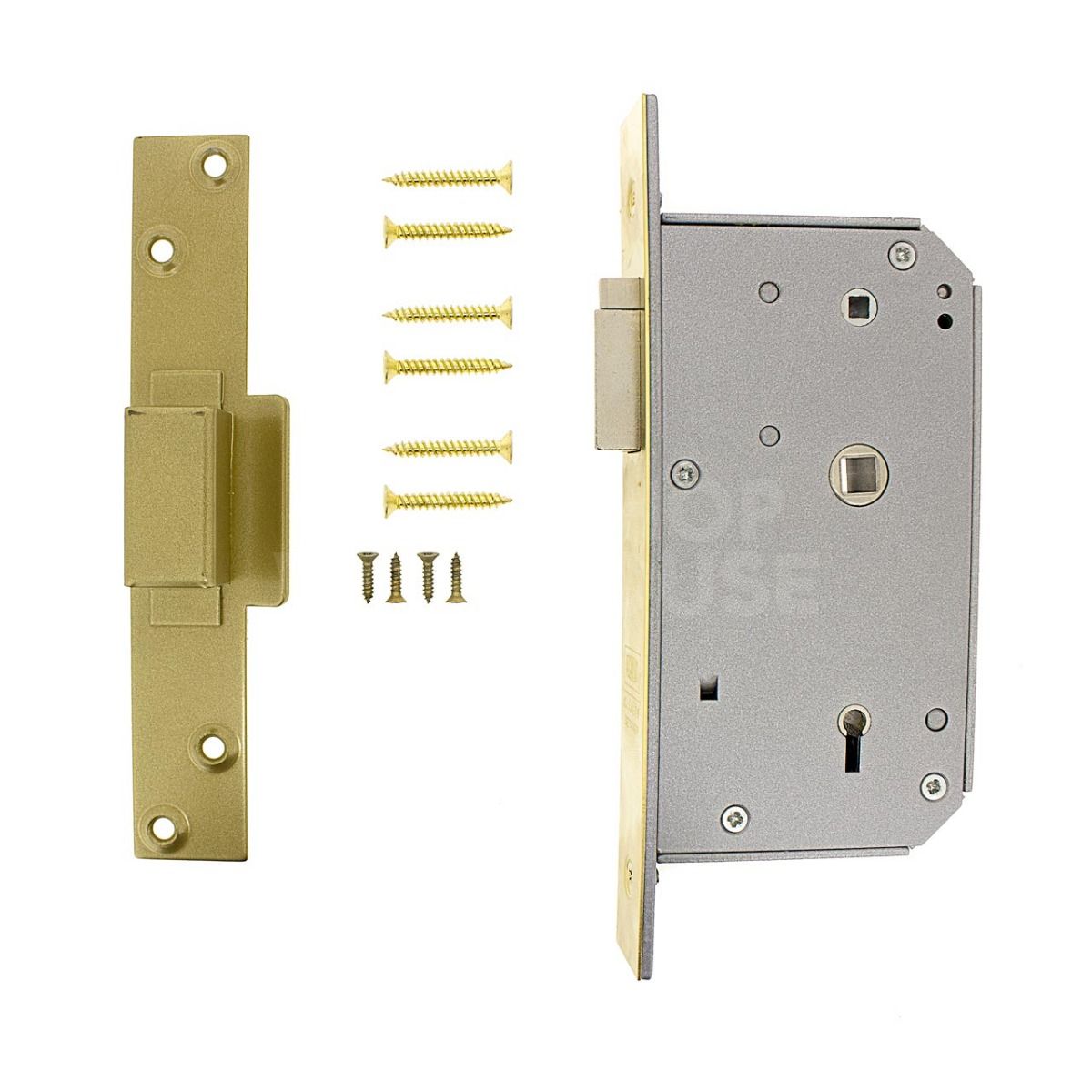

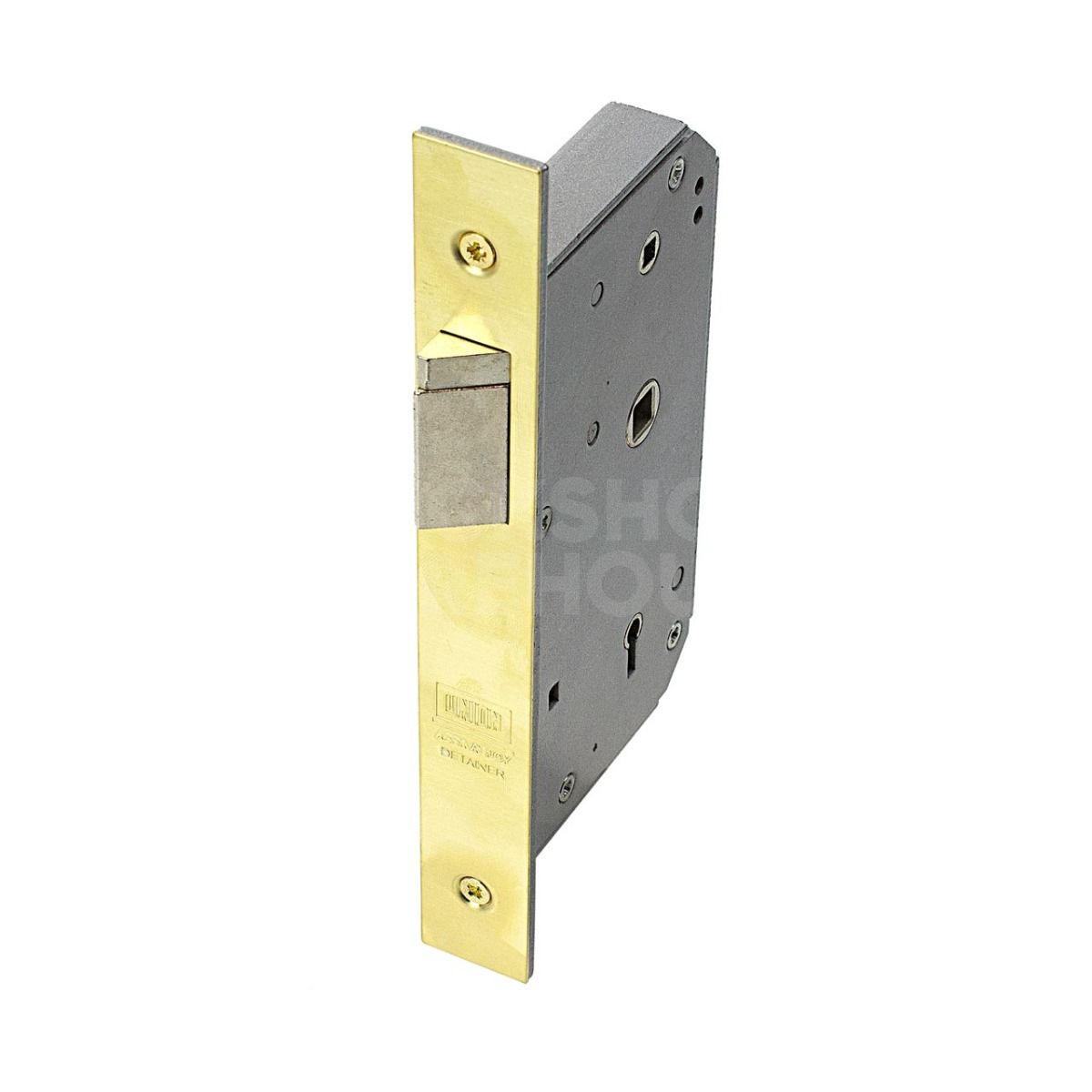

Union 3R35 Deadlocking Latch

£179.99

(£149.99 ex VAT)

sku: 3R35
  • Automatic deadlocking upon door closure for immediate security
  • Operated by key from both sides to withdraw the latchbolt
  • Internal lever handle provides quick egress functionality
  • Integrated snib allows for latch hold-back when required
  • High-security five-detainer mechanism resists manipulation
  • Lockable internal handle for additional security control
  • Can be modified for fire escape applications by disabling handle locking
  • Standard 8mm follower for compatibility with lever furniture

Union C Series Range of Non BS3621 mortice locks which can be keyed alike together.

Union 3G110 Deadlock - 73mm £ 125.99
Union 3K70 Sashlock £ 144
Union 3J60 Horizontal Sashlock £ 227.99
Union 3R35 Deadlocking Latch £ 179.99

Key Configuration

Finish

Handing

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

star Recommended
heavy-duty Heavy Duty
8/10 Security Rating

The Union 3R35 is a high-security deadlocking mortice nightlatch designed for use on timber doors where automatic locking is a priority. It utilises a sophisticated five-detainer mechanism, offering a higher degree of security than standard lever locks by providing increased resistance to picking and unauthorised manipulation.

This latch functions by automatically deadlocking the bolt once the door is closed, ensuring the property is secure without manual intervention. The latchbolt can be withdrawn via a key from either the external or internal side. Additionally, an internal lever handle allows for convenient exit. A key-controlled feature allows the internal handle to be secured, preventing it from being operated, which is useful in specific security environments.

  • Functionality: Automatic deadlocking with key operation from both sides.
  • Safety: Can be modified for fire escape use by removing the handle-locking facility.
  • Convenience: Includes a snib to hold the latchbolt back for periods of free access.
  • Compatibility: Features a standard 8mm follower suitable for most internal lever handles.

The Union 3R35 is typically installed as a primary locking point on entrance doors or as a replacement for existing mortice nightlatches in both residential and commercial settings. It is recommended for use where reliable, automatic deadlocking is required alongside flexible internal access control.

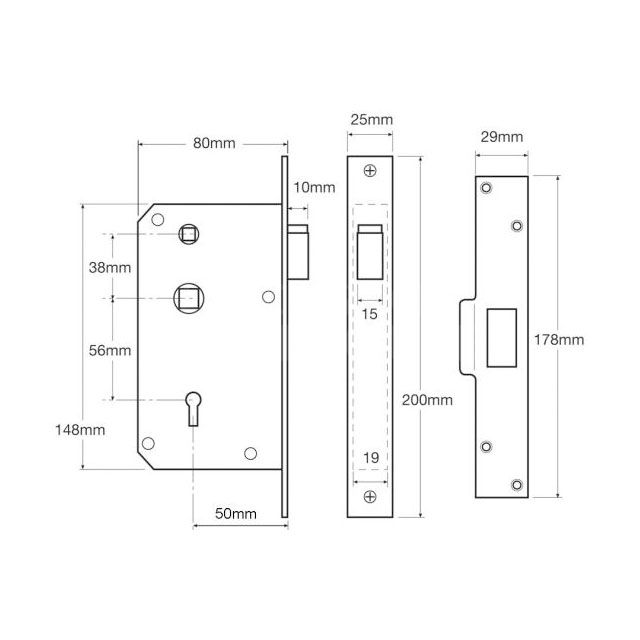

Dimensions Image: Union 3R35 Deadlocking Latch
Part Size (mm)
centres 56
Backset 50
Bolt Length 10
Case Width 80
Case Height 148
Forend Width 25
Forend Length 200
Strike Plate Width 29
Strike Plate Length 178
Dimensions Image: Union 3R35 Deadlocking Latch

Brand

SKU

3R35

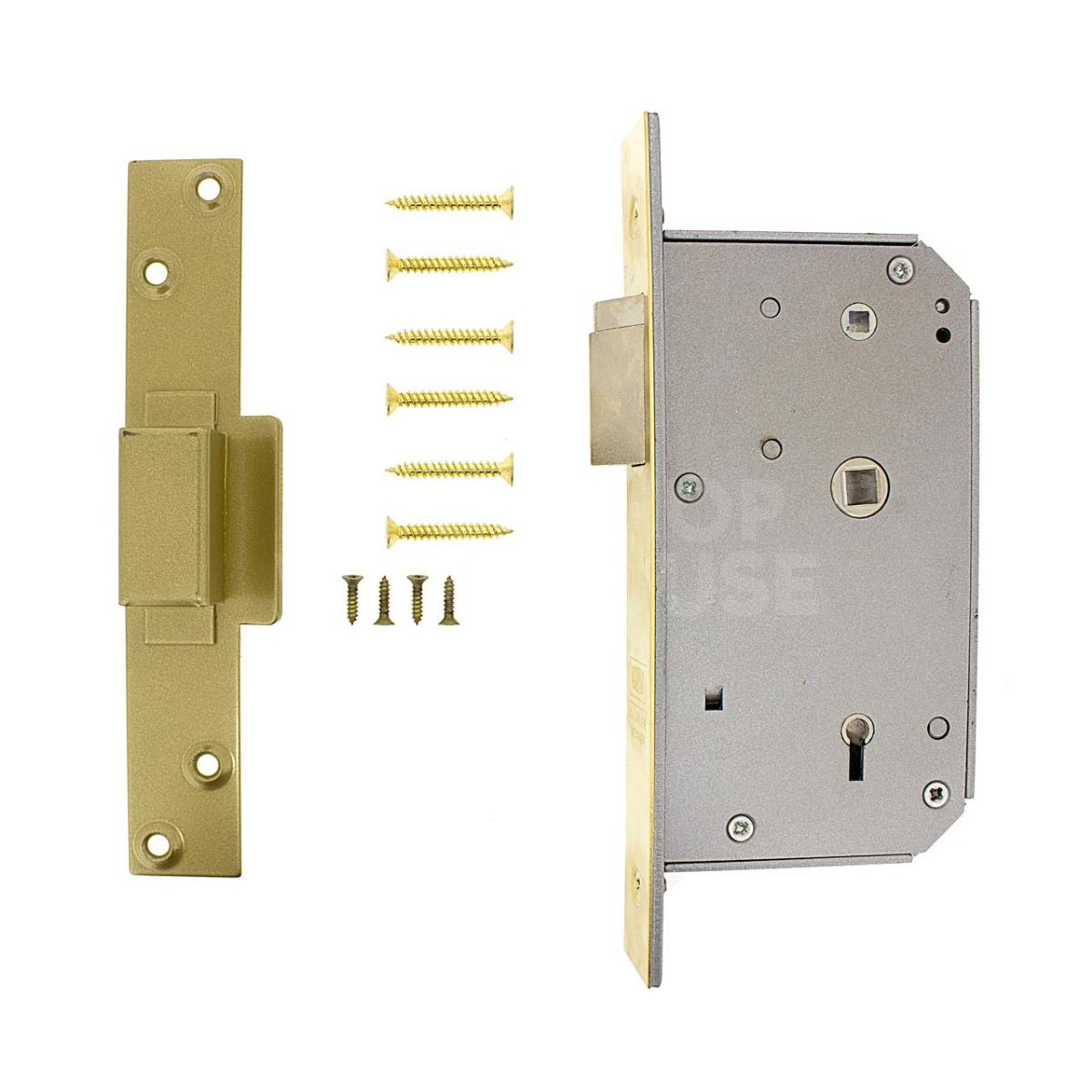

Box Contents

strike plate

fixing screws

instructions

mortice lock

FAQs

From the outside, the latchbolt is withdrawn using a key. From the inside, it can be operated by either a key or a lever handle. The door is designed to automatically deadlock whenever it is closed for enhanced security.

Yes, the Union 3R35 can be modified for use as a fire escape lock. This is achieved by removing the facility to lock the internal handle, ensuring it remains operable for emergency exits.

This mortice nightlatch includes an integrated snib. This function allows you to hold the latchbolt back, keeping the door ajar and allowing for unrestricted passage when needed.

The lock features a high-security 5-detainer mechanism and an 8mm follower. It is supplied with two keys and a silver case, with a choice of two forend finishes:

  • Brass
  • Satin Chrome
