Ball-valve levers, gate-valve handwheels and gas-cylinder connections need different lockout arrangements. Identify the valve type and measure the part the device must fit—not just the pipe size.
Measure the whole fitting.
Ball-valve levers
Compare handle width and thickness, the valve body and the space needed to seat and lock the device. Steel V423/V426 and polypropylene V442/V448 have different fitting limits.
Gate-valve handwheels
Check wheel diameter, depth and surrounding pipework. The V303–V313 range has five cover sizes; the rising-stem break-out applies to V305–V313, not V303.
Gas-cylinder connections
P606 is a separate cover design. Check the complete valve and connection shape rather than assuming a handwheel or ball-valve device will substitute.
Match the valve arrangement.
Plan the rest of the equipment.
No matching products found, try adjusting your filters
ABUS V423 / V426 Steel Ball Valve Lockouts
Powder-coated steel ball-valve lockouts in two sizes, selected to suit the valve handle.
£22.75 (£18.96 ex VAT)

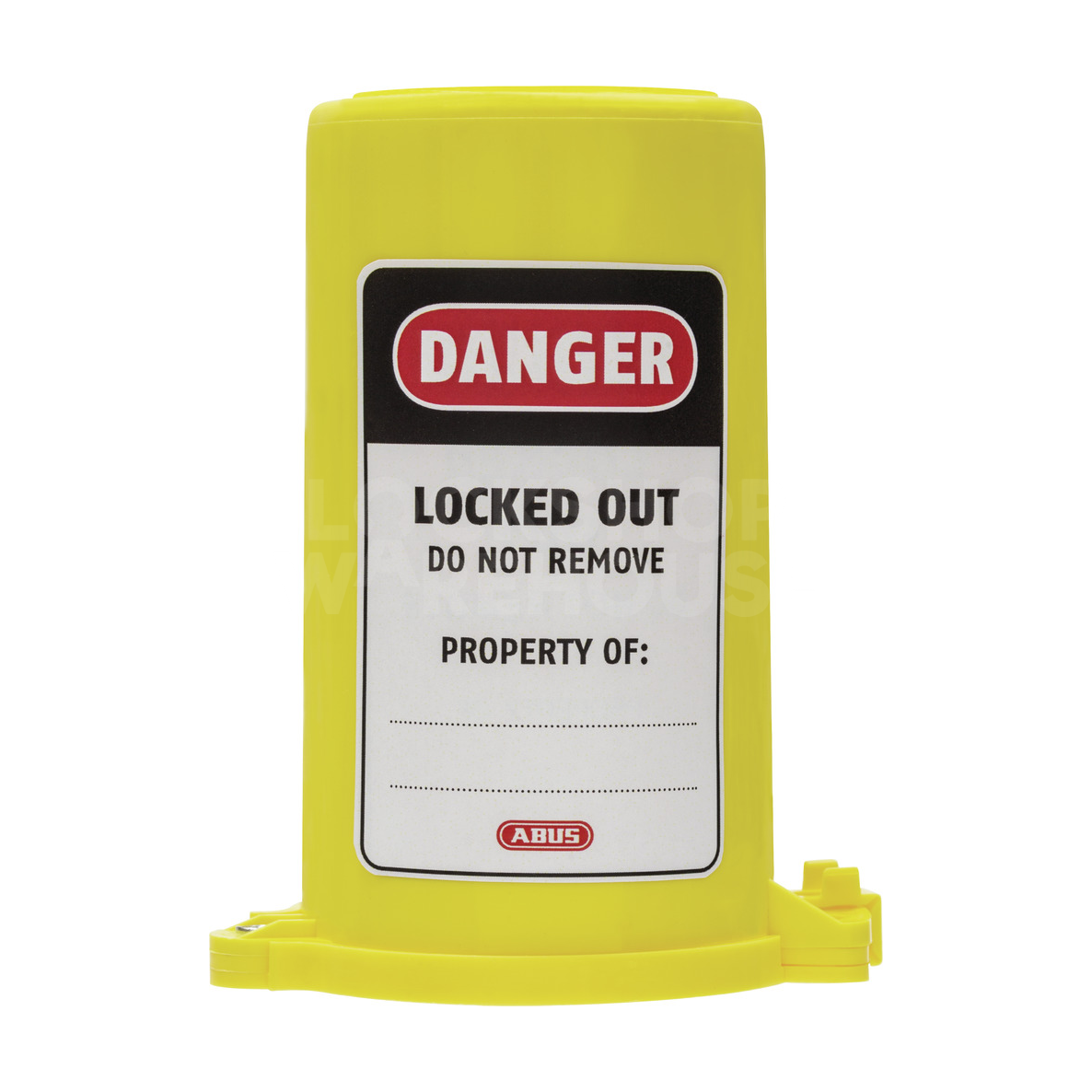

ABUS P606 Gas Cylinder Lockout
A lockout cover for compatible gas-cylinder valves and connections.
£20.75 (£17.29 ex VAT)

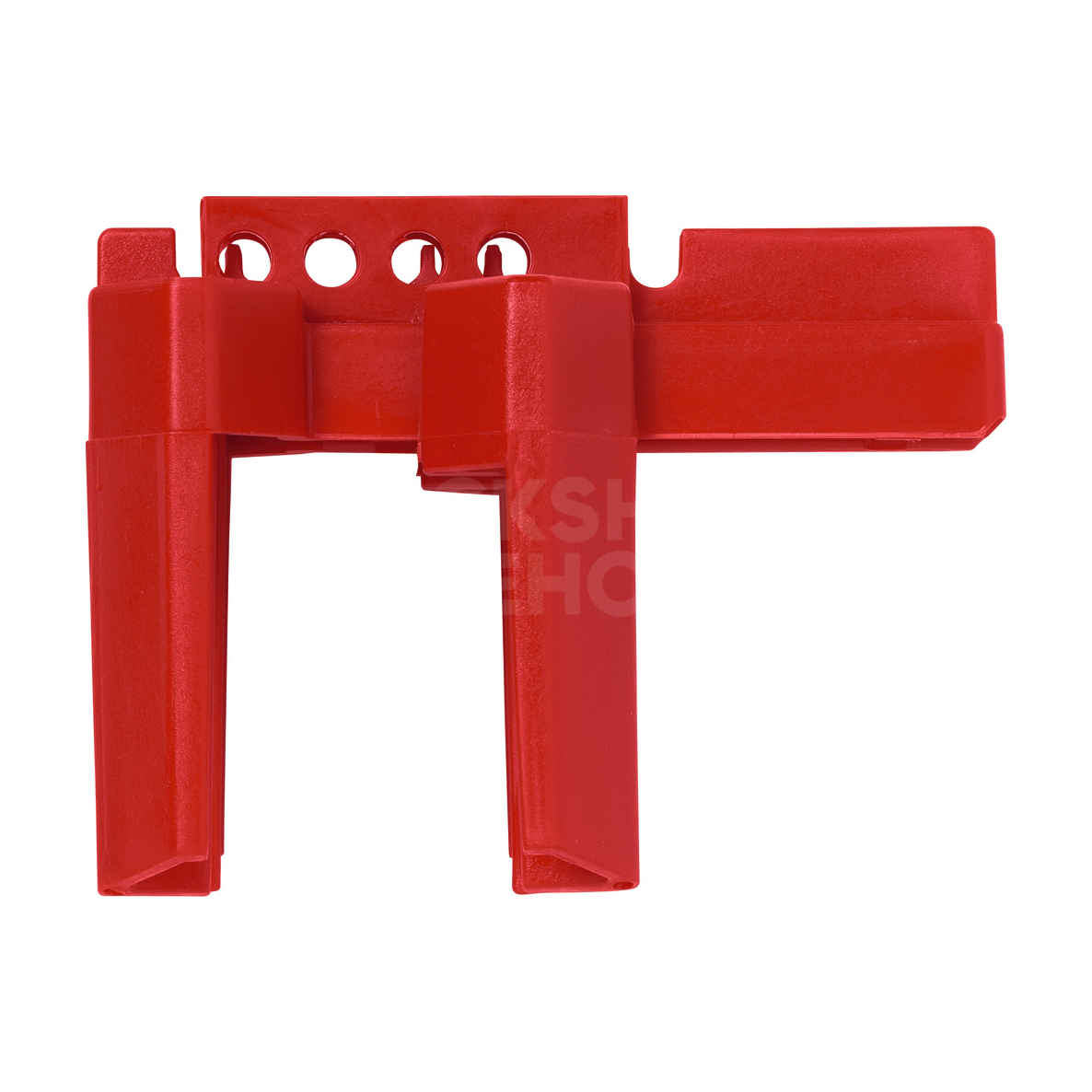

ABUS V442 / V448 Plastic Ball Valve Lockouts
Polypropylene ball-valve lockouts in two sizes for compatible lever handles.
£36.50 (£30.42 ex VAT)
ABUS Gate Valve Lockouts
£17.95 (£14.96 ex VAT)

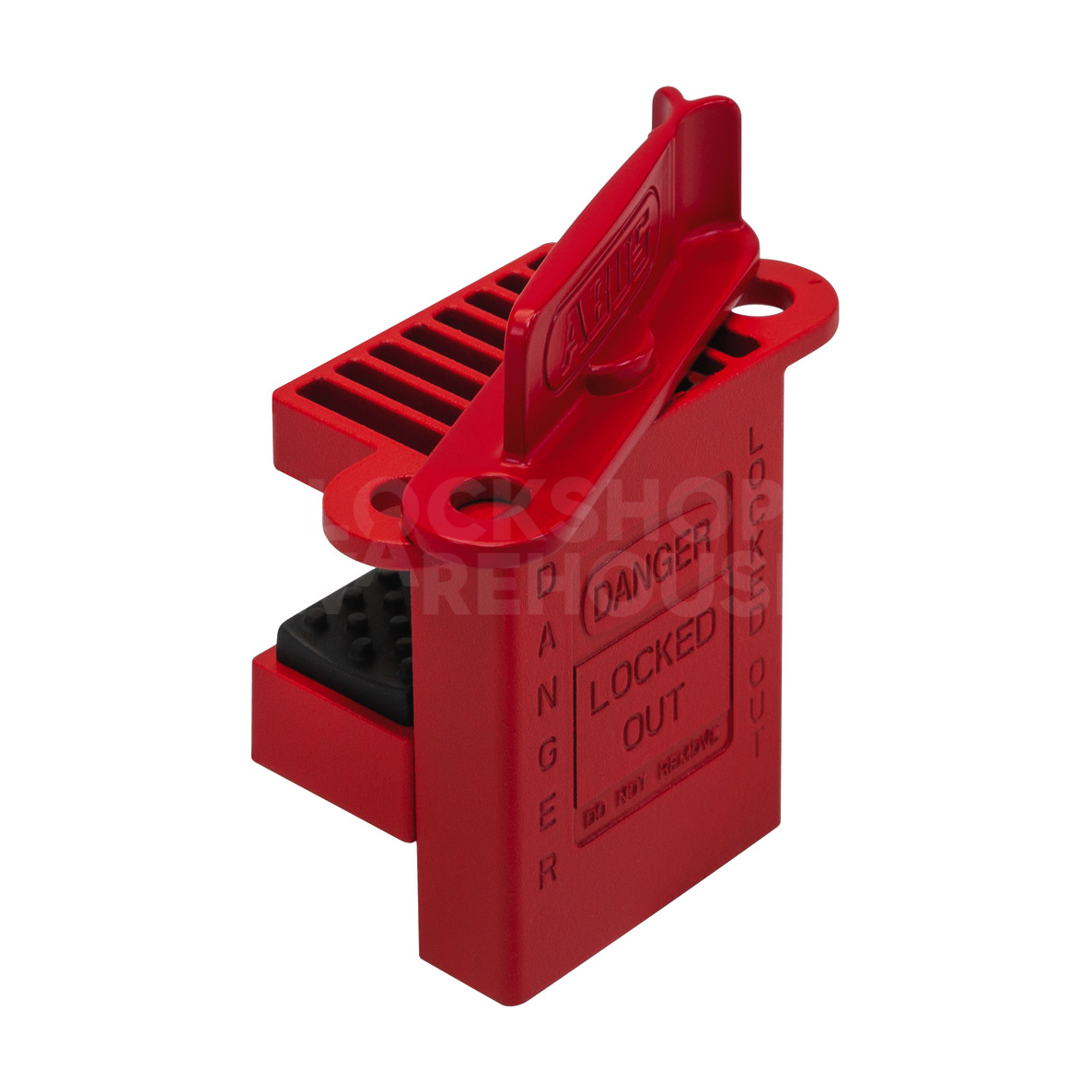

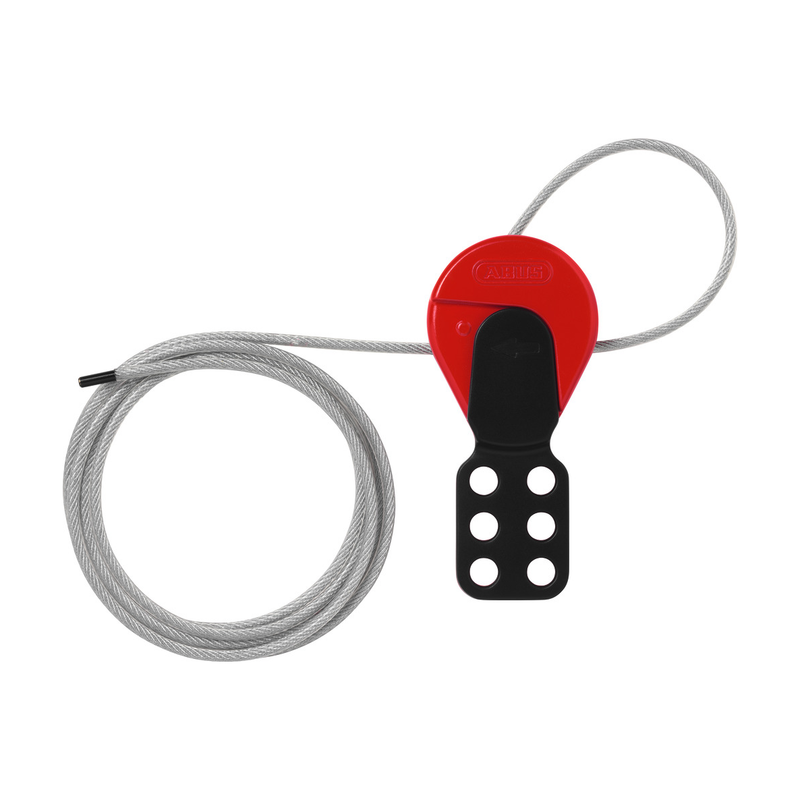

ABUS V500 Valve Lockout and C506 Set
£60.50 (£50.42 ex VAT)
