skip to Yale 723 Traditional Style Nightlatch: Reversed Latch

Yale 723 Traditional Style Nightlatch: Reversed Latch

£33.60

(£28.00 ex VAT)

sku: ReY723
  • Specifically designed for outward opening doors.
  • Fits timber doors from 32mm to 57mm in thickness.
  • Internal snib function allows for latch holdback or deadlocking.
  • Key-operated deadlocking from the outside for increased security.
  • Internal knob provides convenient latch retraction and egress.
  • Utilises a 5-pin rim cylinder for reliable locking performance.
  • Suitable for both replacement tasks and new installations.
Yale 77 Traditional Style Nightlatch 60mm: Reversed Latch £ 20.4
Yale 723 Traditional Style Nightlatch: Reversed Latch £ 33.6

Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

5/10 Security Rating
tick Key Profile: Standard

The Yale 723 Traditional Nightlatch is a surface-mounted secondary locking solution engineered specifically for outward opening doors. Unlike standard nightlatches, this reversed-latch version ensures the bolt properly engages with the frame on doors that swing away from the interior, making it an essential component for specific residential and light commercial applications.

Operationally, the latchbolt is retracted via the internal knob or an external key. For added security, the latch can be deadlocked using the key from the outside or the slide button (snib) on the inside. This same snib can also be used to hold the latch in the retracted position, allowing for free entry and exit when the lock is not required. The unit uses a standard 5-pin rim cylinder, providing a trusted level of security suitable for various timber door types.

When installing this unit, it is typically used in conjunction with a specialised reversed striking plate. It is an ideal choice for property owners looking for a traditional aesthetic combined with functional reliability for non-standard door configurations. It serves as both a primary replacement for existing Yale 723 units and a robust option for new timber door setups.

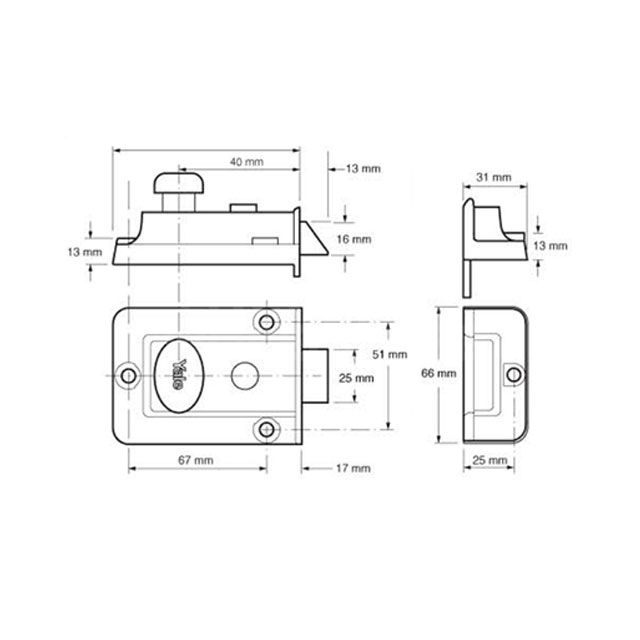

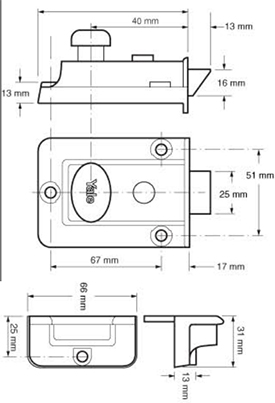

Dimensions Image: Yale 723 Traditional Style Nightlatch: Reversed Latch
Dimensions Image: Yale 723 Traditional Style Nightlatch: Reversed Latch

Brand

SKU

ReY723

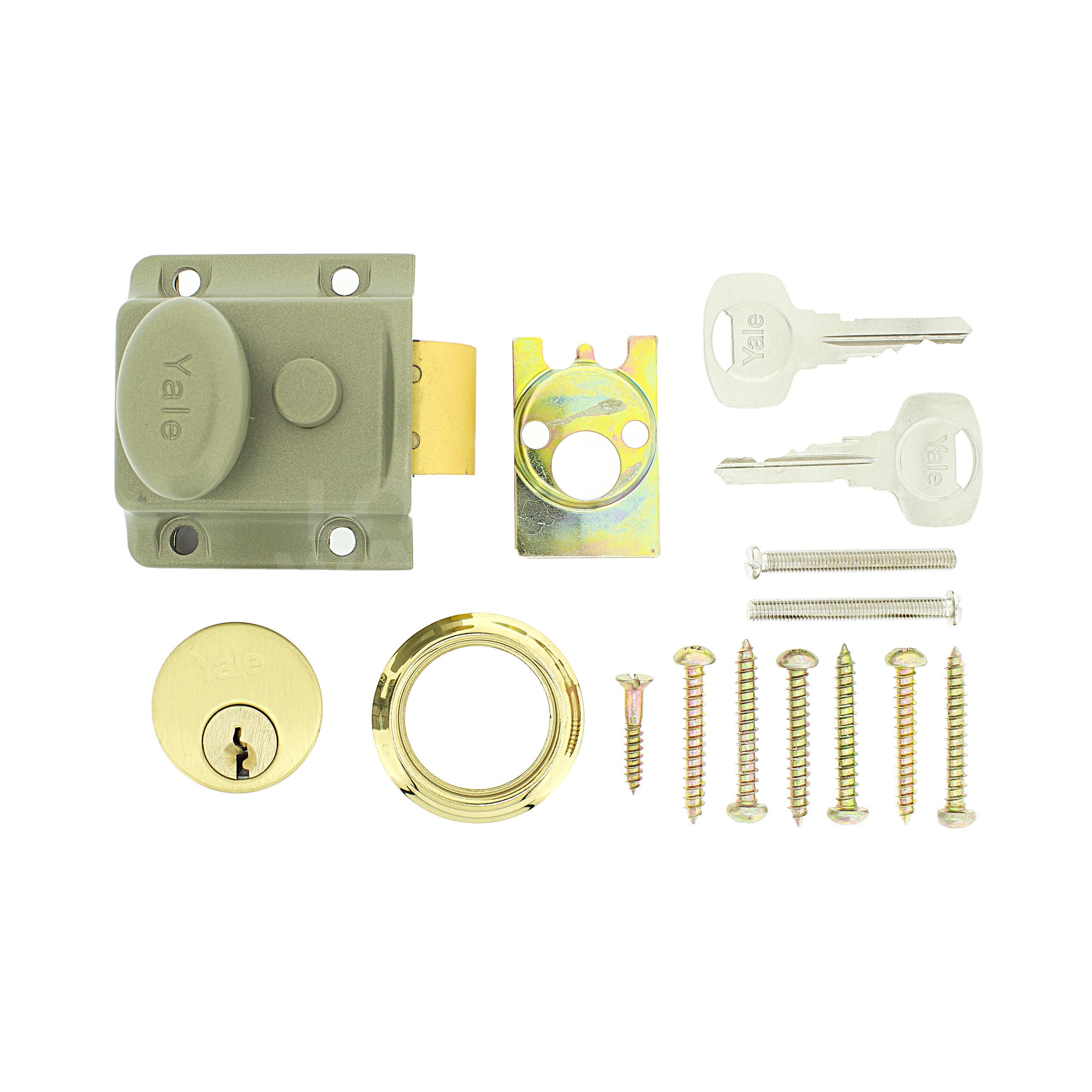

Box Contents

2 keys

strike plate

rim cylinder

nightlatch

Key Profile

Key Profile: Standard

FAQs

No unfortunately not, the BS3621 nightlatches can not be reversed. The only way to do this is to install a standard nightlatch from our outward opening nightlatch section and then also install a BS3621 deadlock. This deadlock will give you the insurance rating required.

You need to make sure the lock you fit is NON deadlocking. This means that you can not lock people into the property. There are a few nightlatches designed for these doors. The best is the Yale PBS3 or PBS4 or a more standard model would be the Yale 88 or 84.

The best locks for these would be the a rollerbolt style lock with a masterkeyed cylinder. I would not recommend installing a standard Nightlatch on these doors as the tenants can lock themselves out if they close the door behind them. We can supply these locks for you on a masterkey if you require or keyed differ if you would prefer.

The backset on these locks is the distance from the edge of the door to the center of the Rim Cylinder. This is the large 32mm hole drilled through the door. There are 2 main sizes of these, 60mm or 40mm. Easiest way to find out what you have is to measure from outside of the door from the edge to the center of the keyhole. If you have a solid door you should use the 60mm backset locks, if you have a glass panelled door then you may need to use the 40mm backset. If your current lock is 50mm backset you will need to see our Union locks as only Union made a 50mm backset lock in the past.

There are different levels of security you can have with all locks. The standard locks (i.e. Yale 77, Yale 88) , then the mid level locks which can be key deadlocked from outside ( Yale 89, Union nightlatches). The double locking versions are only suitable for homes with other means of exit as you can lock people inside the house if not careful.

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes, the Yale 723 is specifically designed for outward-opening doors. It features a reversed latch mechanism to accommodate this specific door configuration, providing a secure locking solution where standard inward-opening nightlatches would not be compatible.

This lock features a convenient slide button on the internal case. This button allows you to engage a holdback facility to keep the door unlocked, or to deadlock the bolt from the inside. Additionally, the bolt and handle can be deadlocked from the outside using the key for increased security.

Yes. The standard striking plate included with the lock is not suitable for reversed configurations. To complete your installation on an outward-opening door, you will need to order an additional reversed striking plate separately.

This model is designed to fit standard timber doors with a thickness ranging between 32mm and 57mm. The package includes the enamelled nickel bronze case, a 5-pin cylinder, and two keys.
