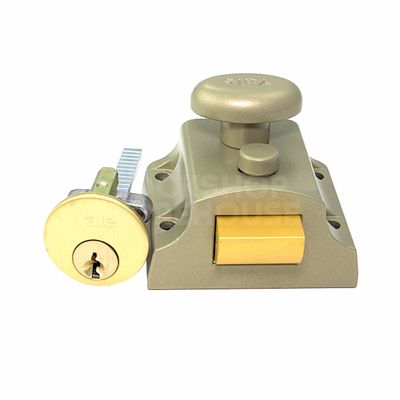

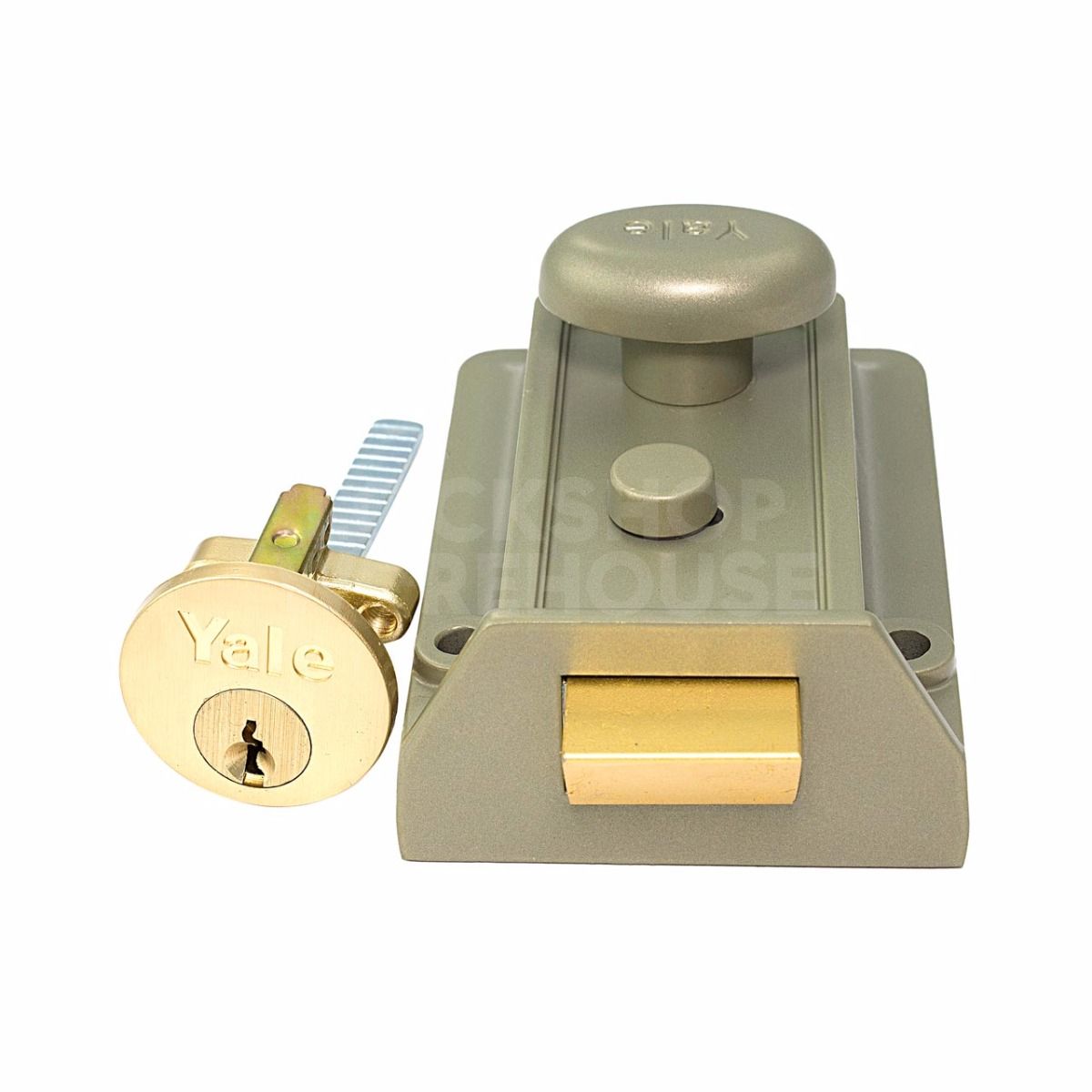

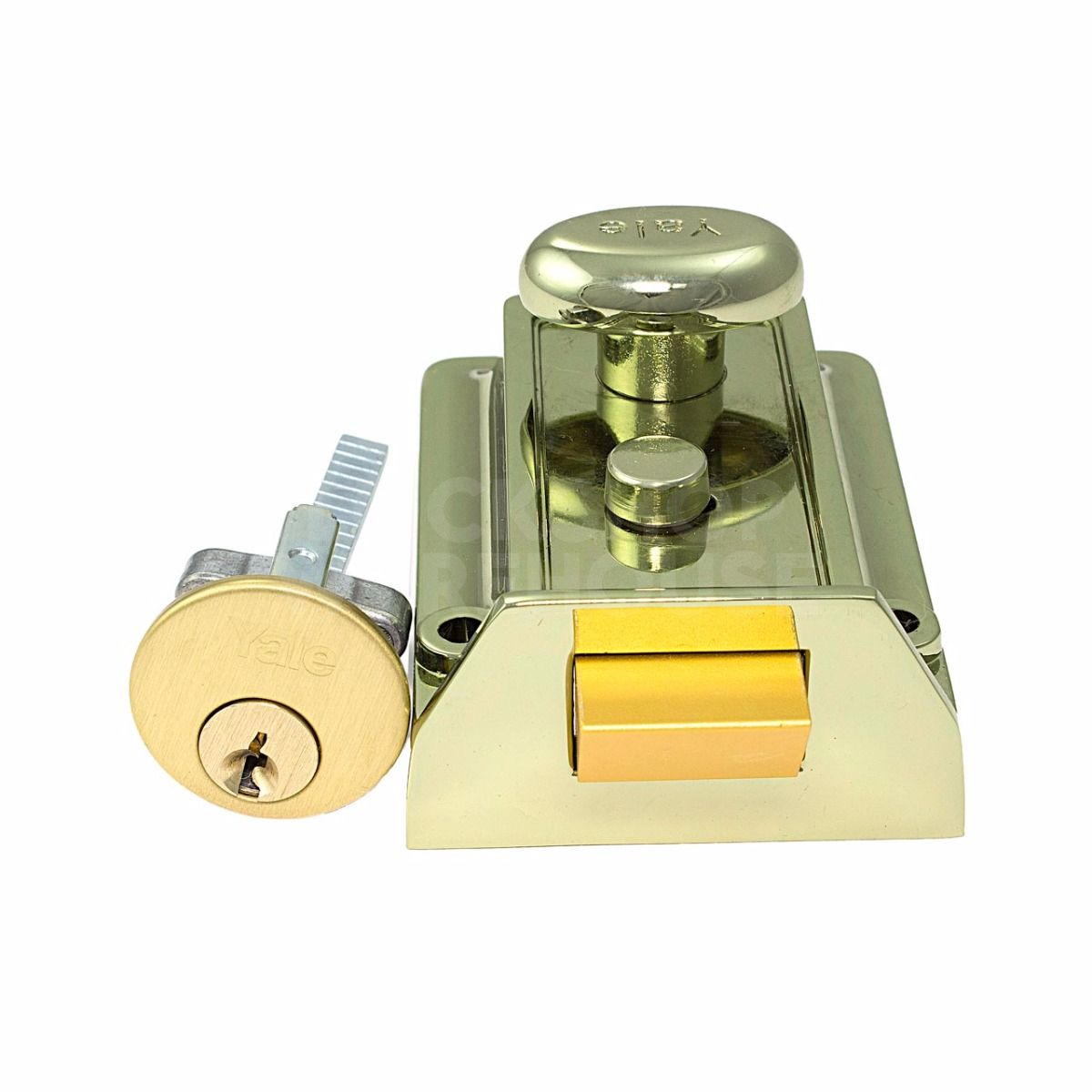

Yale 77 Traditional Style Nightlatch 60mm

£20.40

(£17.00 ex VAT)

sku: Y77E
  • Operated by external key and internal turn knob
  • Integrated snib function to deadlock or hold back the latch
  • Reversible latchbolt allows for left or right-handed installation
  • Compatible with standard timber doors between 32mm and 57mm thick
  • Surface-mounted design for straightforward fitting
  • Includes a 5-pin rim cylinder for secure external access
Document Icon product info Document Icon product info

Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

4/10 Security Rating

The Yale 77 Traditional Nightlatch is a classic surface-mounted rim lock designed for use on residential timber doors. It provides convenient security by automatically locking the door upon closing, requiring a key for entry from the outside and a turn knob for exit from the inside.

One of the key functional features is the internal slide button, or snib. This allows the user to deadlock the latch from the inside for increased security or hold the latch in its retracted position to prevent the door from locking when it is closed. This makes it an ideal solution for properties where temporary free access is required.

The unit is highly adaptable, featuring a reversible latchbolt that makes it suitable for both left and right-handed door configurations. It is typically used as a primary locking point on front doors or as a secondary lock for added security. While designed for inward opening doors, it can be adapted for outward opening applications with the use of a separate reverse strike.

  • Designed for timber doors from 32mm to 57mm thickness
  • Supplied with a 5-pin replacement rim cylinder
  • Commonly used for both new door installations and as a direct replacement for existing rim latches

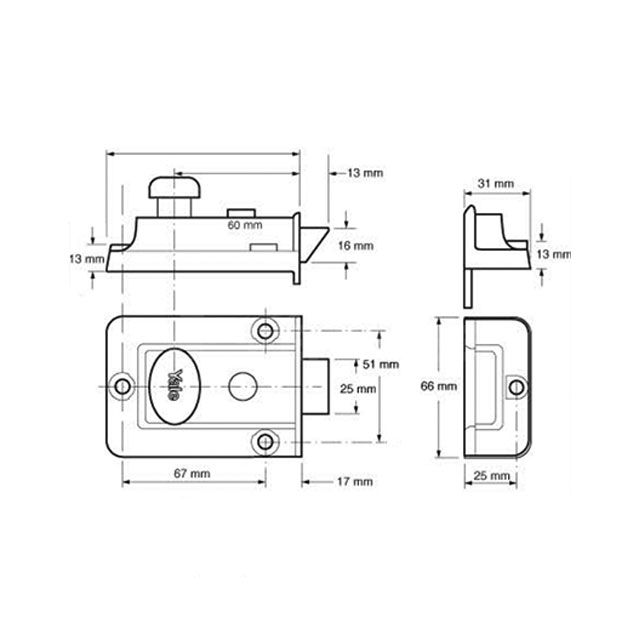

Dimensions Image: Yale 77 Traditional Style Nightlatch 60mm
Dimensions Image: Yale 77 Traditional Style Nightlatch 60mm

Brand

SKU

Y77E

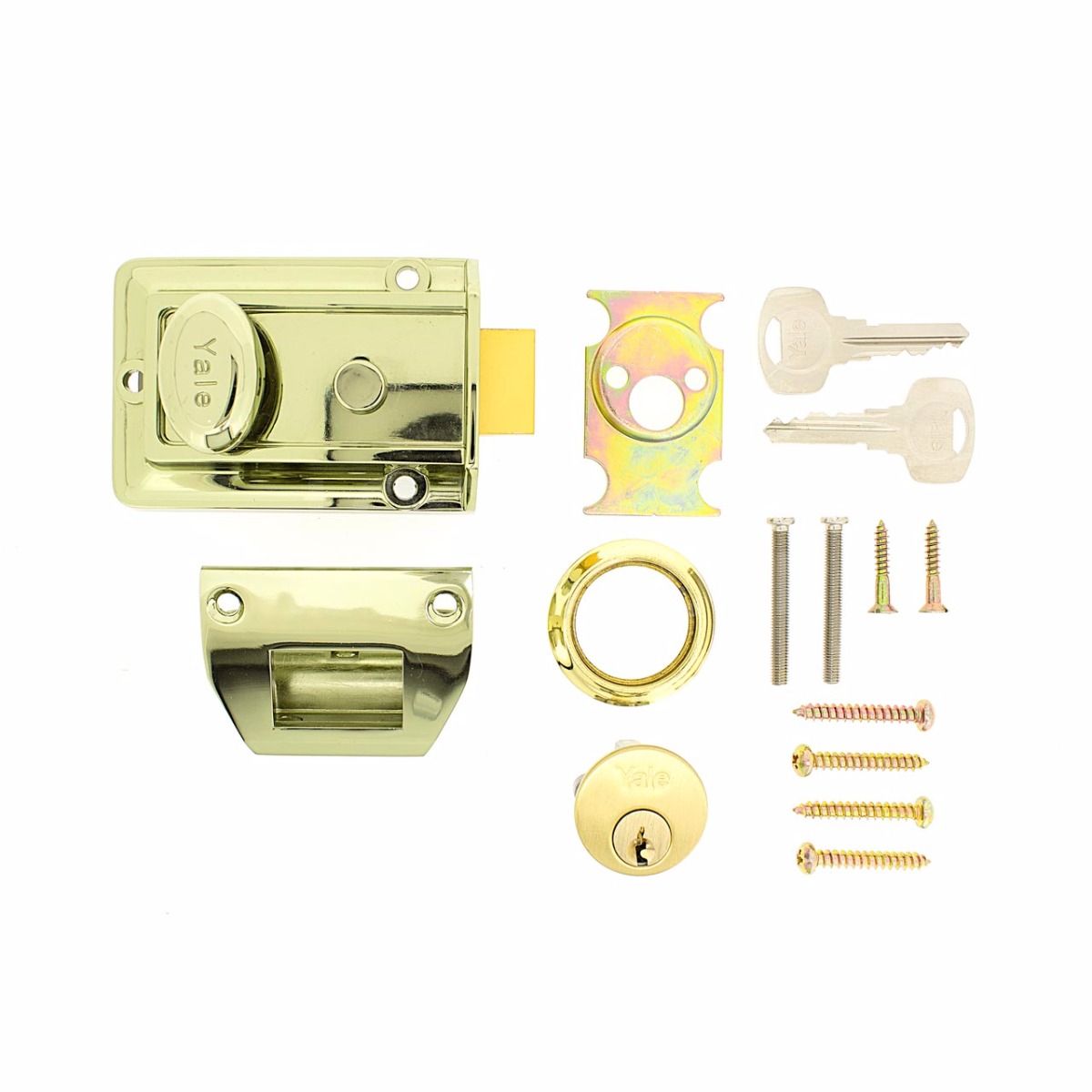

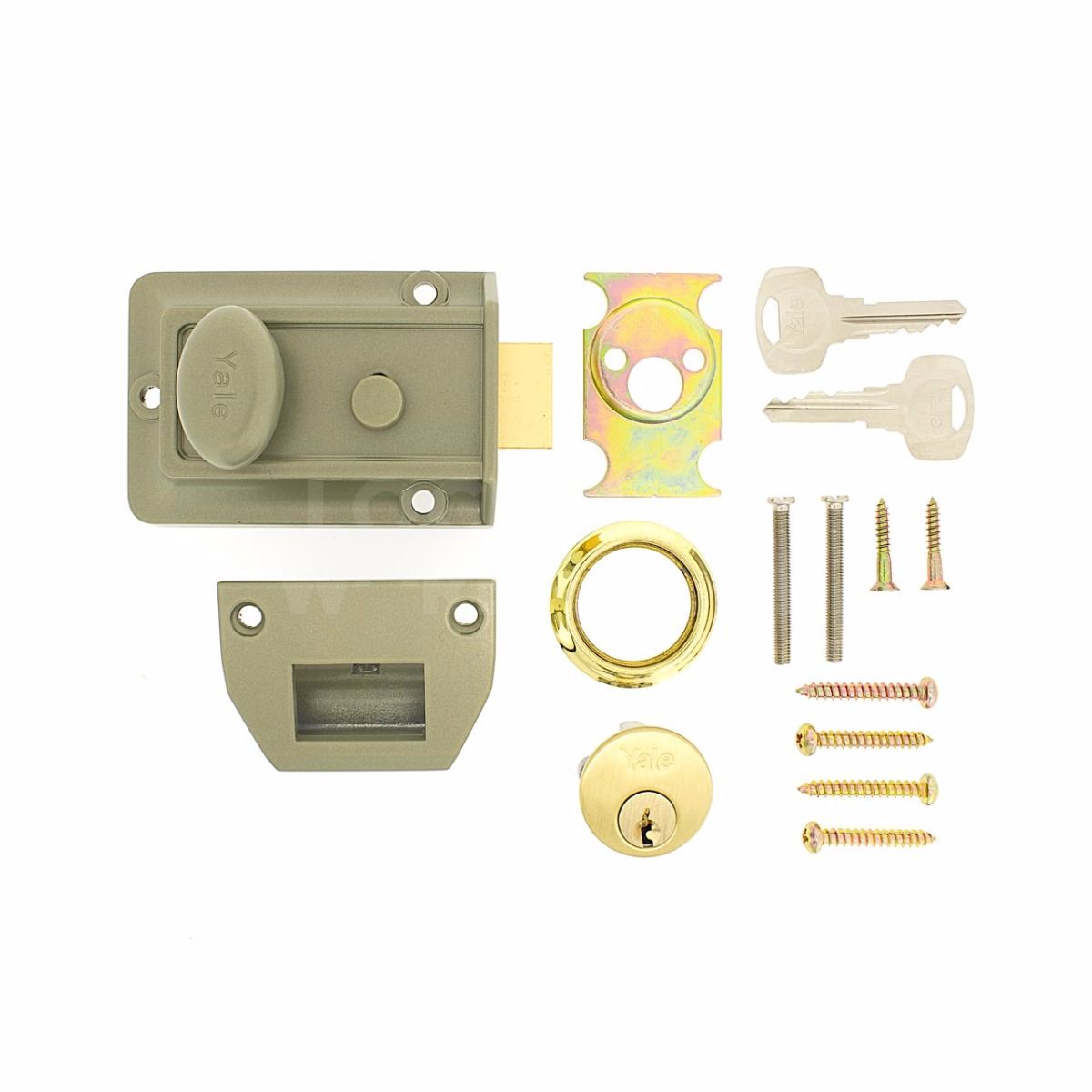

Box Contents

2 keys

strike plate

fixing screws

instructions

cylinder screw

rim cylinder

nightlatch

rosette

FAQs

No unfortunately not, the BS3621 nightlatches can not be reversed. The only way to do this is to install a standard nightlatch from our outward opening nightlatch section and then also install a BS3621 deadlock. This deadlock will give you the insurance rating required.

You need to make sure the lock you fit is NON deadlocking. This means that you can not lock people into the property. There are a few nightlatches designed for these doors. The best is the Yale PBS3 or PBS4 or a more standard model would be the Yale 88 or 84.

The best locks for these would be the a rollerbolt style lock with a masterkeyed cylinder. I would not recommend installing a standard Nightlatch on these doors as the tenants can lock themselves out if they close the door behind them. We can supply these locks for you on a masterkey if you require or keyed differ if you would prefer.

The backset on these locks is the distance from the edge of the door to the center of the Rim Cylinder. This is the large 32mm hole drilled through the door. There are 2 main sizes of these, 60mm or 40mm. Easiest way to find out what you have is to measure from outside of the door from the edge to the center of the keyhole. If you have a solid door you should use the 60mm backset locks, if you have a glass panelled door then you may need to use the 40mm backset. If your current lock is 50mm backset you will need to see our Union locks as only Union made a 50mm backset lock in the past.

There are different levels of security you can have with all locks. The standard locks (i.e. Yale 77, Yale 88) , then the mid level locks which can be key deadlocked from outside ( Yale 89, Union nightlatches). The double locking versions are only suitable for homes with other means of exit as you can lock people inside the house if not careful.

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

The latchbolt is withdrawn by using the knob from the inside of the property and by using the key from the outside. It is designed for standard residential security on timber doors.

This lock features an internal slide button (snib) that allows you to either deadlock the bolt for extra security or hold the latch back to prevent the door from locking when closed.

The Yale 77 is designed for use on doors with a thickness between 32mm and 57mm. It comes with a 5-pin cylinder and two keys as standard.

Yes, the latchbolt is easily reversible on-site. However, to use this lock with an outward opening door, you will need to purchase a separate reverse strike plate.
