skip to Yale 88 Nightlatch 60mm: Reversed

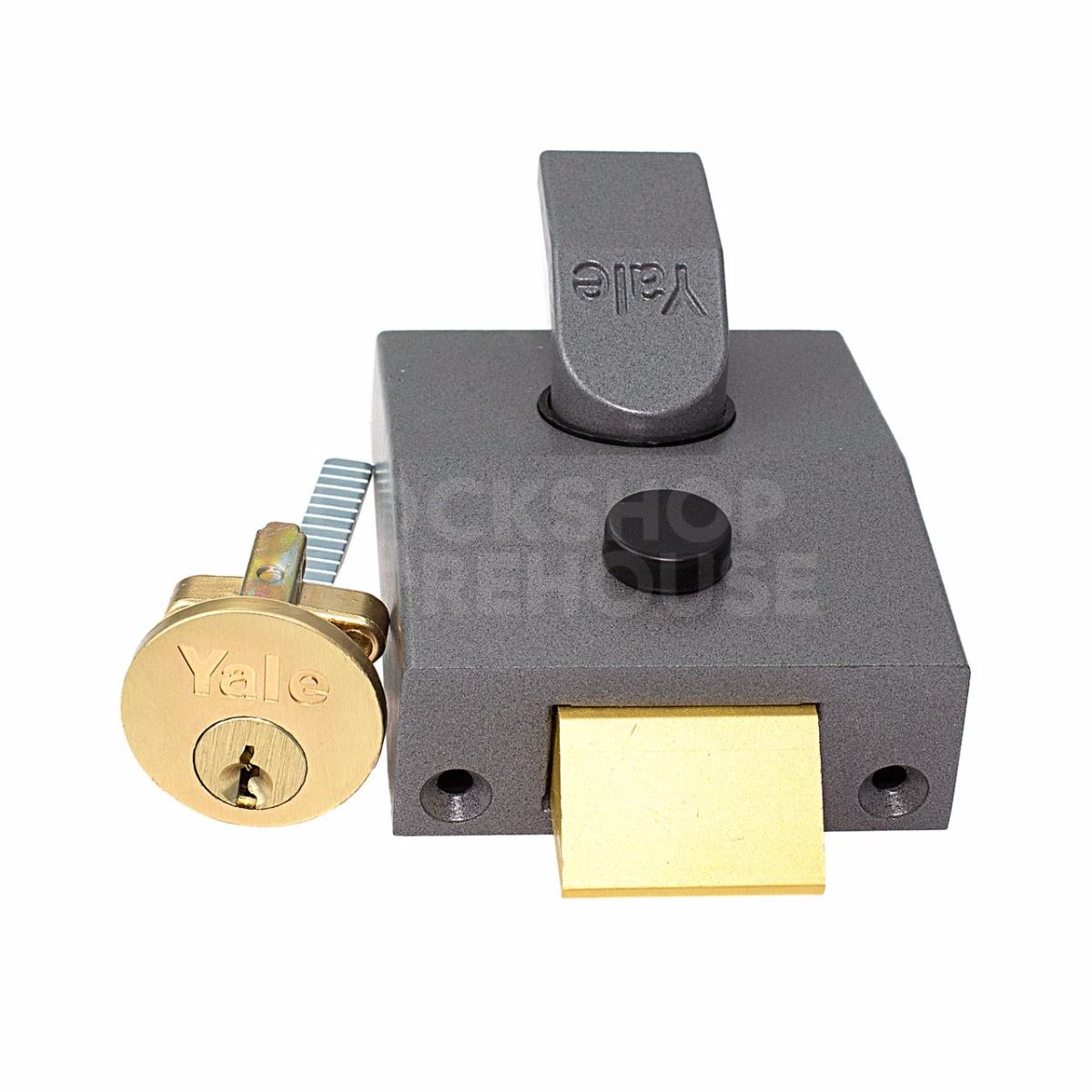

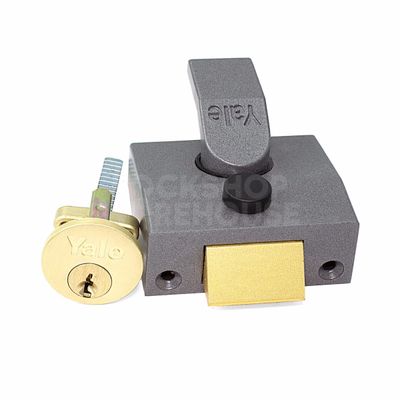

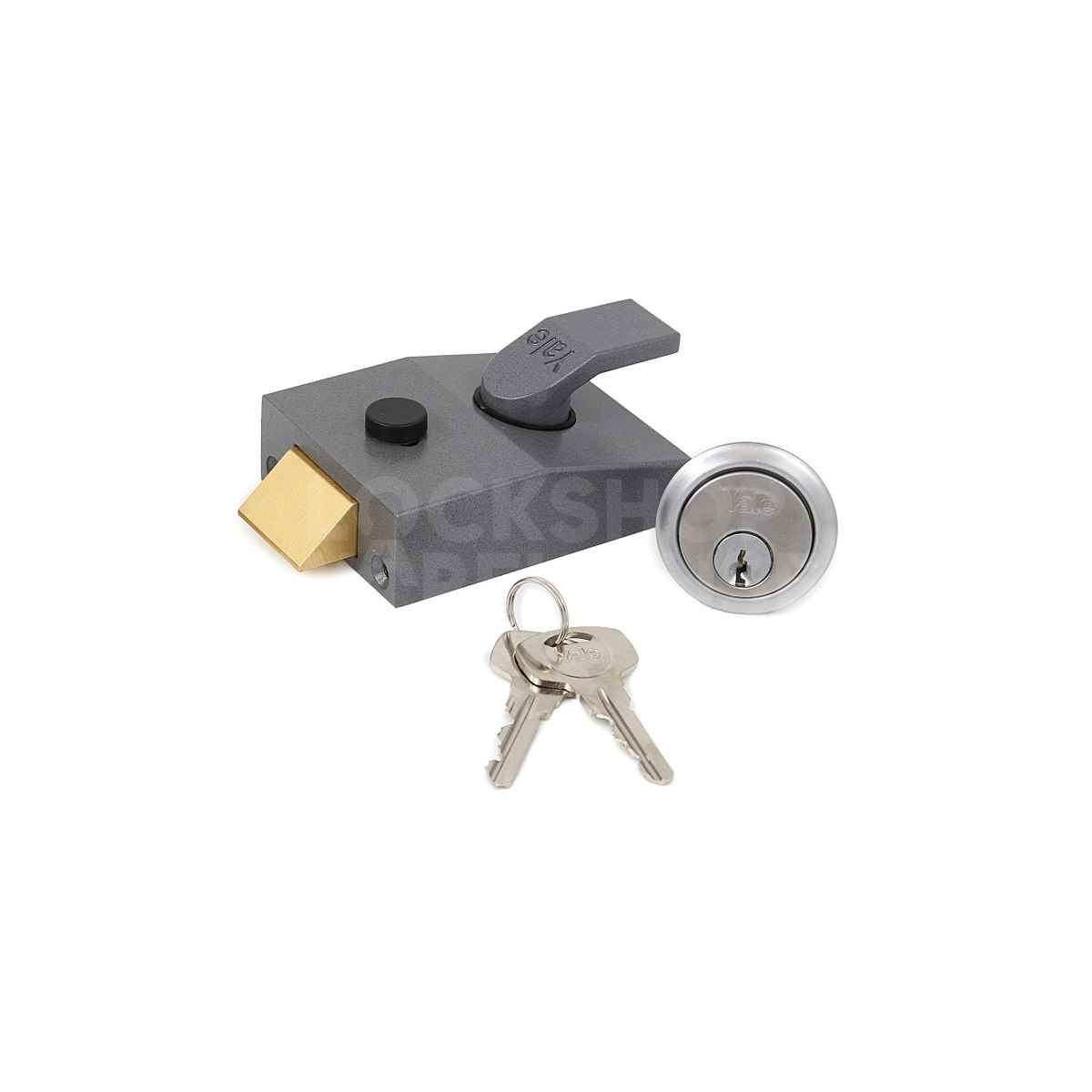

Yale 88 Nightlatch 60mm: Reversed

£32.40

(£27.00 ex VAT)

sku: ReY88
  • Designed specifically for outward opening timber doors
  • Operated by a 5-pin rim cylinder from the external side
  • Internal lever handle for quick exit and ease of use
  • Integrated snib function to deadlock the bolt or hold it back
  • Provides standard security for residential applications
  • Suitable for replacement or new installations with a 60mm backset
Document Icon product info Document Icon product info
Yale 84 Nightlatch 40mm : Reversed £ 32.4
Yale 88 Nightlatch 60mm: Reversed £ 32.4

Finish

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

6/10 Security Rating
tick Key Profile: Standard

The Yale 88 Reversed Nightlatch is a standard security surface-mounted lock designed specifically for timber doors that open outwards. Unlike standard nightlatches intended for inward-swinging doors, this unit features a reversed bolt orientation to ensure secure engagement with the door frame.

Operation is managed via a key from the outside and a lever handle from the inside. The internal case is equipped with a snib button, which provides two main functions: it can hold the bolt in the retracted position to allow free entry, or it can be used to deadlock the bolt from the inside, preventing the lock from being operated by key or handle. This makes it an ideal solution for basic security requirements on perimeter doors.

The unit is designed for a standard 60mm backset. When installing this lock on an outward opening door, a specific reversed striking plate is required to ensure the latch functions correctly against the door stop. It is commonly used as a replacement part or as part of a new security installation on sheds, outbuildings, or residential doors where space or configuration necessitates an outward swing.

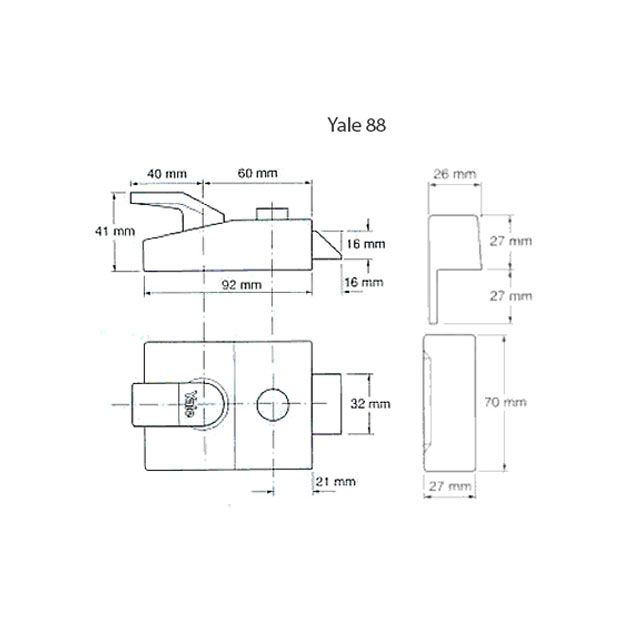

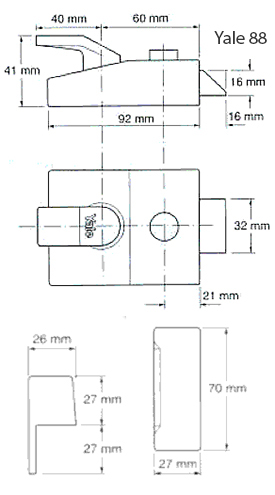

Dimensions Image: Yale 88 Nightlatch 60mm: Reversed
Dimensions Image: Yale 88 Nightlatch 60mm: Reversed

Brand

SKU

ReY88

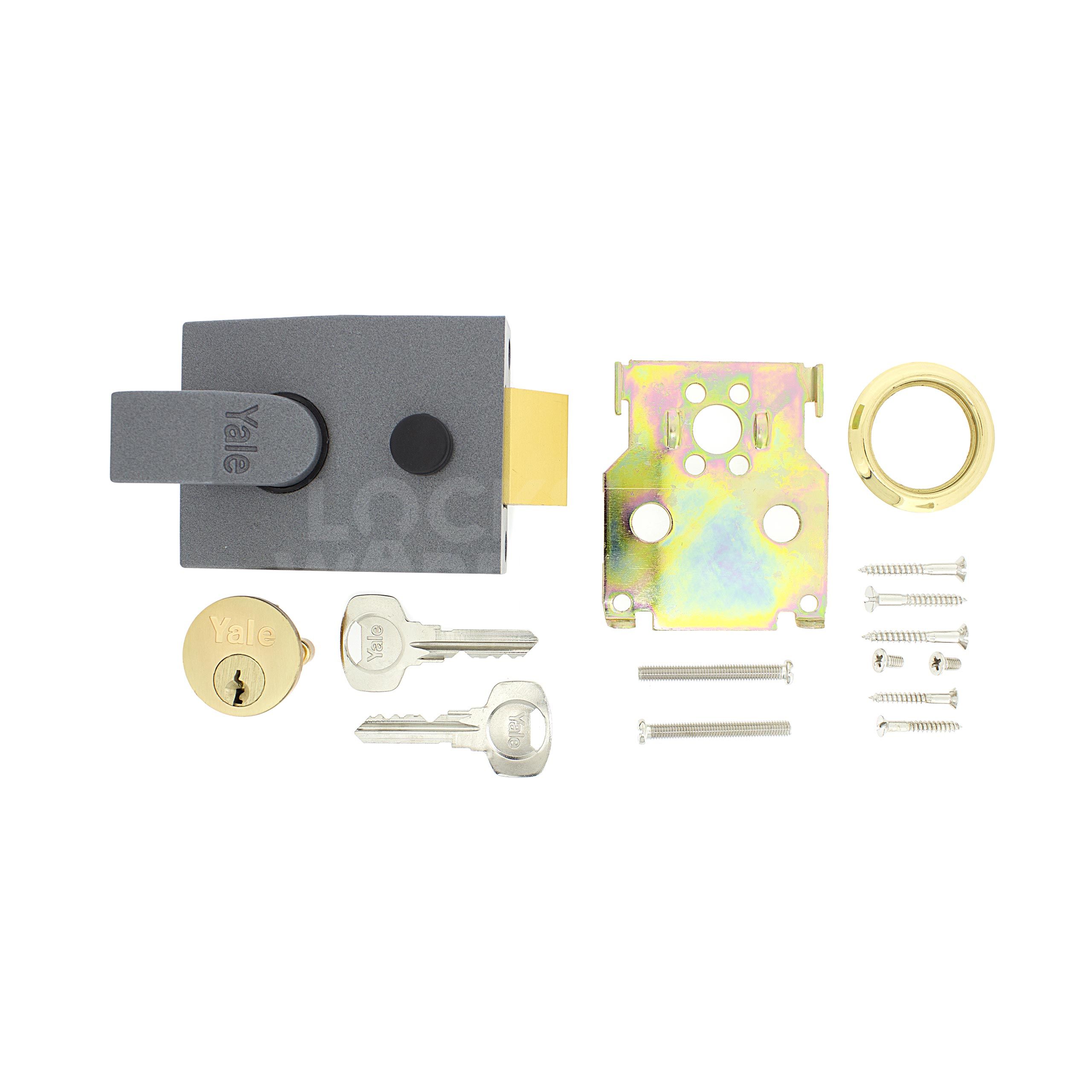

Box Contents

2 keys

fixing screws

rim cylinder

nightlatch

rosette

Key Profile

Key Profile: Standard

FAQs

No unfortunately not, the BS3621 nightlatches can not be reversed. The only way to do this is to install a standard nightlatch from our outward opening nightlatch section and then also install a BS3621 deadlock. This deadlock will give you the insurance rating required.

You need to make sure the lock you fit is NON deadlocking. This means that you can not lock people into the property. There are a few nightlatches designed for these doors. The best is the Yale PBS3 or PBS4 or a more standard model would be the Yale 88 or 84.

The best locks for these would be the a rollerbolt style lock with a masterkeyed cylinder. I would not recommend installing a standard Nightlatch on these doors as the tenants can lock themselves out if they close the door behind them. We can supply these locks for you on a masterkey if you require or keyed differ if you would prefer.

The backset on these locks is the distance from the edge of the door to the center of the Rim Cylinder. This is the large 32mm hole drilled through the door. There are 2 main sizes of these, 60mm or 40mm. Easiest way to find out what you have is to measure from outside of the door from the edge to the center of the keyhole. If you have a solid door you should use the 60mm backset locks, if you have a glass panelled door then you may need to use the 40mm backset. If your current lock is 50mm backset you will need to see our Union locks as only Union made a 50mm backset lock in the past.

There are different levels of security you can have with all locks. The standard locks (i.e. Yale 77, Yale 88) , then the mid level locks which can be key deadlocked from outside ( Yale 89, Union nightlatches). The double locking versions are only suitable for homes with other means of exit as you can lock people inside the house if not careful.

All the extra keys for the locks are cut to the specific locks that have been ordered.

With most locks that are altered to make them keyed alike you will only get 1 x set of keys with them. So if the locks normally come with 2 you will only get 2 keys total and if they come with 3 keys you will only get 3 x keys total when ordered keyed alike.

Yes, the Yale 88 Reversed Nightlatch is specifically designed for use on outward opening doors where a standard nightlatch would not be appropriate.

Yes, the internal slide button allows you to either deadlock the bolt or hold it back in the open position. When the deadlocking function is engaged, the lock becomes inoperable by key from the outside or by the handle from the inside.

Yes. While the lock comes with a standard striking plate, it is not suitable for reversed nightlatch installations. You will need to order an additional reversed striking plate to ensure the lock functions correctly on an outward opening door.

The Yale 88 model is only available in a Dark Metallic Grey finish. If you require a different finish, such as Brass or Polished Chrome, please refer to the Yale 89 model range.
