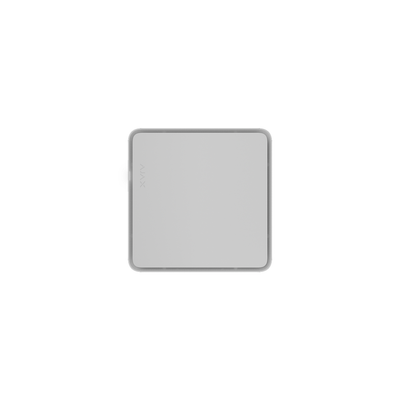

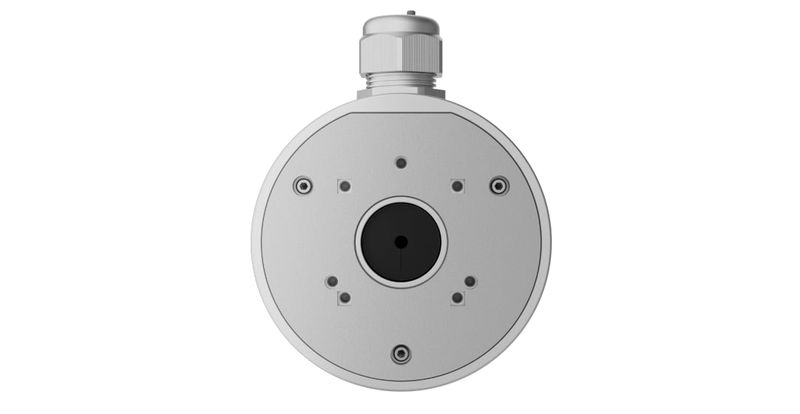

Ajax JunctionBox Camera Mounting Box

£29.95

(£24.96 ex VAT)

sku: AJAX-JBOX-11859

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Related Products

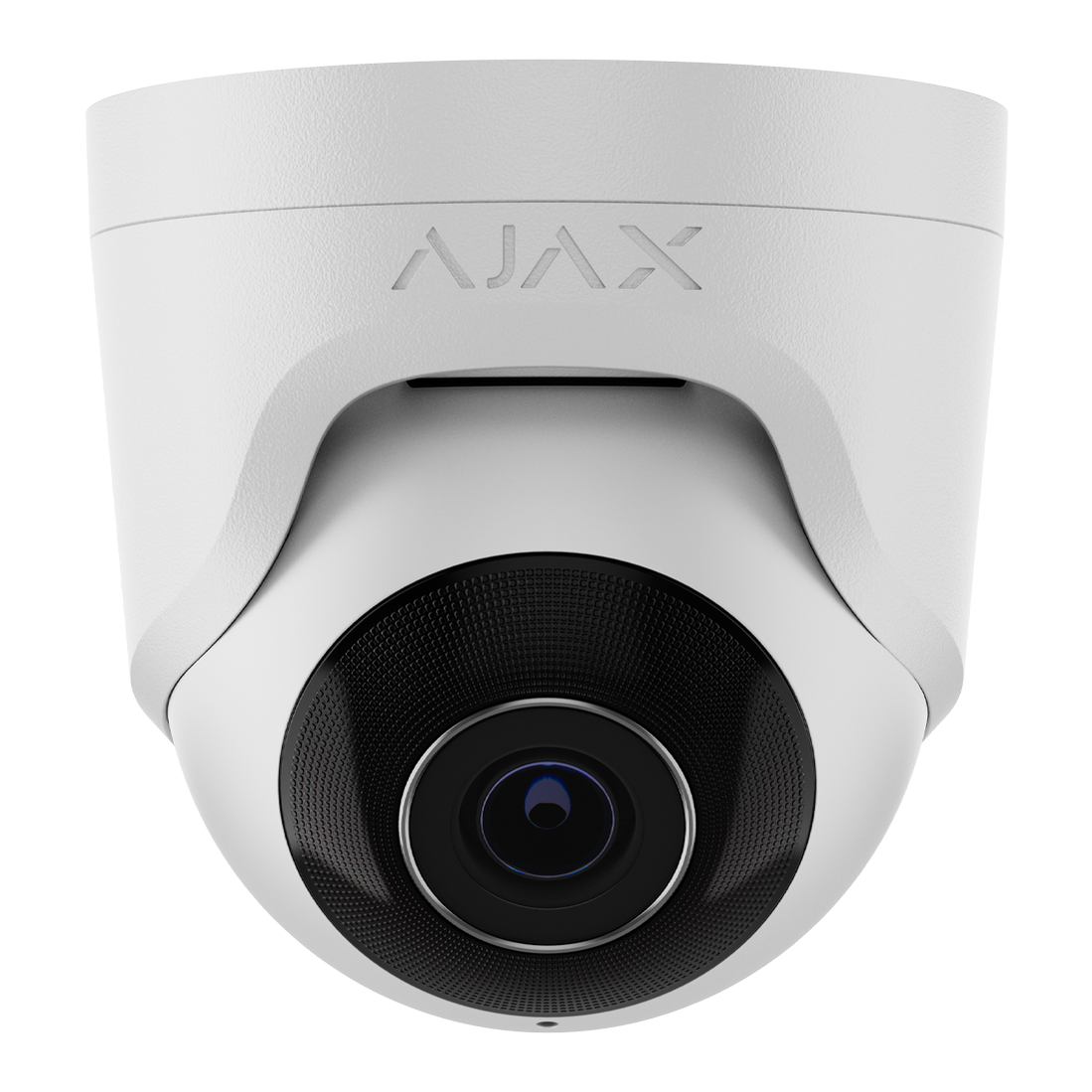

Ajax TurretCam IP Camera

£149.95

(£124.96 ex VAT)

sku: AJAX-TCAM-5MP-28

Colour

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

White

Black

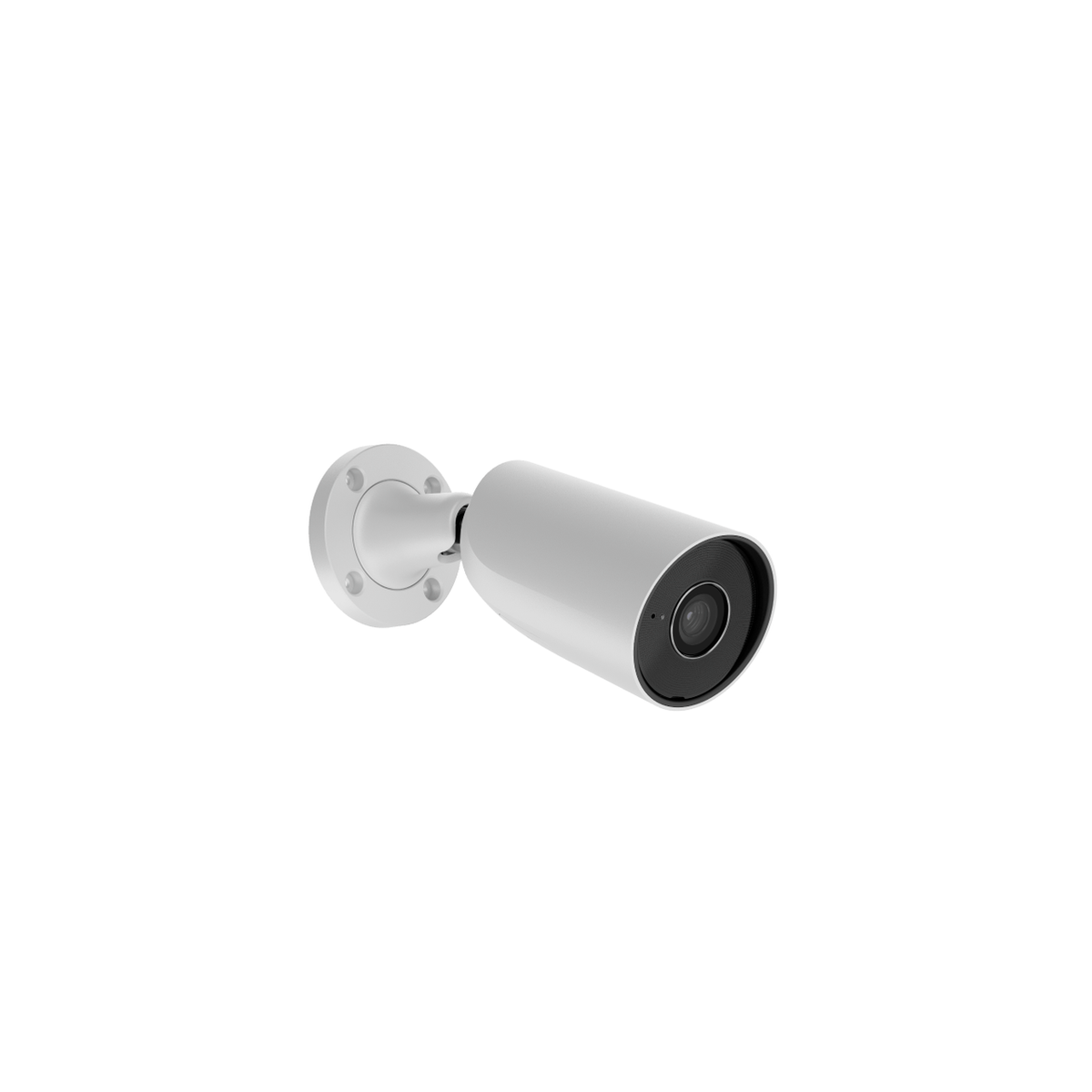

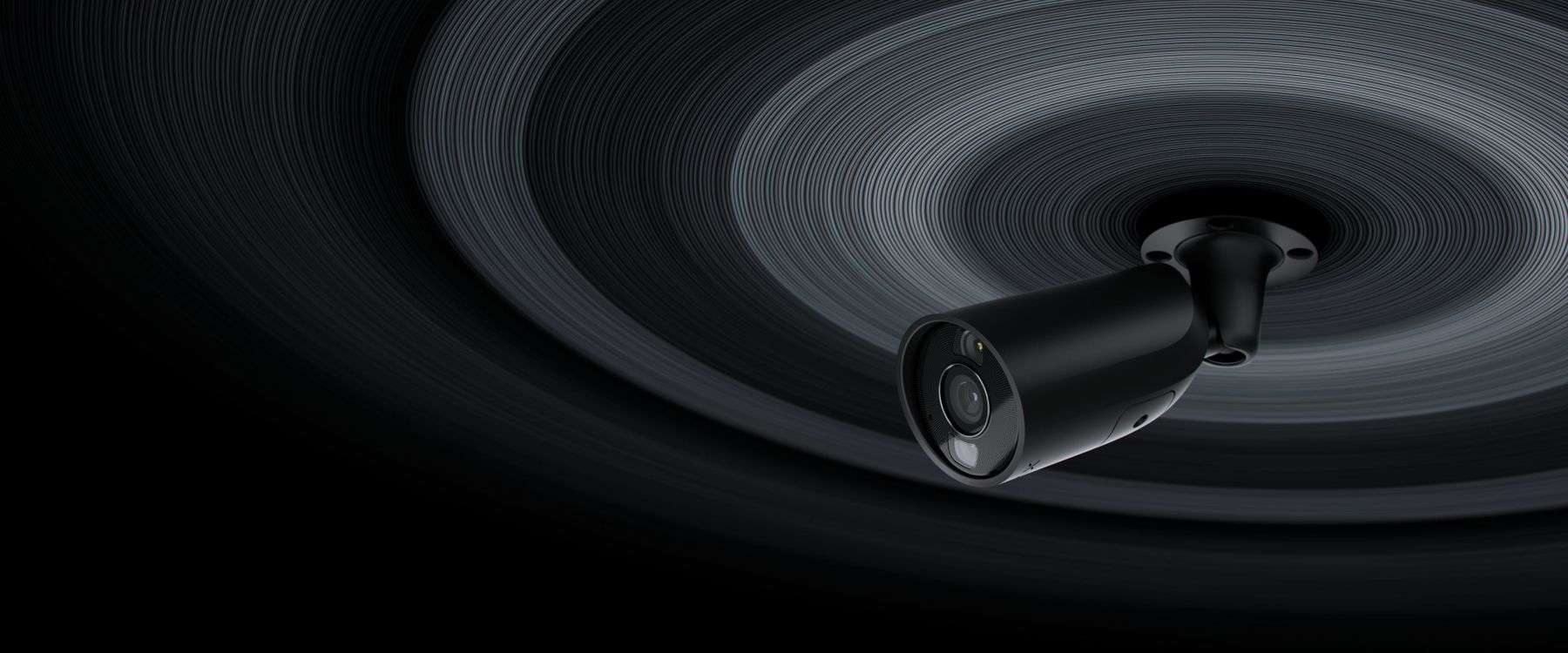

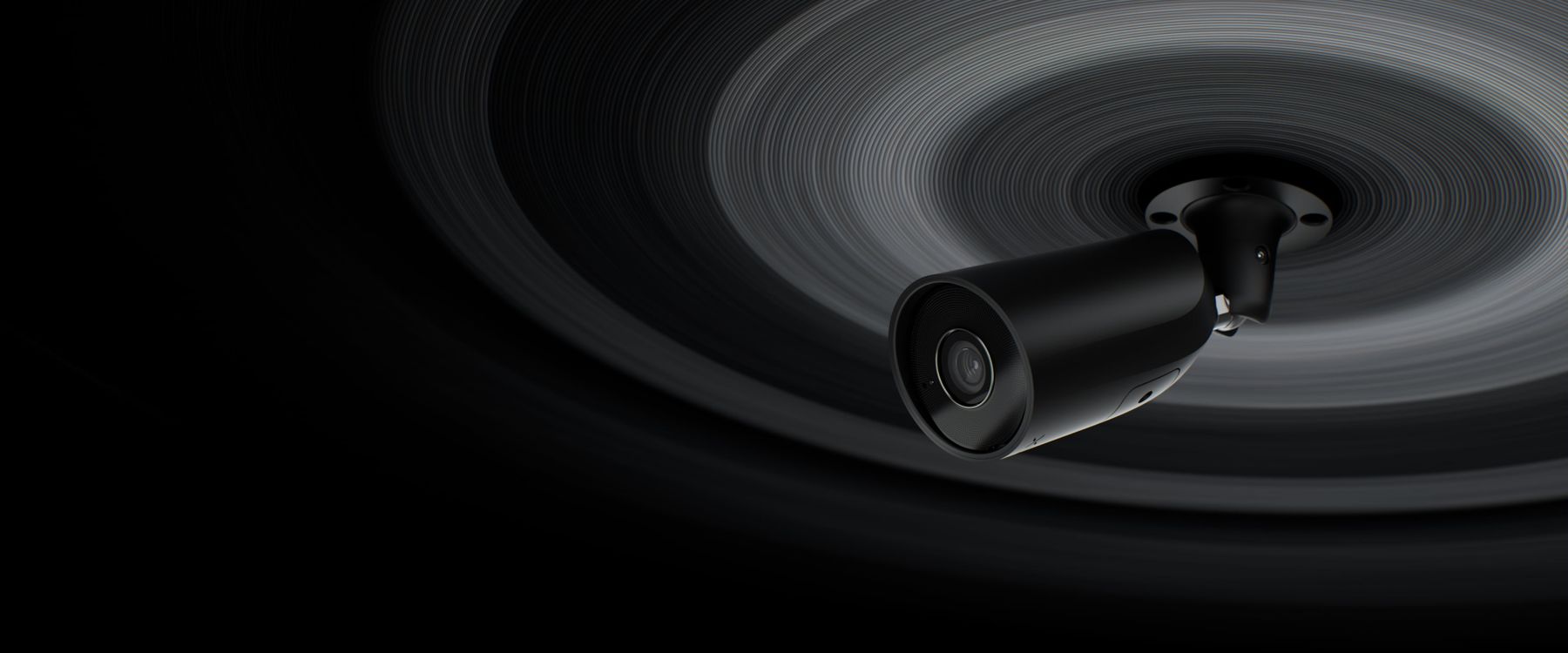

Ajax BulletCam IP Camera

£149.95

(£124.96 ex VAT)

sku: AJAX-BULLETCAM

A directional wired camera for clear views along driveways, boundaries and approaches.

Available in 5 MP and 8 MP versions. Fixed 2.8 mm and 4 mm lens options.

Recording storage and a suitable power source are required separately.

Colour

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Weather Resistant

Focus on the approach. Keep the detail.

BulletCam makes the direction of your surveillance clear. Its adjustable mount helps frame a driveway, side passage or entrance, with the live view and recordings available in the Ajax app.

Light and shade. In the same picture.

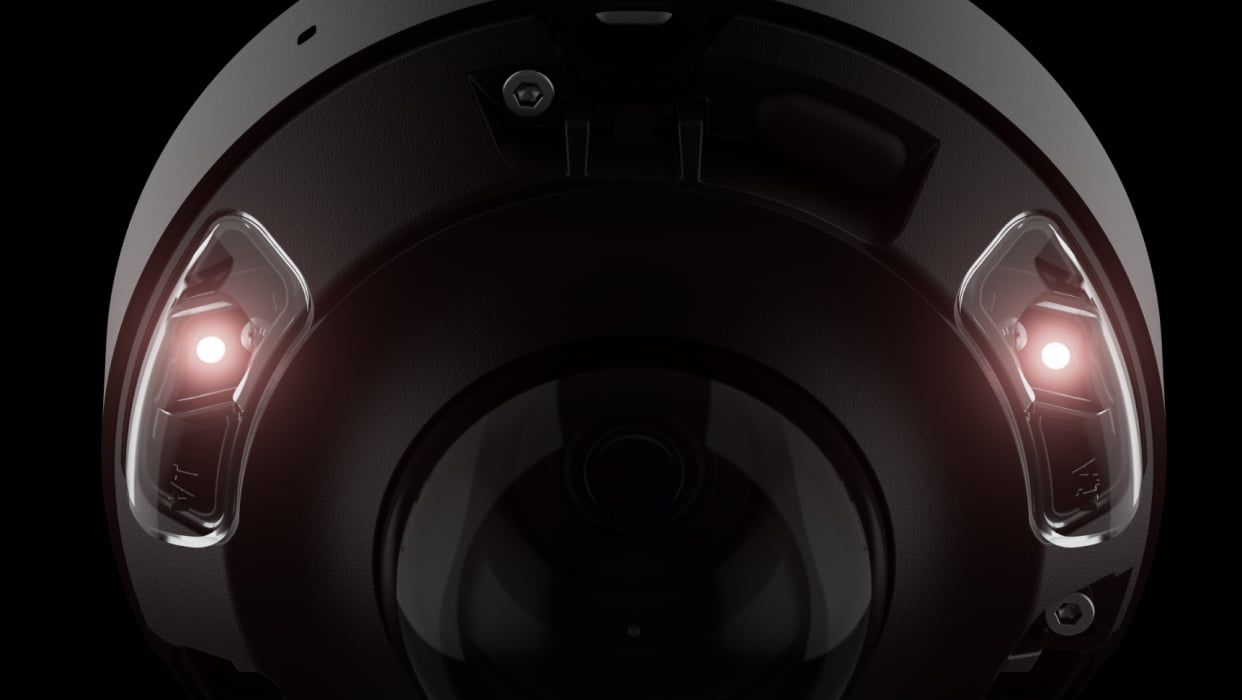

True WDR balances bright and dark parts of a scene. At a sunlit entrance it helps keep a person visible rather than losing their face in shadow. Smart IR adjusts infrared illumination at night to reduce overexposure when someone approaches.

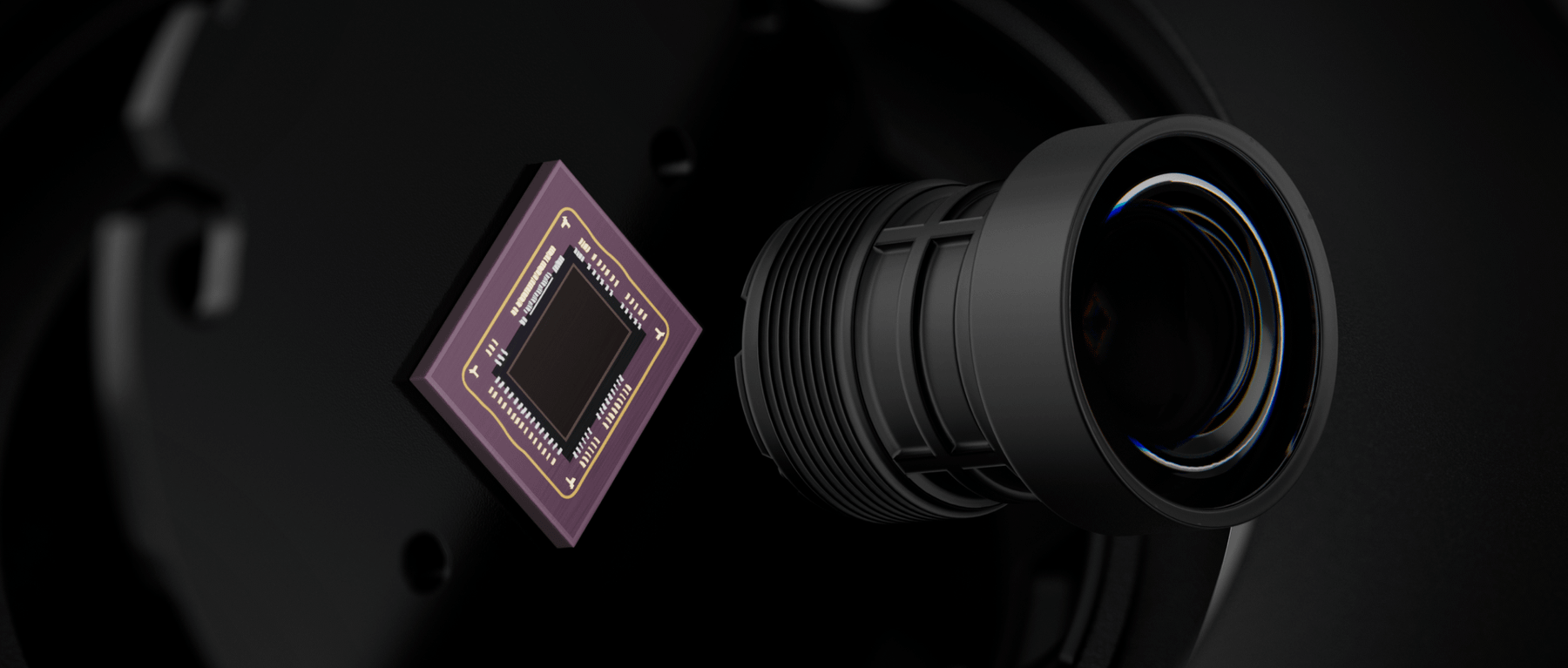

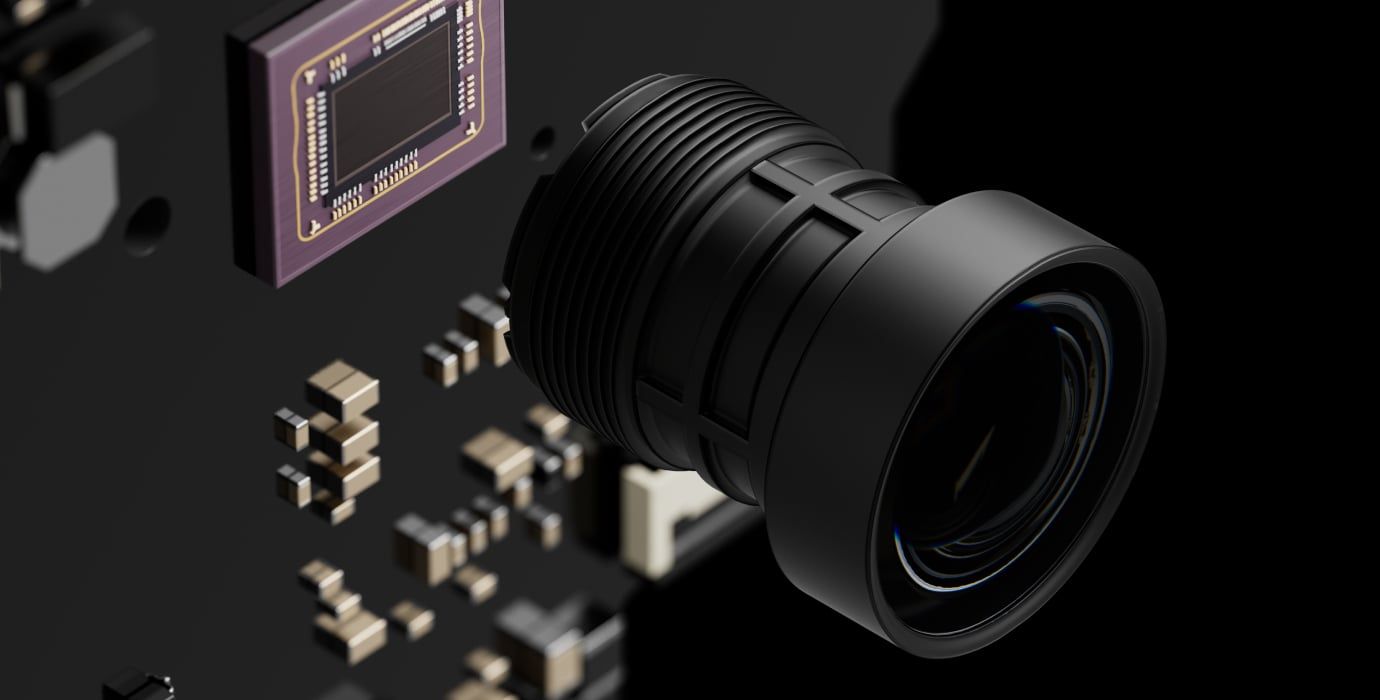

The range includes 5 MP and 8 MP cameras with a fixed 2.8 mm or 4 mm lens. Resolution determines recorded detail; the lens changes the width of the view. These are different model choices, not an adjustable optical zoom.

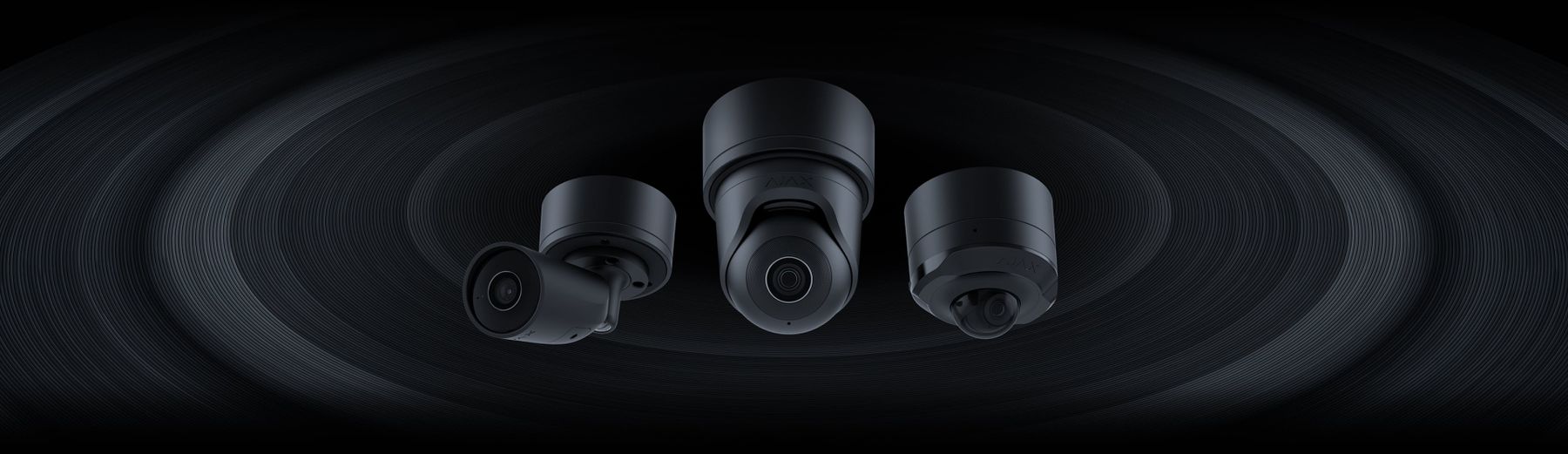

Compare the cameras. A shape and view for your space.

Ajax TurretCam IP Camera

From £149.95

Ajax DomeCam Mini IP Camera

From £149.95

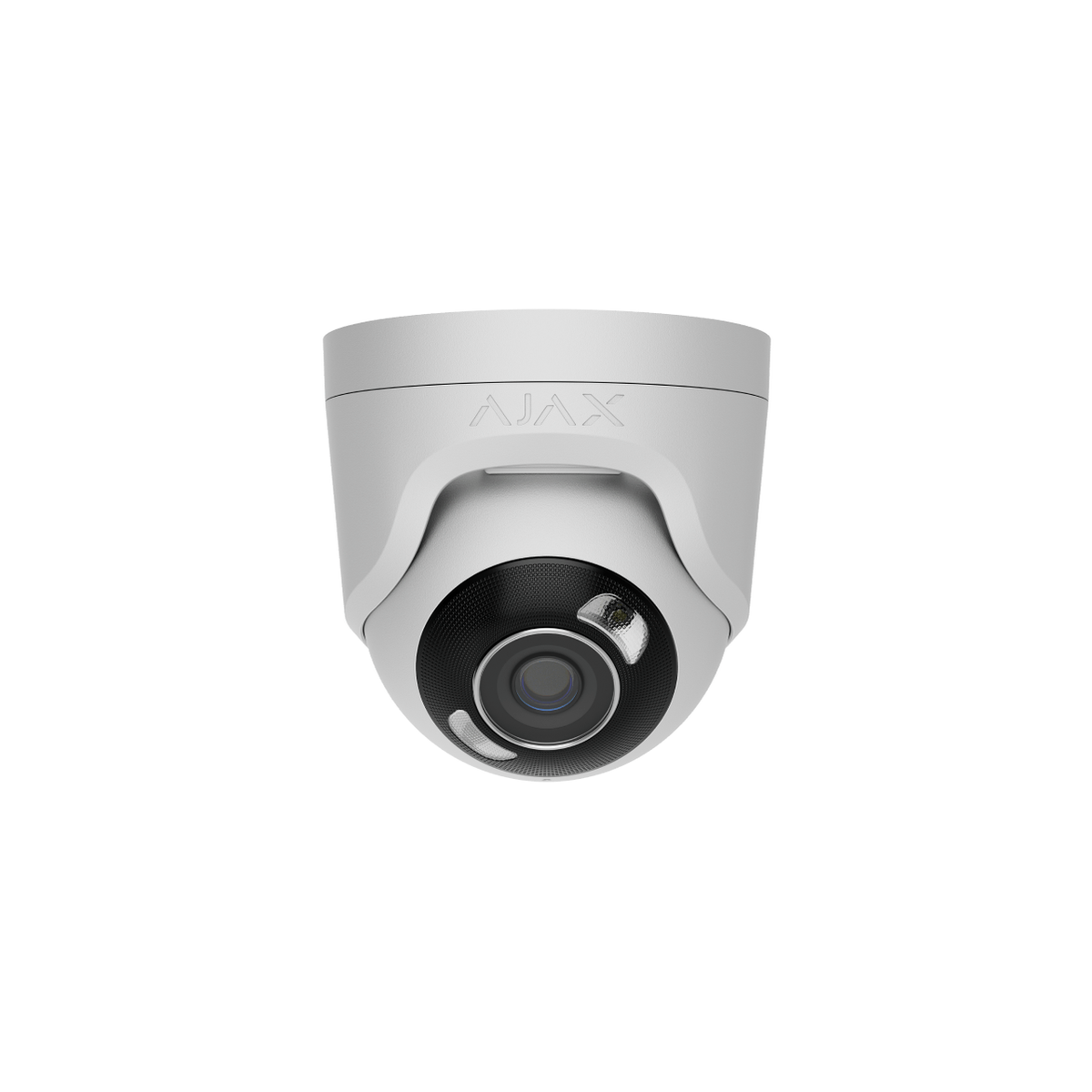

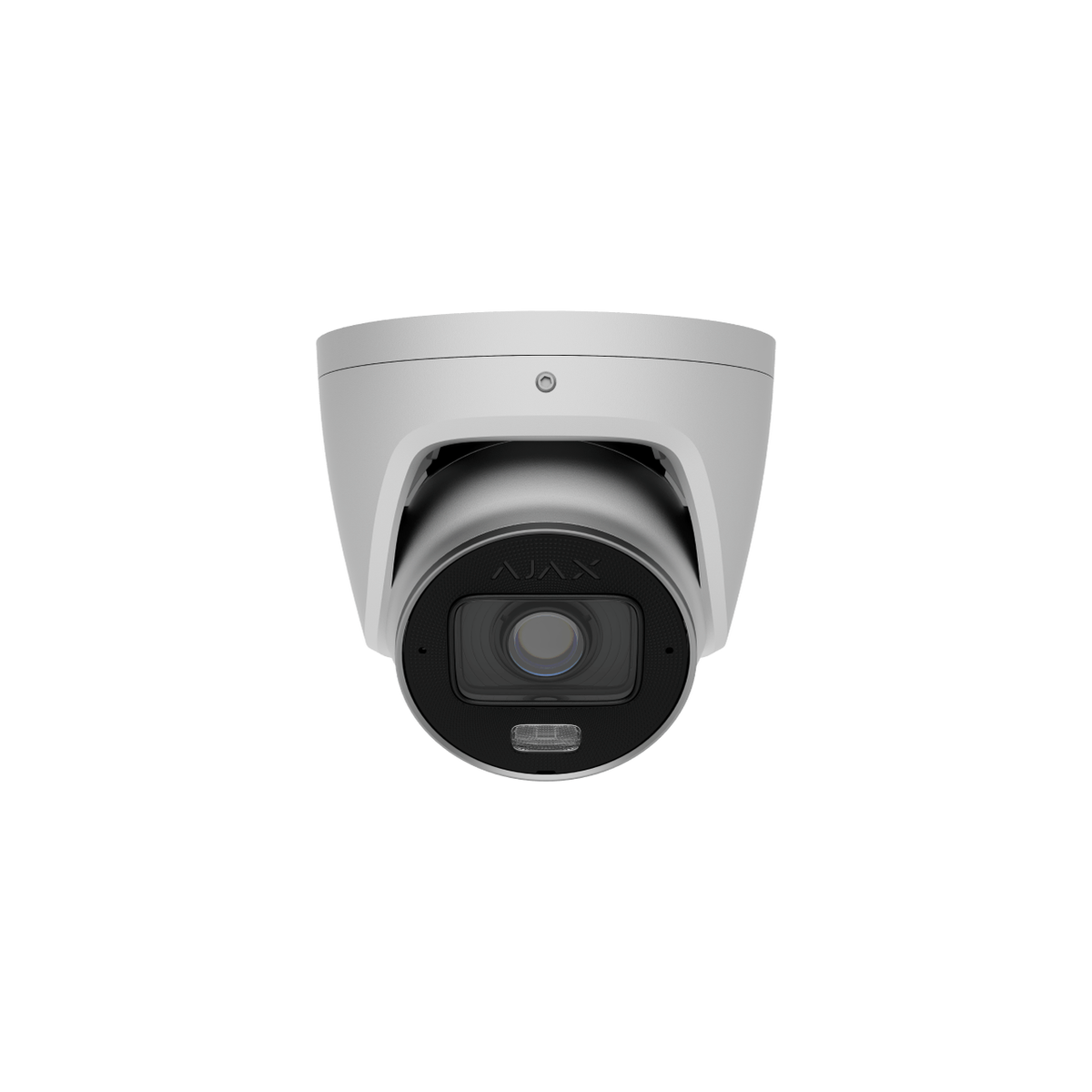

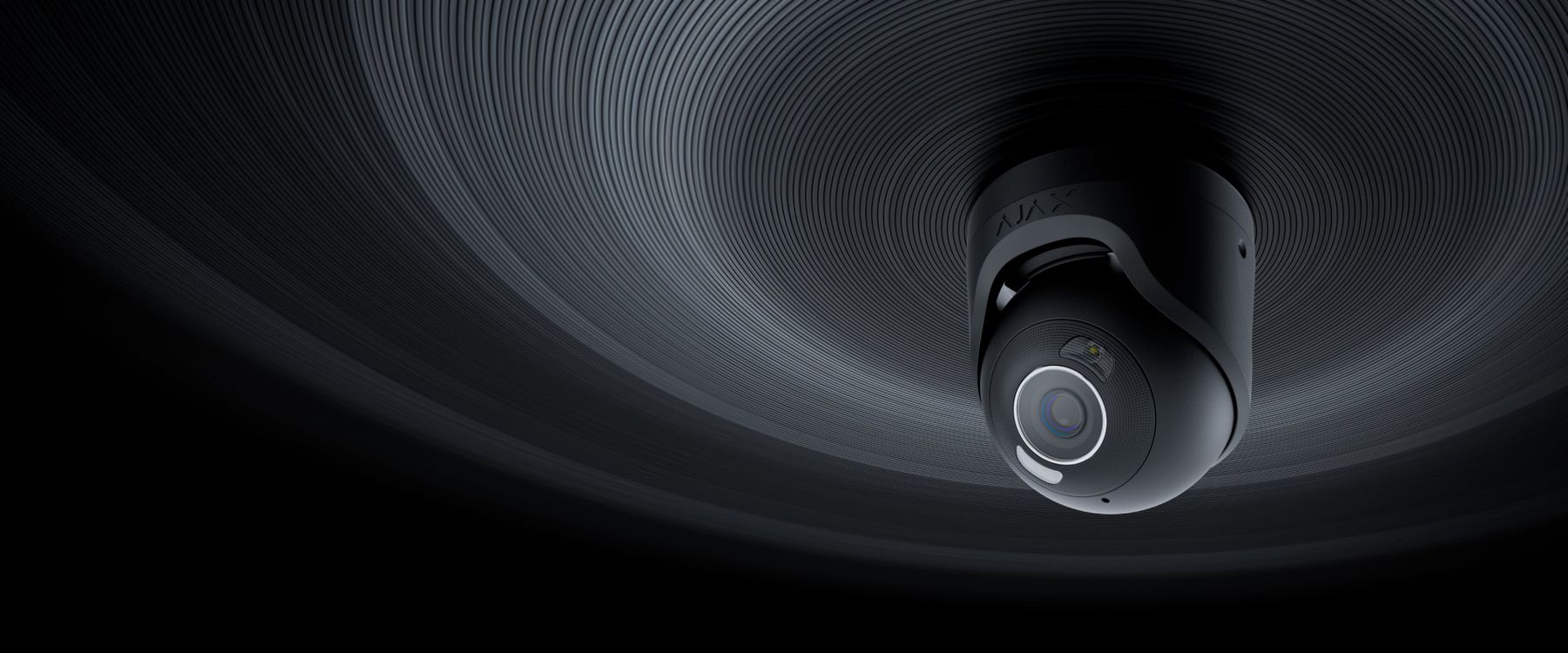

Ajax TurretCam HL IP Camera

From £184.75

Activity worth your attention.

On-device recognition distinguishes people, pets and vehicles. Combine detection areas with event filters to spend less time searching through irrelevant movement.

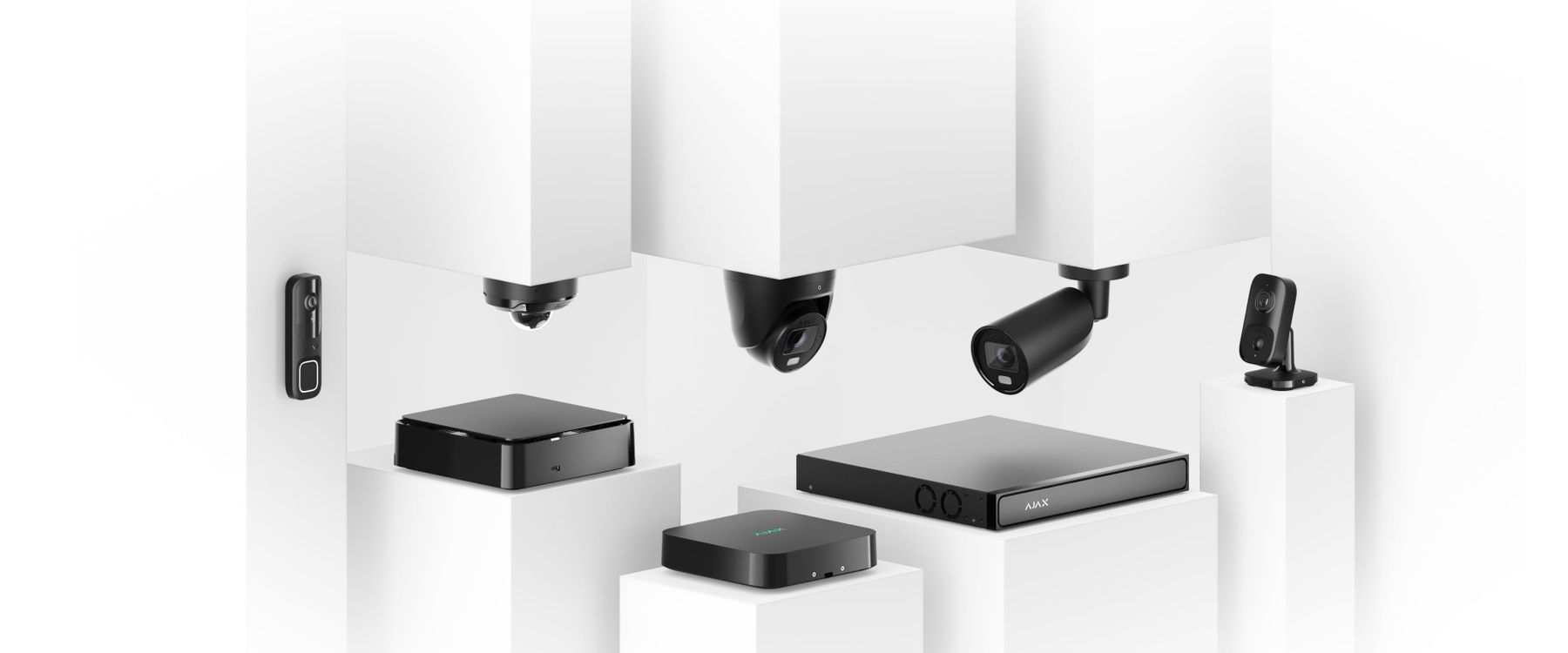

Why Ajax? One connected ecosystem.

See the whole picture.

View your cameras in the Ajax app. If you add a compatible Ajax alarm, video scenarios can link an alarm event to the relevant camera view. Start with surveillance and add other protection when you need it.

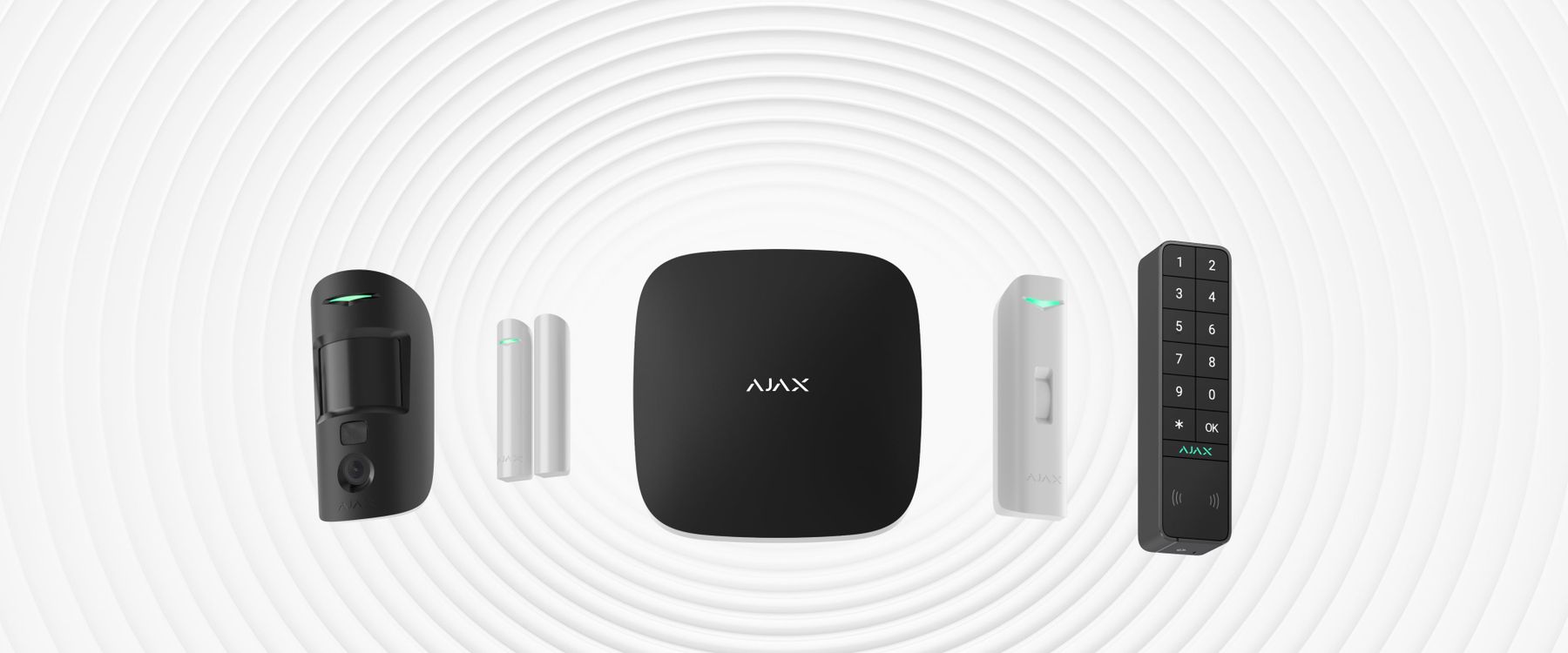

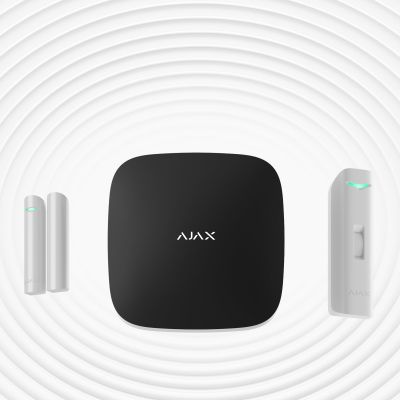

Protection that works together.

A compatible Ajax hub connects your alarm devices, while the app brings alerts and camera views together. Build around your property and add protection as your needs change.

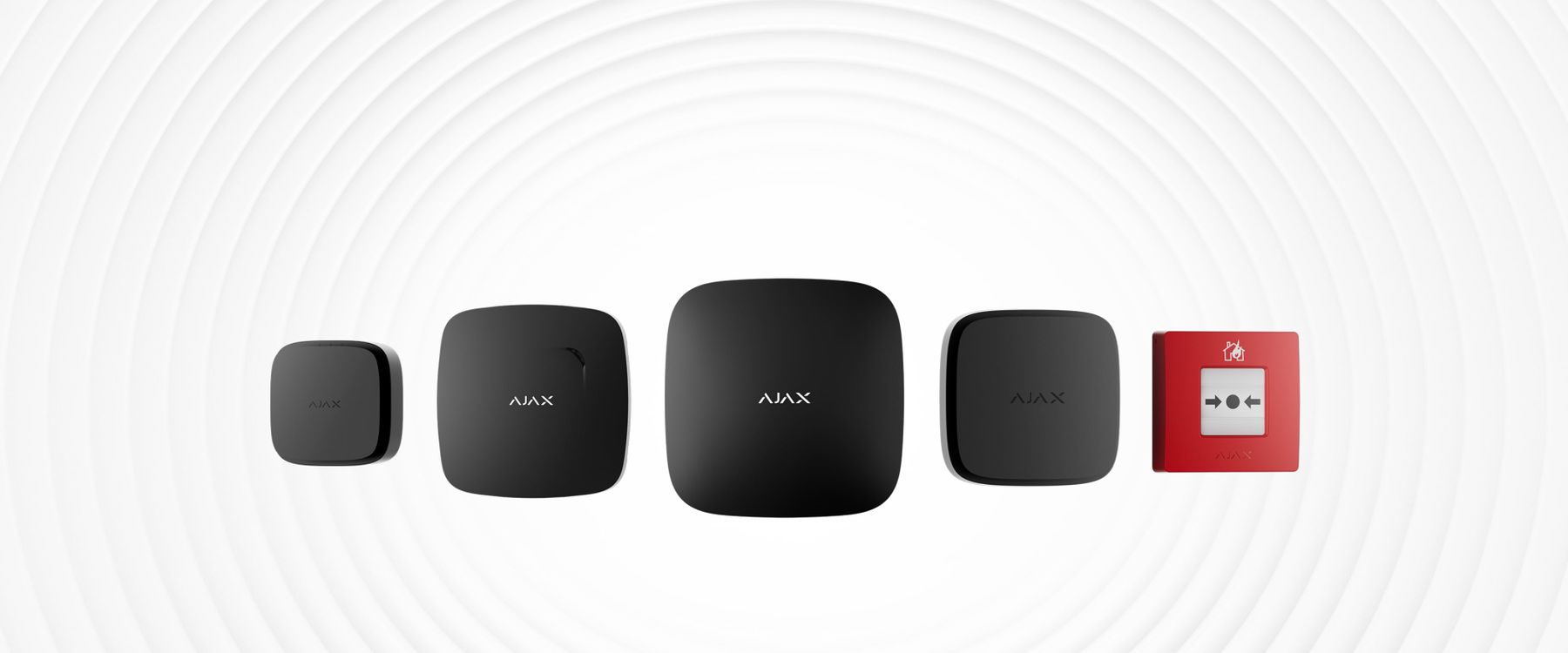

Hear it. See it. Act sooner.

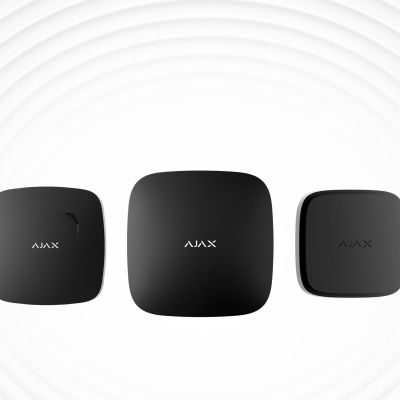

Compatible FireProtect detectors can sound together when interconnection is configured. With a linked hub, fire alerts also reach the Ajax app.

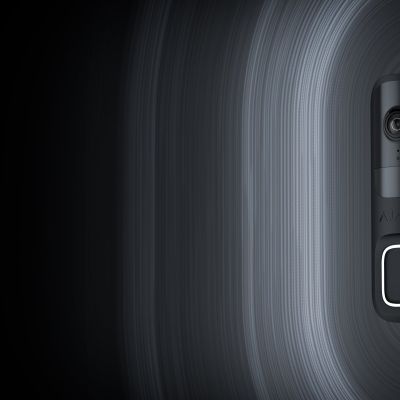

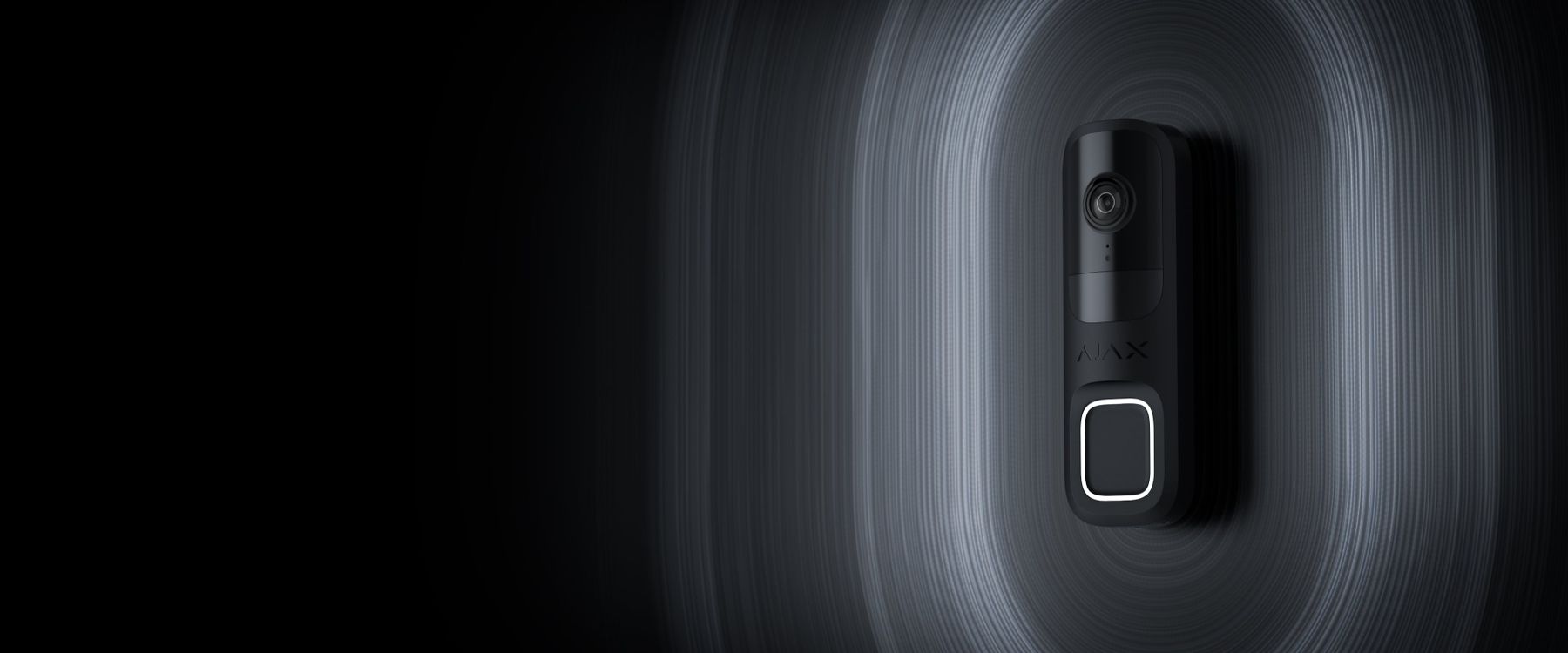

Your front door. On your phone.

See and speak to visitors in the Ajax app. DoorBell needs no alarm hub. An optional Ajax NVR adds a local archive and brings its recordings together with your other cameras.

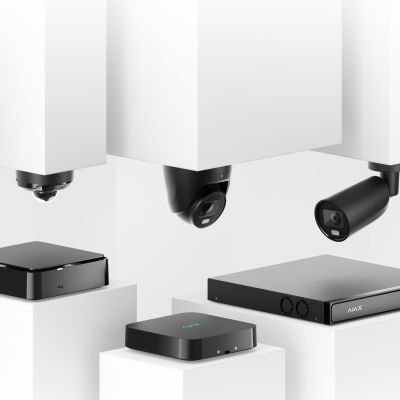

Your whole property. In one view.

See the front door, driveway and garden together instead of opening each camera in turn. Arrange the Ajax video wall around the views that matter to you, and check them from a compatible phone, computer or TV app.

From camera to archive. In the Ajax app.

JetSparrow carries the video between the camera, recorder and app. Ajax Cloud handles the connection to your account, so the recorded view and system events are accessible together.

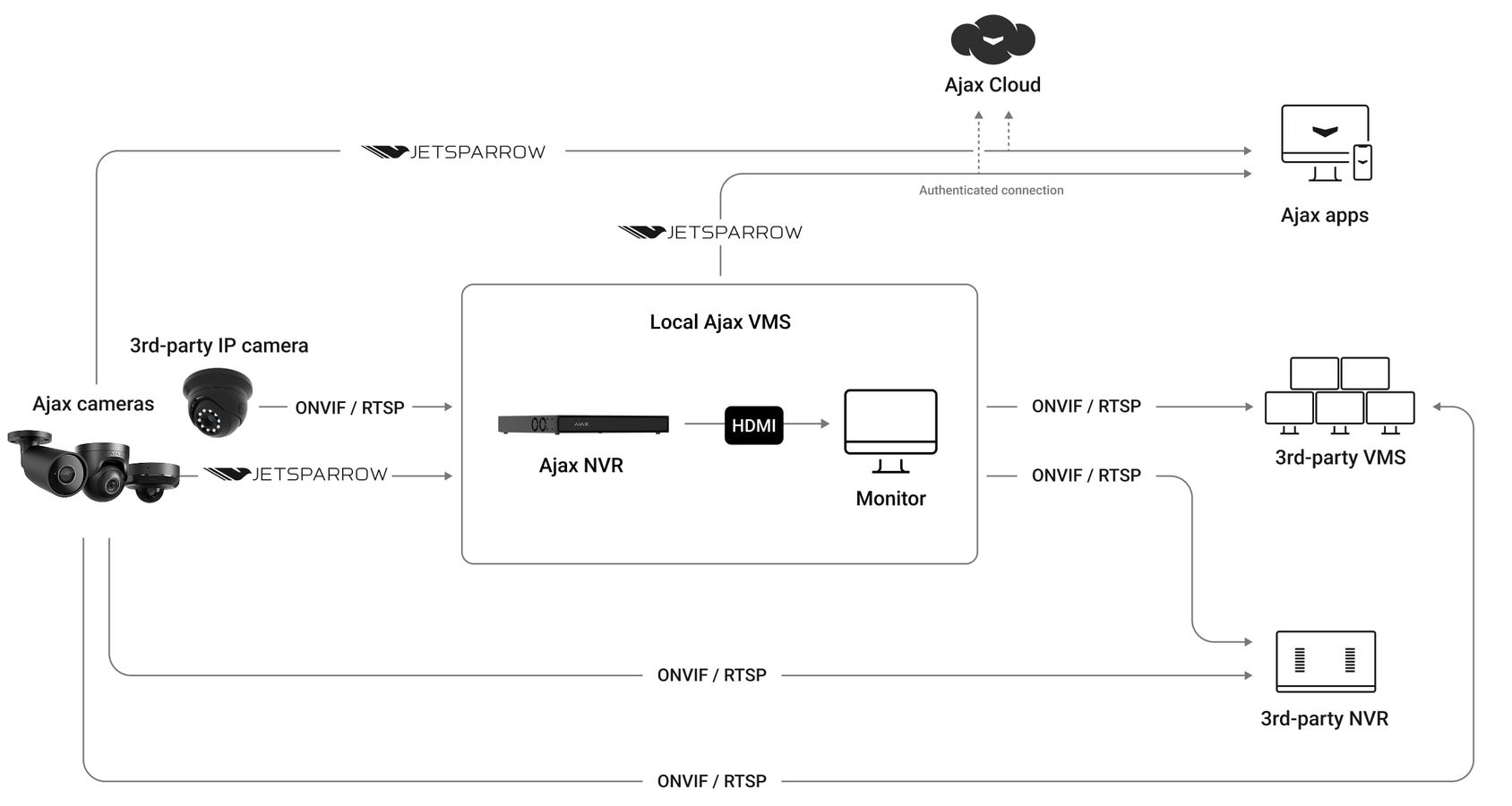

The diagram shows the video and account connections, not a physical PoE wiring plan. Cabling, camera power and storage requirements are set out below.

Ajax video communication diagram. Network links are shown; separate power wiring is not.

Private areas stay private.

Privacy masks hide sensitive parts of the image, such as a neighbouring window. Detection zones have a different job: they decide where movement should trigger attention. Separate permissions control who can view live video, recordings and settings, with two-factor authentication and session controls protecting account access.

Built for everyday service.

A metal enclosure protects the camera, while its built-in accelerometer reports impacts and attempts to dismantle it. The microphone adds sound to recordings where enabled. Recording can use a compatible microSD card up to 256 GB, or a separate Ajax NVR and hard drive. Check the selected model for its environmental and impact ratings.

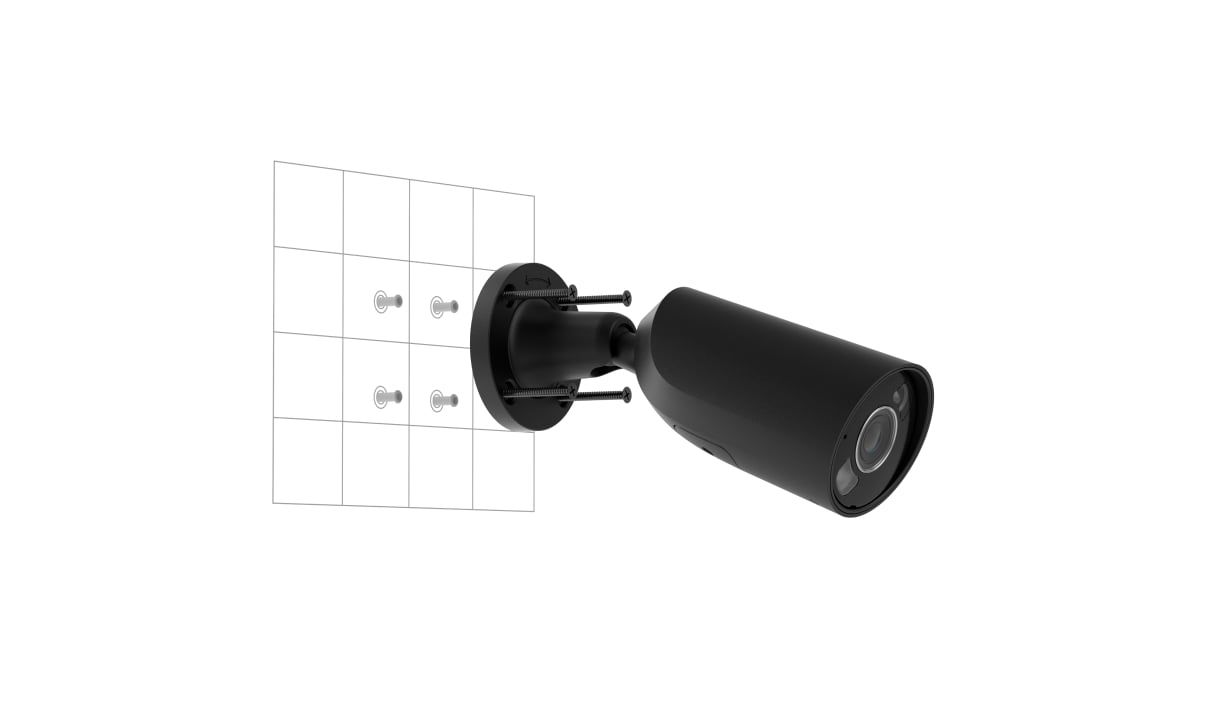

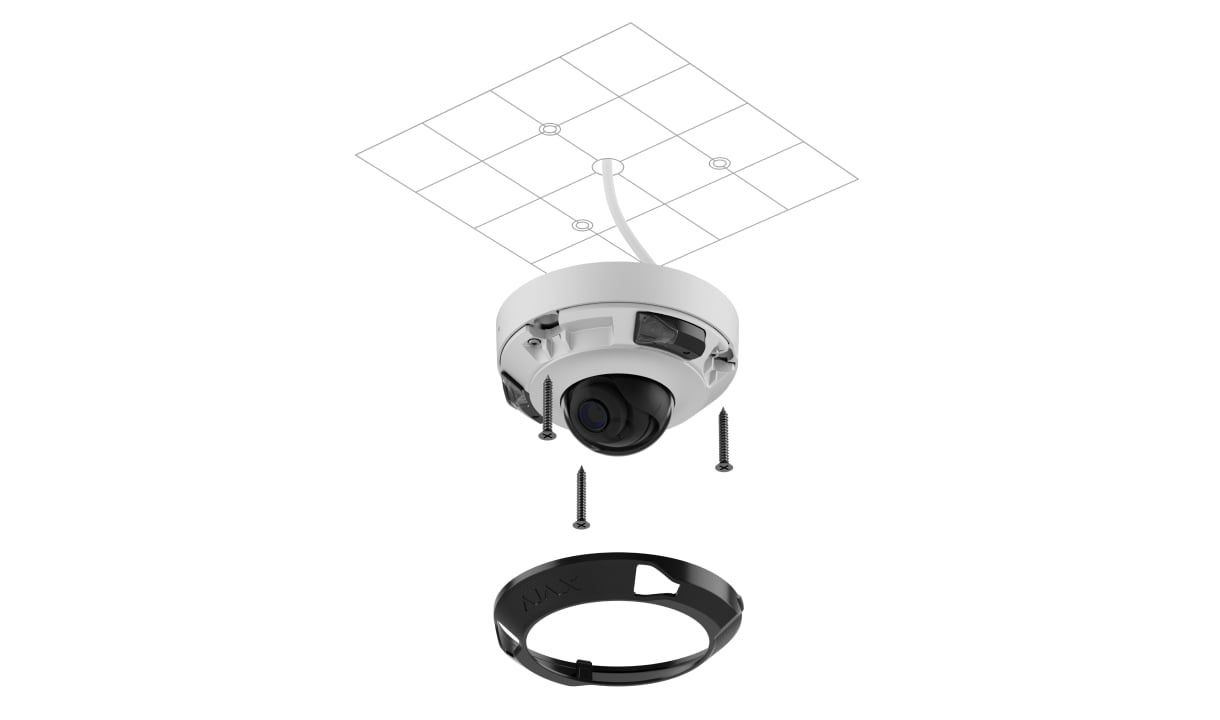

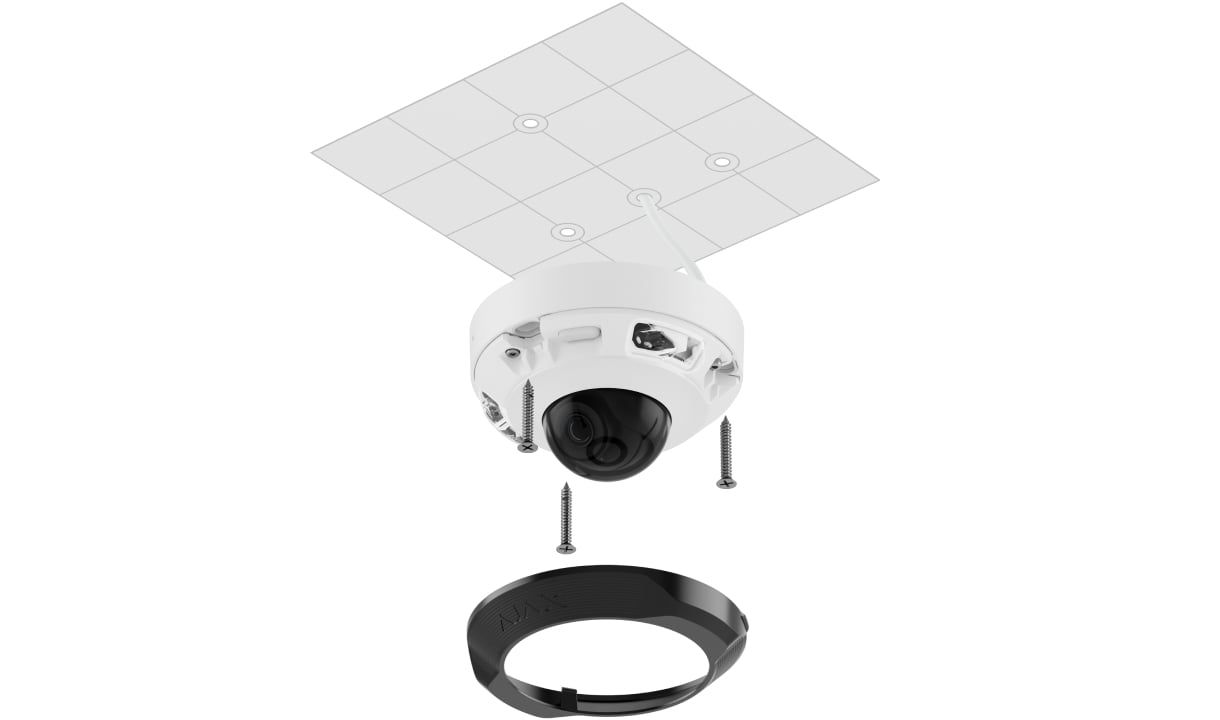

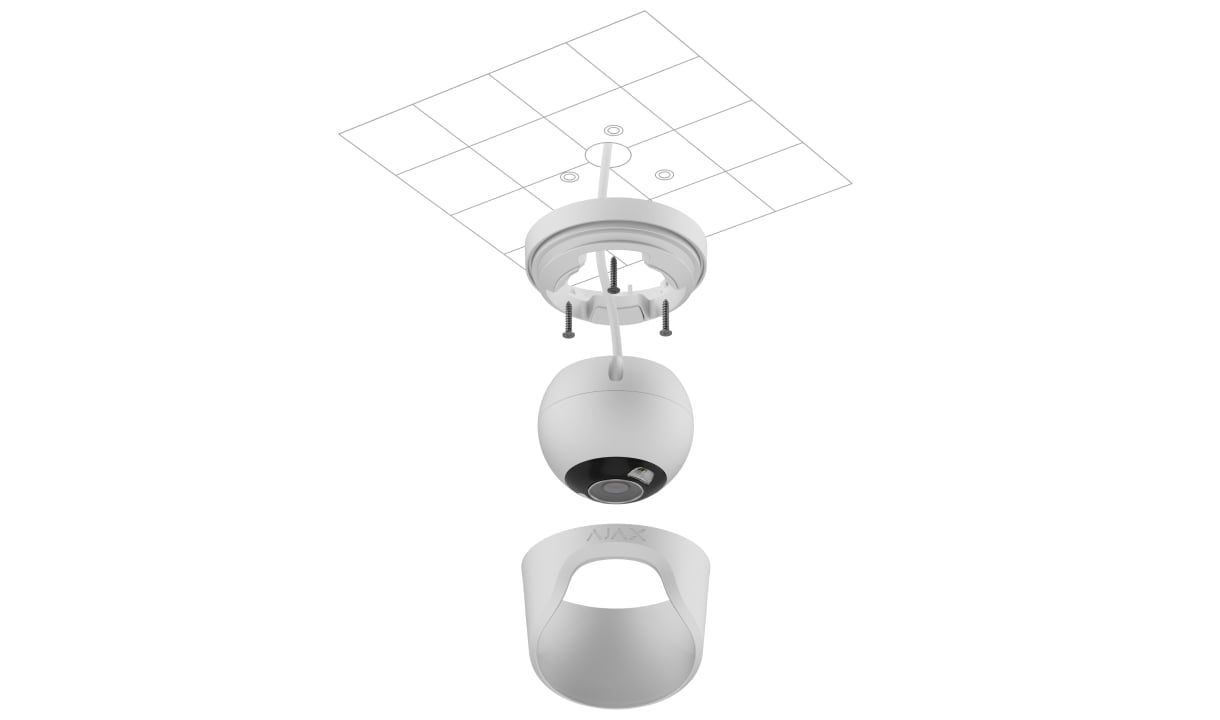

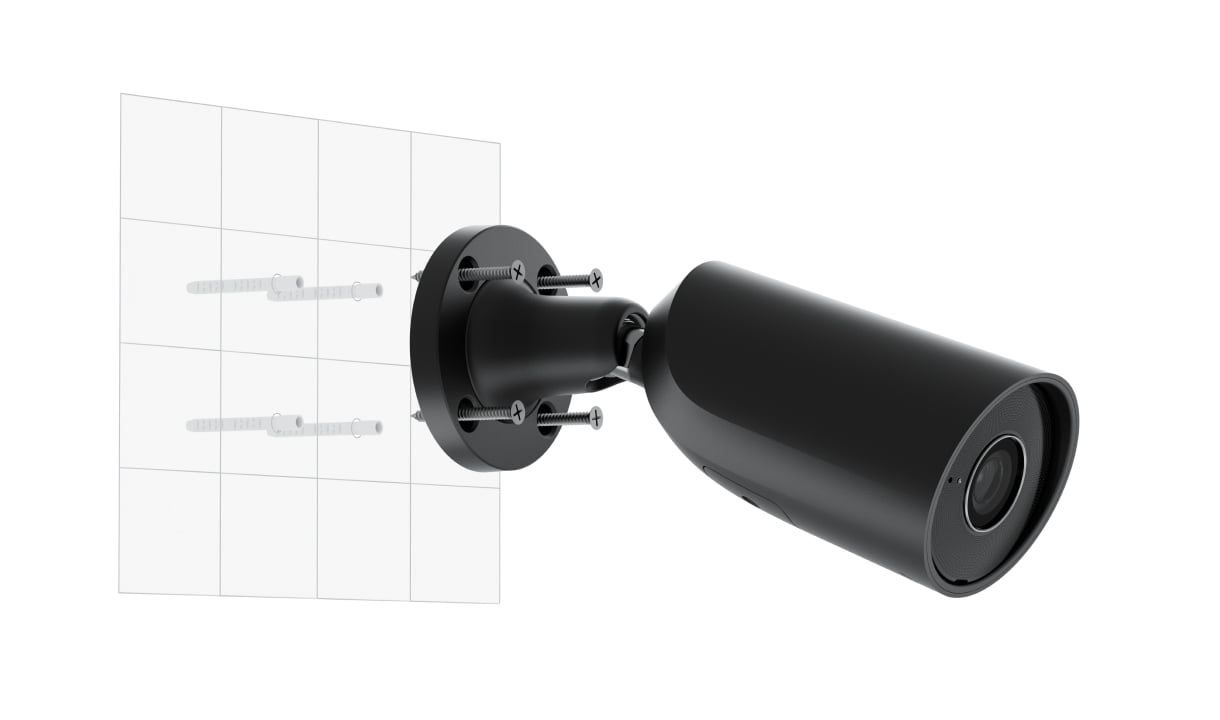

Ajax camera mounting and servicing details

Keep the moment. Check the original.

Search the archive by events and date, then export the relevant clip instead of sharing hours of footage. Ajax digitally signs supported video exports; Ajax Media Player can check their authenticity and identify modification. It is a way to check a recording, not a guarantee of legal admissibility.

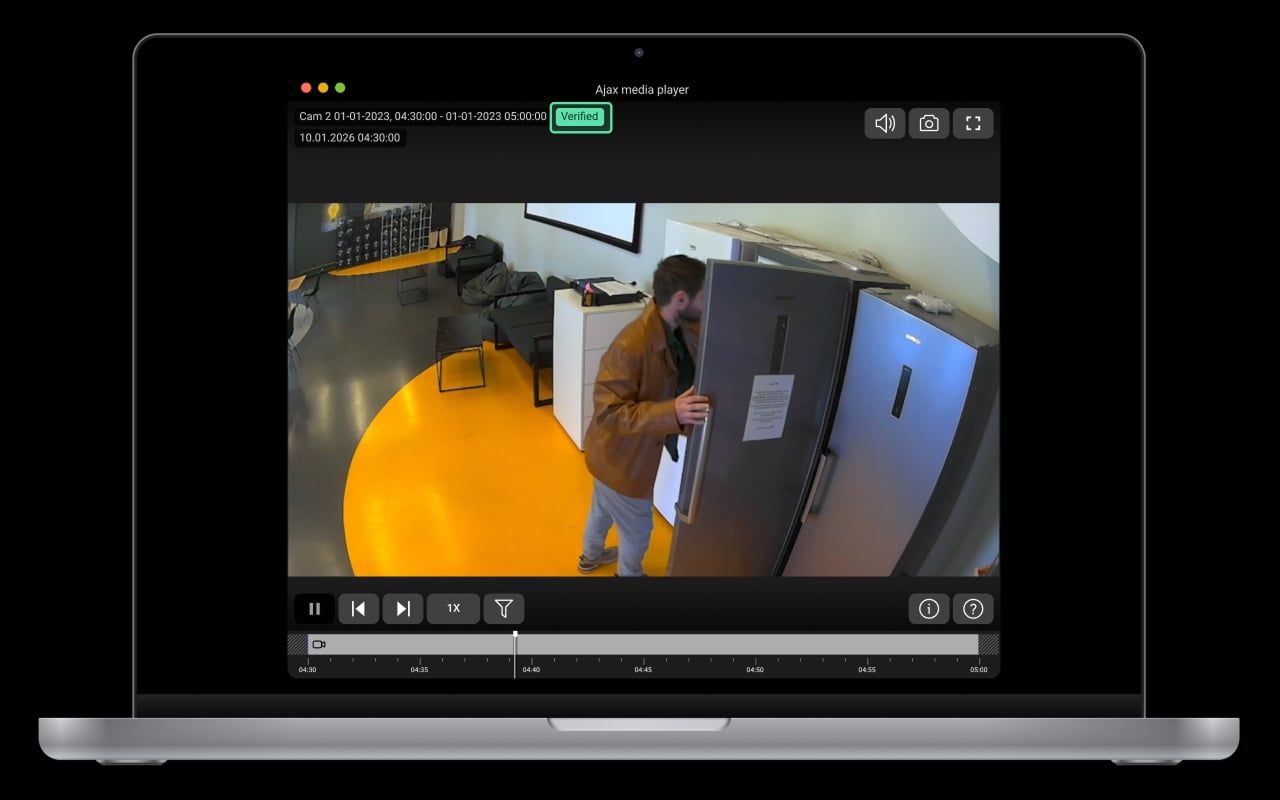

Ajax Media Player marks an exported video as verified

Recording options. Match the way you use them.

These are alternative ways to add a shared video archive, not equipment needed together. Match the choice to local viewing, storage and camera power requirements. Hard drives are supplied separately.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.

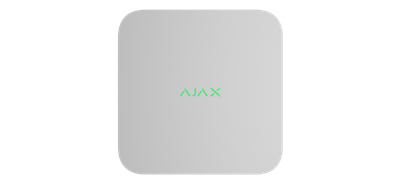

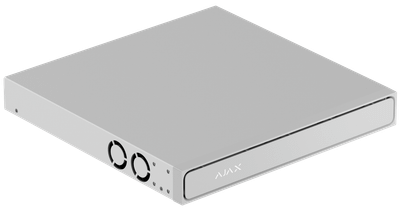

	Ajax NVR Network Video Recorder View product	Ajax NVR HAC HDMI Network Video Recorder View product	Ajax NVR H2D Dual-Drive Video Recorder View product
Price Including VAT	From £244.75	From £284.95	From £399.95
Camera channels	8 or 16 channels (model dependent)	8 or 16 channels (model dependent)	8 or 16 channels (model dependent)
Viewing output	Ajax app; no HDMI output	HDMI, up to 1920 x 1080	HDMI; output resolution depends on model and viewing mode
Recording storage	One SATA drive, up to 16 TB; drive not included	One SATA drive, up to 16 TB; drive not included	Two hot-swappable SATA drives, up to 16 TB each; drives not included
Available models	8 Channels 16 Channels	8 Channels 16 Channels	8 Channels / No PoE 16 Channels / No PoE 8 Channels / 8 PoE Ports 16 Channels / 8 PoE Ports 16 Channels / 16 PoE Ports
Recorder power	110-240 V AC	110-240 V AC	110-240 V AC
Network connection	Ethernet up to 1 Gbps	Ethernet up to 1 Gbps	Ethernet up to 1 Gbps
Size (W x H x D)	193 x 47 x 193 (mm)	212 x 64 x 212 (mm)	330 x 44 x 330 (mm)

What you need. Fitting and setup.

Before installation

Plan a Cat6 Ethernet cable run to the back of each camera. For PoE, connect the other end to a compatible PoE NVR camera port or a PoE switch connected to your network. A suitable PoE injector is another option.
Without PoE, the camera needs its specified 12 V DC supply as well as the Ethernet connection. Standard Ajax NVR and NVR H recorders do not supply camera PoE power.
For recordings, add a compatible microSD card or a network recorder with a suitable drive. Recording storage, network cabling and power equipment are separate requirements.

Fitting and setup

Have the installer check the view and cable route before fixing the camera. Use suitable fixings, protect external connections with the specified waterproof connector and seal cable entries. Add the camera to the Ajax app, adjust its view, configure recording and detection areas, and test day and night coverage.

An Ajax alarm hub is optional for linked alarm features; it does not replace the camera power supply or video recorder.

Power and network equipment

For one camera on an existing non-PoE network, the Grandstream injector provides active PoE+ power: connect the network to its LAN input and the camera to its PoE output. For several cameras, a suitable Uniview or Reyee PoE switch provides powered camera ports and a separate network uplink.

Use one suitable power route, not an injector and a PoE switch for the same camera. Match the camera's PoE requirement and maximum power demand, both per port and against the switch's shared budget. Keep the switch or injector indoors; outdoor cameras still need protected connections and suitable cable routing.

5 MP / 2.8 mm specifications 5 MP / 4 mm specifications 8 MP / 2.8 mm specifications 8 MP / 4 mm specifications Installation manual

Finish the installation. Power and mounting.

The power options below are alternatives, not equipment needed together. An injector powers one camera; a PoE switch supports several. Mounts and junction boxes are separate optional accessories with model-specific compatibility.

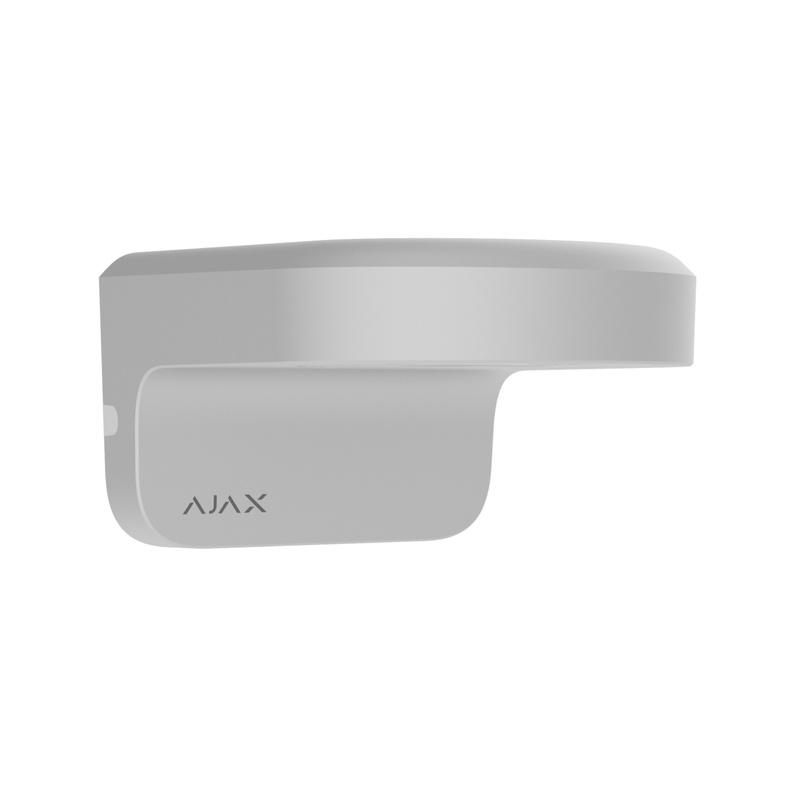

Ajax MountCam Camera Wall Mount

Short- and long-arm wall mounts with model-specific camera compatibility.

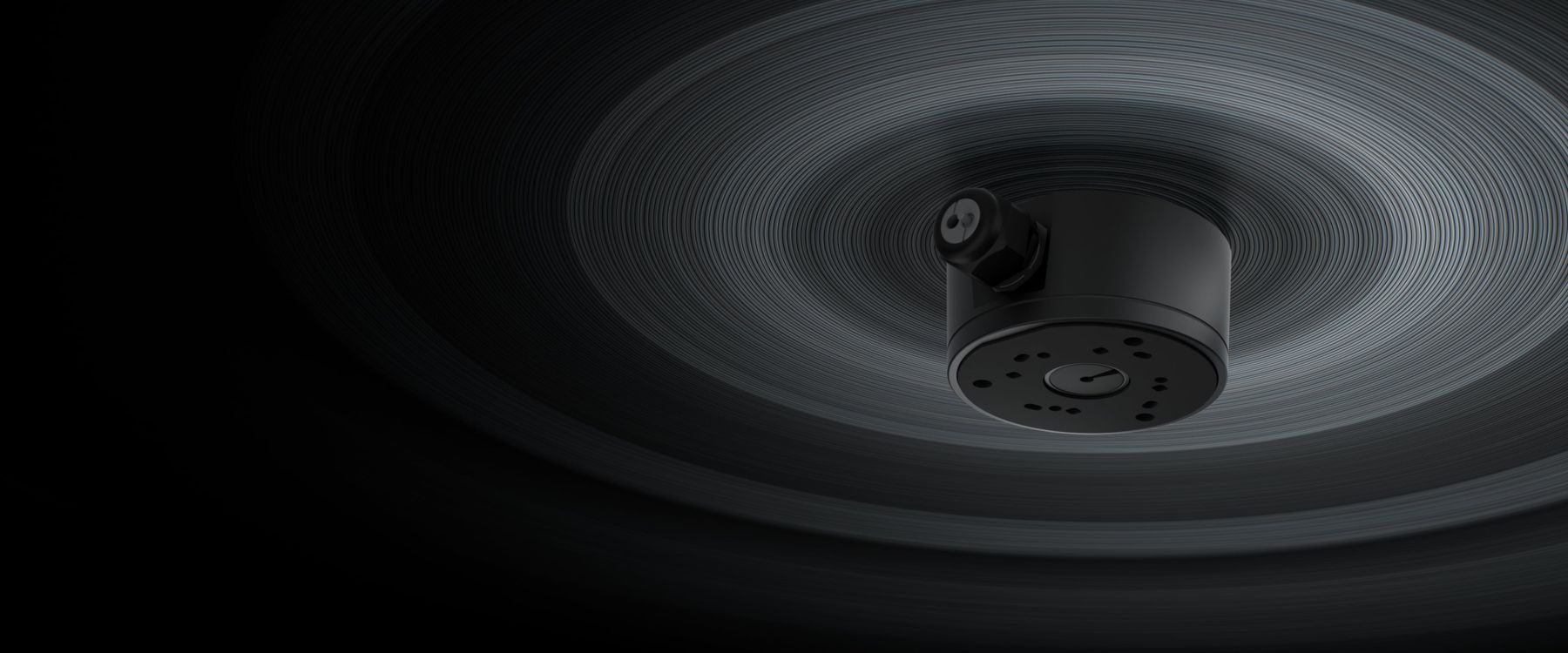

Ajax JunctionBox Camera Mounting Box

A neat mounting point and protected cable connection for compatible Ajax wired cameras.

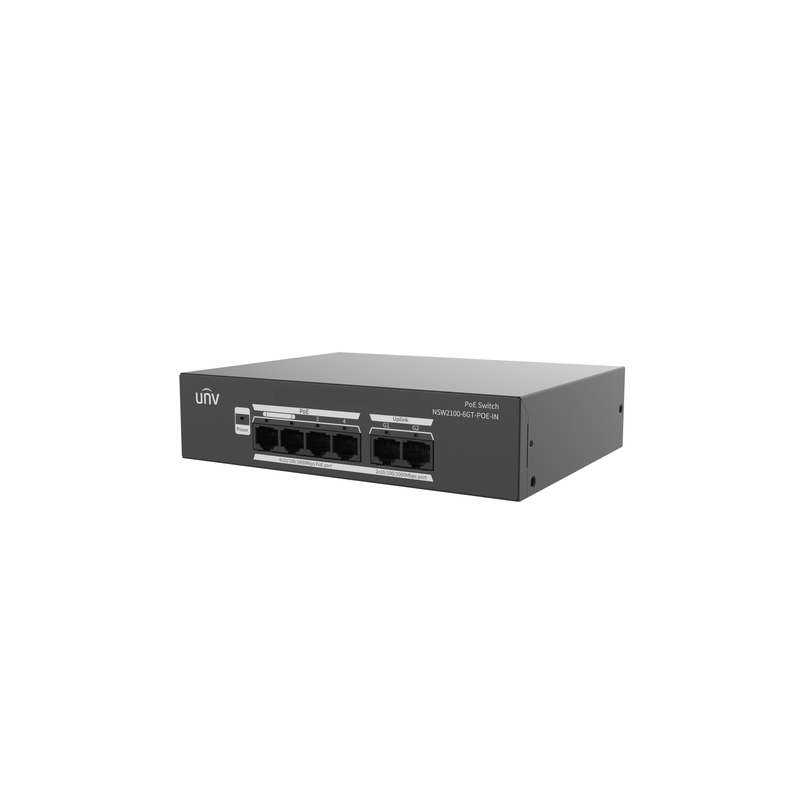

Uniview 4-Port Gigabit Cloud Managed PoE Switch

A compact four-camera network switch with Gigabit connections, a 65W PoE budget and web or cloud management.

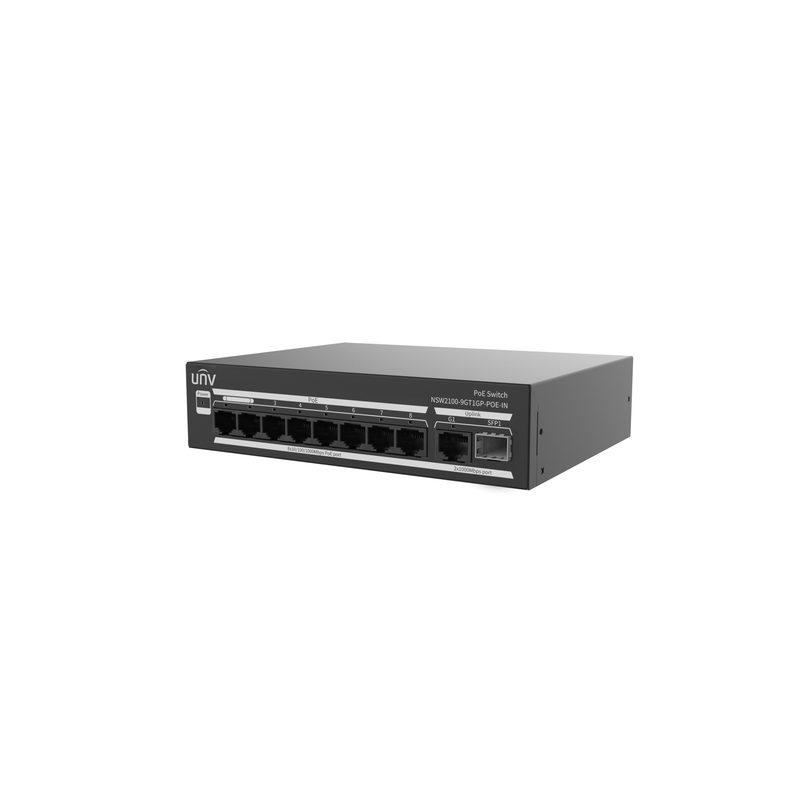

Uniview 8-Port Gigabit Cloud Managed PoE Switch

Eight Gigabit PoE camera connections with a 120W shared power budget, web management and copper or SFP uplinks.

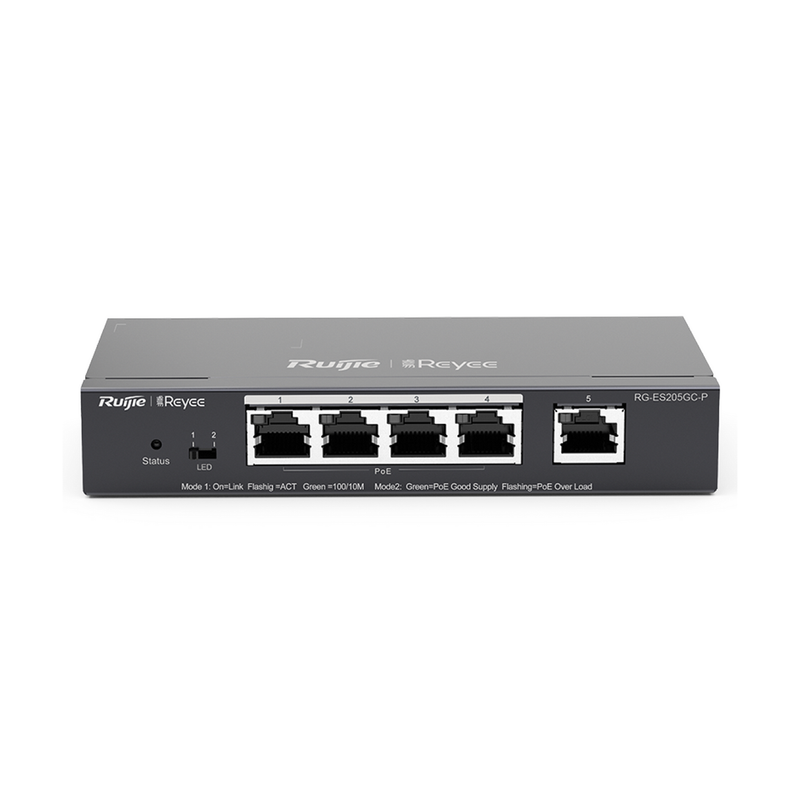

Reyee 4-Port Gigabit Smart Cloud Managed PoE Switch

Four Gigabit PoE connections and a 54W shared budget, with Reyee cloud management for compact camera networks.

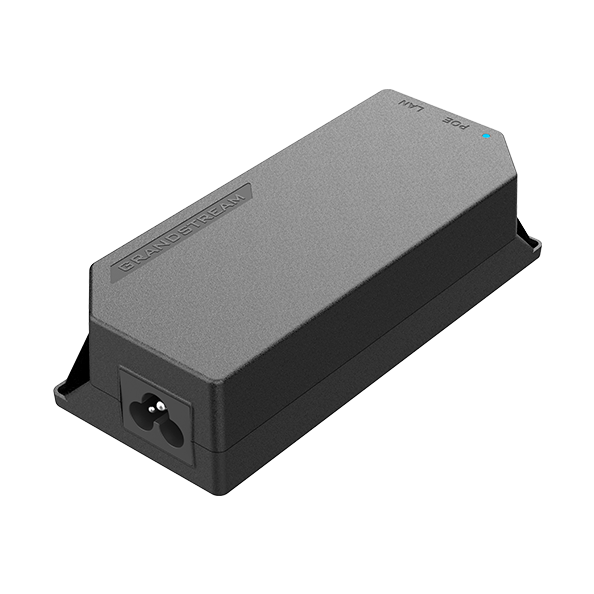

Grandstream 30W Active PoE+ Injector

Add standards-compliant PoE+ power to a single compatible camera using an existing non-PoE network connection.

Part	Size (mm)
width	76
Height	76
Depth	198

Brand

SKU

AJAX-BULLETCAM

Built - In Microphone

Yes

Lens Focal Length

Fixed 2.8 mm or 4 mm (model dependent)

Network Connection

Ethernet 10/100 Mbps

Object Detection

People, pets and vehicles

Dynamic Range

True WDR, 120 dB

Power Supply

PoE (802.3at/af) or 12 V DC, 1 A

Recording Storage

microSD up to 256 GB (V30 or faster), compatible NVR, or supported cloud service; storage supplied separately

Enclosure Protection

IP66, IK08

White

Black

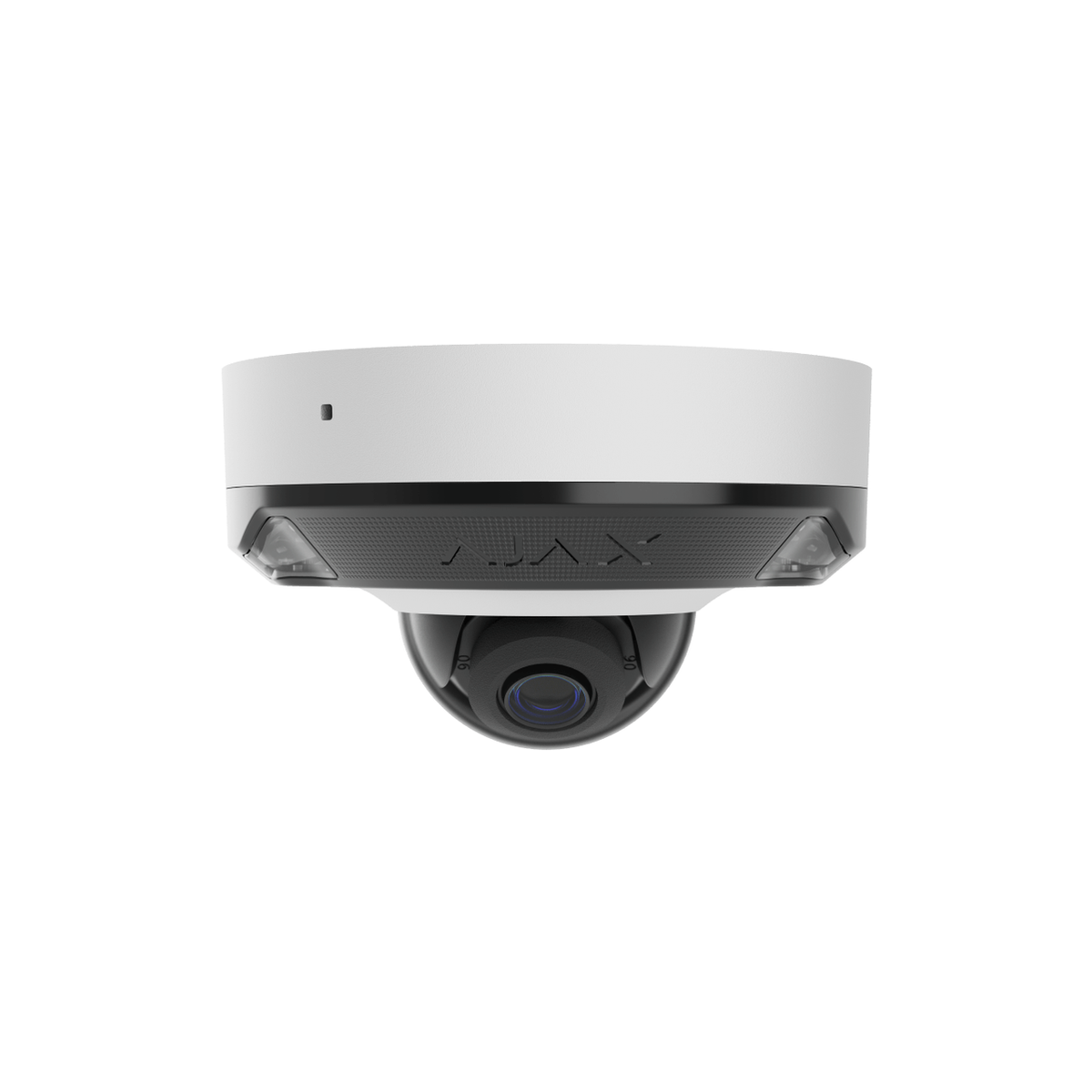

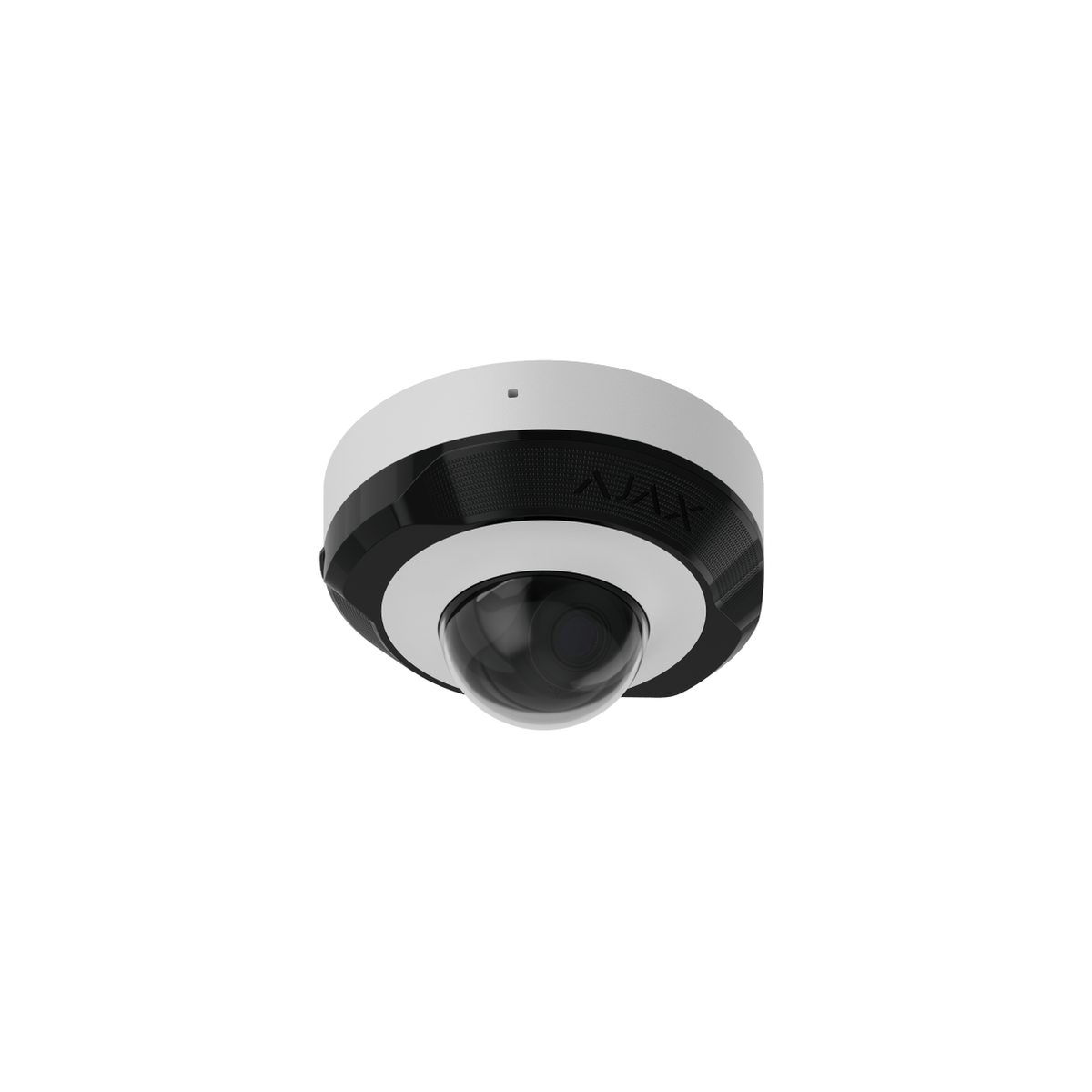

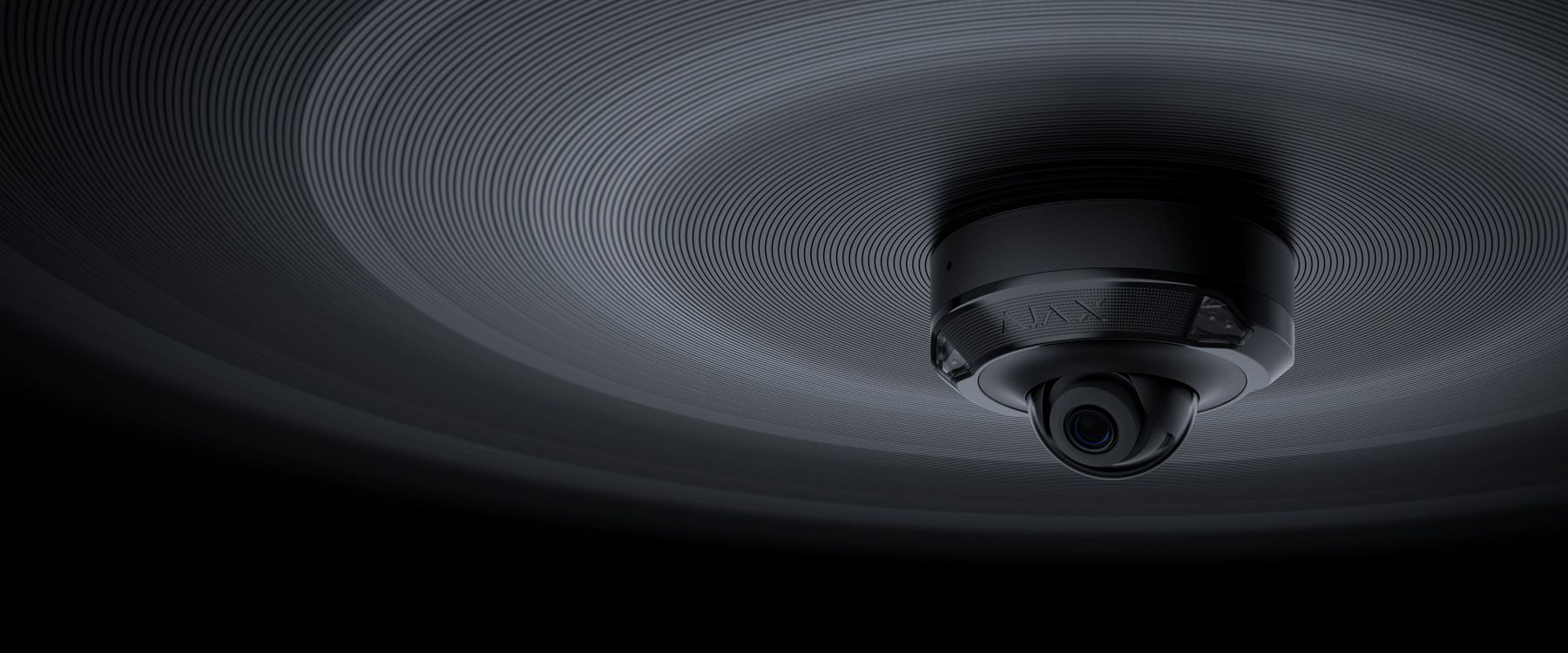

Ajax DomeCam Mini IP Camera

£149.95

(£124.96 ex VAT)

sku: AJAX-DOMECAM-MINI

A low-profile dome camera with intelligent detection, True WDR and infrared illumination.

Available in 5 MP and 8 MP versions. Fixed 2.8 mm and 4 mm lens options.

Recording storage and a suitable power source are required separately.

Colour

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Weather Resistant

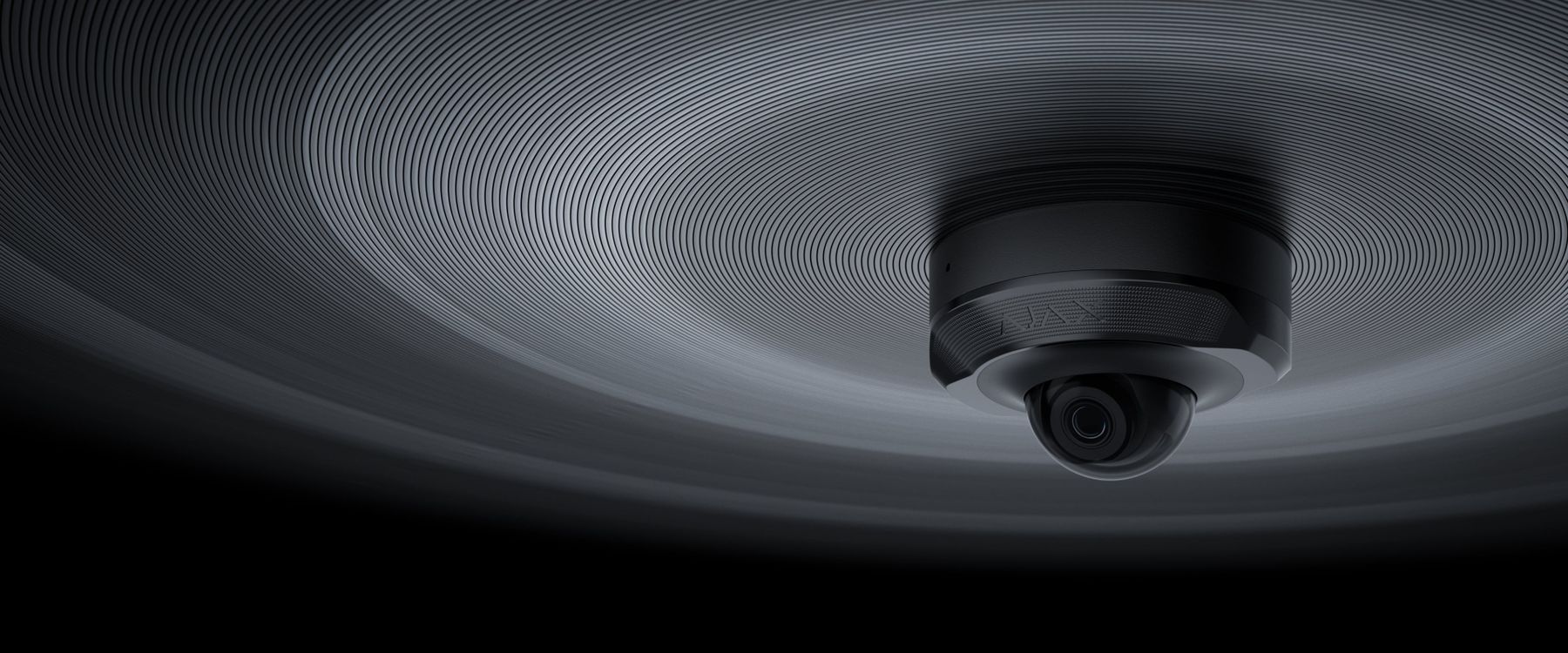

A smaller presence. A useful view.

DomeCam Mini keeps the camera close to the mounting surface. Its understated dome format suits covered entrances, interiors and other places where a larger camera would stand out.

Light and shade. In the same picture.
