skip to ABUS H701 with 25mm Diameter Jaws

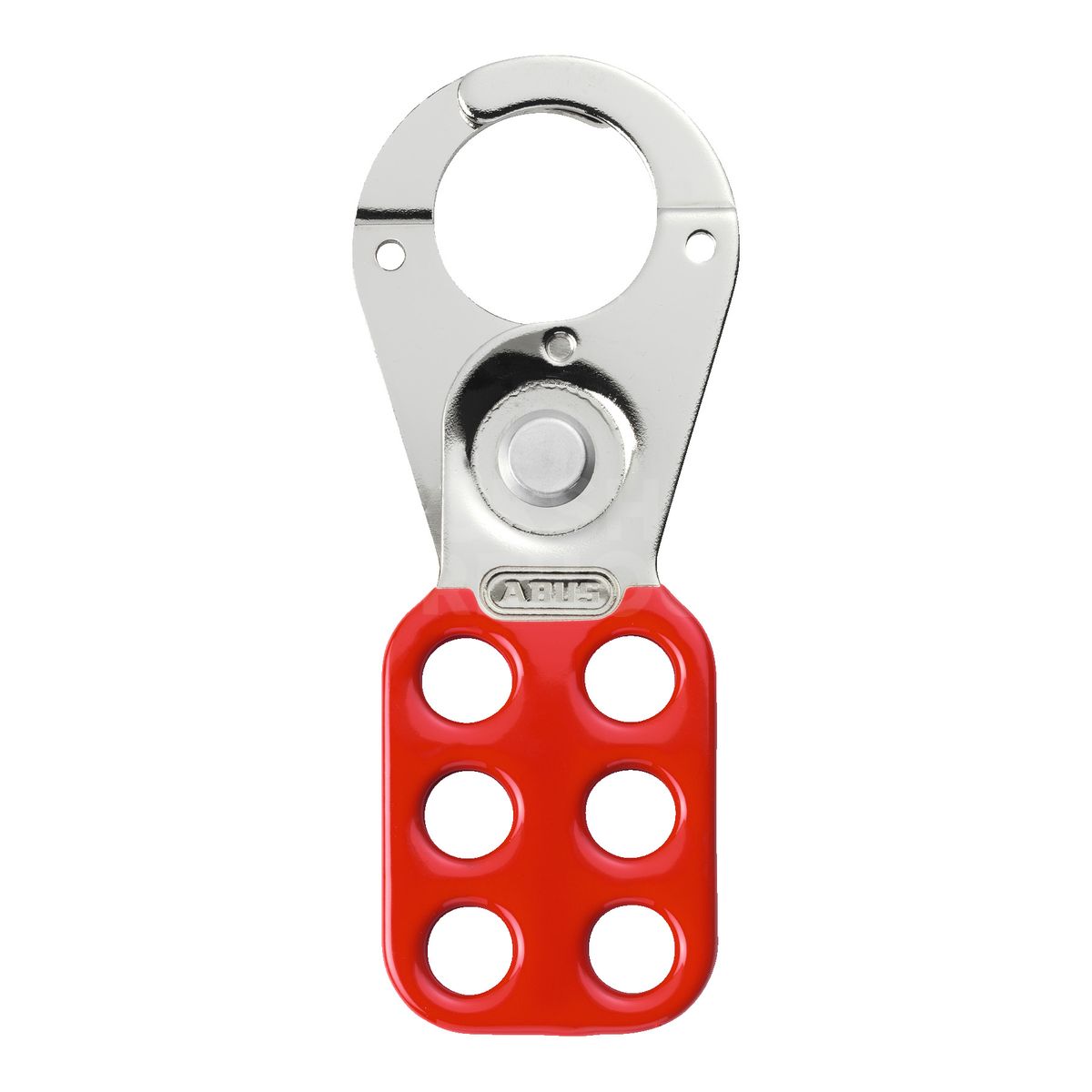

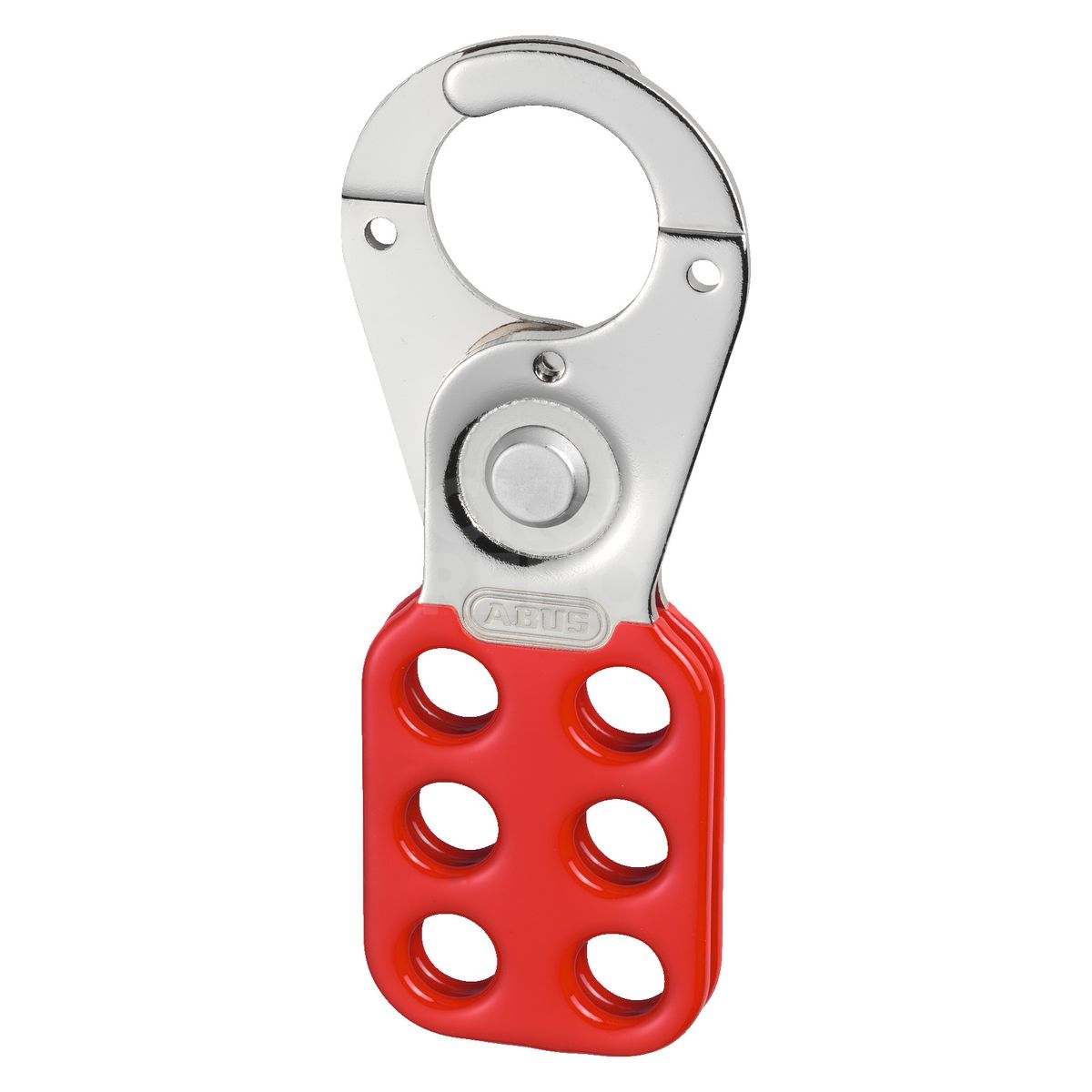

ABUS H701 with 25mm Diameter Jaws

£6.50

(£5.42 ex VAT)

sku: ABUH701
  • 25 mm nominal jaw format.
  • Sheet-steel construction with a coloured coated grip.
  • Up to six personal padlocks at one compatible locking point.
  • Standard jaws; H711 and H712 are the separate interlocking-jaw models.
  • Padlocks are supplied separately.
Document Icon H701 Data Sheet Document Icon ABUS Mechanical Lock Out Hasps
ABUS H701 with 25mm Diameter Jaws £ 9.6

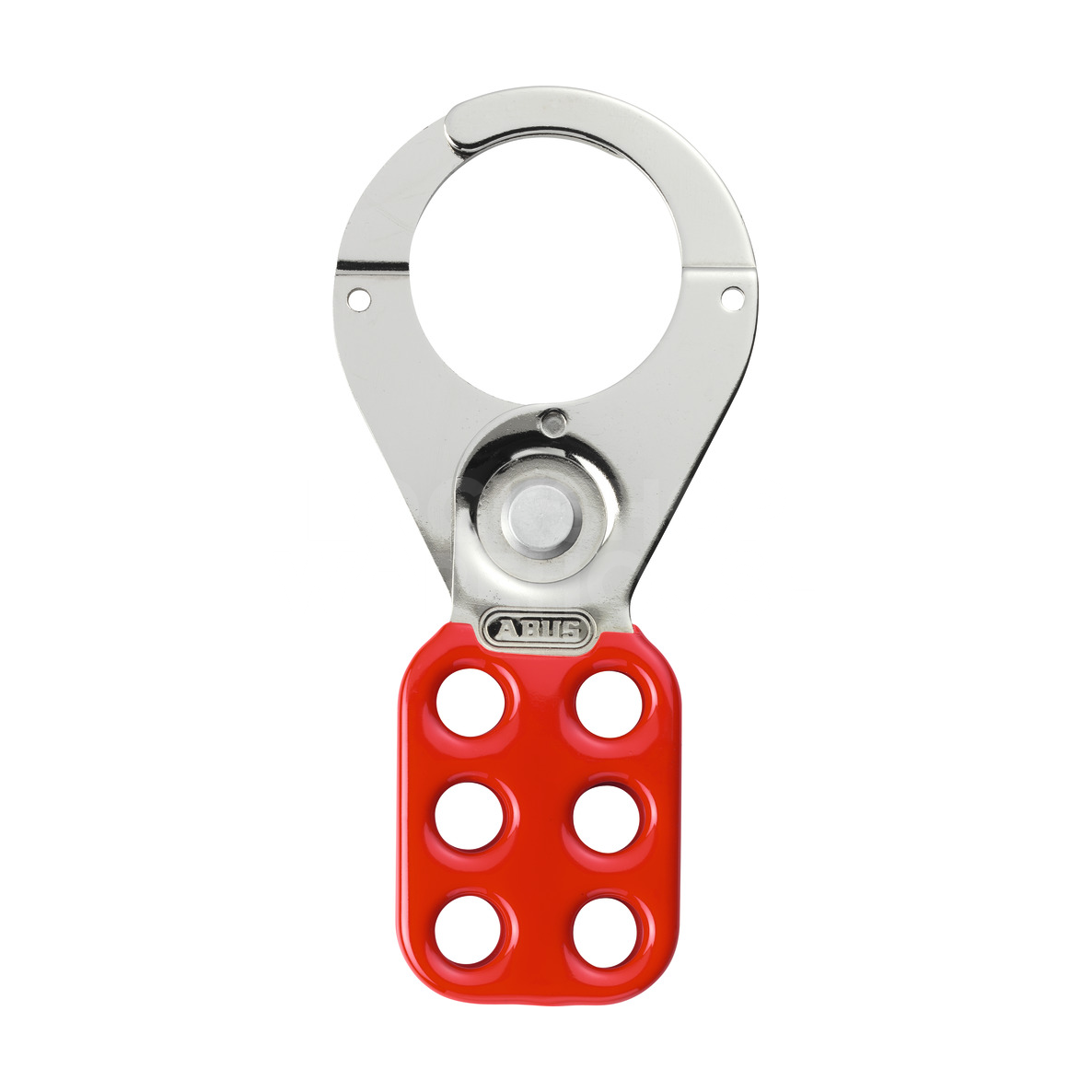

ABUS H702 with 38mm Diameter Jaws £ 10.8
ABUS H711 with 25mm Diameter Interlocking Jaws £ 10.8
ABUS H712 with 38mm Diameter Interlocking Jaws £ 11.99

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

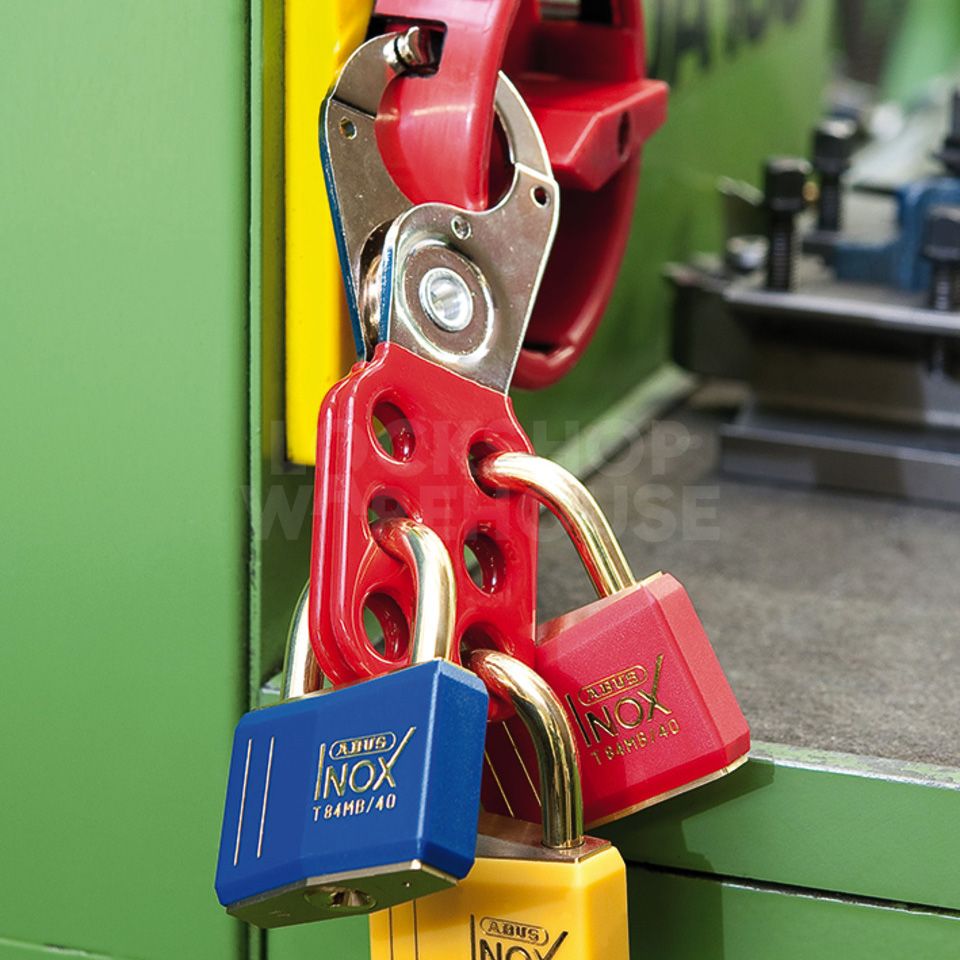

The ABUS H701 multiplies a compatible locking point so several people can attach their own personal padlocks. The equipment remains locked while a padlock is still attached to a correctly fitted hasp.

Check the jaw fit, each padlock shackle and the space around the lock bodies. This model does not have interlocking jaw tabs. Select H711 or H712 if that jaw construction is required. Use within the site's approved isolation and key-control procedure; the hasp does not replace safe-isolation checks.

Part Size (mm)
width 45
Height 115
Depth 10
Horizontal Clearance 25
Vertical Clearance 25

Brand

SKU

ABUH701

Box Contents

Hasp

FAQs

The ABUS H701 features six locking holes, allowing up to six individual technicians to attach their own safety padlocks. This ensures that the energy source cannot be reconnected until every worker has completed their task and removed their specific lock.

This model is equipped with a 25mm (1 inch) diameter jaw. It is specifically designed for smaller mounting points and power switches where a compact fit is required for a secure lockout.

The hasp is manufactured from high-tensile steel for maximum durability in industrial environments. It also features a red vinyl-coated handle, which provides high visibility for safety compliance and a better grip for the user.

H701 has standard jaws, without interlocking tabs. H711 is the separate 25 mm model with interlocking jaw tabs. Choose the construction that meets the equipment and site procedure.
