skip to ABUS H711 with 25mm Diameter Interlocking Jaws

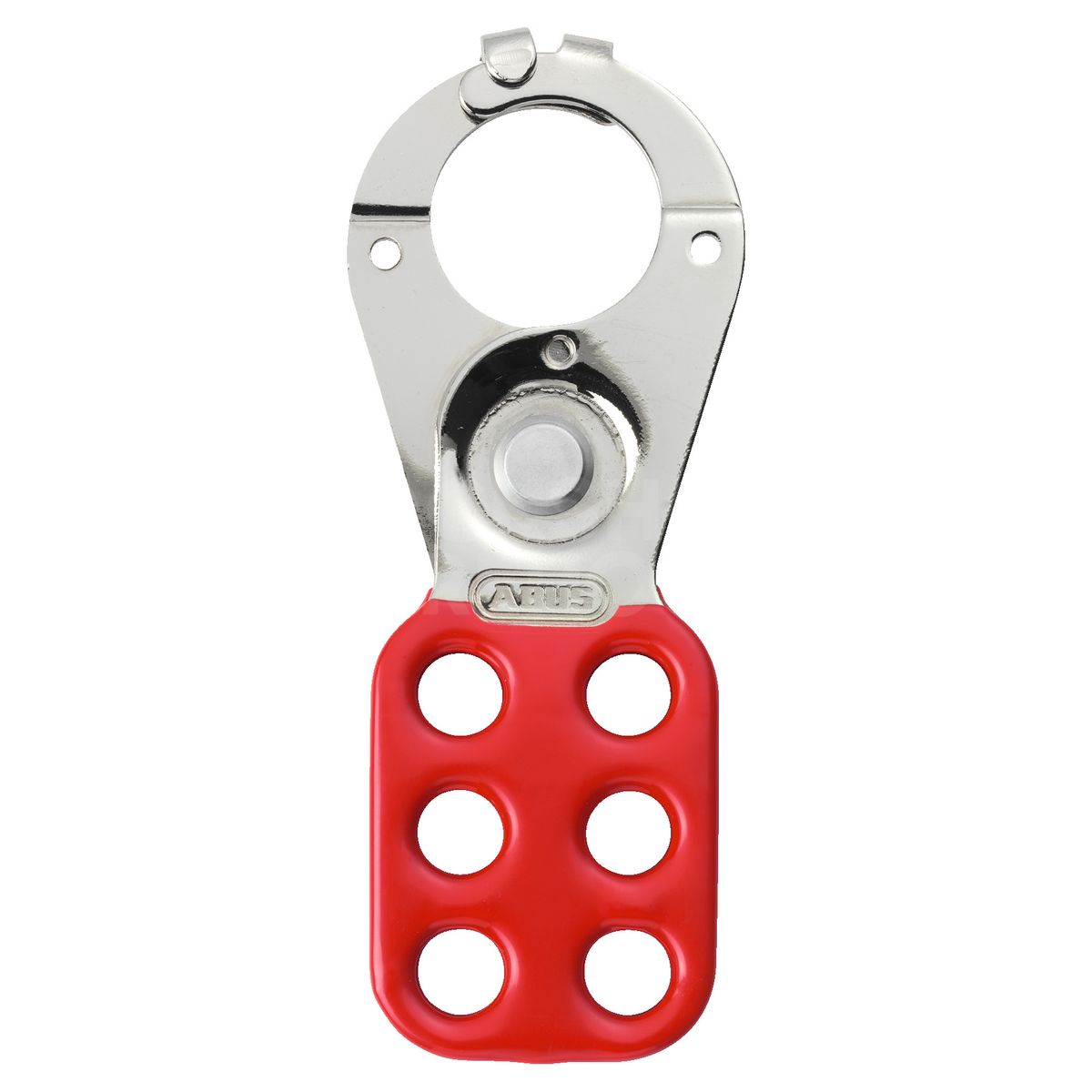

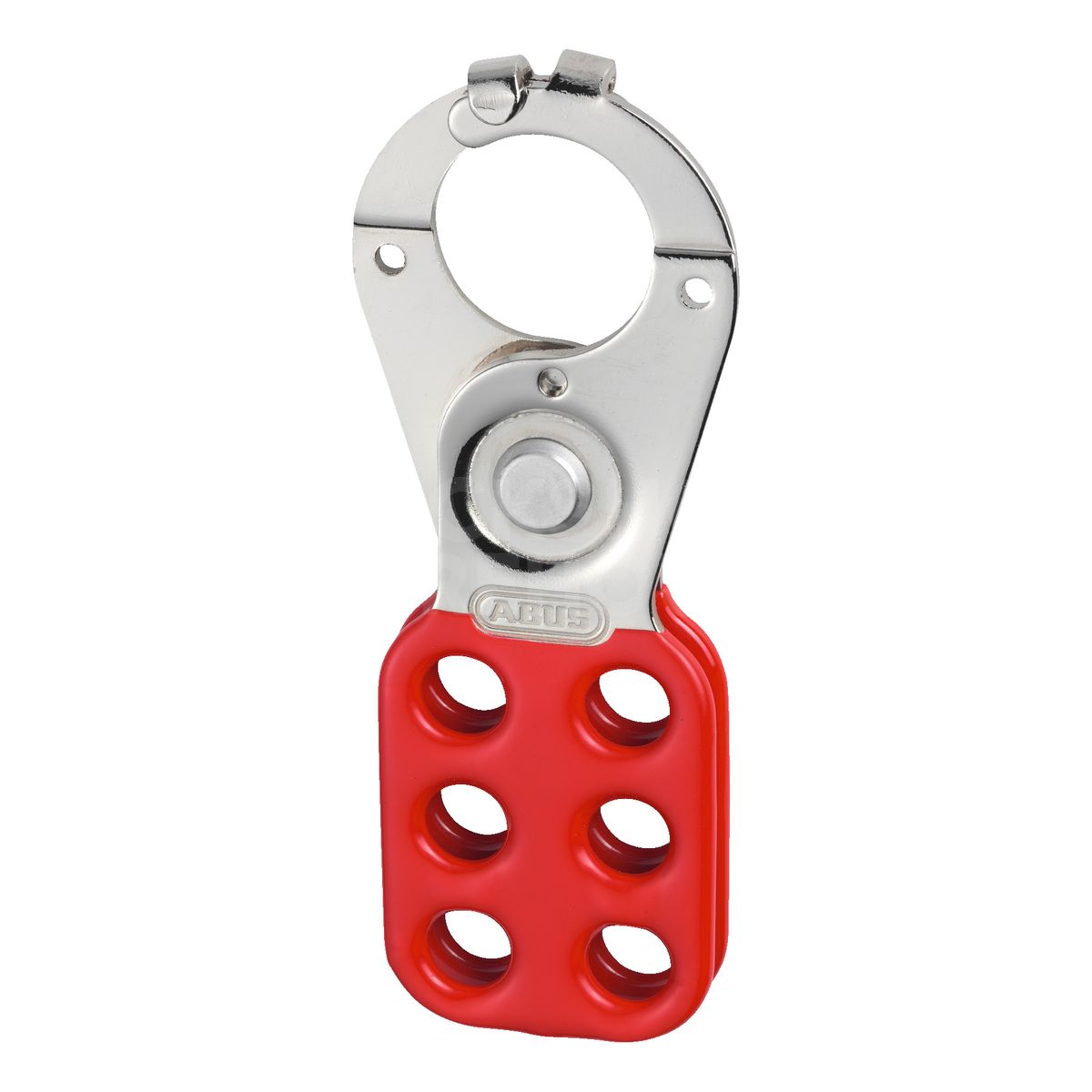

ABUS H711 with 25mm Diameter Interlocking Jaws

£7.50

(£6.25 ex VAT)

sku: ABUH711
  • 25 mm nominal jaw format.
  • Sheet-steel construction with a coloured coated grip.
  • Up to six personal padlocks at one compatible locking point.
  • Interlocking jaw tabs are part of this model.
  • Padlocks are supplied separately.
Document Icon H711 Data Sheet Document Icon ABUS Mechanical Lock Out Hasps
ABUS H701 with 25mm Diameter Jaws £ 9.6
ABUS H702 with 38mm Diameter Jaws £ 10.8
ABUS H711 with 25mm Diameter Interlocking Jaws £ 10.8
ABUS H712 with 38mm Diameter Interlocking Jaws £ 11.99
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

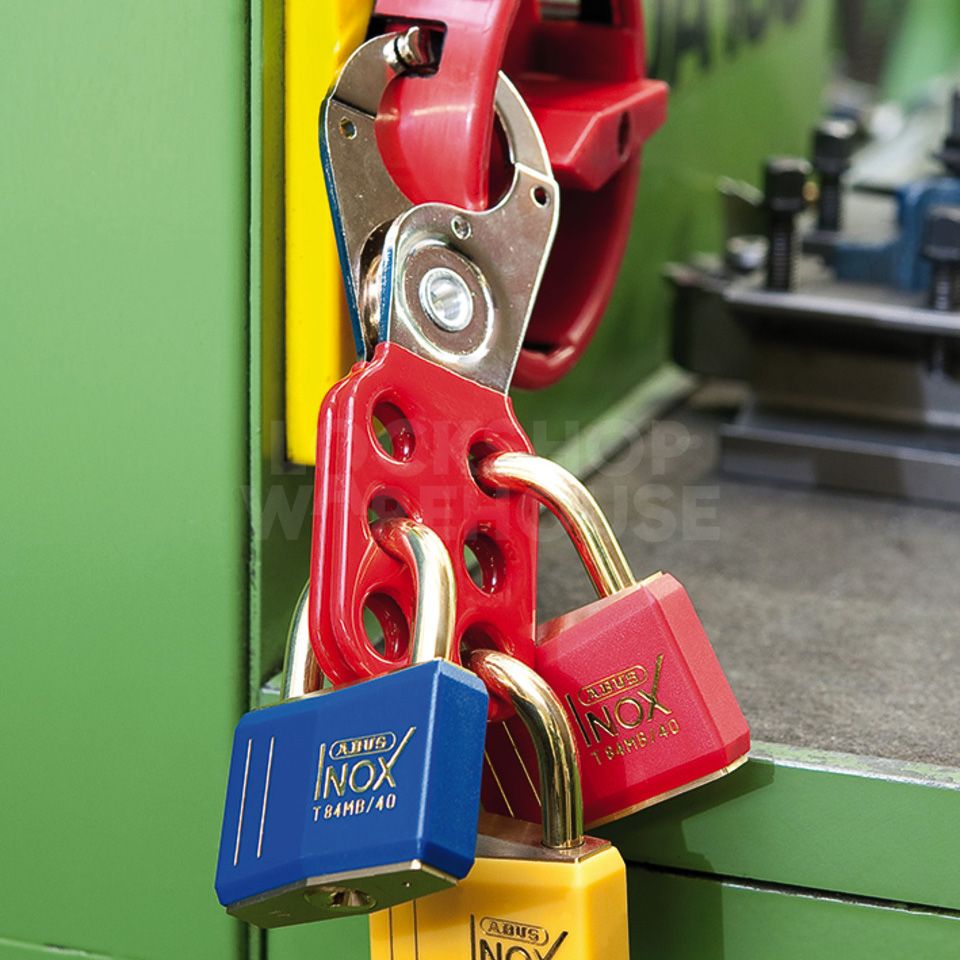

The ABUS H711 multiplies a compatible locking point so several people can attach their own personal padlocks. The equipment remains locked while a padlock is still attached to a correctly fitted hasp.

Check the jaw fit, each padlock shackle and the space around the lock bodies. The interlocking tabs provide additional resistance to the jaws being pried apart; they are not an optional accessory. Use within the site's approved isolation and key-control procedure; the hasp does not replace safe-isolation checks.

Part Size (mm)
width 45
Height 118
Depth 12
Horizontal Clearance 25
Vertical Clearance 25

Brand

SKU

ABUH711

Box Contents

Hasp

FAQs

The ABUS H711 is equipped with six locking holes, allowing up to six individuals to attach their own safety padlocks. This ensures that a power source remains isolated until the final person has completed their maintenance task and removed their lock.

This model features interlocking jaws with a 25mm (1 inch) internal diameter, designed to fit securely around standard industrial power switches and isolation points during lockout-tagout procedures.

The hasp is manufactured from high-tensile steel for durability and security. The lower handle portion is finished with a red vinyl coating to provide a better grip and high visibility in industrial environments.

The H711 jaw tabs engage when closed, giving additional resistance to the jaws being pried apart. They are part of this model. Fit and use still need to follow the equipment and site procedure.
