skip to ABUS Pfaffenhain 83WP/63 Weatherproof Hardened Steel Padlock with 63mm Long Shackle

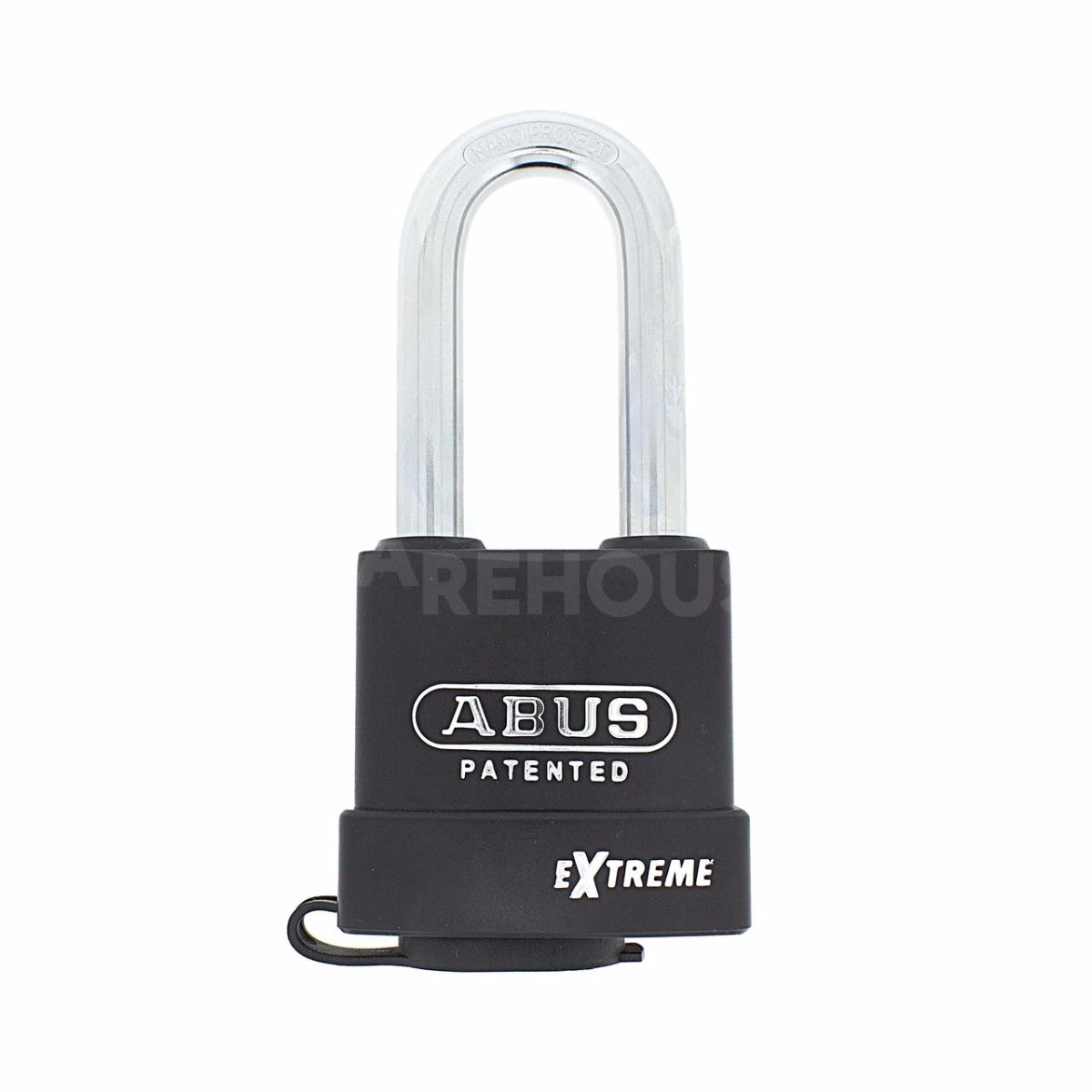

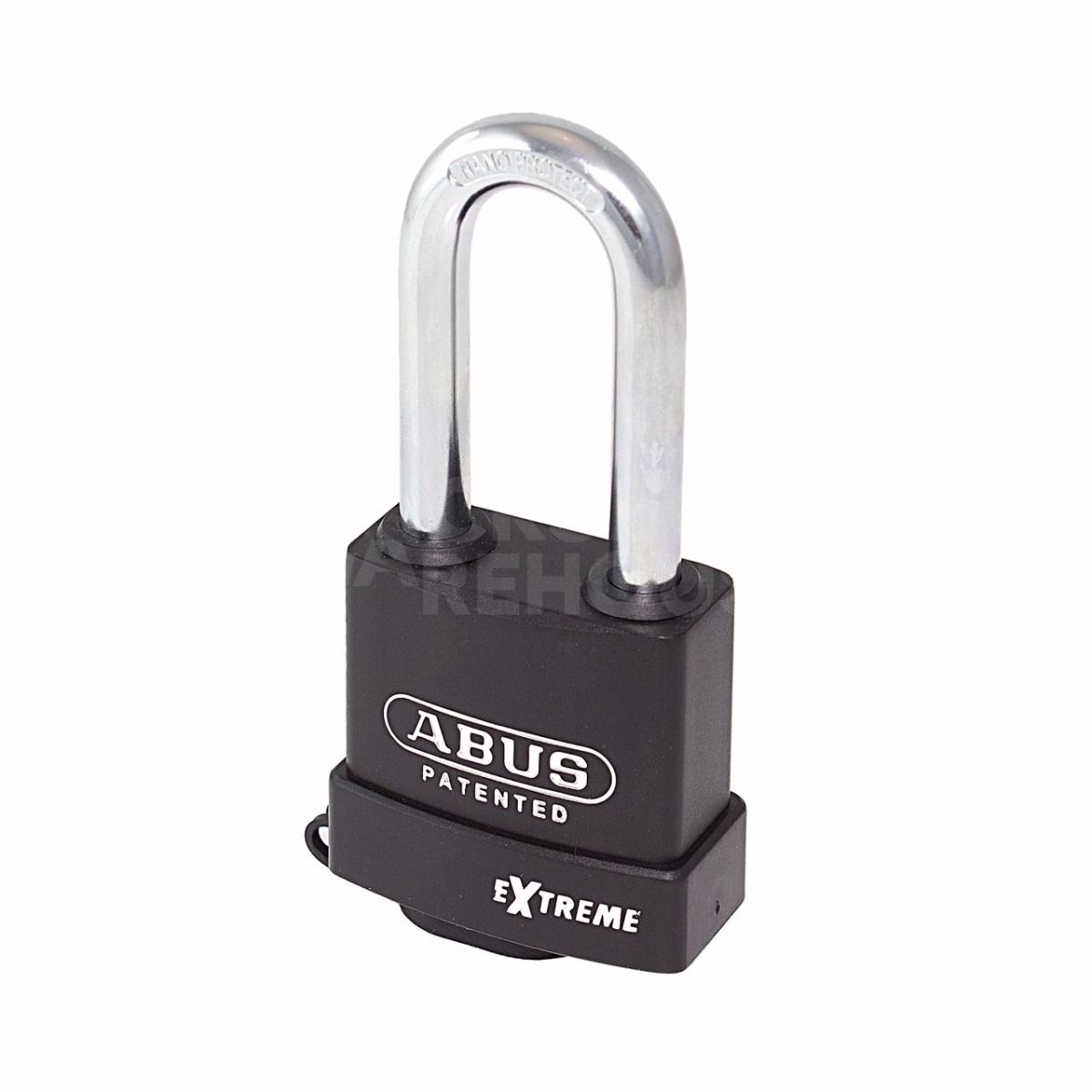

ABUS Pfaffenhain 83WP/63 Weatherproof Hardened Steel Padlock with 63mm Long Shackle

£88.80

(£74.00 ex VAT)

sku: ABPF8363HB63
  • Hardened steel body provides robust physical resistance against attack
  • NanoProtect shackle coating ensures long-term protection against corrosion and rust
  • Integrated high-impact casing and keyway cover seal the mechanism from water and debris
  • Dual ball bearing locking mechanism resists forceful pulling and twisting
  • Internal salt water protection pins designed for reliable use in marine environments
  • Cylinder features anti-drill, anti-pick and anti-bump technology
  • Compatible with keyed-alike and master key suites within the ABUS 83 series
Document Icon product info Document Icon product info

ABUS 83 Series with the Pfaffenhain Registered key

ABUS Pfaffenhain Padlock 83/45 £ 71.99
8mm Shackle Diameter
ABUS Pfaffenhain Padlock 83/45 Long Shackle 75mm £ 78
ABUS Pfaffenhain 83/50 Hardened Steel Open Shackle Padlock £ 84
9.5mm Shackle Diameter
ABUS Pfaffenhain 83WP/53 Open Shackle Weatherproof Padlock £ 72
ABUS Pfaffenhain 83WP/53 Open Shackle Weatherproof Padlock with 63mm Long Shackle £ 82.8
ABUS Pfaffenhain 83WPCS/53 Closed Shackle Weatherproof Padlock £ 82.8
8mm Shackle Diameter
ABUS Pfaffenhain 83WP/63 Weatherproof Hardened steel Padlock £ 82.8
11mm Shackle Diameter
ABUS Pfaffenhain 83WP/63 Weatherproof Hardened Steel Padlock with 63mm Long Shackle £ 88.8
ABUS Pfaffenhain 83WPIB/53 Submariner Rust-Proof Padlock £ 82.8
8mm Shackle Diameter
ABUS Pfaffenhain 83WPIB/53 Submariner Rust-Proof - Long Shackle Padlock £ 88.8
ABUS Pfaffenhain 83/60 Padlock £ 108
11mm Shackle Diameter
ABUS Pfaffenhain 83/80 Padlock £ 132
15mm Shackle Diameter
ABUS Pfaffenhain 83/80 Padlock with 80mm Long Shackle £ 144
ABUS Pfaffenhain 83CS/70 Closed Shackle Padlock £ 156
15mm Shackle Diameter

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The ABUS 83WP is a heavy-duty padlock engineered for maximum security in extreme outdoor conditions. Constructed with a through-hardened steel body, it offers high resistance to physical attacks, including sawing and drilling. The padlock is encased in a rugged, high-impact plastic cover designed to protect both the internal mechanism and the surfaces the lock comes into contact with.

Key to its longevity is the NanoProtect shackle, which provides the strength of hardened steel with an advanced coating to prevent corrosion in harsh or coastal environments. To further ensure reliable operation, the padlock features internal shackle seals and a protective flip-cap over the keyway, preventing the ingress of mud, grit and moisture that can cause mechanical failure.

Technical security features include:

  • CEN Grade 4 rating suitable for high-risk applications.
  • Ball bearing locking mechanism to thwart pulling and twisting attacks.
  • Anti-drill, anti-pick and anti-bump cylinder technology for enhanced tamper resistance.
  • Specialist salt water protection pins for durability in maritime settings.

Typical applications include securing commercial premises, external gates and high-value equipment in exposed locations. As part of the ABUS 83 series, these padlocks are suitable for integration into complex master key systems or keyed-alike suites for simplified access control.

Part Size (mm)
Horizontal Clearance 25
Vertical Clearance 63
Shackle Diameter 12
Body Width 65

Brand

SKU

ABPF8363HB63

Box Contents

2 keys

padlock

FAQs

We try to offer all our products with price breaks if available. On some items we can not offer price breaks but for larger orders we can look into it for you. Please email our sales team at - [email protected] and we will look into the best price for you.

Yes, the ABUS 83WP/63 is specifically designed for extreme conditions. It features a rugged high-impact sealed body with shackle seals and a protective key cap to keep out dirt and water. The NanoProtect shackle provides the strength of hardened steel while remaining highly resistant to corrosion. Additionally, each cylinder is fitted with salt water protection pins for extra durability in coastal areas.

This padlock uses a restricted ABUS Pfaffenhain key section, which allows for superior control over who can have keys cut. It offers high-level security with built-in protection against common bypass techniques, including anti-drill, anti-pick, and anti-bump technology.

Absolutely. The 83WP/63 can be supplied Keyed Alike or Masterkeyed to any other padlock in the ABUS 83 series. Please note that custom-built Keyed Alike orders are handmade and typically include two keys for the entire set, with a lead time of approximately 2-4 working days.

Rated at CEN Grade 4 and ABUS Protection Level 9, this padlock is built for maximum strength. Its solid steel body and hardened NanoProtect shackle are resistant to sawing and drilling. It also utilizes ball bearing locking mechanisms, which offer superior protection against pulling and twisting attacks compared to standard spring-loaded locks.
