skip to ABUS Pfaffenhain 83WPIB/53 Submariner Rust-Proof - Long Shackle Padlock

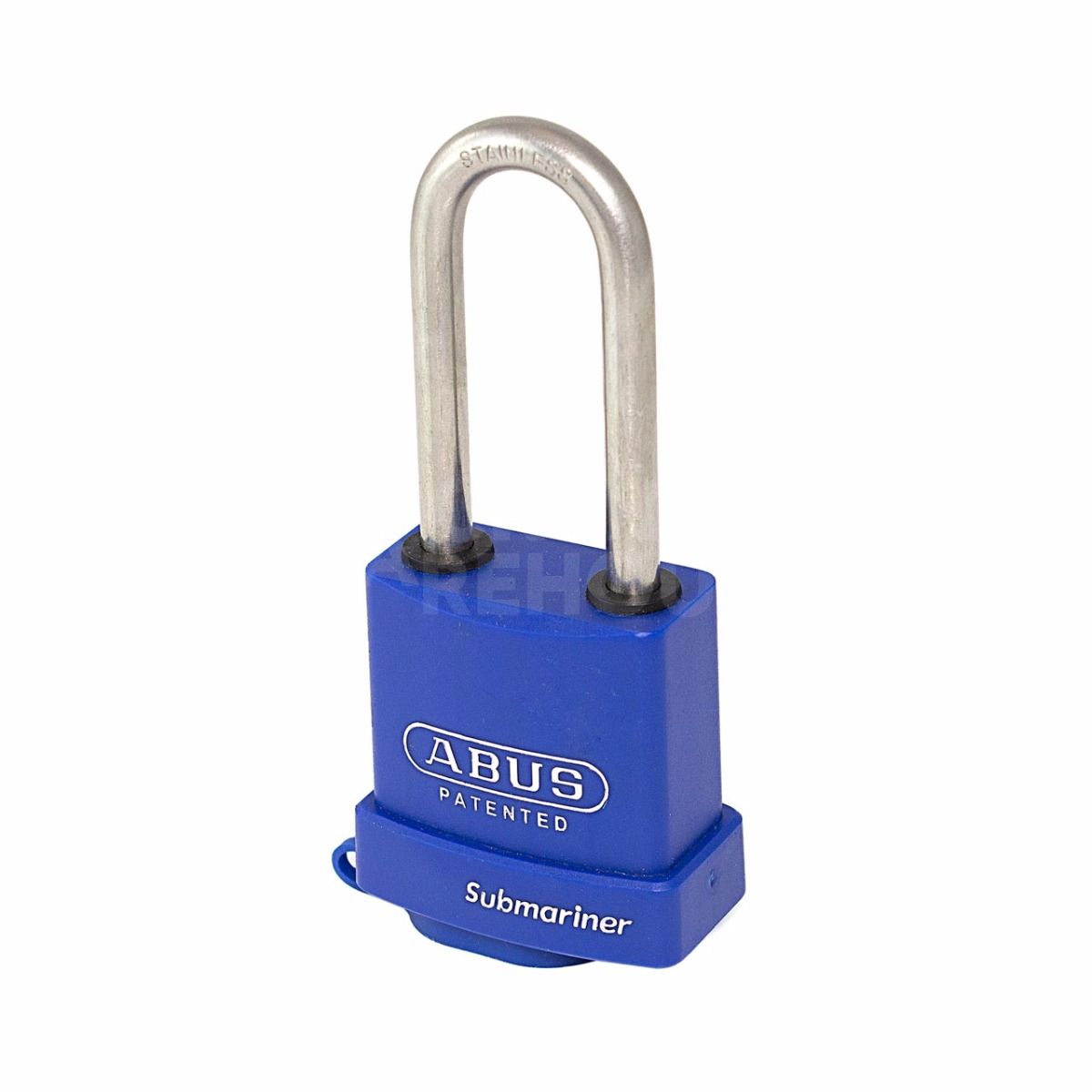

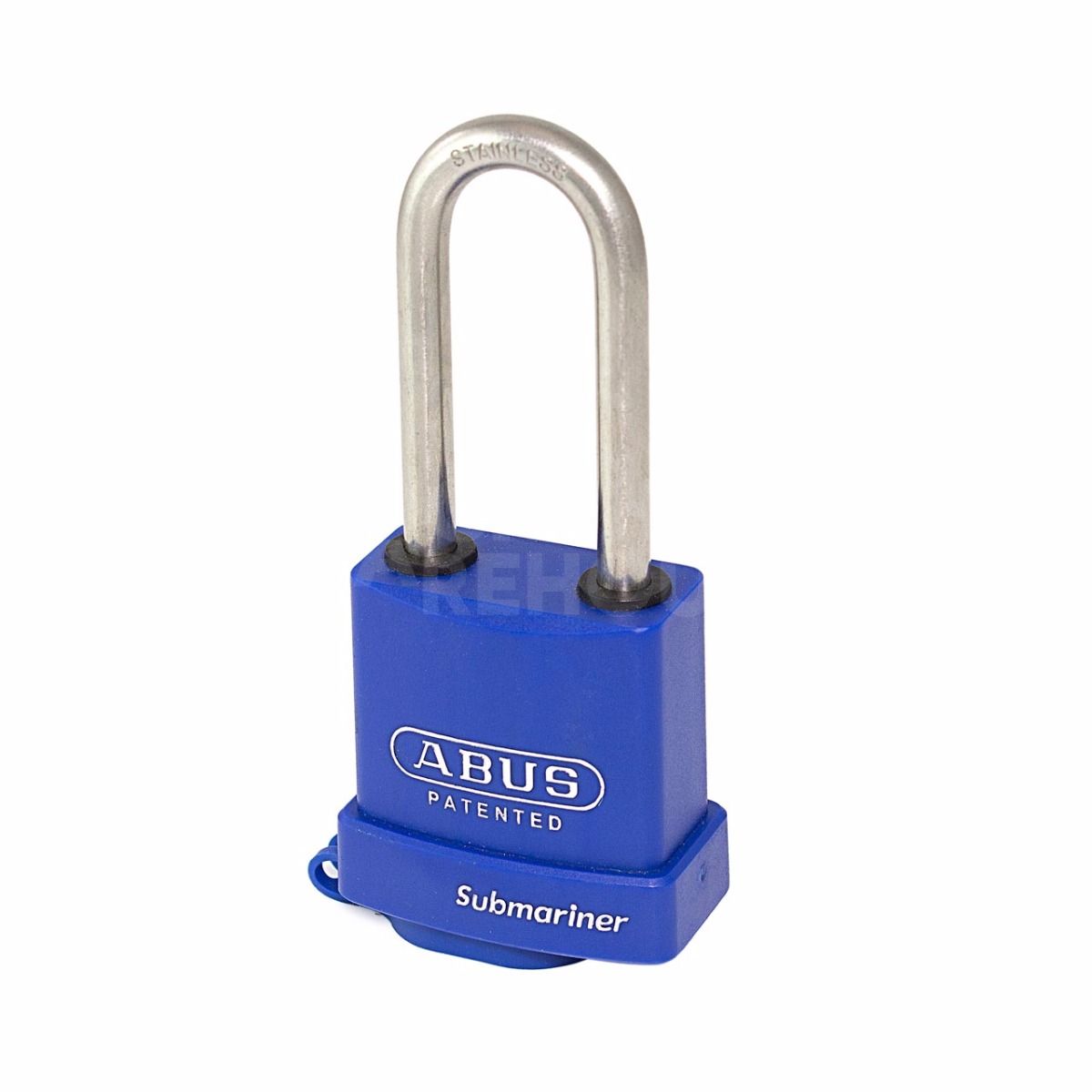

ABUS Pfaffenhain 83WPIB/53 Submariner Rust-Proof - Long Shackle Padlock

£88.80

(£74.00 ex VAT)

sku: ABPF83WPIB53HB63
  • Marine-grade construction designed for extreme weather and salt water environments
  • Stainless steel long shackle provides enhanced corrosion resistance and reach
  • Impact-resistant plastic coating with integrated shackle seals to prevent water ingress
  • Protective cylinder cover shields the keyway from dirt, moisture and debris
  • Solid brass body with chrome plating offers superior protection against rust
  • Dual ball bearing locking mechanism provides high resistance against pulling and twisting
  • Restricted key section allows for controlled key duplication and enhanced security
  • Internal components feature salt water protection pins for long-term operational reliability
Document Icon product info Document Icon product info

ABUS 83 Series with the Pfaffenhain Registered key

ABUS Pfaffenhain Padlock 83/45 £ 71.99
8mm Shackle Diameter
ABUS Pfaffenhain Padlock 83/45 Long Shackle 75mm £ 78
ABUS Pfaffenhain 83/50 Hardened Steel Open Shackle Padlock £ 84
9.5mm Shackle Diameter
ABUS Pfaffenhain 83WP/53 Open Shackle Weatherproof Padlock £ 72
ABUS Pfaffenhain 83WP/53 Open Shackle Weatherproof Padlock with 63mm Long Shackle £ 82.8
ABUS Pfaffenhain 83WPCS/53 Closed Shackle Weatherproof Padlock £ 82.8
8mm Shackle Diameter
ABUS Pfaffenhain 83WP/63 Weatherproof Hardened steel Padlock £ 82.8
11mm Shackle Diameter
ABUS Pfaffenhain 83WP/63 Weatherproof Hardened Steel Padlock with 63mm Long Shackle £ 88.8
ABUS Pfaffenhain 83WPIB/53 Submariner Rust-Proof Padlock £ 82.8
8mm Shackle Diameter
ABUS Pfaffenhain 83WPIB/53 Submariner Rust-Proof - Long Shackle Padlock £ 88.8
ABUS Pfaffenhain 83/60 Padlock £ 108
11mm Shackle Diameter
ABUS Pfaffenhain 83/80 Padlock £ 132
15mm Shackle Diameter
ABUS Pfaffenhain 83/80 Padlock with 80mm Long Shackle £ 144
ABUS Pfaffenhain 83CS/70 Closed Shackle Padlock £ 156
15mm Shackle Diameter

Key Configuration

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

The ABUS 83WPIB/53 Submariner is a high-performance marine-grade padlock engineered for use in the most demanding environments, such as offshore wind farms and coastal installations. It is specifically designed to remain fully functional after prolonged exposure to salt water and harsh weather conditions.

The padlock features a solid brass body protected by chrome plating and an outer high-impact plastic shell. This combination provides a robust barrier against corrosion. The long stainless steel shackle offers extended reach for securing various fixtures while maintaining total rust resistance. To protect the internal mechanism, the unit is fitted with specialised shackle seals and a hinged keyway cover to prevent the ingress of water, grit and dust.

For security, the Submariner utilises a dual ball bearing locking system, which offers significant resistance against pulling and twisting attacks. As part of the ABUS Pfaffenhain range, this padlock uses a restricted key profile, ensuring that duplicates can only be produced by authorised specialist dealers. Typical applications include:

  • Securing marine vessels and dockside equipment
  • Offshore industrial sites and wind farms
  • Coastal storage facilities and perimeter gates
  • Exposed utility installations
Part Size (mm)
Horizontal Clearance 24
Vertical Clearance 63
Shackle Diameter 8
Body Width 55
Body Height 62

Brand

SKU

ABPF83WPIB53HB63

Box Contents

2 keys

padlock

FAQs

We try to offer all our products with price breaks if available. On some items we can not offer price breaks but for larger orders we can look into it for you. Please email our sales team at - [email protected] and we will look into the best price for you.

Yes, this padlock is specifically designed for the harshest environments. It features a stainless steel shackle, a chrome-plated brass body with a protective vinyl cover, and specialized salt water protection pins. It has been tested to withstand 180 hours in a salt bath, making it ideal for marine use or locations like North Sea wind farms.

The Submariner provides robust security with several integrated features:

  • A fully restricted ABUS Pfaffenhain key section to control key duplication.
  • Anti-drill, anti-pick, and anti-bump cylinder technology.
  • Ball-bearing locking mechanisms that offer superior protection against pulling and twisting attacks.

Yes, these padlocks can be ordered "keyed alike" so one key opens multiple locks. They can also be masterkeyed to other locks in the ABUS 83 series. Note that keyed-alike orders are custom-built by hand, resulting in a 2-4 day lead time and a total of two keys provided for the set.

The padlock is encased in high-impact plastic and features specialized shackle seals and a cylinder cover cap. These barriers prevent water, salt, and dirt from entering the keyway and internal components, ensuring the lock continues to function perfectly even in weathering and harsh conditions.
