Ajax BulletCam HLVF IP Camera

Name: Ajax BulletCam HLVF IP Camera
Brand: Ajax
SKU: AJAX-BULLETCAM-HLVF

£329.95

(£274.96 ex VAT)

sku: AJAX-BULLETCAM-HLVF

A motorized varifocal bullet camera for flexible framing and demanding outdoor locations.

Available in 5 MP and 8 MP versions. Motorized 2.8-12 mm varifocal lens.

Recording storage and a suitable power source are required separately.

Colour

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Weather Resistant

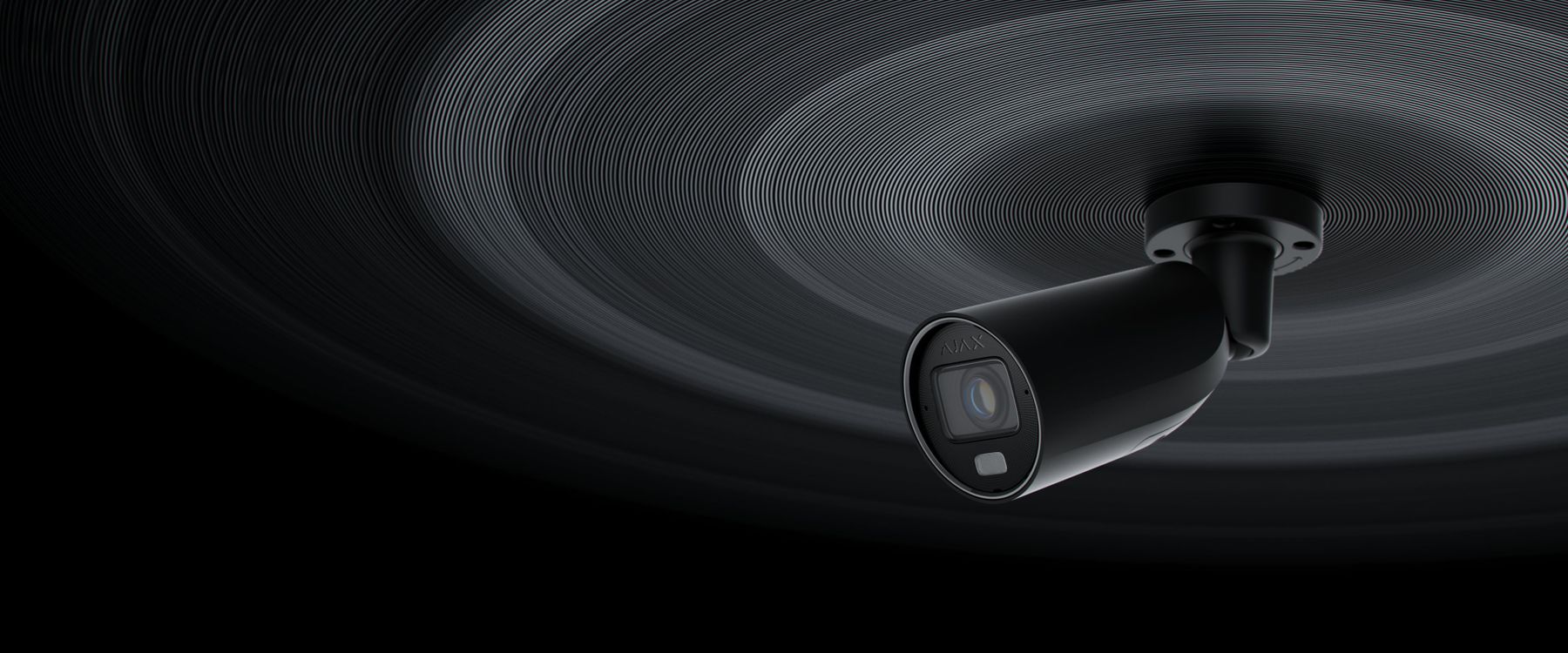

A longer view. Precisely framed.

BulletCam HLVF pairs a directional body with a motorized 2.8-12 mm lens. Adjust the field of view around a gate, driveway or boundary without swapping fixed-lens models.

Two ways to light the scene.

Hybrid illumination combines infrared with white light. Smart Hybrid Light can change lighting when an identified subject appears, while True WDR helps in high-contrast daylight.

Compare the cameras. A shape and view for your space.

Ajax TurretCam HLVF IP Camera

From £329.95

Ajax DomeCam HLVF IP Camera

From £329.95

Ajax TurretCam HL IP Camera

From £184.75

Built for the installation.

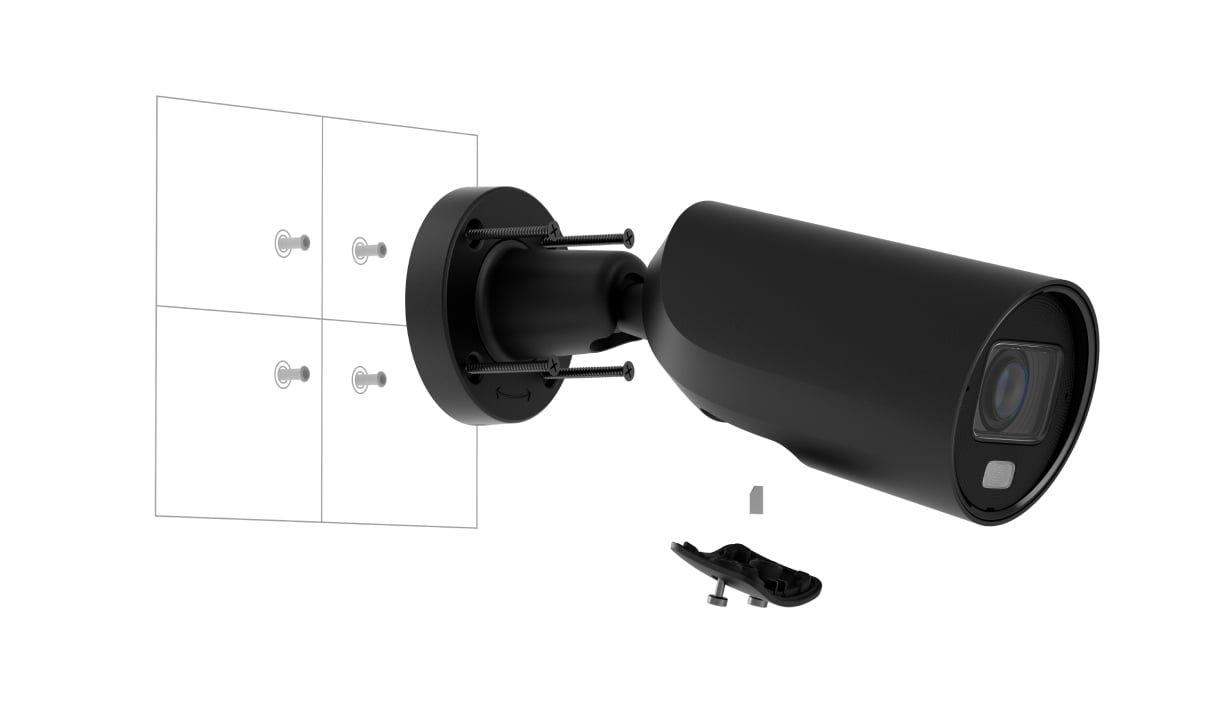

An IP67, IK10 enclosure and dedicated audio and alarm connections support more demanding projects. BulletCam HLVF is not compatible with MountCam wall mounts; its mounting requirements must be checked separately.

BulletCam HLVF wall fixing and accessible service cover

Why Ajax? One connected ecosystem.

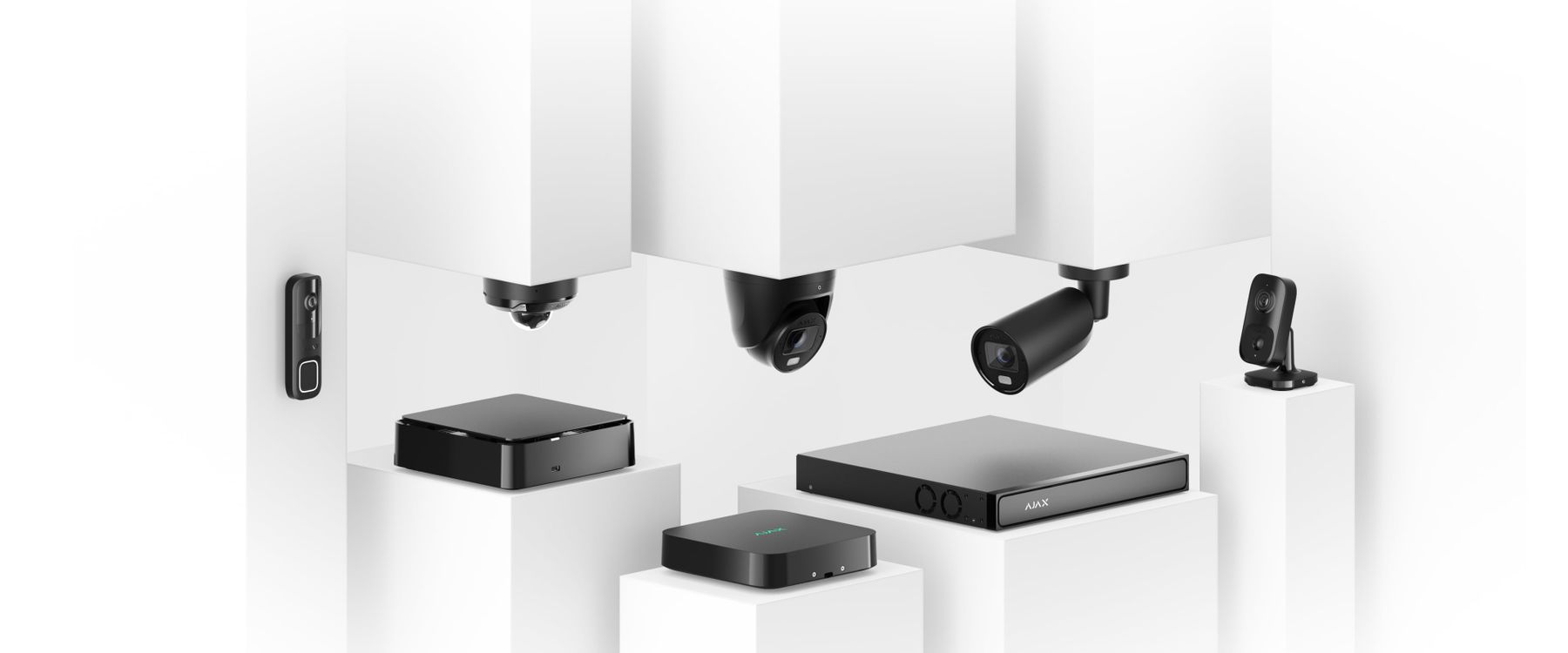

See the whole picture.

View your cameras in the Ajax app. If you add a compatible Ajax alarm, video scenarios can link an alarm event to the relevant camera view. Start with surveillance and add other protection when you need it.

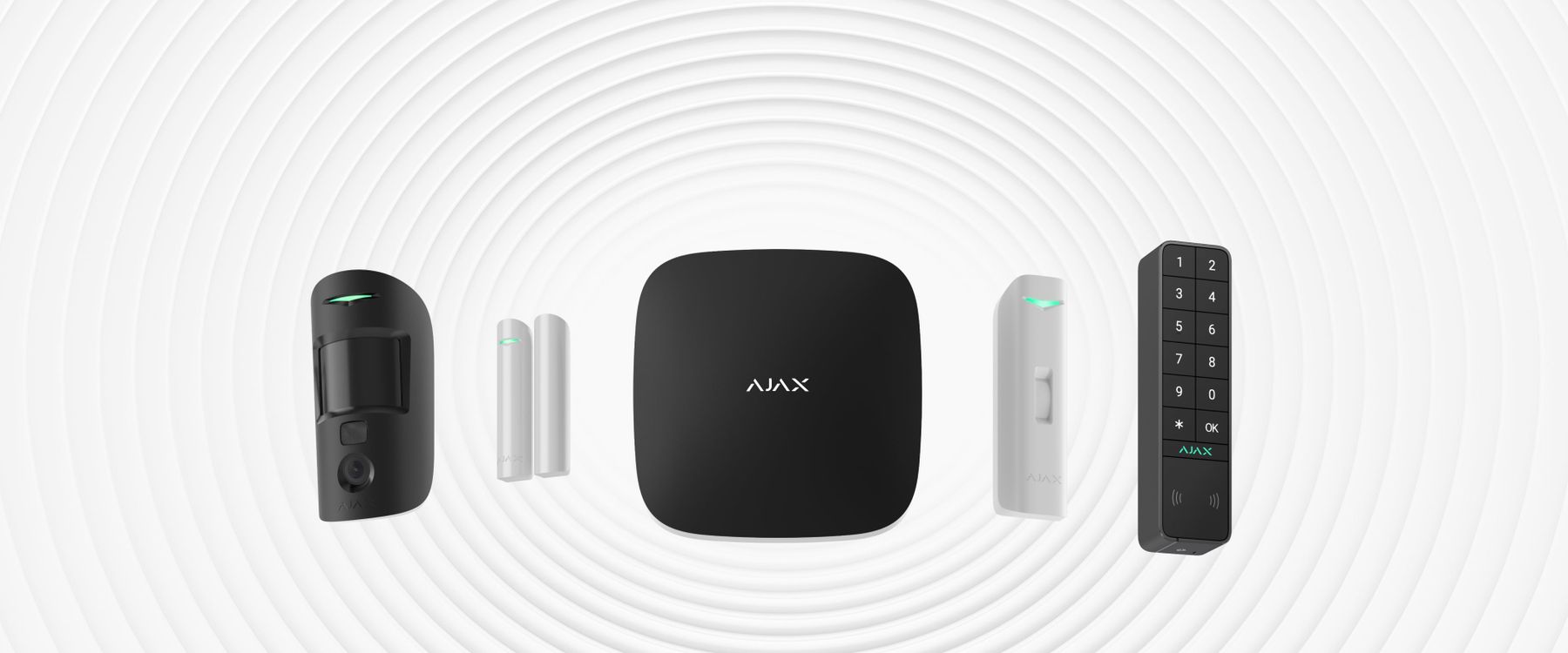

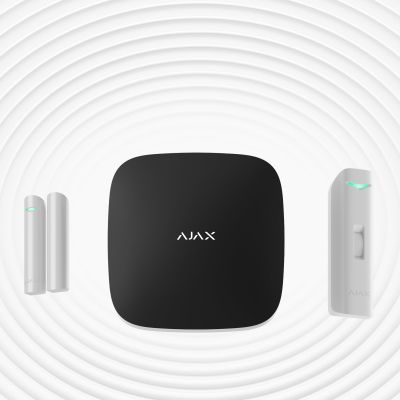

Protection that works together.

A compatible Ajax hub connects your alarm devices, while the app brings alerts and camera views together. Build around your property and add protection as your needs change.

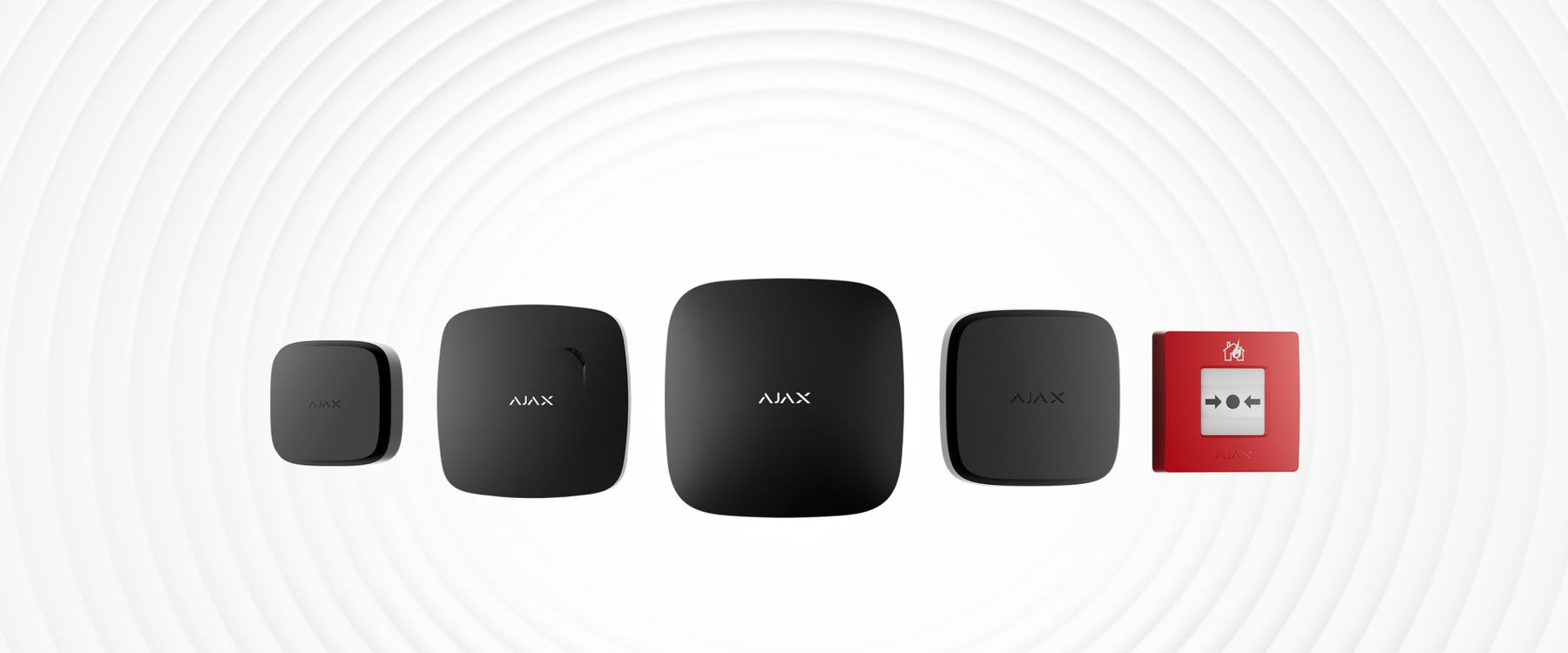

Hear it. See it. Act sooner.

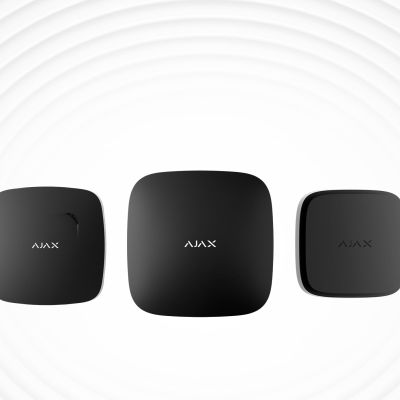

Compatible FireProtect detectors can sound together when interconnection is configured. With a linked hub, fire alerts also reach the Ajax app.

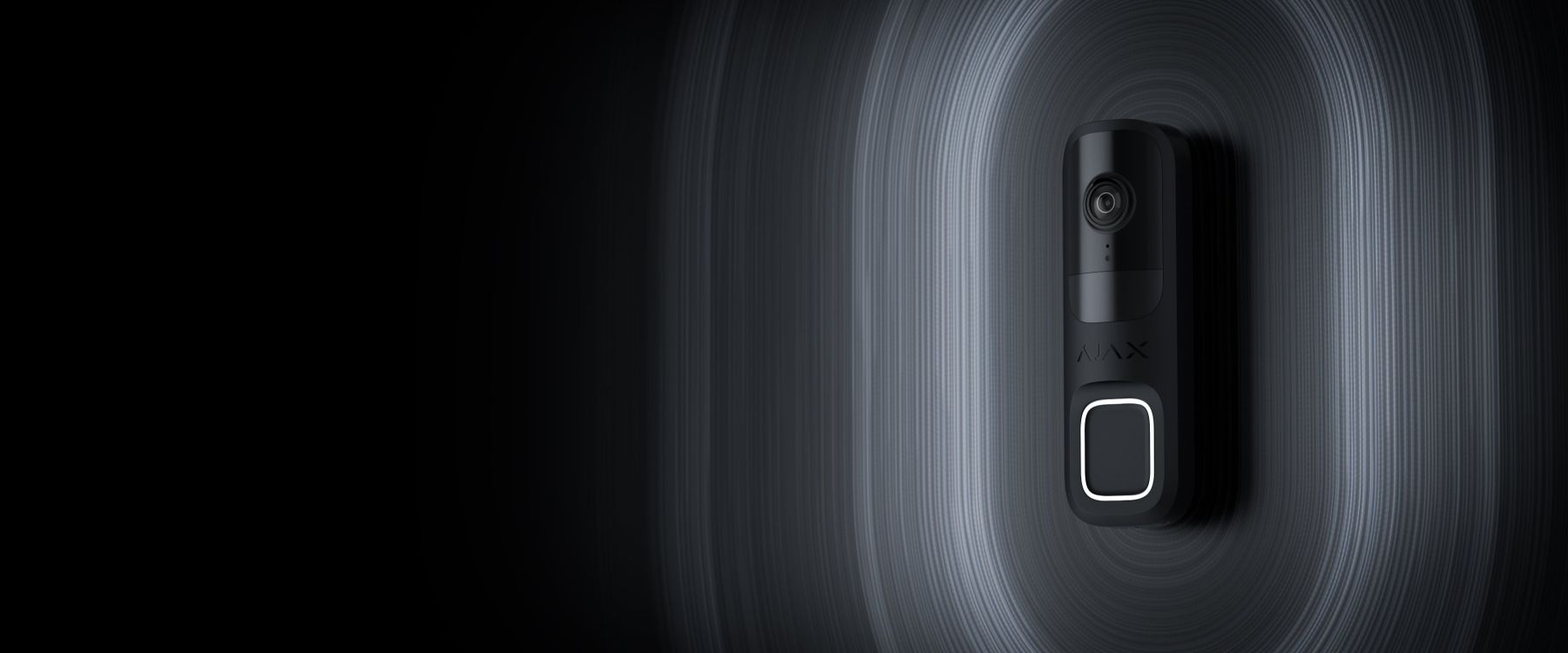

Your front door. On your phone.

See and speak to visitors in the Ajax app. DoorBell needs no alarm hub. An optional Ajax NVR adds a local archive and brings its recordings together with your other cameras.

Your whole property. In one view.

See the front door, driveway and garden together instead of opening each camera in turn. Arrange the Ajax video wall around the views that matter to you, and check them from a compatible phone, computer or TV app.

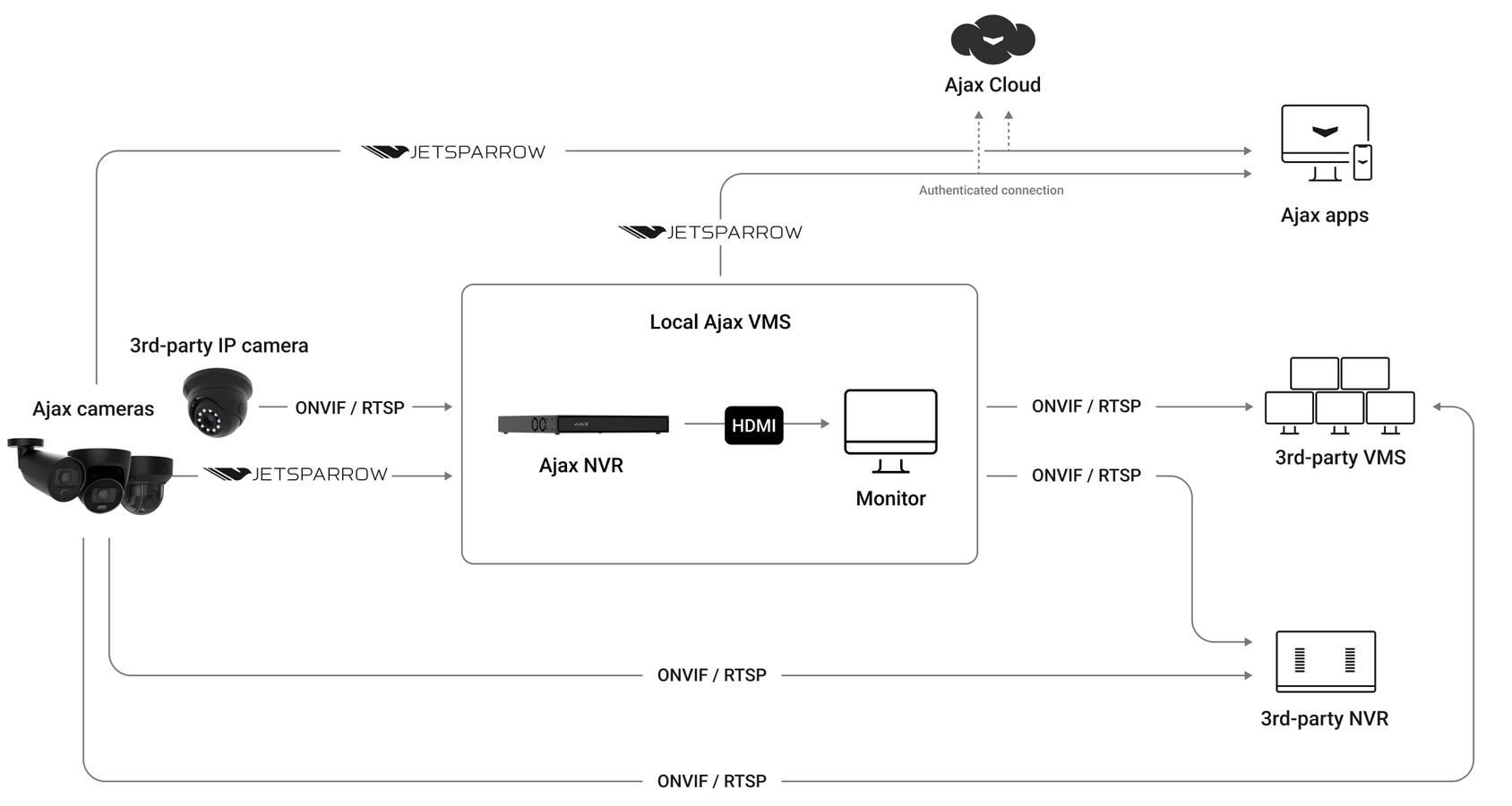

From camera to archive. In the Ajax app.

JetSparrow carries the video between the camera, recorder and app. Ajax Cloud handles the connection to your account, so the recorded view and system events are accessible together.

The diagram shows the video and account connections, not a physical PoE wiring plan. Cabling, camera power and storage requirements are set out below.

Ajax video communication diagram. Network links are shown; separate power wiring is not.

More control at the camera.

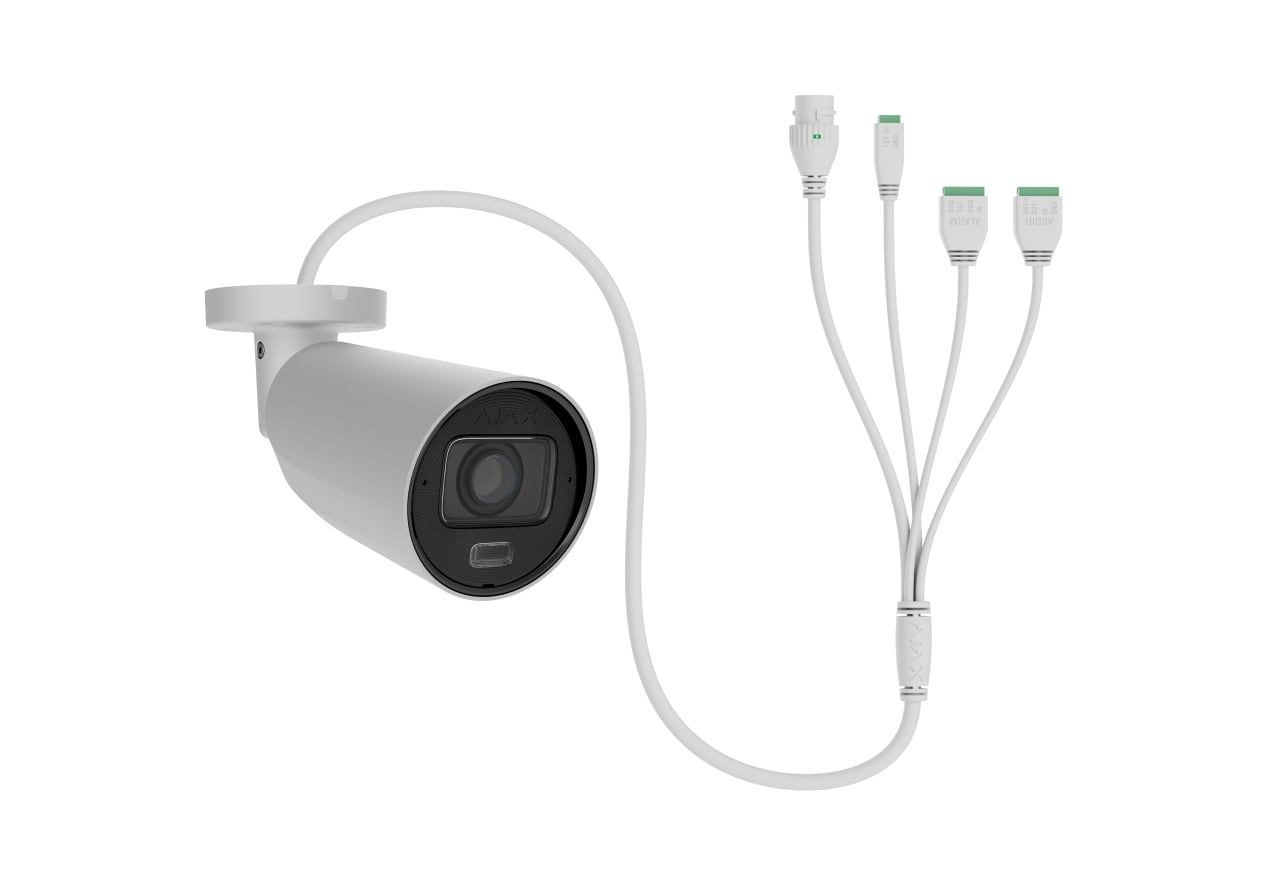

The motorized varifocal lens adjusts framing and focus without changing the camera. Audio and alarm connections also allow supported wired equipment to be integrated. Lens movement changes the field of view; this is not a pan-and-tilt camera.

Ajax varifocal camera connections and installation arrangement

Private areas stay private.

Privacy masks hide sensitive parts of the image, such as a neighbouring window. Detection zones have a different job: they decide where movement should trigger attention. Separate permissions control who can view live video, recordings and settings, with two-factor authentication and session controls protecting account access.

Keep the moment. Check the original.

Search the archive by events and date, then export the relevant clip instead of sharing hours of footage. Ajax digitally signs supported video exports; Ajax Media Player can check their authenticity and identify modification. It is a way to check a recording, not a guarantee of legal admissibility.

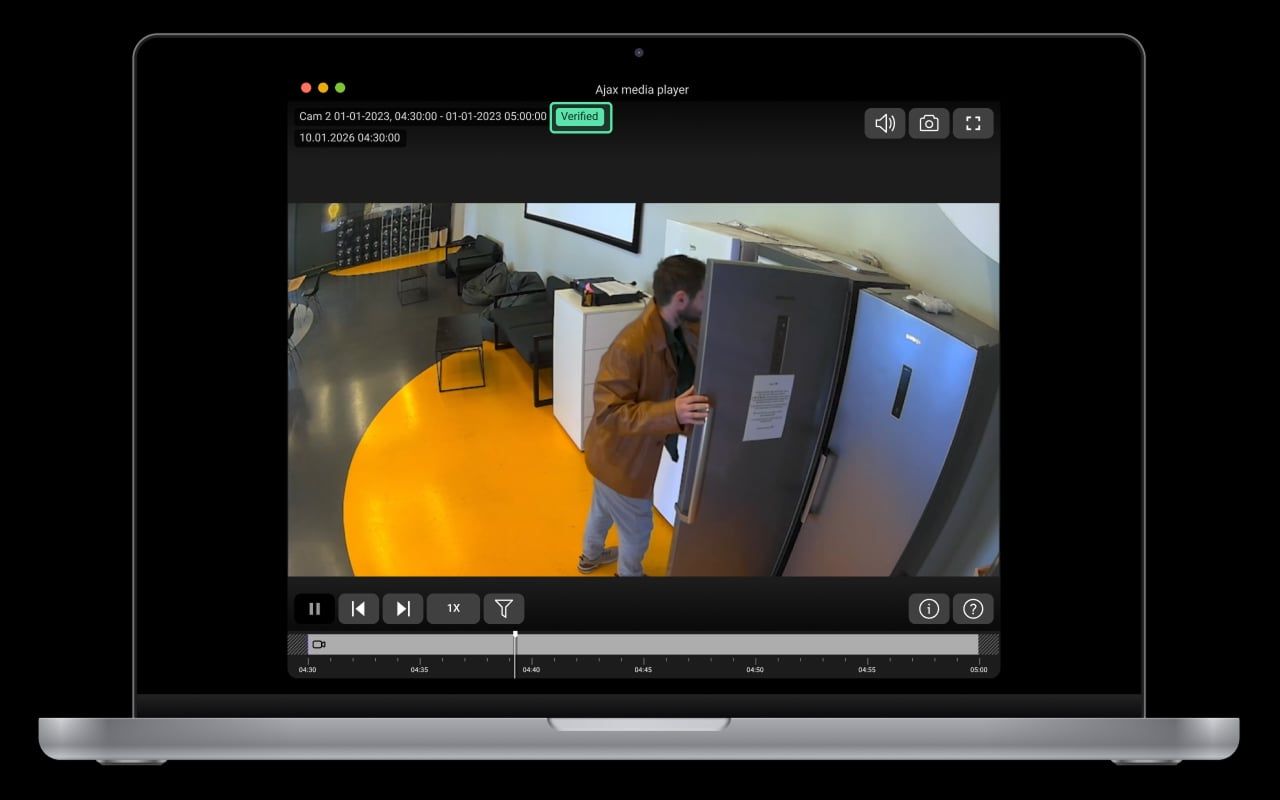

Ajax Media Player marks an exported video as verified

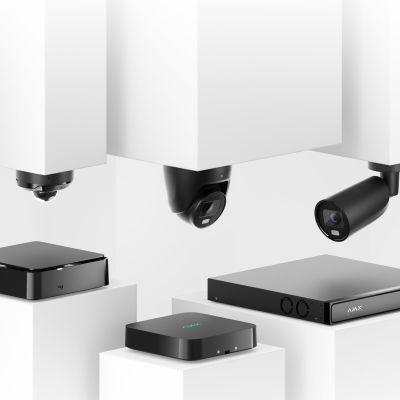

Recording options. Match the way you use them.

These are alternative ways to add a shared video archive, not equipment needed together. Match the choice to local viewing, storage and camera power requirements. Hard drives are supplied separately.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.
	Ajax NVR Network Video Recorder View product	Ajax NVR HAC HDMI Network Video Recorder View product	Ajax NVR H2D Dual-Drive Video Recorder View product
Price Including VAT	From £244.75	From £284.95	From £399.95
Camera channels	8 or 16 channels (model dependent)	8 or 16 channels (model dependent)	8 or 16 channels (model dependent)
Viewing output	Ajax app; no HDMI output	HDMI, up to 1920 x 1080	HDMI; output resolution depends on model and viewing mode
Recording storage	One SATA drive, up to 16 TB; drive not included	One SATA drive, up to 16 TB; drive not included	Two hot-swappable SATA drives, up to 16 TB each; drives not included
Available models	8 Channels 16 Channels	8 Channels 16 Channels	8 Channels / No PoE 16 Channels / No PoE 8 Channels / 8 PoE Ports 16 Channels / 8 PoE Ports 16 Channels / 16 PoE Ports
Recorder power	110-240 V AC	110-240 V AC	110-240 V AC
Network connection	Ethernet up to 1 Gbps	Ethernet up to 1 Gbps	Ethernet up to 1 Gbps
Size (W x H x D)	193 x 47 x 193 (mm)	212 x 64 x 212 (mm)	330 x 44 x 330 (mm)

What you need. Fitting and setup.

Before installation

Plan a Cat6 Ethernet cable run to the back of each camera. For PoE, connect the other end to a compatible PoE NVR camera port or a PoE switch connected to your network. A suitable PoE injector is another option.
Without PoE, the camera needs its specified 12 V DC supply as well as the Ethernet connection. Standard Ajax NVR and NVR H recorders do not supply camera PoE power.
For recordings, add a compatible microSD card or a network recorder with a suitable drive. Recording storage, network cabling and power equipment are separate requirements.

Fitting and setup

Have the installer check the view and cable route before fixing the camera. Use suitable fixings, protect external connections with the specified waterproof connector and seal cable entries. Add the camera to the Ajax app, adjust its view, configure recording and detection areas, and test day and night coverage.

An Ajax alarm hub is optional for linked alarm features; it does not replace the camera power supply or video recorder.

Power and network equipment

For one camera on an existing non-PoE network, the Grandstream injector provides active PoE+ power: connect the network to its LAN input and the camera to its PoE output. For several cameras, a suitable Uniview or Reyee PoE switch provides powered camera ports and a separate network uplink.

Use one suitable power route, not an injector and a PoE switch for the same camera. Match the camera's PoE requirement and maximum power demand, both per port and against the switch's shared budget. Keep the switch or injector indoors; outdoor cameras still need protected connections and suitable cable routing.

5 MP specifications 8 MP specifications Installation manual

Finish the installation. Power and mounting.

The power options below are alternatives, not equipment needed together. An injector powers one camera; a PoE switch supports several. Mounts and junction boxes are separate optional accessories with model-specific compatibility.

Uniview 4-Port Gigabit Cloud Managed PoE Switch

A compact four-camera network switch with Gigabit connections, a 65W PoE budget and web or cloud management.

Uniview 8-Port Gigabit Cloud Managed PoE Switch

Eight Gigabit PoE camera connections with a 120W shared power budget, web management and copper or SFP uplinks.

Reyee 4-Port Gigabit Smart Cloud Managed PoE Switch

Four Gigabit PoE connections and a 54W shared budget, with Reyee cloud management for compact camera networks.

Grandstream 30W Active PoE+ Injector

Add standards-compliant PoE+ power to a single compatible camera using an existing non-PoE network connection.

Part	Size (mm)
width	90
Height	90
Depth	242

Brand

SKU

AJAX-BULLETCAM-HLVF

Built - In Microphone

Yes

Lens Focal Length

Motorized 2.8-12 mm

Network Connection

Ethernet 10/100 Mbps

Object Detection

People, pets and vehicles

Dynamic Range

True WDR, 120 dB

Power Supply

PoE (802.3at/af) or 12 V DC, 1 A

Recording Storage

microSD up to 256 GB (V30 or faster), compatible NVR, or supported cloud service; storage supplied separately

Enclosure Protection

IP67, IK10

FAQs

Use the installation conditions and enclosure rating for the exact camera. A weather-rated camera still needs correctly protected cable connections and a suitable mounting position.

A longer focal length frames a narrower area and can help concentrate detail on a more distant subject. Resolution, mounting position and lighting also affect the usable image.

No. PoE is available only on recorders with suitable built-in PoE ports. Other installations need a compatible PoE switch, injector or separate power supply, as specified for the camera.

HLVF uses a motorized 2.8-12 mm varifocal lens. The focal length can be adjusted remotely; resolution is a choice of 5 MP or 8 MP hardware. Lighting, placement and distance remain important.

Video uses the wired network and can be managed in Ajax apps without an alarm hub. A compatible hub is needed for the associated alarm devices and alarm-triggered video scenarios.

Plan suitable PoE or separate DC power and recording storage. A microSD card can store footage in the camera, or an Ajax NVR can record to a compatible hard drive. An alarm hub does not power the camera or store its video archive.

Ajax lists ONVIF Profile G and S conformance and RTSP support for this camera range. These provide routes for compatible third-party video equipment, but do not guarantee every Ajax app, AI or alarm-scenario feature in another system. Check the exact integration before ordering.

BulletCam HLVF does not fit MountCam. Check its dedicated mounting instructions and cable connections before installation.
