skip to Ajax Curtain Outdoor Jeweller

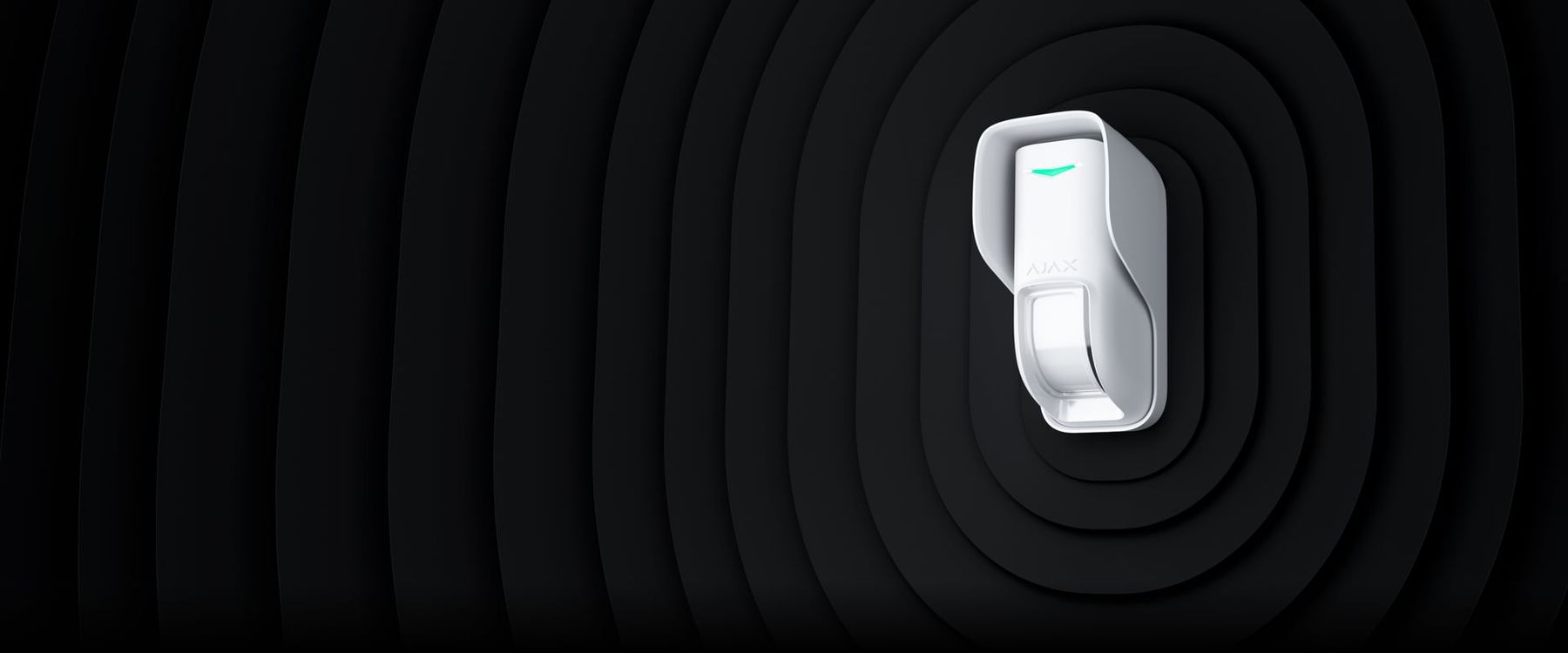

Ajax Curtain Outdoor Jeweller

£163.75

(£136.46 ex VAT)

sku: AJAX-101441

Curtain Outdoor creates a narrow detection zone beside doors, windows and boundaries. PIR and microwave sensing help assess movement in a challenging outdoor environment.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Ajax Curtain Outdoor Jeweller

Ajax Baseline

Draw a line around the property. Outdoor curtain protection.

Cover the approach rather than the garden.

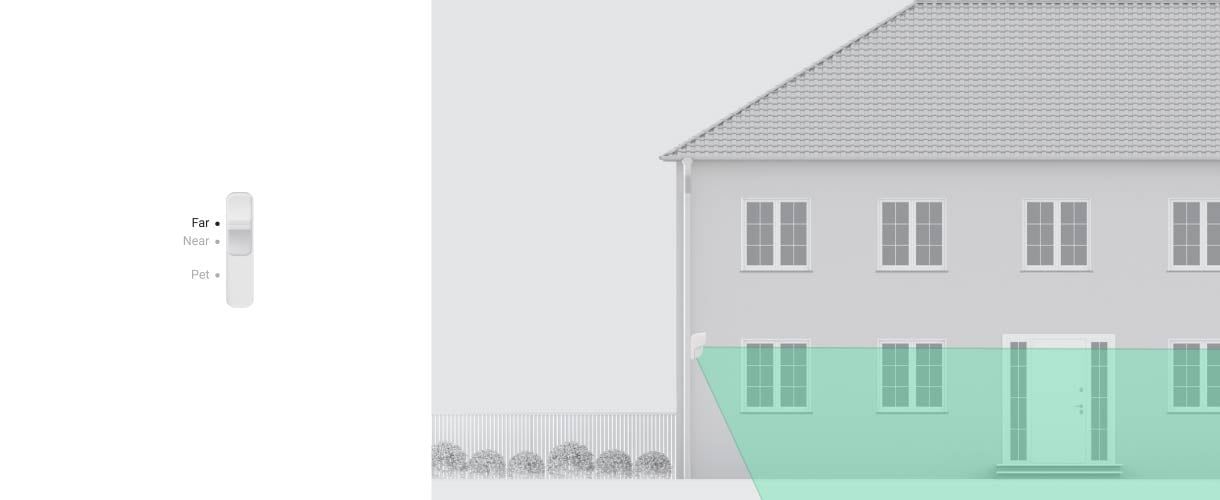

Curtain Outdoor forms a narrow protected strip along an entrance or facade. Its PIR and microwave sensing, operating modes and sensitivity settings let you tailor the zone to the site. It is an outdoor boundary detector, not a wide-angle camera or a physical barrier.

Facility-specific

Part of a complete alarm. Connect the detection to a response.

A compatible hub is required; Hub 2 Plus is our main residential choice. A keypad adds local control and a siren adds an audible warning. These are separate system components, not alternative detectors.

Ajax Hub 2 Plus Alarm Hub

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Ajax KeyPad Plus Wireless Alarm Keypad

Control your Ajax alarm with a code, Pass card or Tag key fob. A touch-sensitive keypad with contactless access and individual permissions.

Ajax HomeSiren U Indoor Alarm Siren

A compact indoor siren with adjustable sound and LED indication. Adds alarms, entry/exit reminders and optional door-opening chimes to Ajax.

What you need. Fitting and setup.

Use the mounting height and mode specified for the intended coverage. Fix to a stable surface, avoid moving vegetation in the zone and walk-test the full protected strip. Pair with a compatible Ajax hub and check radio strength before drilling.

Set the operating mode, mounting height and pet-tolerance behaviour for the location. Anti-masking reports obstruction attempts; fit the specified hood and confirm actual radio coverage, rather than treating an open-space range as the result through walls.

Fitting and setup guide Technical specifications
Part Size (mm)
width 60
Height 141
Depth 72

Brand

SKU

AJAX-101441

Power Supply

2 × CR123A; Pre-installed.

Enclosure Protection

IP55

Detection

Two PIR sensors and a K-band microwave sensor

Battery Life

up to 3 years

FAQs

No. This is an Ajax alarm-system detector and needs a compatible hub. Sirens and any monitoring service are separate parts of the installation.

No signal cable is required for the wireless Jeweller connection. Battery and any optional external-device wiring must follow the exact model manual. Test radio coverage before permanent fixing.
