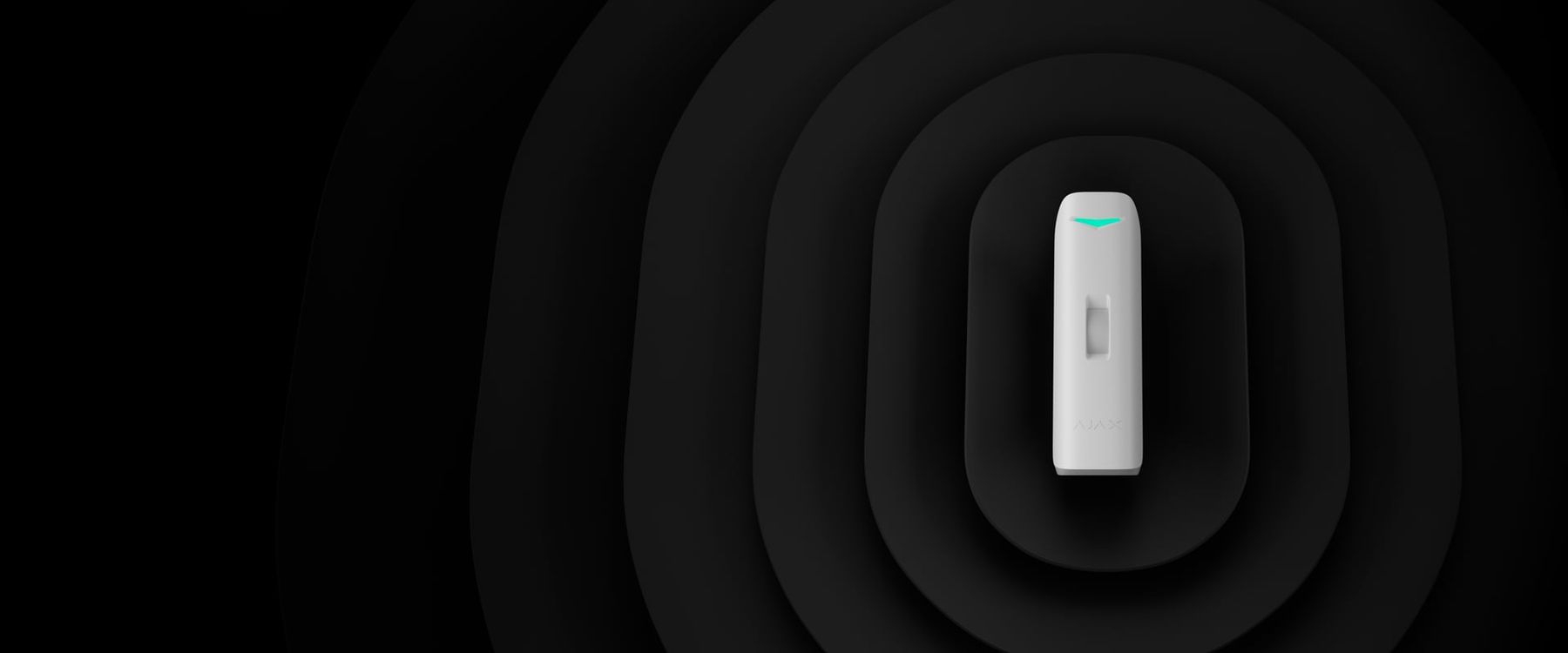

Ajax Curtain Outdoor Mini Jeweller

£128.50

(£107.08 ex VAT)

sku: AJAX-130273

Curtain Outdoor Mini provides a narrow outdoor detection zone in a compact enclosure. It suits entrances and confined mounting positions where a full room-style view is unnecessary.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Ajax Curtain Outdoor Mini Jeweller

Ajax Baseline

A smaller detector. A precisely protected boundary.

Choose the mount before fixing the detector.

The bracket and angle-mount arrangements determine how the narrow zone follows the entrance. Check the orientation, radio strength and both ends of the protected strip before final drilling. Keep moving plants and avoidable obstructions outside the zone; a small enclosure does not remove the need for a walk test.

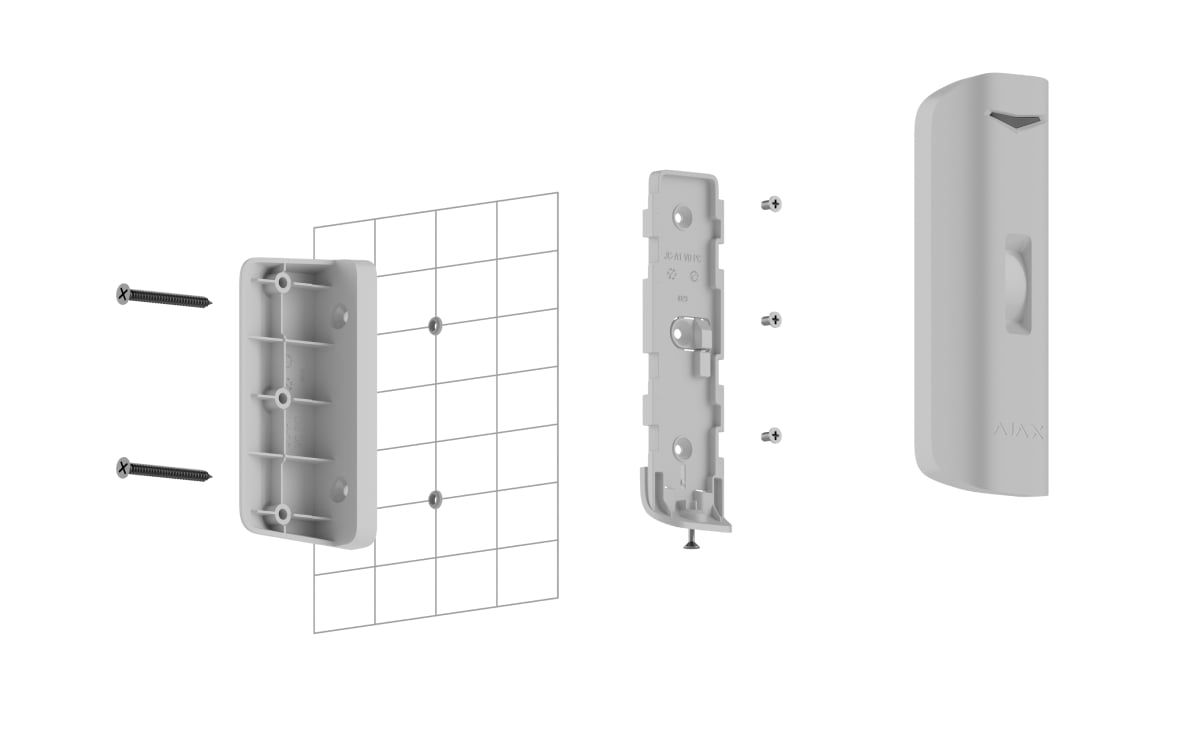

Ajax Curtain Outdoor Mini angle mount

Five metres of deliberately narrow coverage.

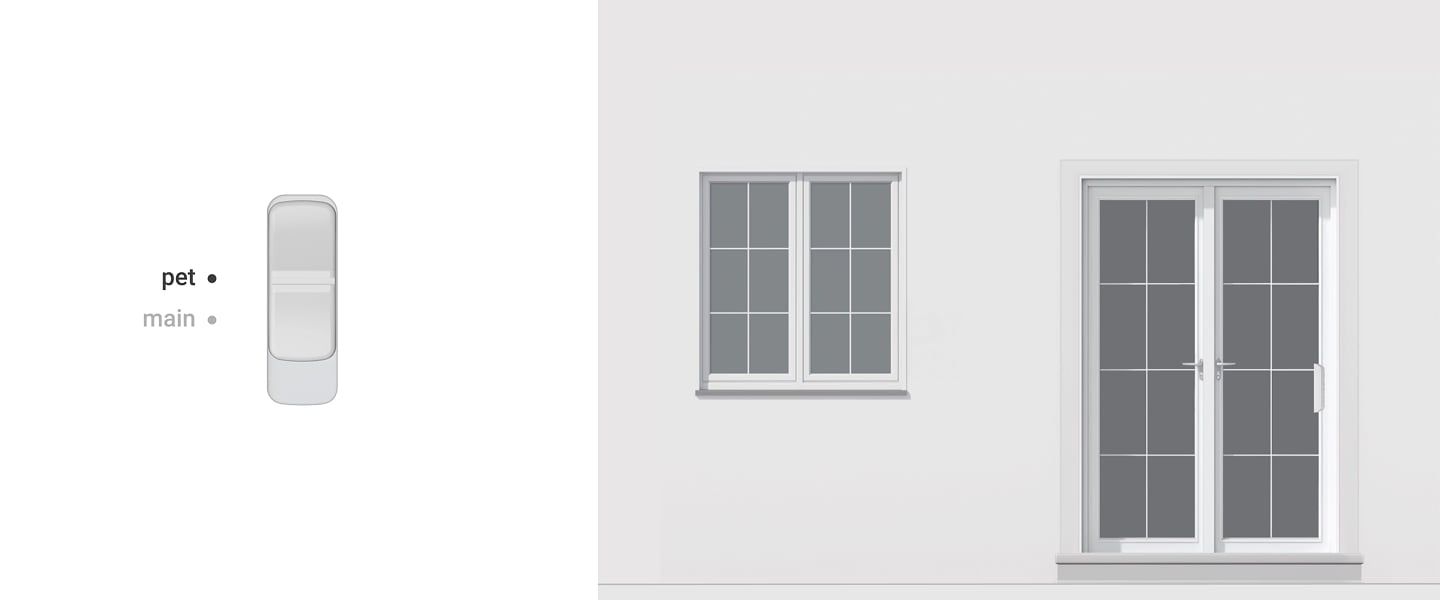

Curtain Outdoor Mini protects a narrow strip up to 5 m long. PIR and K-band microwave sensing check movement together. It suits openings, balconies and tight passages where a longer-range detector is unnecessary. Main and Pet modes need the correct mounting and commissioning for the site.

Practical solution for spotting intruders early

A clear view needs supervision too.

Anti-masking reports attempts to block the sensing area, while tamper and movement supervision help reveal interference with the device. The replaceable batteries power the detector without running a mains or network cable to it. Pairing and protection still require a compatible Ajax hub.

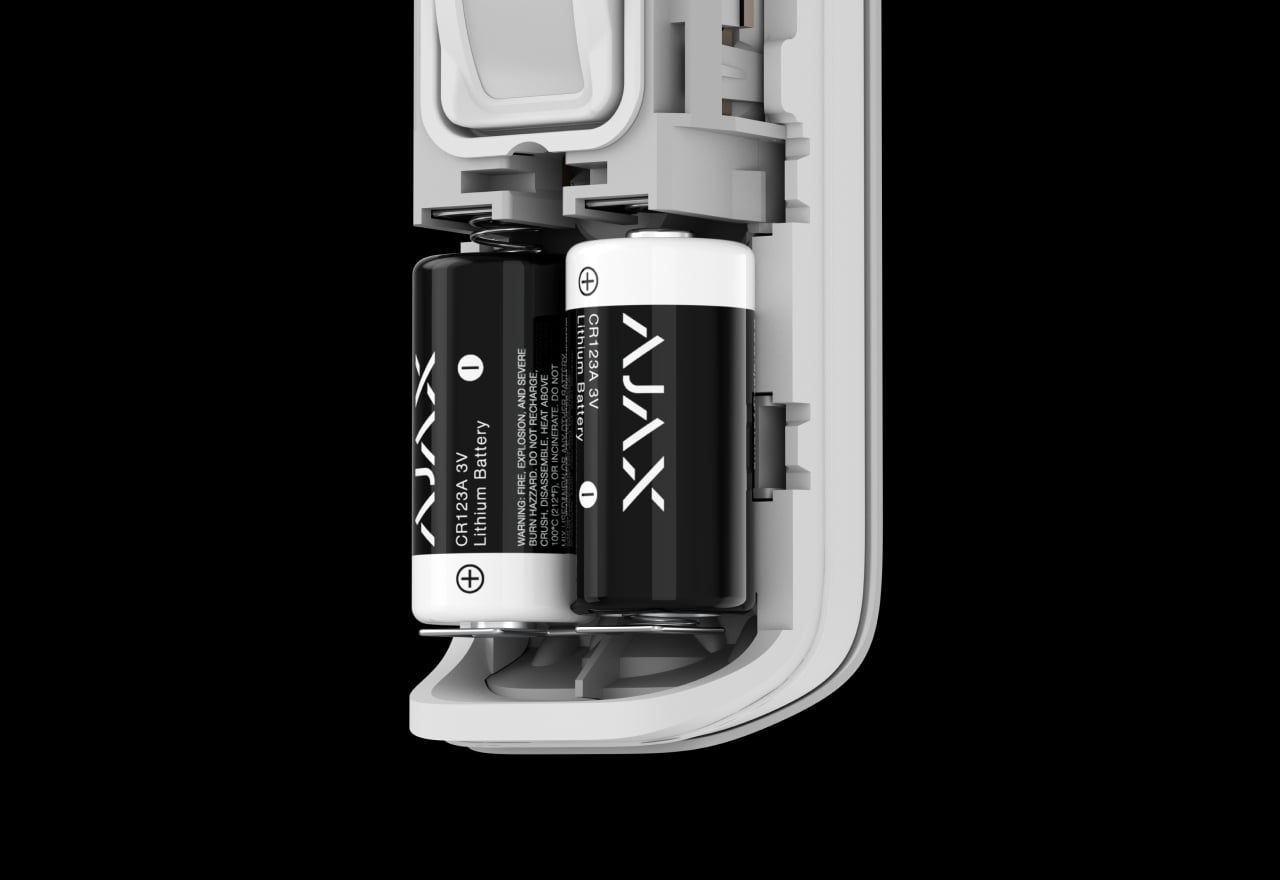

Pre-installed replaceable batteries

Part of a complete alarm. Connect the detection to a response.

A compatible hub is required; Hub 2 Plus is our main residential choice. A keypad adds local control and a siren adds an audible warning. These are separate system components, not alternative detectors.

Ajax Hub 2 Plus Alarm Hub

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Ajax KeyPad Plus Wireless Alarm Keypad

Control your Ajax alarm with a code, Pass card or Tag key fob. A touch-sensitive keypad with contactless access and individual permissions.

Ajax HomeSiren U Indoor Alarm Siren

A compact indoor siren with adjustable sound and LED indication. Adds alarms, entry/exit reminders and optional door-opening chimes to Ajax.

What you need. Fitting and setup.

Plan the required strip of coverage and use the specified mounting height and angle. Pair with the compatible Ajax hub, check signal and perform the detection-zone test. Its batteries avoid a signal cable back to the hub.

Fitting and setup guide Technical specifications
Part Size (mm)
width 32
Height 145
Depth 43

Brand

SKU

AJAX-130273

Power Supply

2 × CR123A; Pre-installed.

Enclosure Protection

IP55

Detection

PIR and K-band microwave sensing

Battery Life

up to 3 years

FAQs

No. This is an Ajax alarm-system detector and needs a compatible hub. Sirens and any monitoring service are separate parts of the installation.

No signal cable is required for the wireless Jeweller connection. Battery and any optional external-device wiring must follow the exact model manual. Test radio coverage before permanent fixing.
