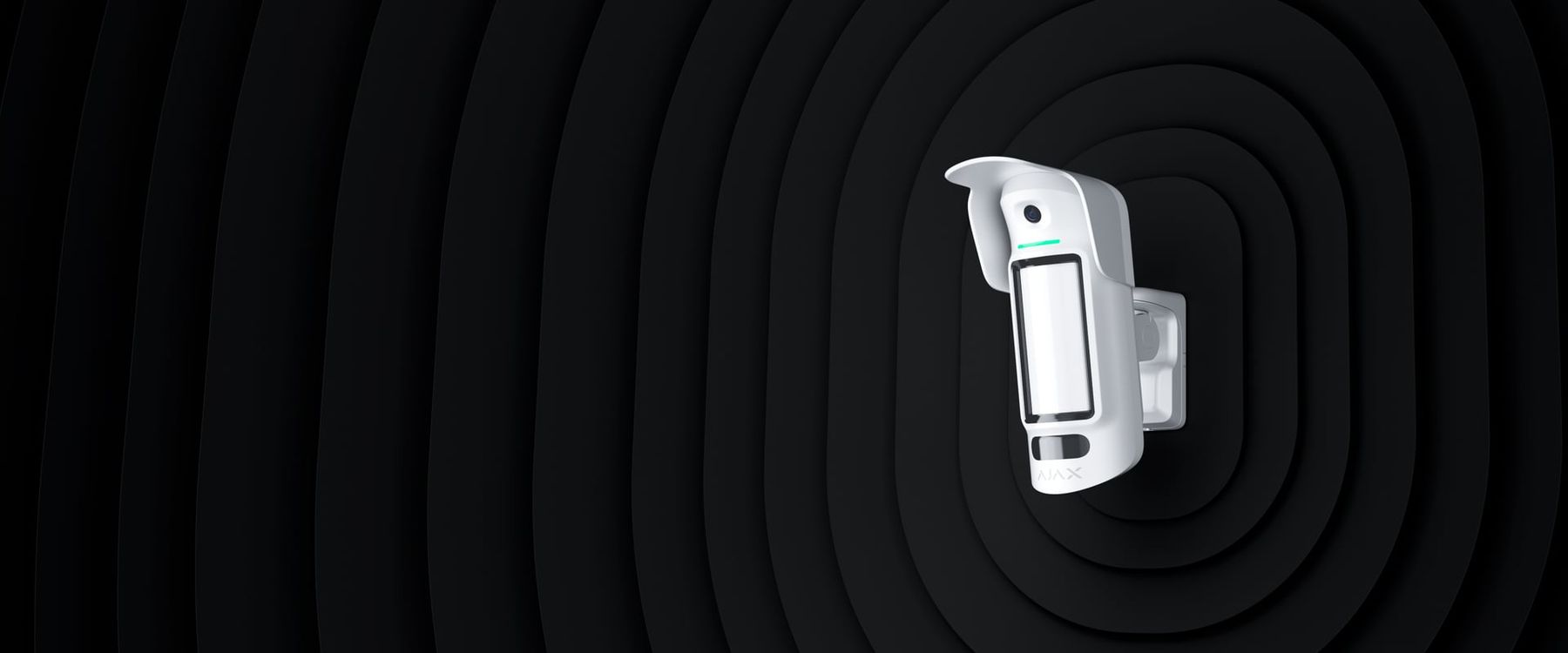

Ajax MotionCam Outdoor HighMount (PhOD) Jeweller

£357.25

(£297.71 ex VAT)

sku: AJAX-99164

MotionCam Outdoor HighMount (PhOD) is designed for installation at 2-4 m, where the mounting position calls for a higher outdoor detector. Its camera provides photographs to help explain events.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Ajax MotionCam Outdoor HighMount (PhOD) Jeweller

Ajax Baseline

A higher viewpoint. Outdoor detection with photo verification.

Watch an approach or yard. Designed for 2-4 m mounting.

This model is designed for a 2-4 m mounting height with an adjustable metal swivel mount. It is useful where a low-mounted detector is unsuitable and a wider view of an approach or yard is wanted. Its mounting geometry differs from the standard MotionCam Outdoor; do not transfer that model's installation or pet-immunity assumptions.

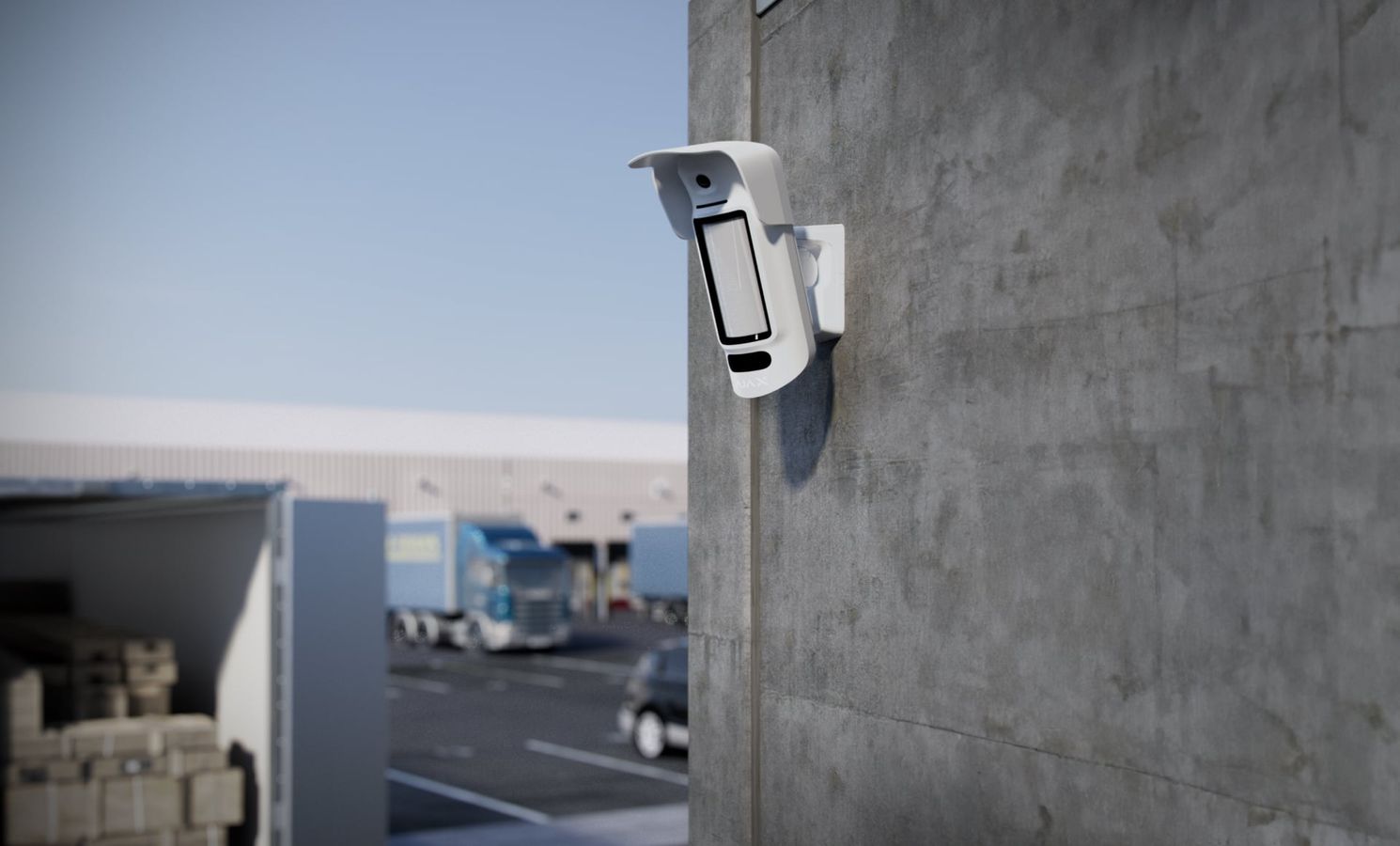

Captures movement where it is most needed

Verify an event before arranging a visit.

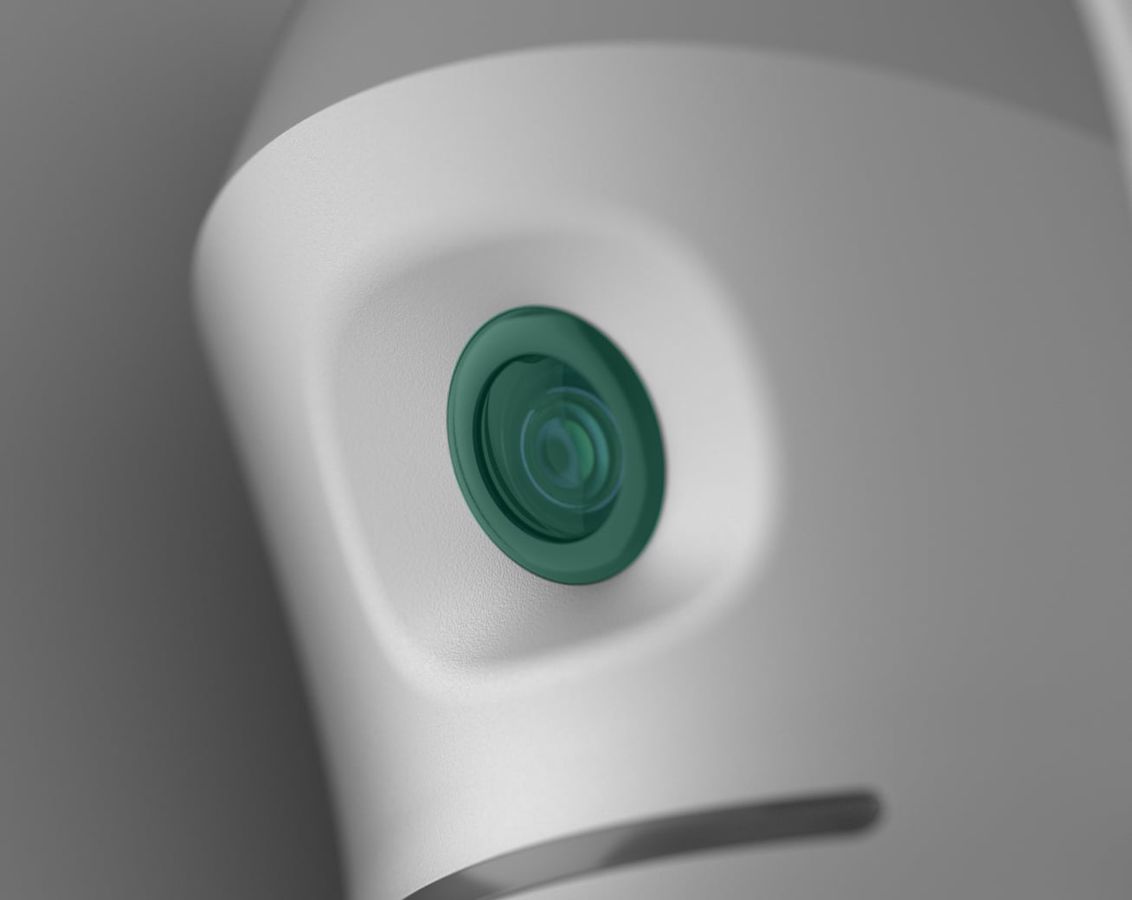

The built-in camera supports alarm photographs and permission-controlled on-demand or configured photo scenarios. Use those images to assess an event at a vacant building or remote site. Jeweller and Wings coverage, battery state and photo permissions all need checking as part of commissioning.

Camera

Part of a complete alarm. Connect the detection to a response.

A compatible hub is required; Hub 2 Plus is our main residential choice. A keypad adds local control and a siren adds an audible warning. These are separate system components, not alternative detectors.

Ajax Hub 2 Plus Alarm Hub

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Ajax KeyPad Plus Wireless Alarm Keypad

Control your Ajax alarm with a code, Pass card or Tag key fob. A touch-sensitive keypad with contactless access and individual permissions.

Ajax HomeSiren U Indoor Alarm Siren

A compact indoor siren with adjustable sound and LED indication. Adds alarms, entry/exit reminders and optional door-opening chimes to Ajax.

What you need. Fitting and setup.

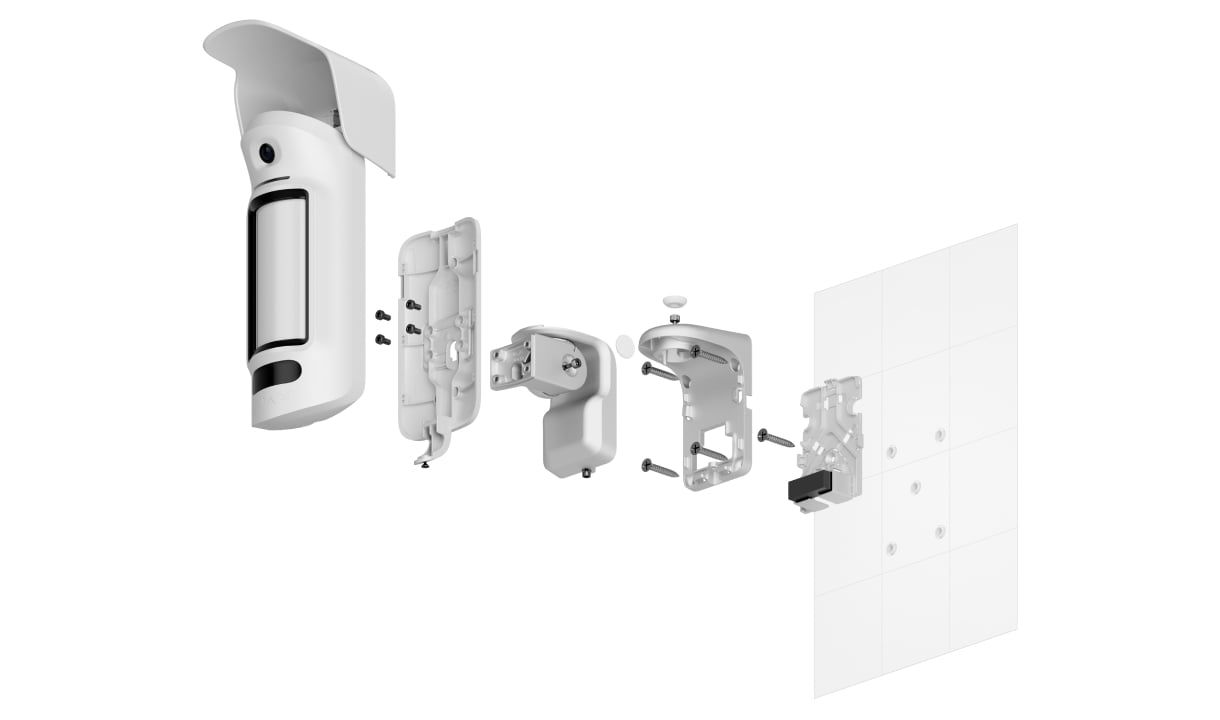

Use a stable mounting surface at the specified 2-4 m height. Align the swivel mount and test the entire zone, Jeweller and Wings links. Pre-installed batteries are provided; any optional external power must meet the current manual and be installed correctly.

Fitting and setup guide Technical specifications
Installation
Part Size (mm)
width 98
Height 234
Depth 137

Brand

SKU

AJAX-99164

Power Supply

6 × CR123A; Pre-installed.

Enclosure Protection

IP55

Detection

2 × PIR sensor

Battery Life

up to 3 years

FAQs

No. It provides alarm-related photographs and, on PhOD models, configured photo requests or scenarios. Use a separate surveillance camera and recording provision for continuous video.

Photo on demand. Authorised users can request photographs when the compatible hub, device settings and privacy permissions allow it.
