White

Ajax MotionCam Outdoor Jeweller

Name: Ajax MotionCam Outdoor Jeweller
Brand: Ajax
SKU: AJAX-38192
Price: 301.75 GBP
Availability: InStock

£301.75

(£251.46 ex VAT)

sku: AJAX-38192

MotionCam Outdoor pairs outdoor motion detection with alarm-verification photographs. It helps explain a triggered event without turning the detector into a continuously recording camera.

A compatible system and correctly planned installation are required; see fitting guidance below.

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

An outdoor alarm with context. Photos of the event.

A useful view after dark.

Infrared illumination supports photo verification in darkness. This is the alarm-photo version; remote photos on demand require the PhOD version and the necessary permissions.

Photographs explain the alarm.

When movement triggers the detector, its camera sends a sequence of photographs through Wings to a compatible hub. Jeweller carries the alarm event separately. Images help users and a configured monitoring service assess the scene; the detector does not continuously record outdoor CCTV.

Outdoor detection is still a sensing job.

Two PIR sensors and false-alarm filtering assess movement before the photograph is used for verification. Align the detector for the actual approach and follow the specified low mounting height. This model provides alarm photos; choose the PhOD version for permission-controlled photos on demand.

Part of a complete alarm. Connect the detection to a response.

A compatible hub is required; Hub 2 Plus is our main residential choice. A keypad adds local control and a siren adds an audible warning. These are separate system components, not alternative detectors.

Ajax Hub 2 Plus Alarm Hub

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Ajax KeyPad Plus Wireless Alarm Keypad

Control your Ajax alarm with a code, Pass card or Tag key fob. A touch-sensitive keypad with contactless access and individual permissions.

Ajax HomeSiren U Indoor Alarm Siren

A compact indoor siren with adjustable sound and LED indication. Adds alarms, entry/exit reminders and optional door-opening chimes to Ajax.

What you need. Fitting and setup.

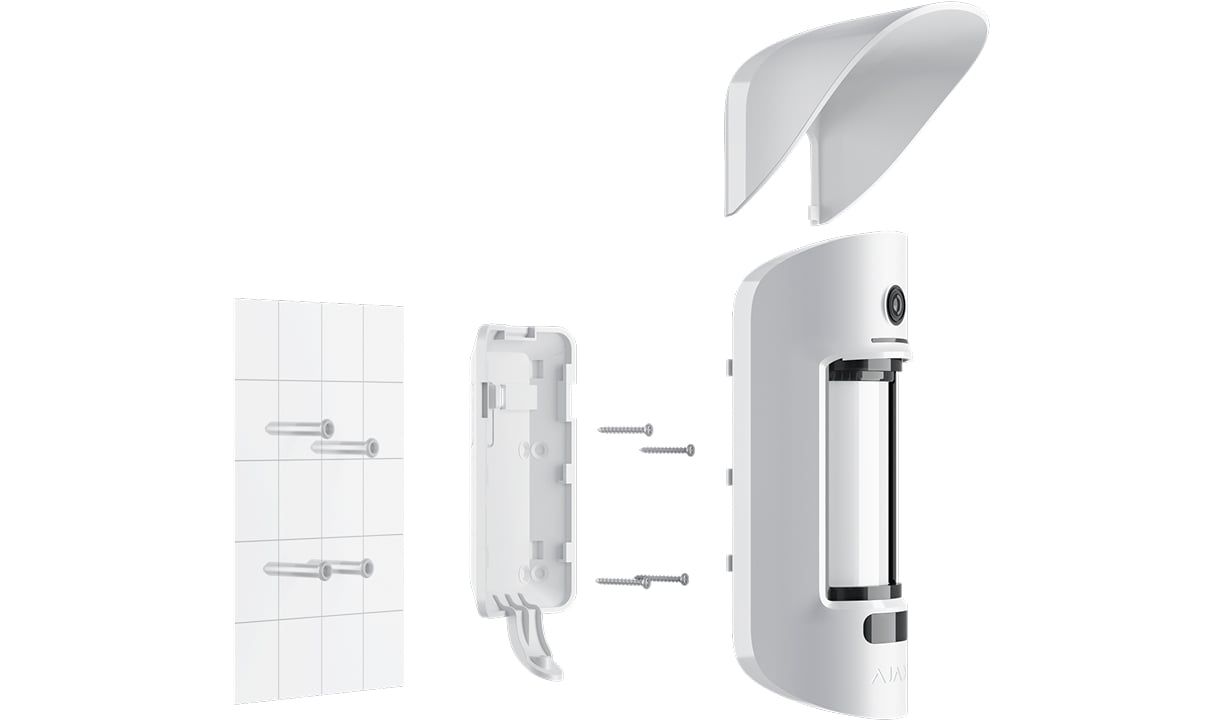

Mount at the specified height and angle for outdoor detection, not at CCTV-camera height. Pair with a photo-capable Ajax hub and test Jeweller and Wings signal strength. Walk-test the zone and ensure the lens has a clear view.

Explore Hub 2 Plus Fitting and setup guide Technical specifications

Part	Size (mm)
width	108
Height	206
Depth	93

Brand

SKU

AJAX-38192

Power Supply

4 × CR123A; Pre-installed.

Enclosure Protection

IP55

Detection

2 × PIR sensor

Battery Life

up to 3 years With Delay when entering feature disabled. up to 2.5 years With Delay when entering feature enabled.

FAQs

No. It provides alarm-related photographs and, on PhOD models, configured photo requests or scenarios. Use a separate surveillance camera and recording provision for continuous video.

Photo on demand. This is the alarm-verification version, not the PhOD model; choose the distinct PhOD model when permission-controlled photo requests are required.
