Ultion Sweet Panel Letterplate

£28.75

(£23.96 ex VAT)

sku: ULT-SWEET-LPP
Ultion brand banner

A square-ended Sweet letterplate for 20-35mm panels, in coordinated finishes.

Finish

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Fitting Guide

Tools: a tape measure, the correct hand screwdriver, a small spirit level, a door wedge and a soft cloth.

Before you start

This panel model is specified for 20–35 mm doors or panels, with a 314 × 70 mm face and 270 mm fixing centres. Measure the panel, routed opening and fixing positions separately. Use this panel model’s side-view drawing: the face dimensions describe the cover rather than the required opening.

Fit and check

  1. Hold the door open with a wedge. Support the outside letterplate while you undo the existing inside fixing screws, then remove both halves without damaging the edge of the opening.
  2. Measure the door thickness, existing routed opening and fixing centres. Dry-fit the new halves and check that the sleeves and fixing positions meet without force. The face size is the cover size, not the cut-out size.
  3. Fit the outside and inside halves in the orientation shown in the supplied instructions. Start both fixing screws by hand and tighten evenly, keeping the faces level and flat against the door. Use the specified fixings and adjustment method for this model.
  4. Open each flap fully and check that it returns freely, that nothing catches inside the opening and that post passes through without snagging. Recheck the fixings after the first operation.

For a new cut-out, use the exact panel-model template and check the door maker’s permitted preparation before cutting. The standard deeper letterplate drawing is not a substitute.

Panel letterplate dimensions

Ultion Sweet. Your door never looked so good.

Coordinate handles, letterplates, knockers, escutcheons and door numbers in the Sweet range. Check the finish and fitting details for each model.

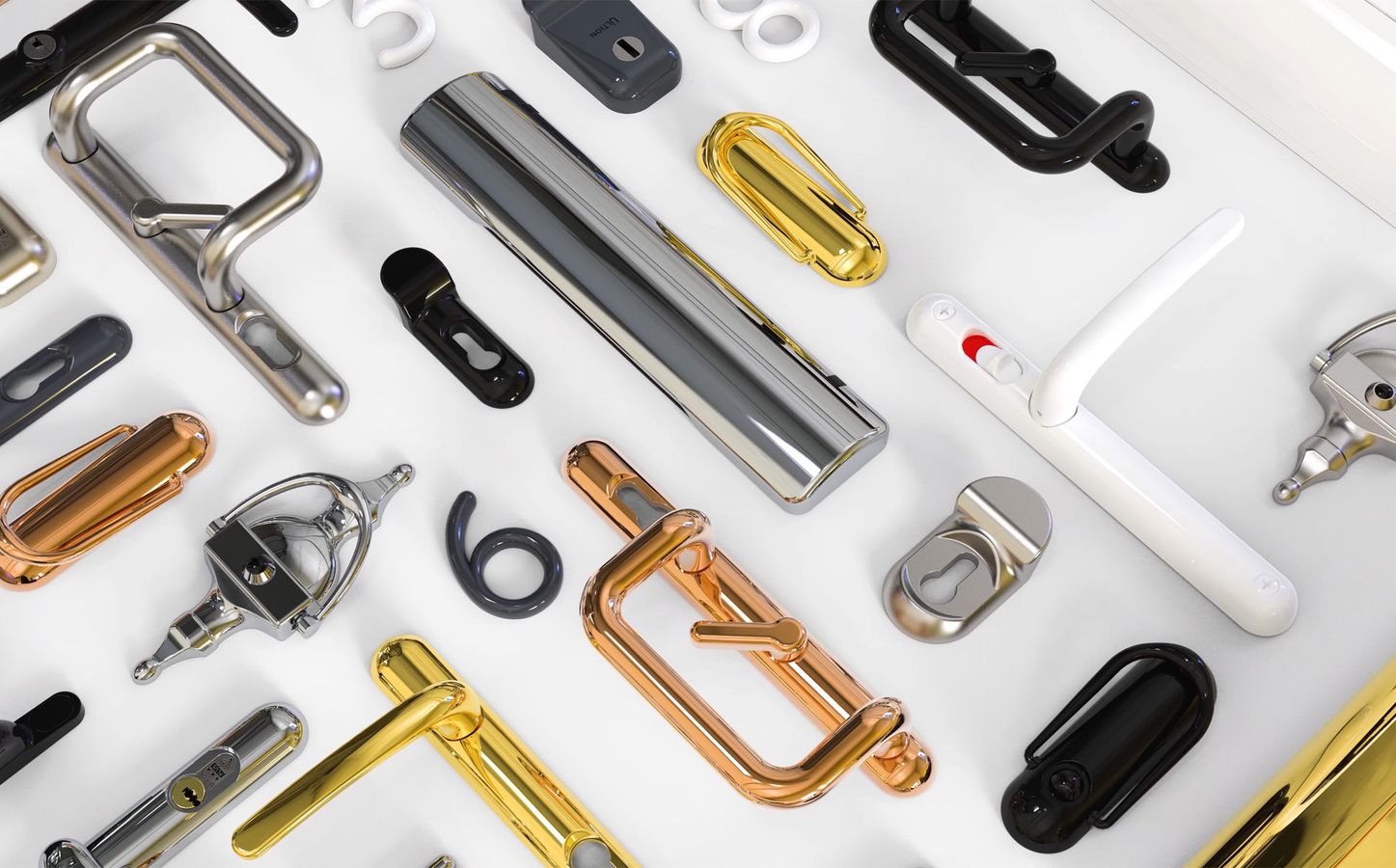

The photograph shows the wider Sweet collection. Each item is supplied separately; finish choices vary by model.

Ultion Sweet door and window furniture collection

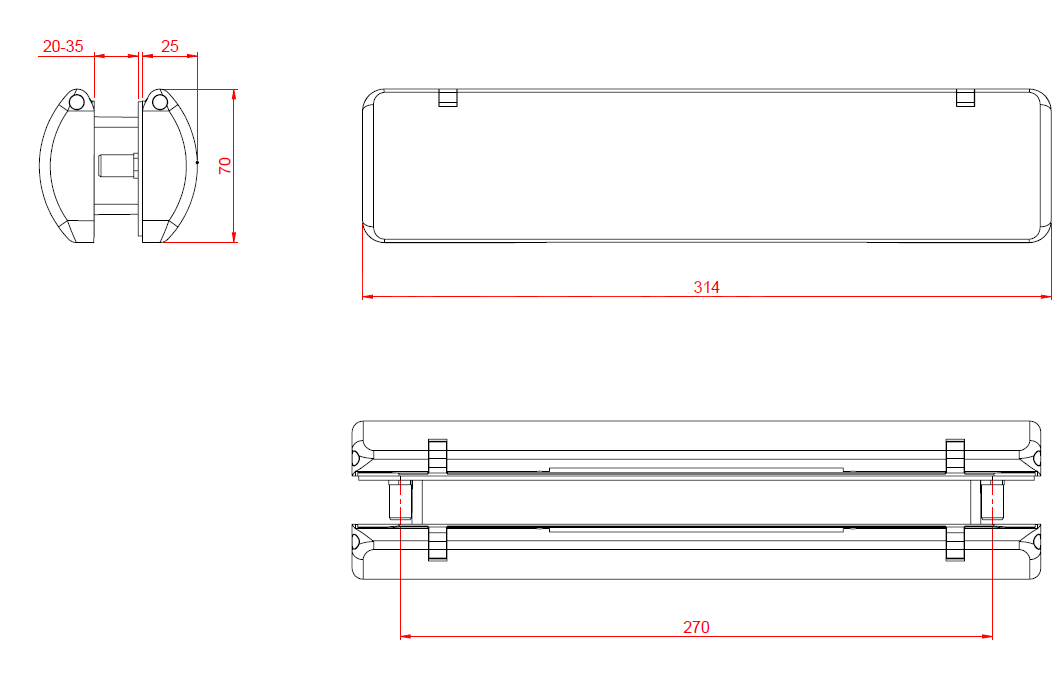

Dimensions Image: Ultion Sweet Panel Letterplate
Part Size (mm)
width 314
Height 70
Screw centres 270

FAQs

No. The 314 × 70 mm dimensions describe the overall face. Compare the actual opening, fixing centres and panel thickness with the drawing before fitting.
