Ajax FireProtect 2 Smoke and Heat Alarm

Name: Ajax FireProtect 2 Smoke and Heat Alarm
Brand: Ajax
SKU: AJAX-FIREPROTECT2-RB-SMOKE-HEAT

£123.25

(£102.71 ex VAT)

sku: AJAX-FIREPROTECT2-RB-SMOKE-HEAT

This battery-powered FireProtect 2 detects smoke and heat and sounds an alarm locally. Its optical smoke chamber and thermal sensing provide different ways to identify a developing fire.

A compatible hub is optional for app and system functions. Correct positioning and maintenance remain essential.

Colour

model

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Smoke and heat. Different signs of danger.

Inside FireProtect 2. Separate sensors, one local warning.

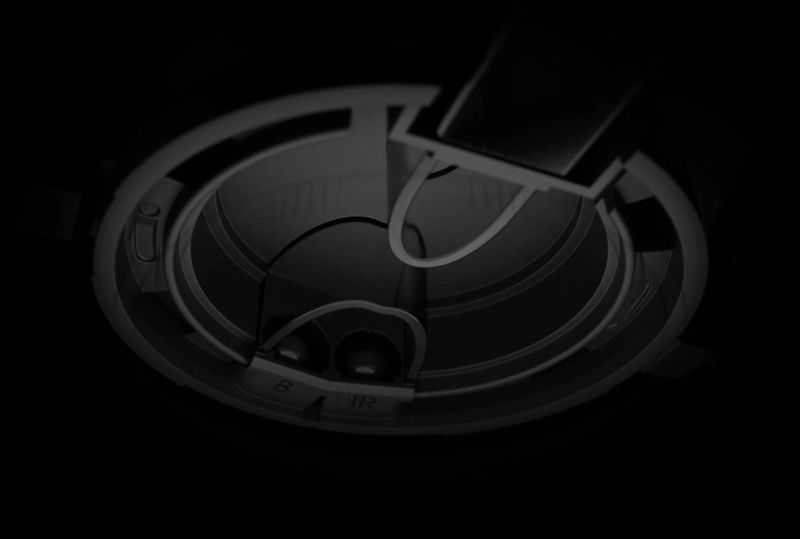

Smoke chamber with a dual-spectrum optical sensor

Smoke sensing

Two colours of light help the optical sensor distinguish smoke from common interference. Keep the chamber and air paths clear.

Two thermistors

Heat sensing

Temperature sensors respond to excessive heat and a rapid temperature rise, separately from the optical smoke signal.

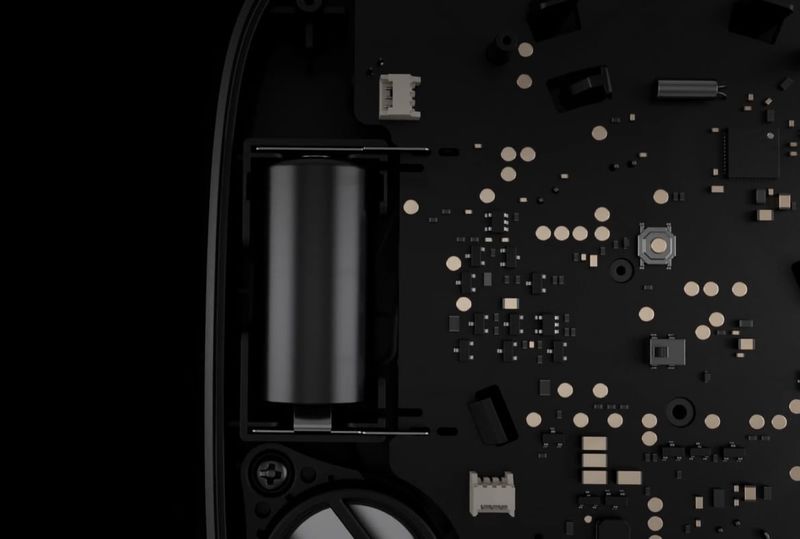

Batteries

Replaceable or sealed

RB uses replaceable batteries; SB uses a sealed battery for its specified service life. The image shows the RB arrangement. Both need routine tests.

85 dB siren

A local audible warning

The detector can warn locally without an alarm hub. An optional hub adds app alerts and supported connected functions; these need separate commissioning.

Let the other alarms know. Interconnection needs commissioning.

With primary interconnection enabled, a detector sends an alarm to the hub, which starts the other configured fire sounders. Compatible FireProtect 2 units can also support a fallback radio alarm between detectors if the hub link is lost. Fallback requires firmware 5.59.2.xx or later, the marked supporting hardware and proper setup. Do not assume separate unpaired detectors automatically interconnect.

Match protection to the hazard. Different sensors do different jobs.

Smoke, heat and carbon monoxide are not interchangeable hazards. Compare the sensing functions, then have the siting and coverage checked for the property. The RB/SB Model option changes battery maintenance, not the hazards detected. Mains-powered AC models are listed separately.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.
	Ajax FireProtect 2 Smoke, Heat and CO Alarm View product	Ajax FireProtect 2 Smoke and Heat Alarm View product	Ajax FireProtect 2 Heat Alarm View product
Price Including VAT	From £187.75	From £123.25	From £111.50
Detection	Smoke, Heat, Carbon monoxide	Smoke, Heat	Heat
Power supply	RB: 2 x CR123A replaceable batteries. SB: 2 sealed lithium batteries.	RB: 2 x CR123A replaceable batteries. SB: 2 sealed lithium batteries.	RB: 2 x CR123A replaceable batteries. SB: 2 sealed lithium batteries.
Alarm volume	85 dB at 3 m	85 dB at 3 m	85 dB at 3 m
Size (W x H x D)	124 x 124 x 45 (mm)	124 x 124 x 45 (mm)	86 x 86 x 44 (mm)

Optional connected protection. Add the roles you need.

The detector can warn locally without a hub. Hub 2 Plus adds supported app and system functions. ManualCallPoint Red is a separate, hub-dependent way to raise an alarm manually; it does not detect smoke, heat or carbon monoxide.

Ajax Hub 2 Plus Alarm Hub

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Ajax ManualCallPoint (Red) Jeweller

ManualCallPoint Red allows a person to trigger a configured fire alarm manually. Its resettable element avoids replacing break-glass material after a test or activation.

What you need. Fitting and setup.

No mains cable is required. RB models use two replaceable CR123A batteries; SB models have sealed batteries and the complete detector must be replaced when they are depleted. Follow the selected model's positioning, testing and replacement instructions. For a hub-connected installation, check Battery Life Optimization and commission the radio link and interconnection. Check the detector type, siting and coverage against the product instructions and the requirements for your property. Seek specialist advice if you are unsure.

Fitting and setup guide RB specifications SB specifications

Part	Size (mm)
width	124
Height	124
Depth	45

Brand

SKU

AJAX-FIREPROTECT2-RB-SMOKE-HEAT

Network Connection

Jeweller when paired with a compatible hub; standalone local alarm supported

Power Supply

RB: 2 x CR123A replaceable batteries. SB: 2 sealed lithium batteries.

Enclosure Protection

IP20

Detection

Smoke, Heat

Radio Range

Up to 1,700 m in open space

Alarm Volume

85 dB at 3 m

Hub Requirements

Optional for local alarm; required for app and configured system functions

Operating Temperature

0 to +50 C

FAQs

No. This FireProtect 2 can detect its specified hazards and sound locally without a hub. A compatible hub adds app notifications and configured system functions. Do not assume separate unpaired alarms automatically interconnect.

Yes. It includes smoke detection as well as the other sensing functions listed for this model. Correct positioning, testing and maintenance remain essential.

Yes. This version is battery powered. Follow the selected model instructions for siting, testing and battery or end-of-life replacement.

A compatible Ajax hub adds remote status and app notifications. The hub needs a working configured connection to Ajax Cloud for remote alerts.

SmartBracket secures the battery-powered detector without mains or network cabling. Check the exact siting and spacing instructions for this sensor type.

Use the Test/Mute button and inspection procedure in the manual. Act on low-battery, fault and end-of-life warnings rather than assuming a silent alarm is healthy.
