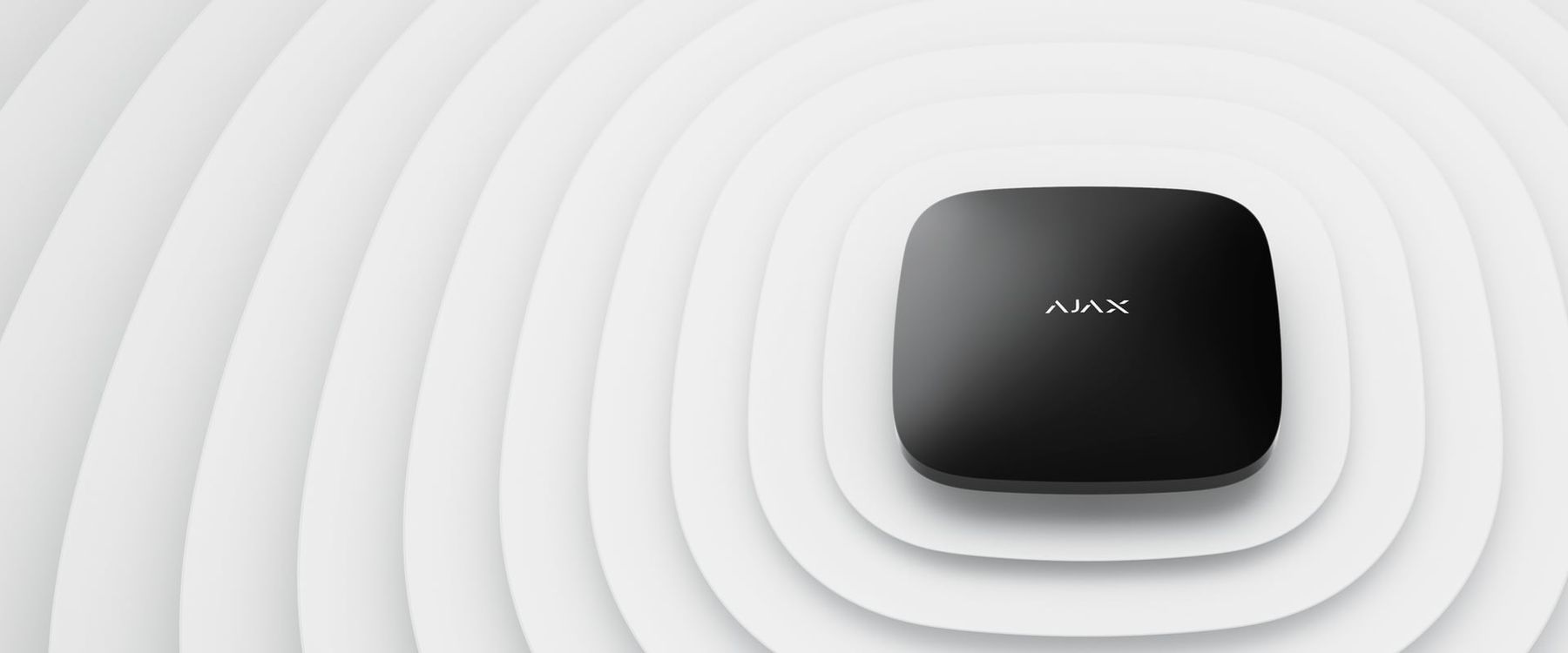

Ajax Hub 2 (4G) Jeweller

£287.95

(£239.96 ex VAT)

sku: AJAX-HUB-2-4G

Hub 2 (4G) is the smaller-system alternative to Hub 2 Plus. Ethernet and two mobile SIM slots keep compatible detectors connected to the Ajax app. It supports photo verification, but has no Wi-Fi connection.

A compatible system and correctly planned installation are required; see fitting guidance below.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)
Additional Keys are available below
Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

Ajax Baseline

A focused alarm system. Without the extra capacity.

Ajax Hub 2 (4G) Jeweller

Ethernet first. Mobile backup ready.

Hub 2 (4G) connects to a router by Ethernet and provides two SIM slots for cellular communication. It does not have Wi-Fi. Using different mobile providers can add resilience where coverage permits; a SIM needs an active service. This is a mains-powered hub with a backup battery, not a battery-only remote-site control panel.

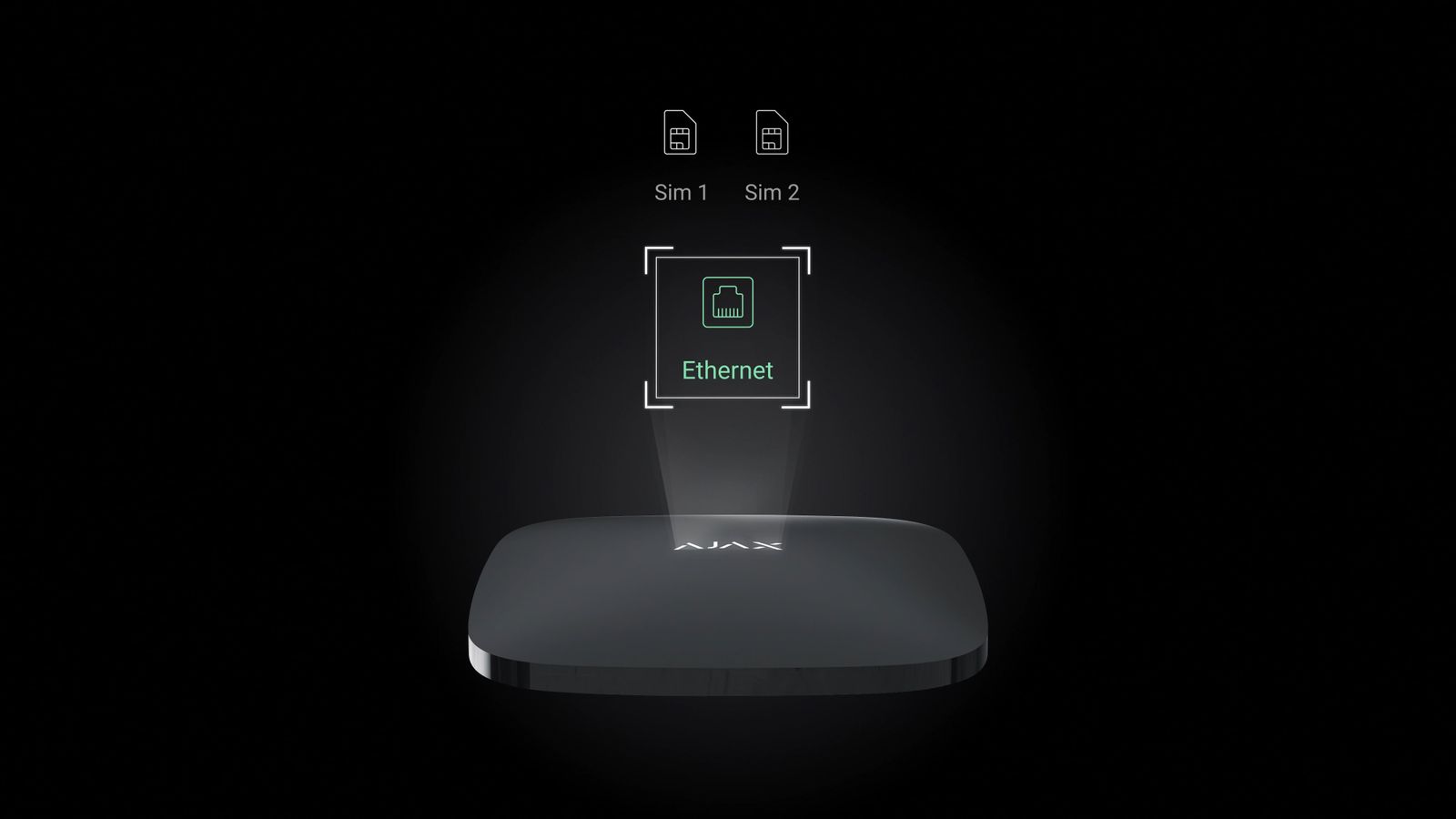

Always connected — via cable and cellular networks

Wi-Fi or more capacity? Know the alternatives.

Hub 2 Plus is our main choice for a home: Ethernet, Wi-Fi and mobile backup in one hub. Hub 2 (4G) is a smaller-capacity alternative without Wi-Fi. Hub BP is the specialist battery-powered option for sites without a suitable mains supply. These are alternatives, not three hubs needed together.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.

Ajax Hub 2 Plus Alarm Hub

View product

Ajax Hub 2 (4G) Jeweller

View product

Ajax Hub BP Jeweller

View product
Price Including VAT From £344.50From £287.95From £279.95
Network connection
  • Ethernet, 2.4 GHz Wi-Fi and two micro-SIM slots (2G/3G/4G)
  • Ethernet and two SIM slots (2G/3G/4G); no Wi-Fi
  • Two SIM slots (2G/3G/4G)
System capacity
  • Up to 200 devices, 200 users, 25 groups, 50 rooms and 64 scenarios
  • Up to 100 devices, 50 users, 9 groups and 32 scenarios
 Not specified
Power supply
  • 110-240 V AC, 50/60 Hz; built-in 3 Ah backup battery
  • Mains power with built-in backup battery
  • Supported internal or external battery, purchased separately
Battery life
  • Backup up to 15 hours with Ethernet disconnected and SIM communication only
 Not specified Not specified
Size (W x H x D)
  • 163 x 163 x 36 (mm)
  • 163 x 163 x 36 (mm)
  • 238 x 196 x 100 (mm)

An alarm you can check visually.

With compatible MotionCam detectors, the hub passes alarm photographs to authorised Ajax users and a configured monitoring service. The camera is in the detector, not the hub. Choose a photo-on-demand detector only if that additional checking function is wanted; normal alarm photo verification and live CCTV are different capabilities.

Manage rooms without managing several alarms.

Give detectors useful room names, assign users and divide protection into security groups. The app shows the device and area involved in an event, while you can adjust and test the system remotely. Hub 2 (4G) supports up to 100 devices and nine groups; Hub 2 Plus offers more expansion capacity.

Build around the property. The different roles in an alarm.

Detectors report events, a keypad provides local control and a siren adds an audible warning. These are complementary roles, not four alternative hubs. Choose the devices and quantities for the property.

Ajax MotionProtect U Jeweller

MotionProtect U is our straightforward indoor motion detector for an Ajax alarm. Its PIR sensor detects movement while the compact enclosure sits quietly in the room.

Ajax DoorProtect U Door and Window Contact

A compact wireless opening detector for doors and windows. Flexible magnet positioning, an additional wired-sensor input and optional chime alerts.

Ajax KeyPad Plus Wireless Alarm Keypad

Control your Ajax alarm with a code, Pass card or Tag key fob. A touch-sensitive keypad with contactless access and individual permissions.

Ajax HomeSiren U Indoor Alarm Siren

A compact indoor siren with adjustable sound and LED indication. Adds alarms, entry/exit reminders and optional door-opening chimes to Ajax.

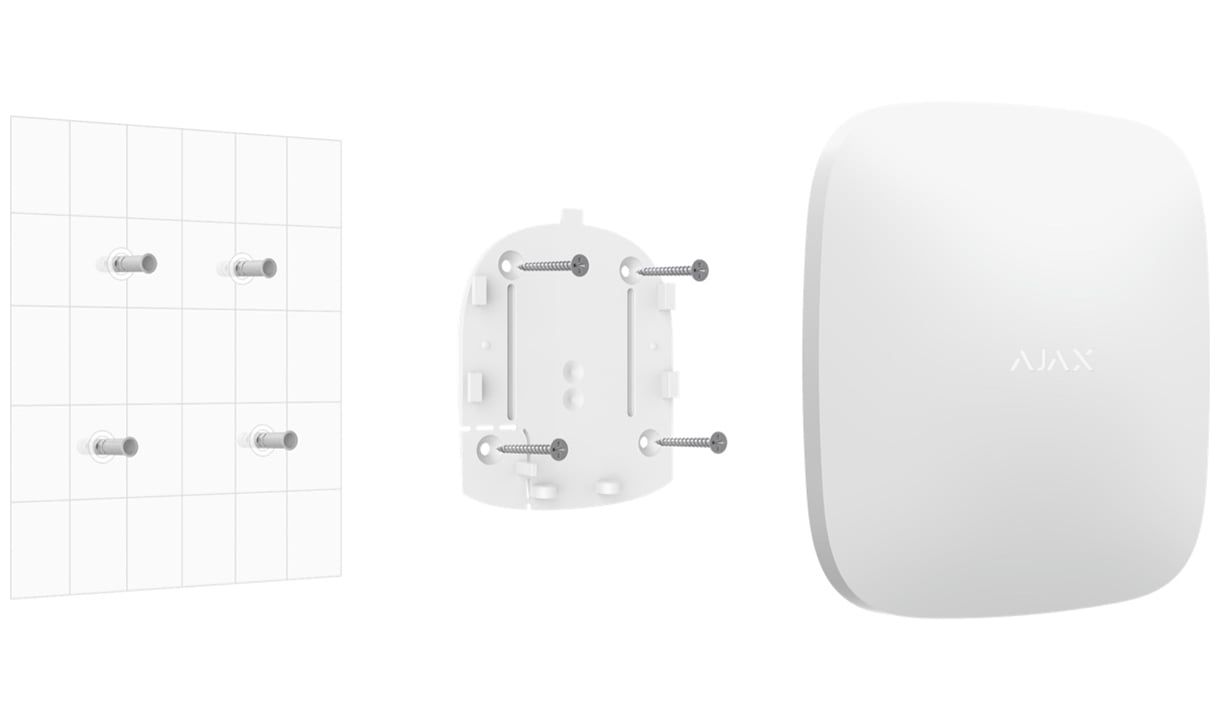

What you need. Fitting and setup.

Provide mains power and an Ethernet connection to your router, or an active compatible SIM with mobile coverage. Two SIM slots allow an additional mobile provider; subscriptions are separate. Mount indoors, then pair and test the detectors and sirens. It is not a camera recorder.

Fitting and setup guide Technical specifications
Installation
Part Size (mm)
width 163
Height 163
Depth 36

Brand

SKU

AJAX-HUB-2-4G

Network Connection

Ethernet and two SIM slots (2G/3G/4G); no Wi-Fi

Power Supply

Mains power with built-in backup battery

Enclosure Protection

IP20

System Capacity

Up to 100 devices, 50 users, 9 groups and 32 scenarios

FAQs

No. Hub 2 (4G) uses Ethernet and compatible mobile SIM service. Hub 2 Plus adds Wi-Fi and greater system capacity.

No. Cellular service can be the normal connection or a backup at a home or business. This hub still needs its specified mains supply; Hub BP is the dedicated battery-powered alternative.
