Door Locks and Accessories:Mortice Door Locks:Horizontal Mortice Locks
OPERATION : Deadbolt is locked or unlocked from either side. Reversible latchbolt withdrawn by knob from either side.
FEATURES : Can be masterkeyed or keyed alike with other detainer mortice locks.
Dimensions :- Case depth 165mm, Backset (follower/knob) 150mm, Backset (keyhole) 83mm, Case height 97mm, Forend length 143 mm, Forend width 25 mm.
KEYED ALIKE LOCKS ARE £5 EXTRA. IMPORTANT NOTE. Keyed alike locks are only supplied with one set of keys. This is because the first lock mechanism remains unchanged and any additional locks are modified to match this. The keys supplied with these additional locks cannot be used and are scrapped. If you require more than one set of keys these can be ordered at extra cost. See this page for price.
Price : (4 or fewer items) £101.70 £119.50 Including VAT at 17.5% Price : (5 to 9 items) £95.70 £112.45 Including VAT at 17.5% Price : (10 or more items) £90.65 £106.51 Including VAT at 17.5%

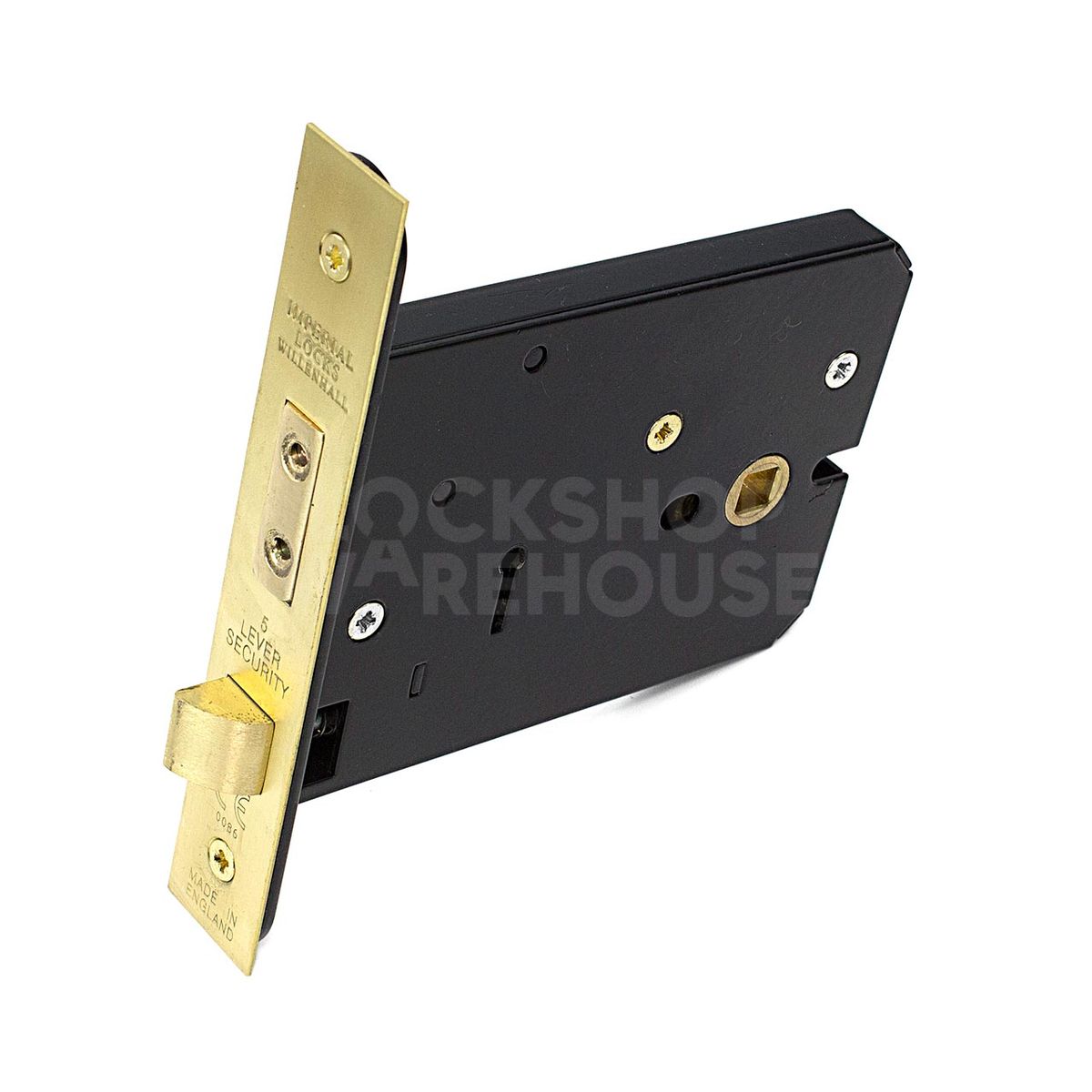

OPERATION
Deadbold is locked or unlocked by key from either side. , Reversibie latchbolt withdrawn by knob from either side.
FEATURES
Pierced to accept bolt through furniture.
LOCK DIMENSIONS (See dimensions link below for key)
6 INCH : A = 152mm, B= 127mm, C= 51mm, D= 70mm, E= 121mm, F= 25mm.

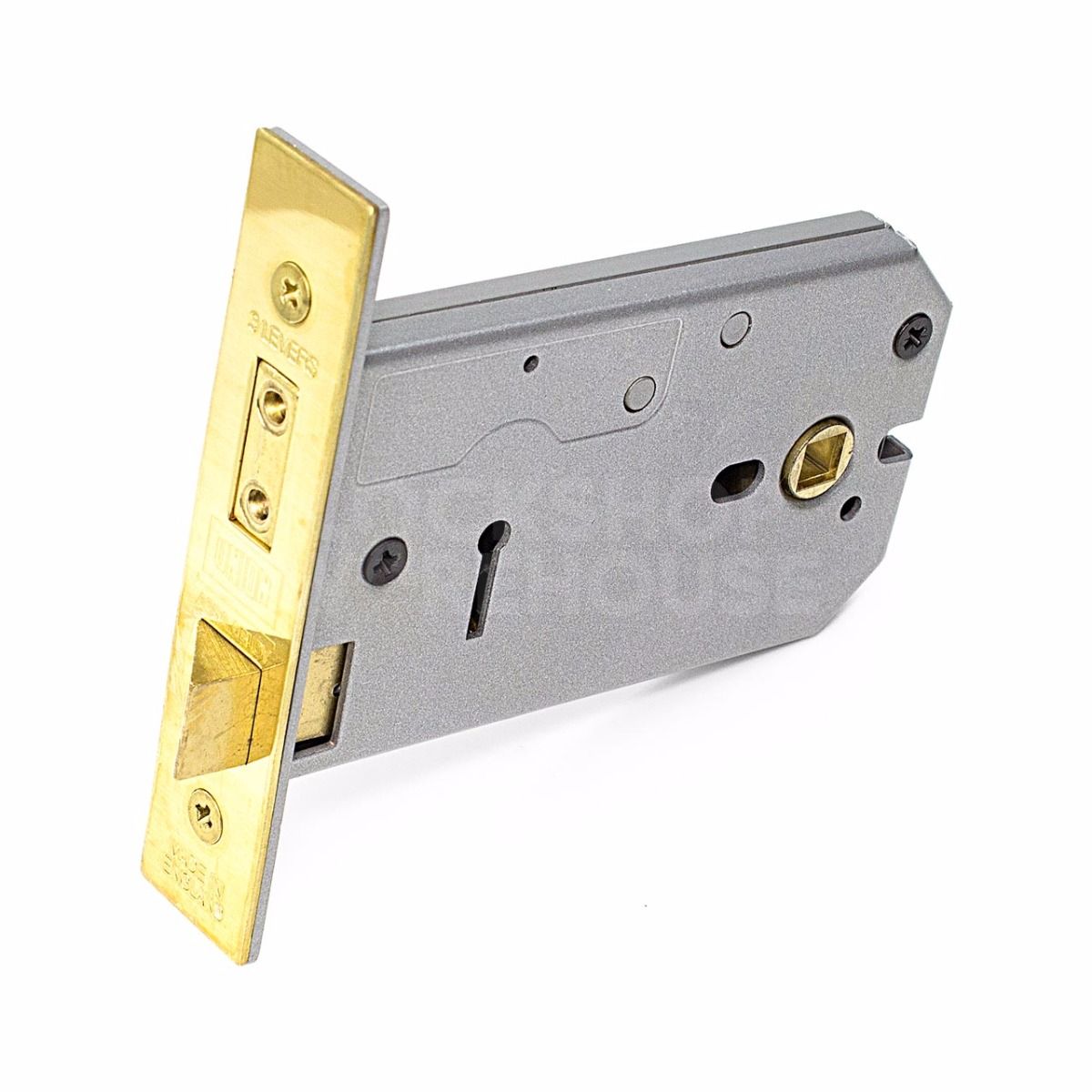

5 INCH : A = 127mm, B= 101mm, C= 38mm, D= 70mm, E= 121mm, F= 25mm.
KEYED ALIKE IS A EXTRA £5.00 - KEY M101M
IMPORTANT NOTE. Keyed alike locks are only supplied with one set of keys. This is because the first lock mechanism remains unchanged and any additional locks are modified to match this. The keys supplied with these additional locks cannot be used and are scrapped. If you require more than one set of keys these can be ordered at extra cost. See this page for price.
Dimensions Price : (9 or fewer items) £17.50 £20.56 Including VAT at 17.5% Price : (10 to 49 items) £17.00 £19.98 Including VAT at 17.5% Price : (50 or more items) £16.50 £19.39 Including VAT at 17.5%

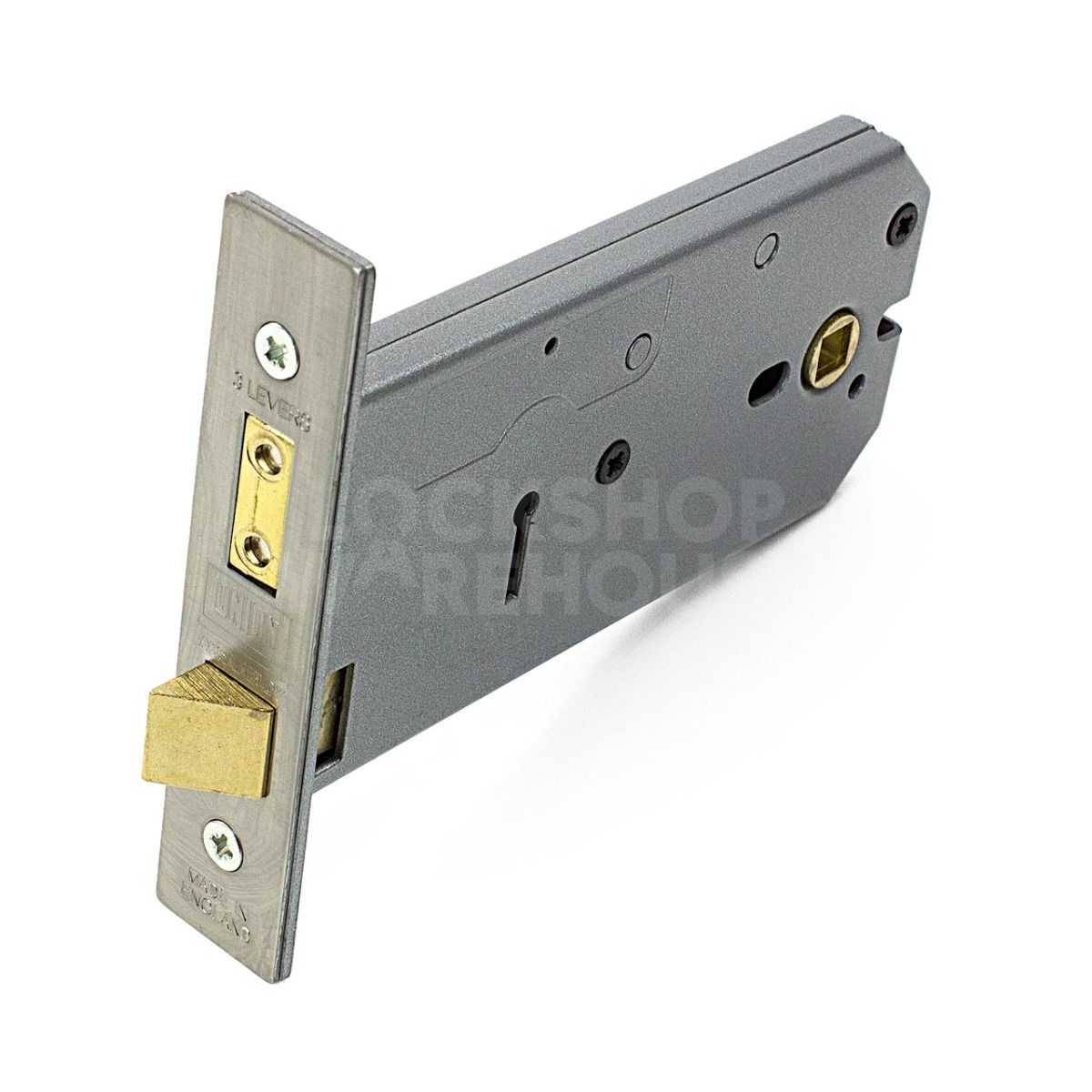

Case Sizes : 127mm & 152mm
Follower : 8mm (Latch) 5mm (Dead)
Case Finish : Enamelled Silver
Forend Finish : Brass or Satin Chrome
OPERATION : Deadbolt is locked or unlocked by turn from the inside. Reversible latchbolt withdrawn by knob from either side.
FEATURES: Pierced to accept bolt through furniture.
Dimensions Price : £26.60 £31.26 Including VAT at 17.5%
Dimensions Price : £42.66 £50.13 Including VAT at 17.5%

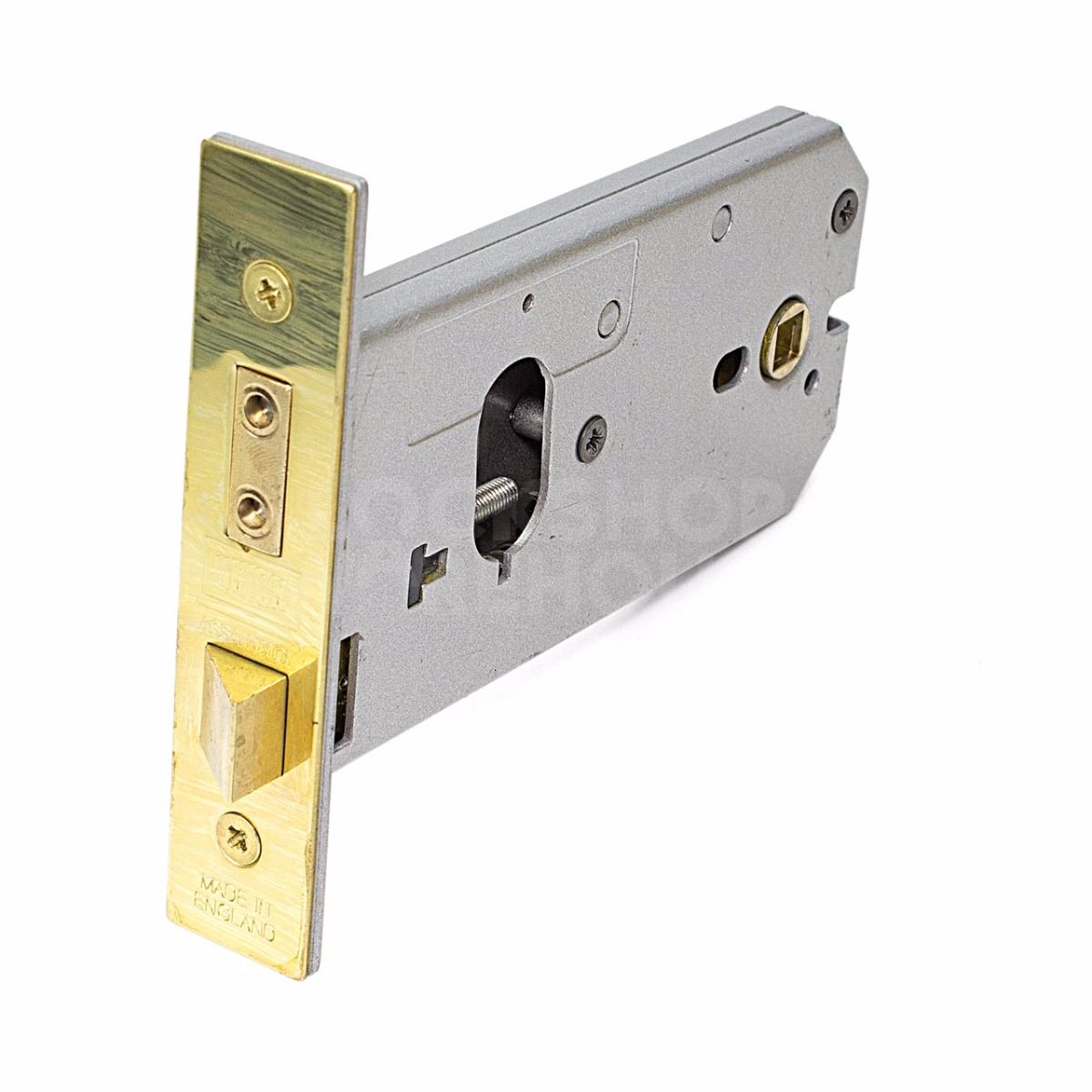

Mechanism : Oval Cylinder(Not Supplied), Case Size : 152mm, Follower : 8mm (Two Way Action), Case Finish : Enamelled Silver, Forend Finish : Brass or Satin Chrome , Handing : Reversible
OPERATION : Deadbolt is locked or unlocked by oval profile single cylinder,
double cylinder or cylinder & turn. Reversible latchbolt withdrawn by knob from either side.
FEATURES : Pierced to accept bolt through furniture.
Dimensions Price : £22.02 £25.87 Including VAT at 17.5%

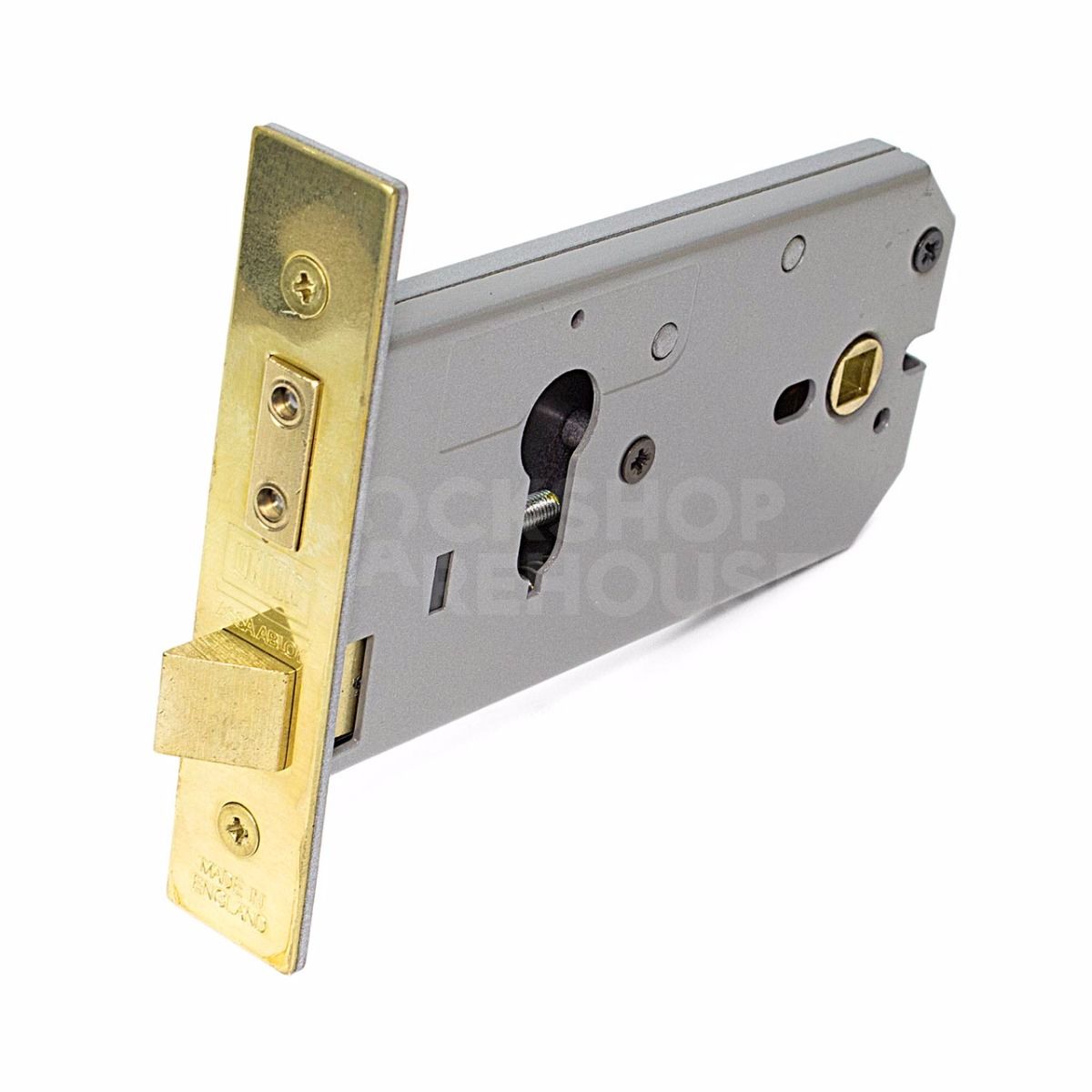

Mechanism : Euro Cylinder(Not Supplied) , Case Size : 152mm, Follower : 8mm (Two Way Action), Case Finish : Enamelled Silver, Forend Finish : Brass or Satin Chrome , Handing : Reversible
OPERATION : Deadbolt is locked or unlocked by Euro profile single cylinder,
Dimensions Price : £21.02 £24.70 Including VAT at 17.5%
Price : £22.35 £26.26 Including VAT at 17.5%
Finish Brass Satin Chrome
