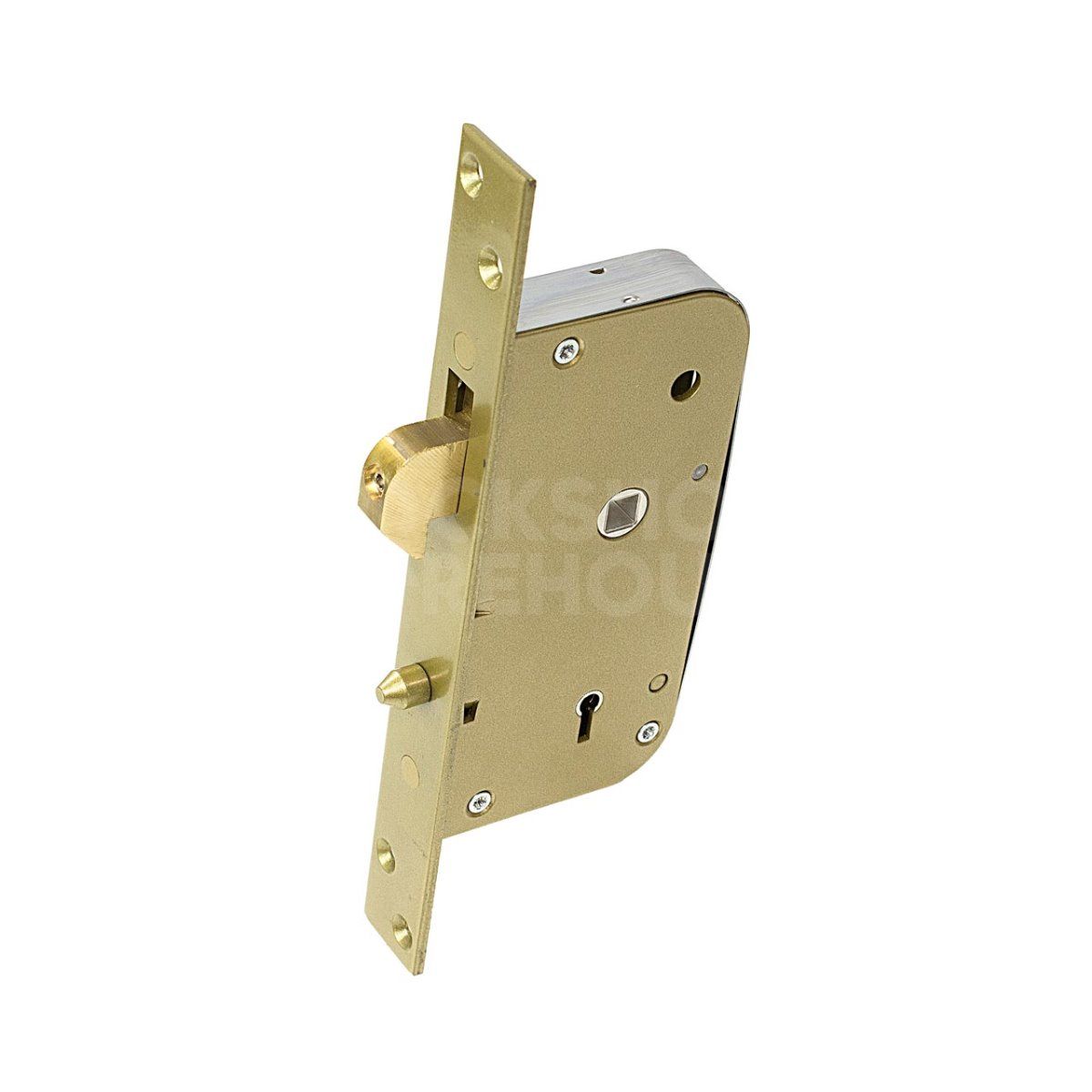

 | Chubb 3M51 70mm Clutch Bolt (Reference #118)
This 5 detainer mortice lock is suitable for sliding doors requiring automatic closing action. Handles can be fitted to one or both sides and the key can be used on either side to secure both bolt and handle(s). A projecting stump on the forend engages into the locking plate to prevent the door being lifted from the frame in the closed position. Bolt-through fixing is also provided. Supplied with gold texured faceplate. KEYED ALIKE LOCKS ARE £5 EXTRA. IMPORTANT NOTE. Keyed alike locks are only supplied with one set of keys. This is because the first lock mechanism remains unchanged and any additional locks are modified to match this. The keys supplied with these additional locks cannot be used and are scrapped. If you require more than one set of keys these can be ordered at extra cost. See this page for price. Dimensions
Price : £95.00 £111.63 Including VAT at 17.5%
|
Key Configuration
Keyed to differ Keyed Alike
|
|
Chubb 3M50 70mm Hook Bolt (Reference #117)
A 5 detainer mortice lock suitable for sliding or hinged doors. The hooked bolt clutches the lock to the door frame, whilst a 'steady' bolt prevents the door being lifted to release the hook. Key operation is from either side. Bolt-through fixing facility is also provided. Other security features are comparable to similar 5 detainer mortice locks with which it can be master keyed. Supplied with gold texured faceplate.KEYED ALIKE LOCKS ARE £5 EXTRA. IMPORTANT NOTE. Keyed alike locks are only supplied with one set of keys. This is because the first lock mechanism remains unchanged and any additional locks are modified to match this. The keys supplied with these additional locks cannot be used and are scrapped. If you require more than one set of keys these can be ordered at extra cost. See this page for price. Dimensions
Price : £99.35 £116.74 Including VAT at 17.5%
|  |
Key Configuration
Keyed to differ Keyed Alike
|
|
 | Extra Key for Chubb 5 Lever locks(Reference #171)
Price : £4.00 £4.70 Including VAT at 17.5%
|
| |
|

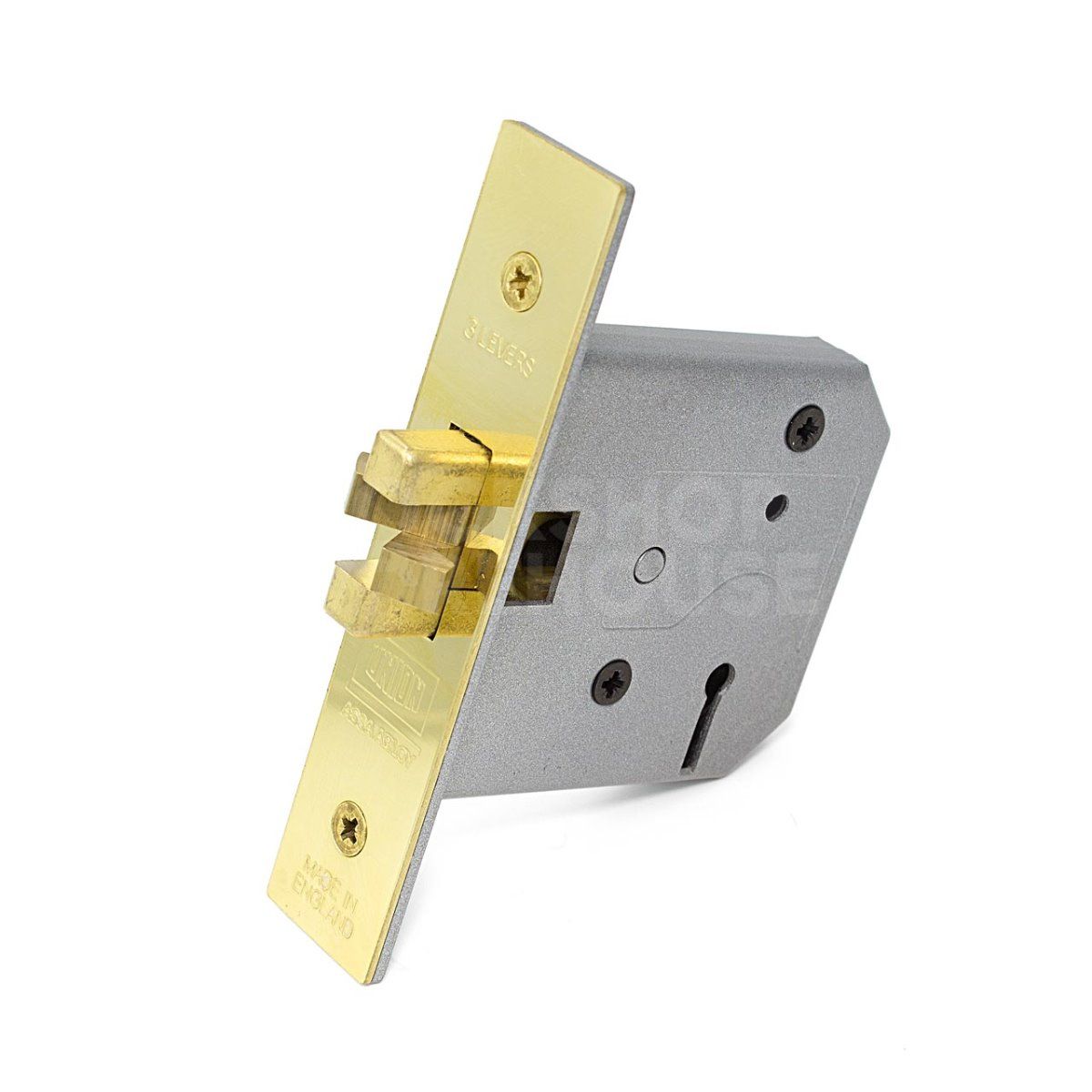

Union 2401 5 Lever Sliding Door Lock 78mm Satin Chrome(Reference #119)
Application: Wooden doors hinged on the left or right and requiring key operation only. Operation:Claw Deadbolt locked or unlocked by key from either side. Can be supplied keyed alike with J-2101 and J-2201 Finish: Satin Chrome Case Size: 78mm (3") Case Material and Finish: Steel, Red Enamelled. Forend: Stainless Steel, finished to match strike plate. Striking Plate: Stainless Steel, finished to match forend. Deadbolt: Deadbolt - Brass, expanding claw. Other Product Benefits: Rebate sets not available to suit. Keyblank reference KB430.
Price : £23.80 £27.97 Including VAT at 17.5%
|  |
| |
|

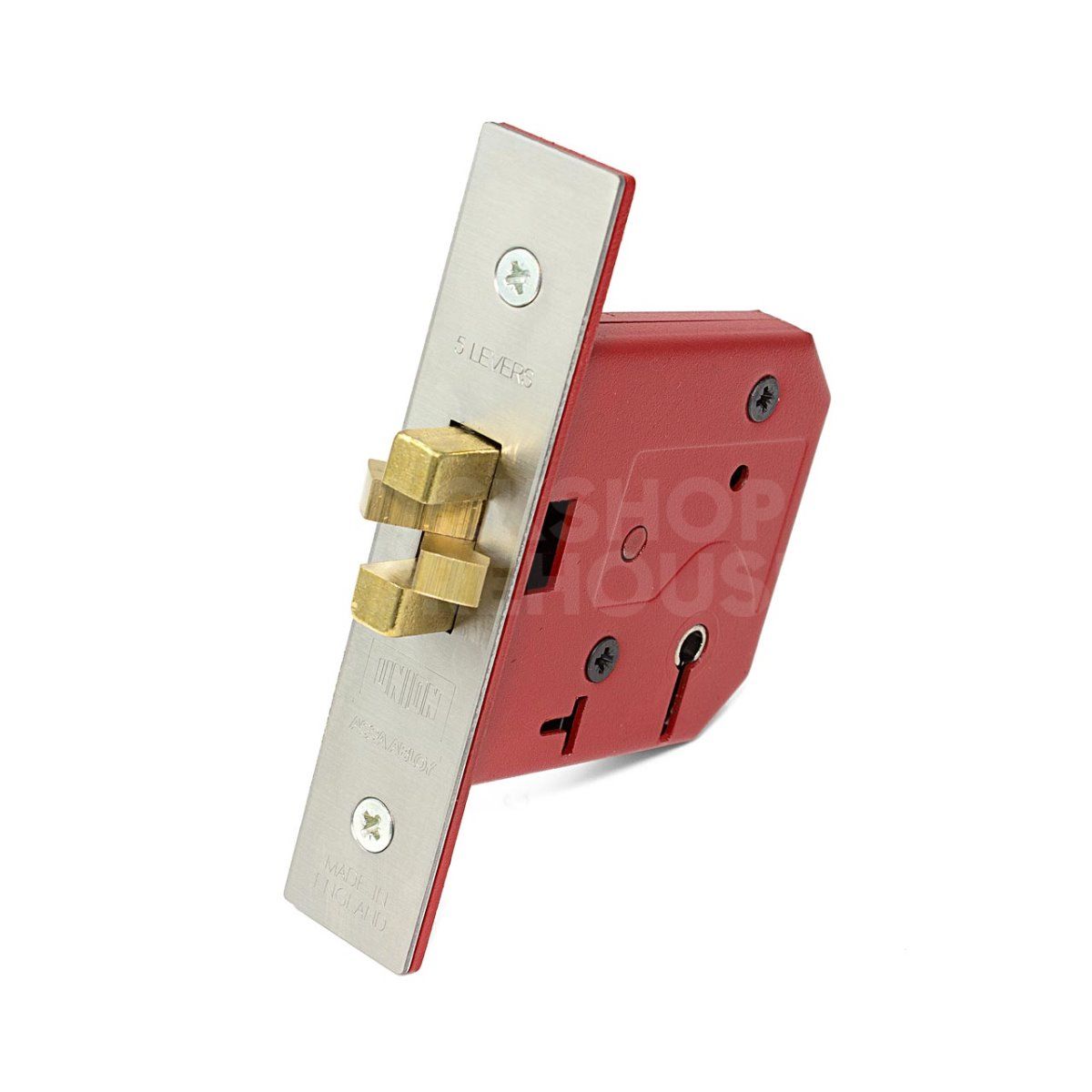

 | Union 2477 3 Lever Sliding Door Lock 78mm(Reference #120)
Description: 3 lever mortice deadlock for sliding doors. Application: Wood doors sliding from the left or right and requiring key operation only. Operation: Claw Deadbolt locked or unlocked by key from either side. Finish: Finish shown in Satin Chrome J-2477-SC-78. Also available in Polished Brass J-2477-PB-78 Case Size: 78mm (3"). Case Material and Finish: Steel, Silver Enamelled. Forend: Stainless Steel, finished to match strike plate. Striking Plate: Stainless Steel, finished to match forend. Deadbolt: Deadbolt - Brass, hardened steel rollers. Keying Groups: KA4, 2 steel keys. Other Product Benefits: 2969 rebate set available to suit, (13, 19 or 25mm sizes). Keyblank reference KB436. Spare cut keys reference MM (numbers range 101-200).
Price : (9 or fewer items) £16.50 £19.39 Including VAT at 17.5%
Price : (10 or more items) £16.00 £18.80 Including VAT at 17.5%
|
Finish
Brass Satin Chrome |
|
Union L2441 Oval Cylinder Sliding Door Lock Case 78mm(Reference #680)
Application: Wooden sliding doors hinged on the left or right and requiring key operation only. 78mm (3") Operation:Expanding clawbolt. Suitable for sliding doors, sliding from left or right. Deadbolt locked or unlocked by cylinder key from outside. Deadbolt locked or unlocked by cylinder turn or key from inside. Various cylinder lengths available.Finish: Finish shown in Polished Brass or Satin Chrome Case Size, Material and Finish: 78mm (3"), Steel, Silver Enamelled. Forend: Stainless Steel, finished to match strike plate. Striking Plate: Steel, finished to match forend. Deadbolt: Brass, expanding claw. Cylinder Type: Oval Profile. Other Security Features: Can be used with a patented cylinder system. Other Product Benefits: 2919 rebate sets available to suit (13, 19 or 25mm sizes). Reference stainless steel strike plates, contact UNION.
Price : £22.70 £26.67 Including VAT at 17.5%
|  |
Finish
Brass Satin Chrome |
|
 | Union 2 x 13 Oval Key and Turn Cylinder(Reference #978)
Brass or satin chrome. 5 Pin. 3 Keys supplied.
Price : £18.23 £21.42 Including VAT at 17.5%
|
Finish
Brass Satin Chrome
Size
'A' Length 'B' Length 'C' Length
|
|
Cisa 45010-16 Sliding Door Lock Satin Nickel (S-Oval)(Reference #2977)
Mechanism : Small Oval Cylinder, Case Size : 30mm , Case Finish : Zinc Plated . Forend Finish : Satin Nickel. Keys Supplied : 3 OPERATION Hookbolt is locked or unlocked from either side by small oval profile double cylinder. FEATURES Suitable for metal sliding doors with very narrow stile. Supplied complete with 08210-02 double cylinder - Length 55mm 27.5mm, 27.5mm. Oval size 28mm x 13mm. DIMENSION KEY (See link below) A = 30, B = 16, C = 100, D = 158, E = 20mm Dimensions
Price : £23.80 £27.97 Including VAT at 17.5%
|  |
| |
|

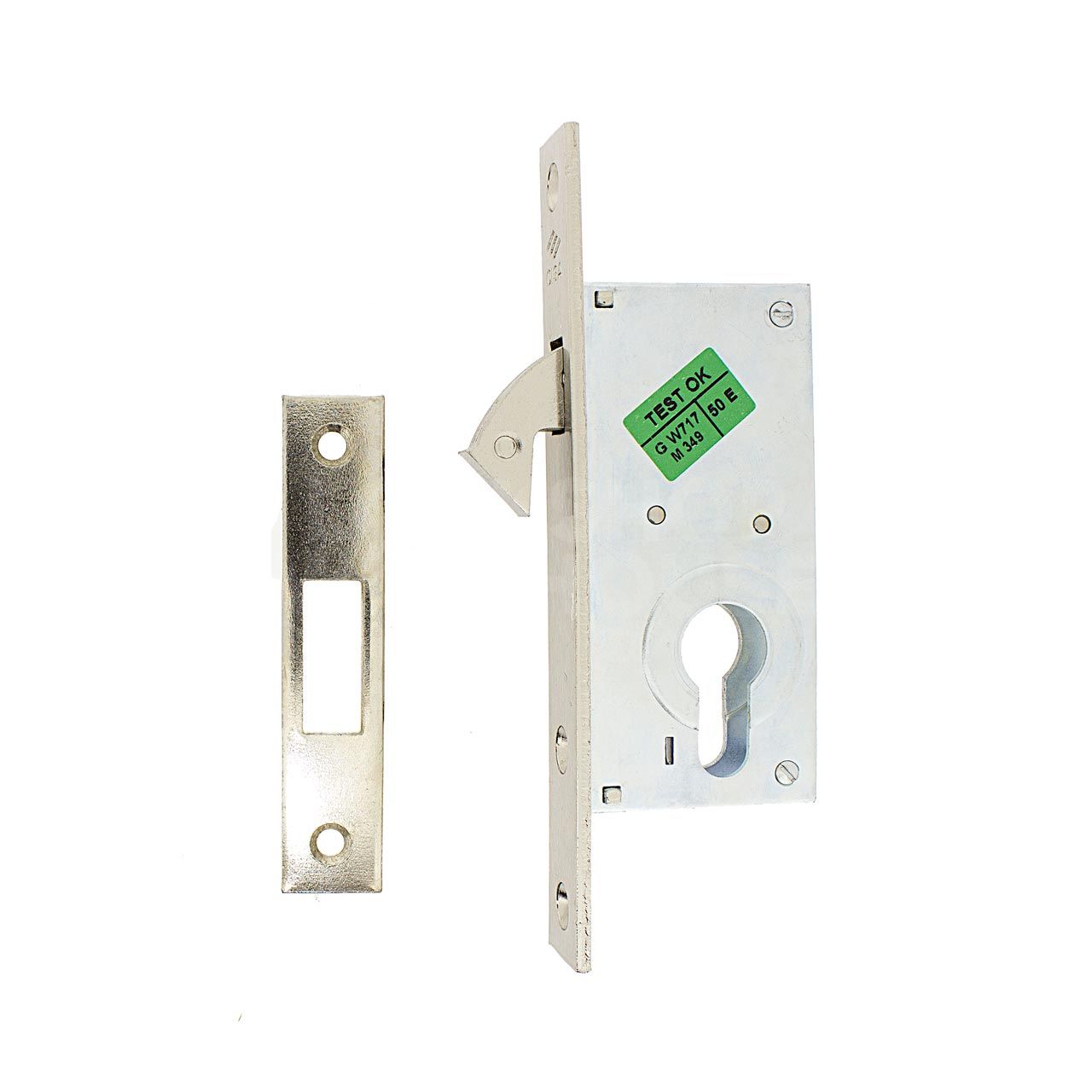

 | Cisa 45110-30 Sliding Door Hook Case Nickel (Euro Cylinder)(Reference #L1554)
Case only supplied. Mechanism : Euro Cylinder, Case Size : 50mm, Case Finish : Zinc Plated, Forend Finish : Nickel Plated OPERATION. Hookbolt is locked or unlocked by euro profile single cylinder, double cylinder or cylinder & turn. FEATURES Suitable for metal sliding doors. DIMENSION KEY (See link below) A = 50, B = 30, C = 100, D = 158, E = 20mm Dimensions
Price : £12.46 £14.64 Including VAT at 17.5%
|
| |
