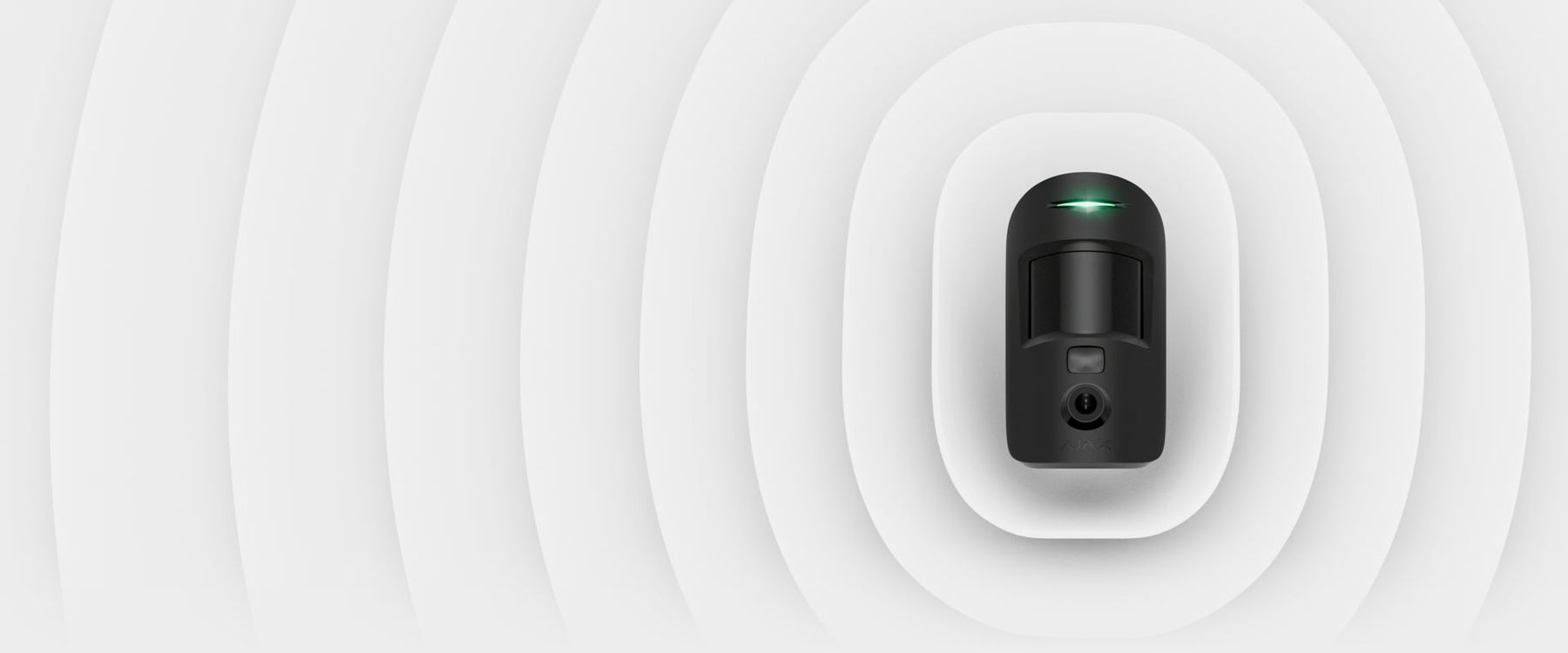

Ajax MotionCam U (PhOD) Motion Detector

Name: Ajax MotionCam U (PhOD) Motion Detector
Brand: Ajax
SKU: AJAX-MOTIONCAM-U-PHOD

£171.50

(£142.92 ex VAT)

sku: AJAX-MOTIONCAM-U-PHOD

Indoor motion detection with HDR photo verification. Understand an alarm with a sequence of pictures, with controlled photo-on-demand access.

Requires a compatible Ajax hub supporting this U (PhOD) model. Photo verification is not continuous video surveillance.

Colour

Keys Supplied: per lock ( total) total (unless ordering multiple groups)

Additional Keys are available below

Qty:

Shipping From:

When ordering multiple Keyed Alike locks, only 1 set of keys are provided as all additional locks are made to work from that key.

If ordering 4 or more keyed alike locks you can have them set up as different groups. If Required: Let us know the details in the "Specific Key Requirements" field above.

Each group of locks will then receive keys.

An alarm with a clearer explanation. See what triggered it.

MotionCam U (PhOD) detects movement and sends a sequence of photographs to the Ajax app. HDR and infrared illumination help make those images useful in difficult light, without installing a continuously recording camera in the room.

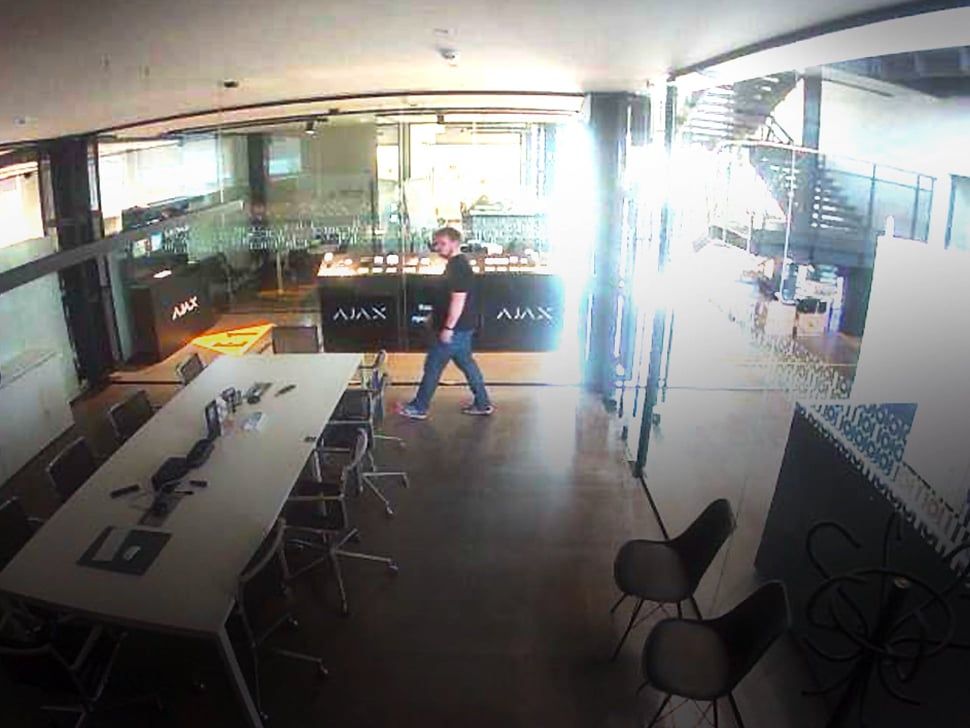

Details in bright and dark scenes.

HDR helps retain detail where a room contains both bright windows and darker areas. Image resolution can be set up to 640 x 480 pixels. This is a photo-verification camera, not an HD video camera.

A photograph when it is needed. With access under your control.

The PhOD version supports authorised photo requests and configured scenarios as well as alarm verification. Permissions determine who may request and view photographs.

Agree those permissions with the occupants. The detector provides event or request-based images, not a continuous live CCTV stream.

Good detection starts with placement.

The PIR sensor covers movement up to 12 metres when installed at 2.4 metres. The lens, SmartDetect processing, temperature compensation and three sensitivity levels work together to distinguish movement from common disturbances. Keep the intended detection zone clear.

Choose the evidence you need.

MotionProtect U is the straightforward indoor choice. MotionProtect Plus U adds microwave verification for more demanding conditions. MotionCam U (PhOD) adds photographs and permission-controlled photo requests. These are alternatives for a detection point, not a checklist of devices needed in every room.

Scroll across if needed to compare prices and specifications.

Product prices and specifications. Configurable products show family options and starting prices.
	Ajax MotionProtect U Jeweller View product	Ajax MotionProtect Plus U Jeweller View product	Ajax MotionCam U (PhOD) Motion Detector View product
Price Including VAT	From £74.50	From £116.95	From £171.50
Detection	1 × PIR sensor	1 × PIR sensor 1 × K-band microwave sensor	PIR motion, up to 12 m at 2.4 m mounting height
Power supply	1 × CR123A; Pre-installed.	1 × CR123A; Pre-installed.	2 x CR123A batteries, pre-installed
Battery life	up to 5 years	up to 5 years	Up to 4 years with Photo on Demand off; up to 3 years with it on
Size (W x H x D)	65 x 110 x 50 (mm)	65 x 110 x 50 (mm)	70 x 135 x 60 (mm)

Part of a complete alarm. Connect the detection to a response.

A compatible hub is required; Hub 2 Plus is our main residential choice. A keypad adds local control and a siren adds an audible warning. These are separate system components, not alternative detectors.

Ajax Hub 2 Plus Alarm Hub

An Ajax alarm hub with Ethernet, Wi-Fi and two mobile SIM slots. Brings compatible detectors, sirens and automation together in the Ajax app.

Ajax KeyPad Plus Wireless Alarm Keypad

Control your Ajax alarm with a code, Pass card or Tag key fob. A touch-sensitive keypad with contactless access and individual permissions.

Ajax HomeSiren U Indoor Alarm Siren

A compact indoor siren with adjustable sound and LED indication. Adds alarms, entry/exit reminders and optional door-opening chimes to Ajax.

What you need. Fitting and setup.

You need a compatible Ajax hub with current software. No mains or Ethernet cable is required at the detector: it uses the two supplied batteries and Jeweller/Wings radio. Mount it indoors at the recommended 2.4 metres, facing across the likely path of movement rather than straight along it. Avoid heaters, direct sunlight, strong draughts and views through glass. Run the radio and detection-zone tests before final fixing. Pet immunity up to 20 kg and 50 cm depends on correct mounting, room layout and sensitivity. If you are unsure about coverage, seek advice before final fixing.

Explore Hub 2 Plus Fitting and setup guide Technical specifications

Part	Size (mm)
width	70
Height	135
Depth	60

Brand

SKU

AJAX-MOTIONCAM-U-PHOD

PIR Motion Sensor

Yes

Horizontal Field Of View

88.5 degrees (motion detection)

Network Connection

Jeweller for events; Wings for photographs

Power Supply

2 x CR123A batteries, pre-installed

Enclosure Protection

IP50

Detection

PIR motion, up to 12 m at 2.4 m mounting height

Radio Range

Up to 1,700 m in open space

Battery Life

Up to 4 years with Photo on Demand off; up to 3 years with it on

Hub Requirements

Compatible photo-capable Ajax hub required; check U (PhOD) compatibility

Operating Temperature

-10 to +40 C

FAQs

No. It is a motion detector that sends still-image sequences for verification. It does not provide continuous live video or a video archive.

No. Photo-on-demand access is permission-controlled and disabled by default. Agree the privacy settings with everyone affected by the installation.

Ajax specifies pet immunity up to 20 kg and 50 cm with correct installation and configuration. Furniture, access near the lens and mounting height affect this, so test the actual room.

Do not plan to detect movement through glass. Follow the indoor placement guidance and verify the detection zone after mounting.

Use the exact MotionCam U (PhOD) compatibility list, not a generic MotionCam listing. Hub 2 Plus is a suitable hub in this pilot; check the current list before adding a range extender.

Infrared illumination allows photographs in darkness and low light. Photo delivery time depends on resolution and radio/network conditions.

Two included CR123A batteries provide up to four years with Photo on Demand disabled, or up to three years with it enabled. The system reports low battery.

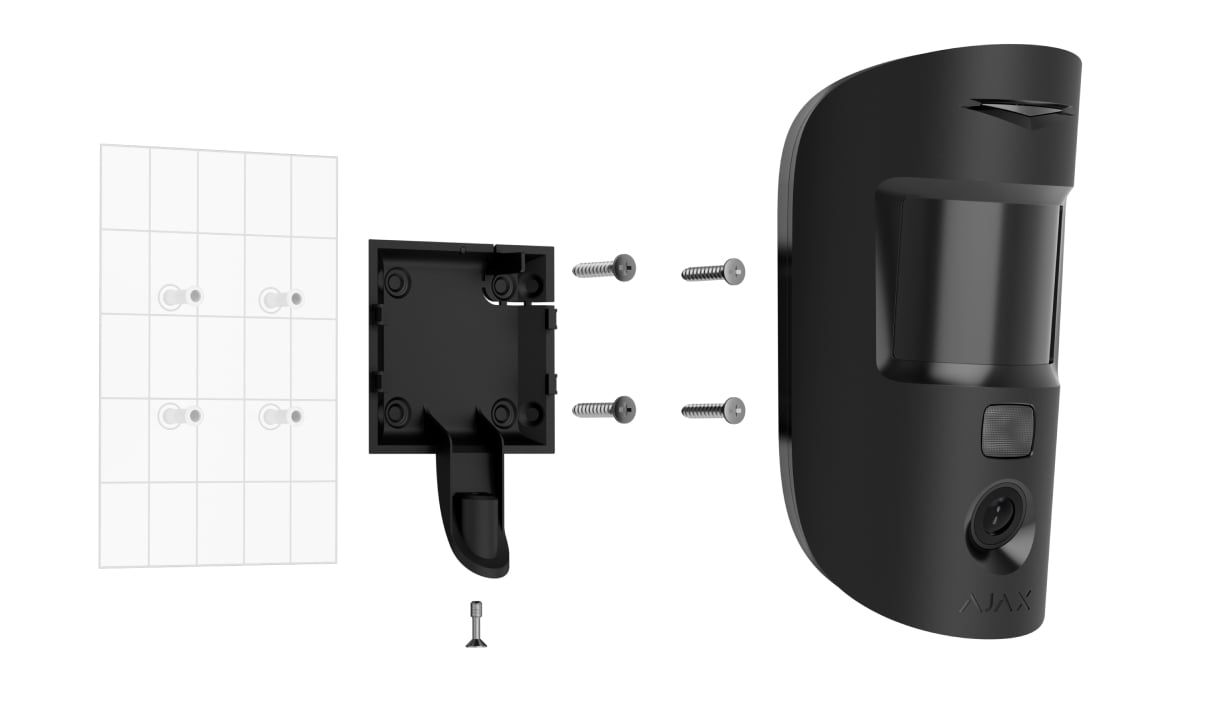

The mounting panel and holding screw secure the detector. Test both Jeweller and Wings signals, then check the detection zone from the likely approach.
